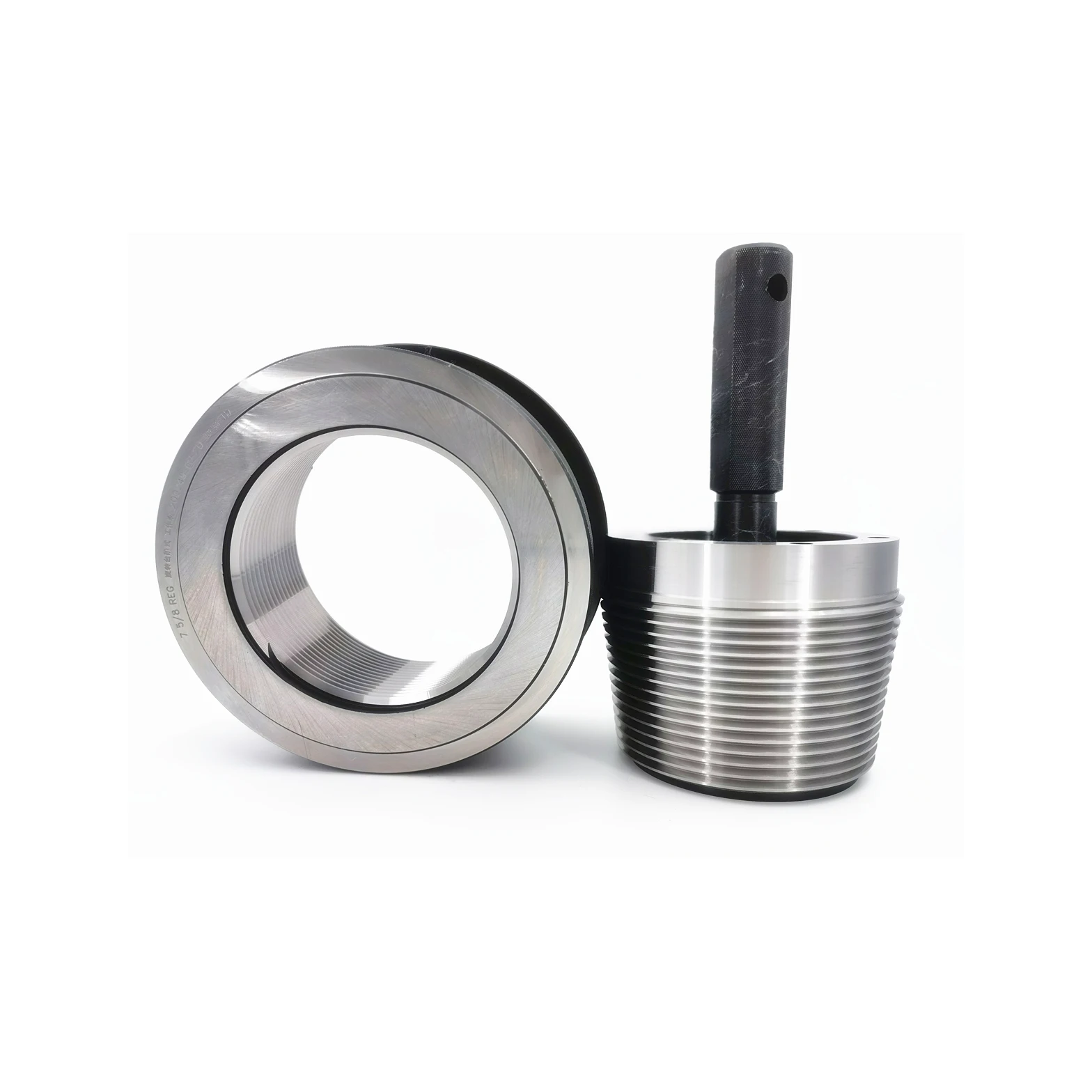

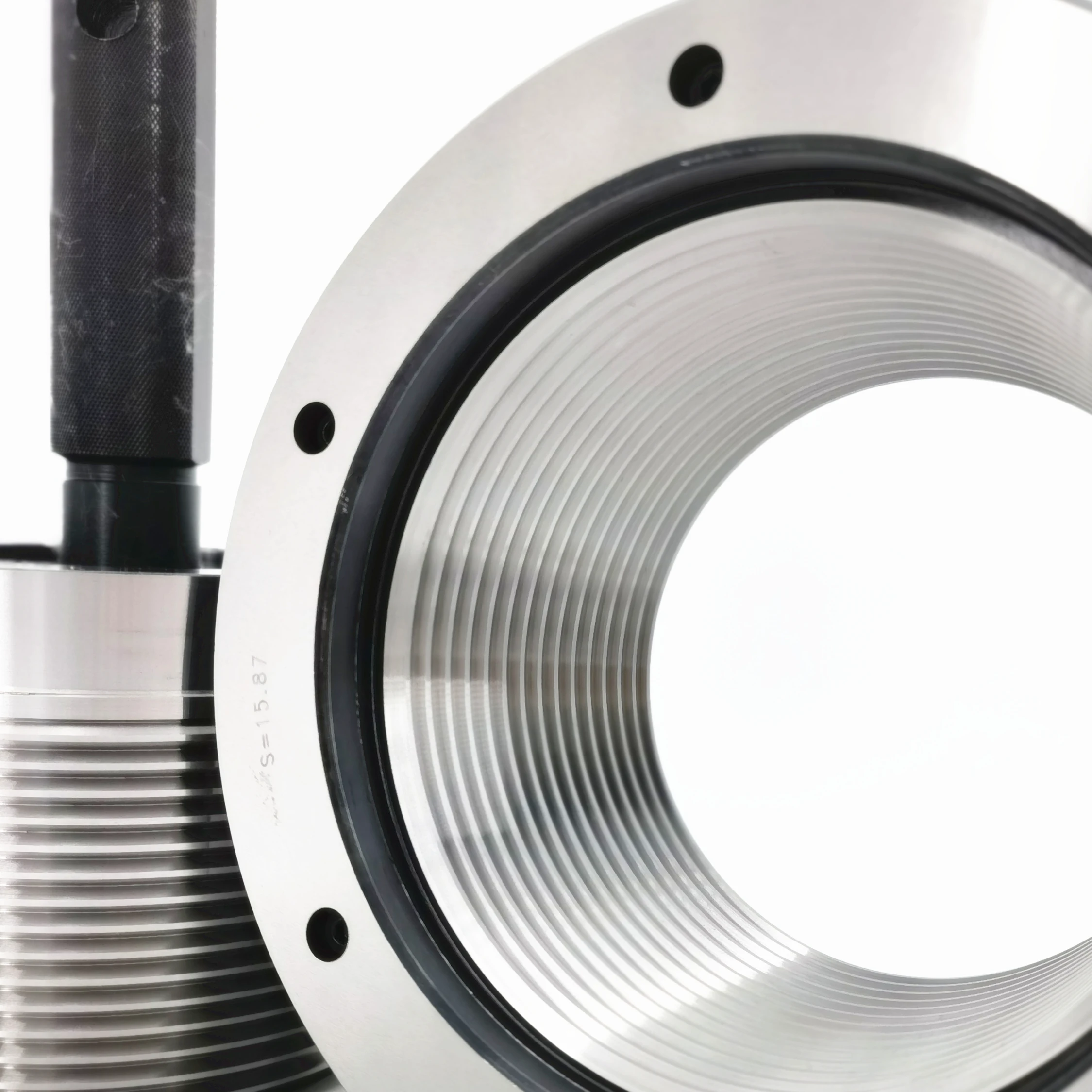

7 5/8 REG Thread gauge of API Spec 7 2 :2017, Promotion of industrial use High precision Thread for Drill Tools manufacturer,
- Category: >>>
- Supplier: Wuxi Breit Precision Measuring Tools Co. Ltd.
Share on (1600705124151):
Product Overview
Description
Product Description
Product Name | API Spec 7-2 Regular Rotary(REG) Working Thread Gauges / Standard API Spec7-2:2017 |
Material | GCr 15 / Tungsten Steel / Forge pieceforging / Hardness 60~63HRC |
Style and Size | API Spec 7-2 REG 1~ 8-5/8 Working Ring&Plug Thread Gauges |
Certification: | Jiangsu Dagong Calibration Technology Co.,Ltd. (JSDG) : Working gauges |
The manufacturer shall have available Working gauges, to gauge
product threads and shall maintain all Working gauges in such condition as to ensure that product threads.
gauged as required herein, are acceptable.The Working gauges shall comply with all the stipulations on calibration and retest
The use of Reference Master gauges in checking product threads should be minimized.
product threads and shall maintain all Working gauges in such condition as to ensure that product threads.
gauged as required herein, are acceptable.The Working gauges shall comply with all the stipulations on calibration and retest
The use of Reference Master gauges in checking product threads should be minimized.
The gauge purchaser of Reference as API Spec7-2 .
Details Images

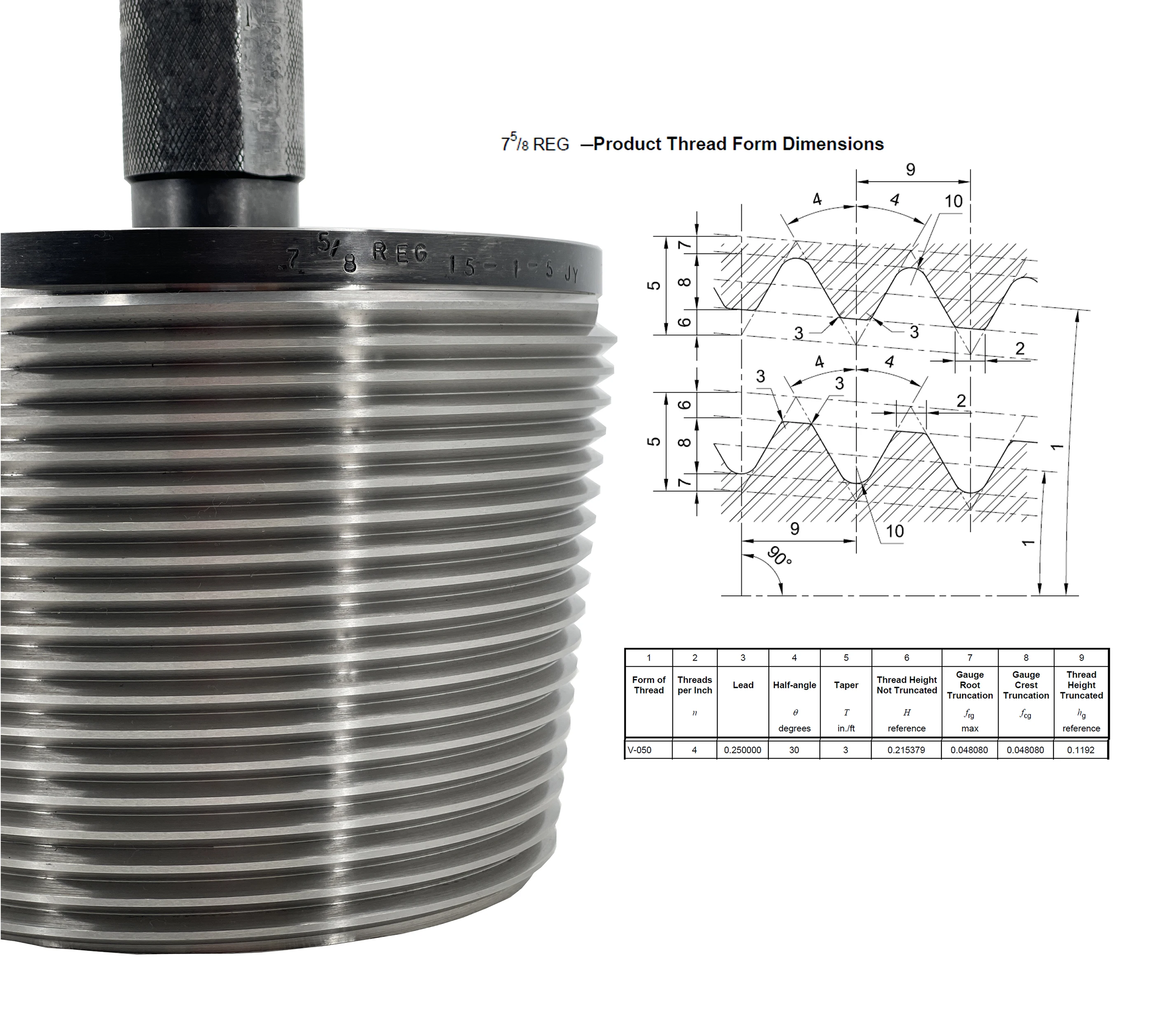

1 taper half-angle, ϕ 2 crest flat, Fc 3 crest corner radius, rc 4 thread half-angle, Θ 5 thread height not truncated, H 6 crest truncation, fc 7 root truncation, fr 8 truncated thread height, h 9 lead, p 10 root radius, R
Thread Forms V-050;V-055;V-040
Mating standoff of gauges (plugs and rings) on periodic retest shall conform to the following wear limit
tolerances from the originally established mating values.
Working gauges:
tolerances from the originally established mating values.
Working gauges:
−0.0584/+0.0127 mm (−0.0023/+0.0005 in.).

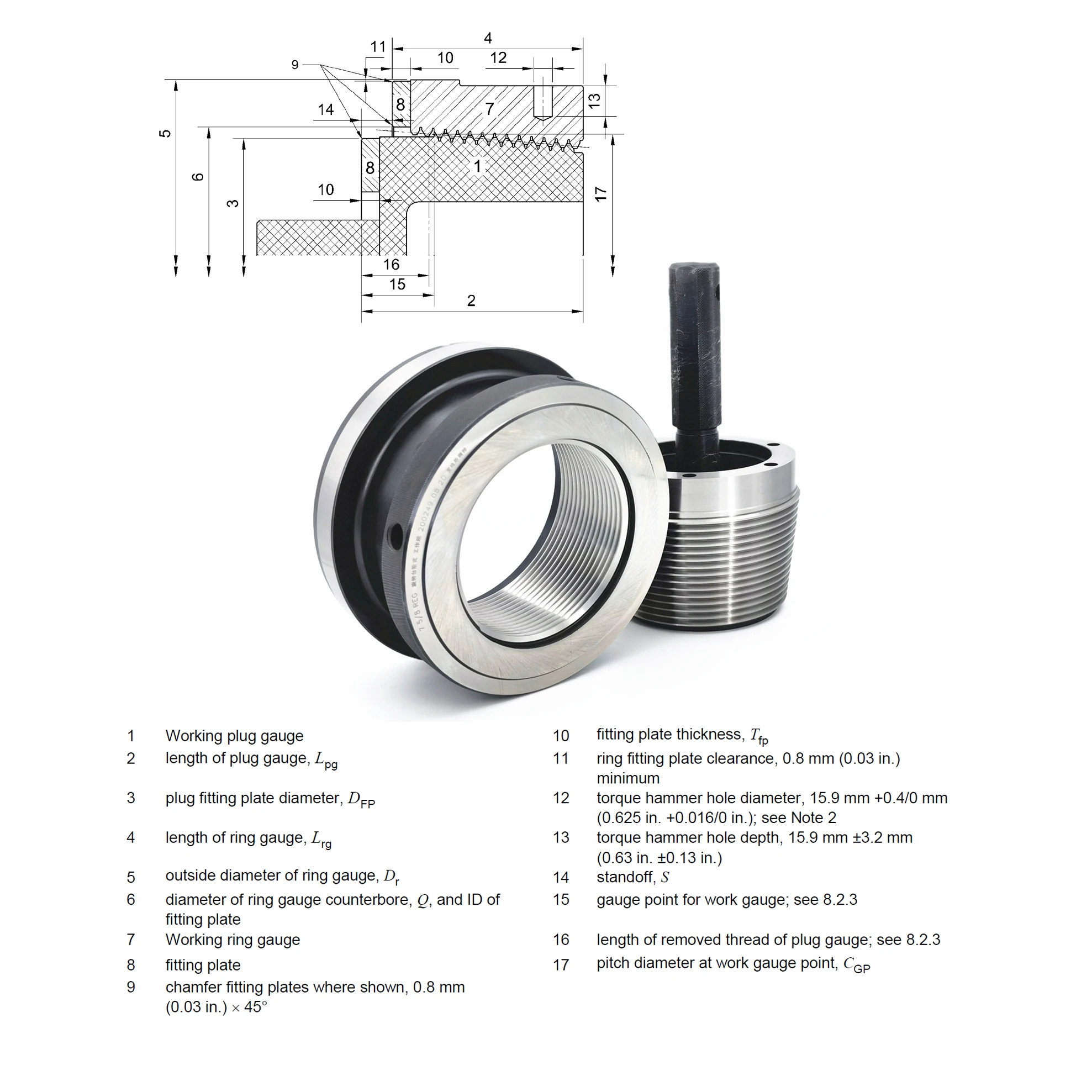

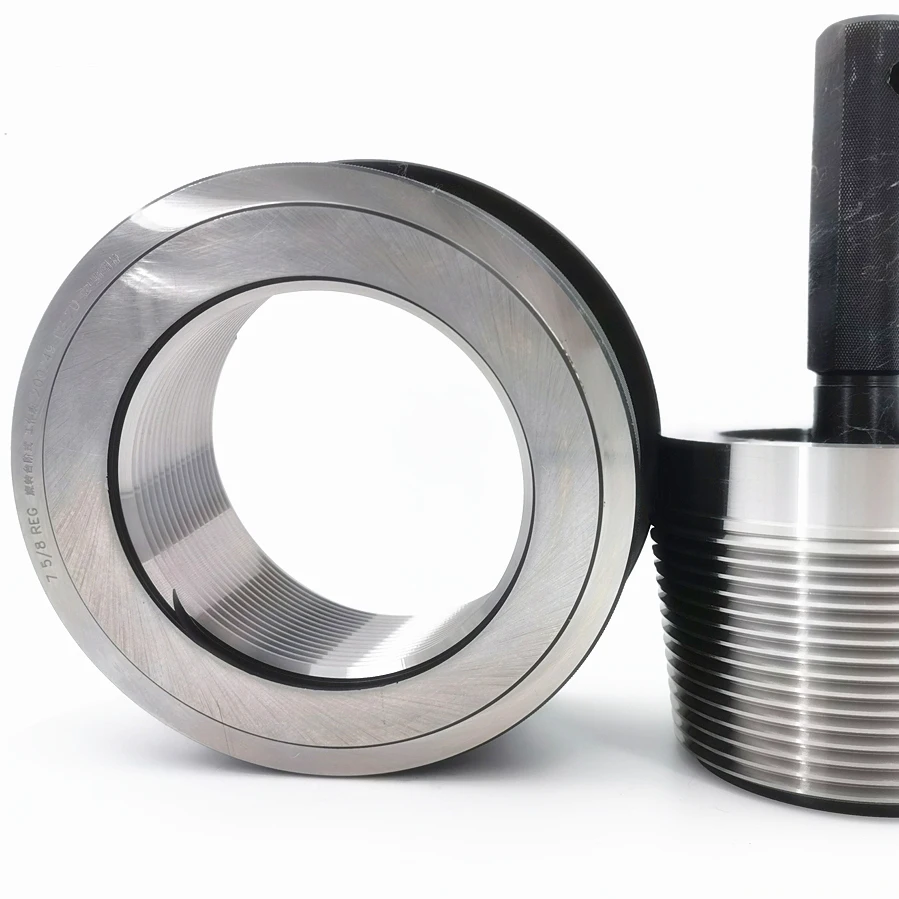

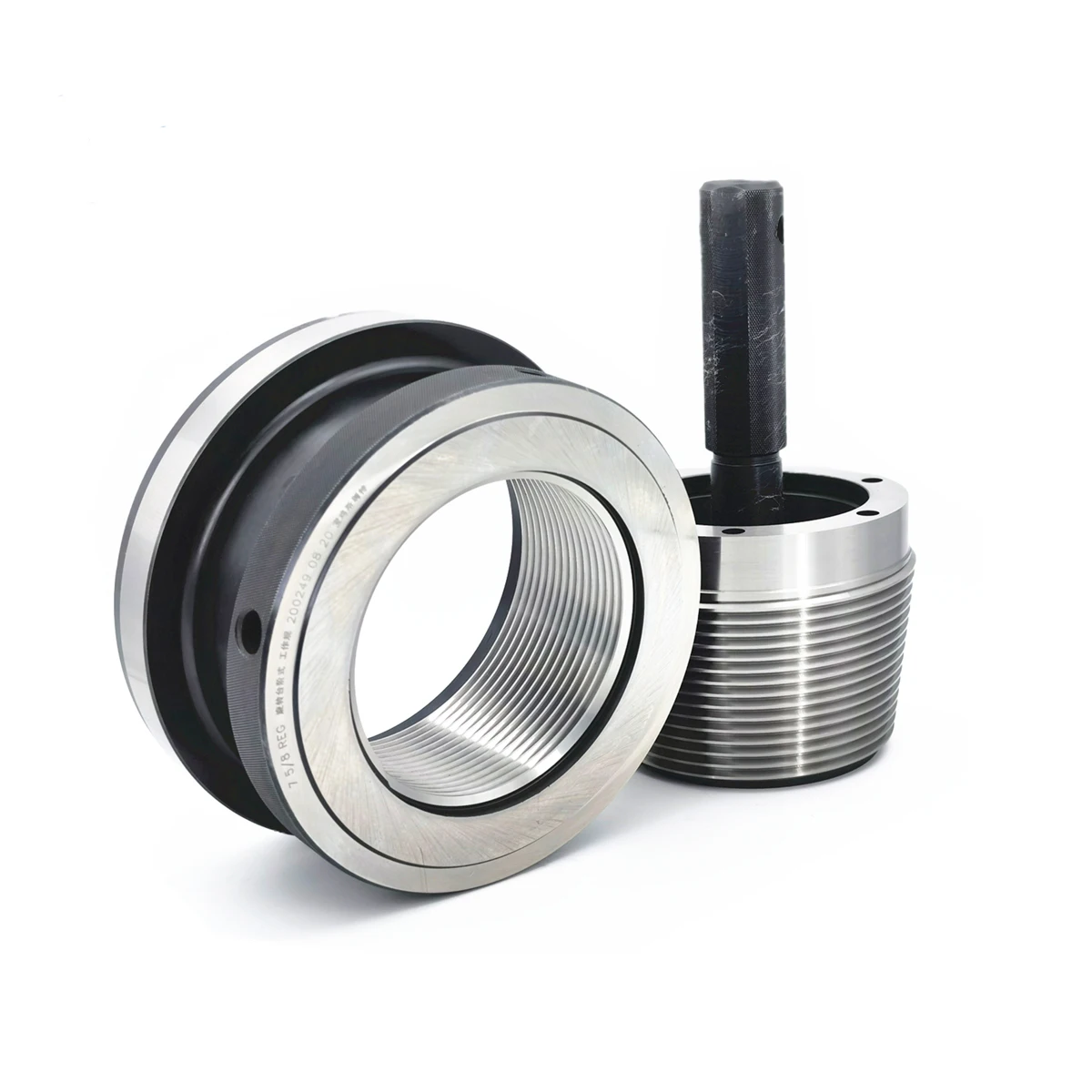

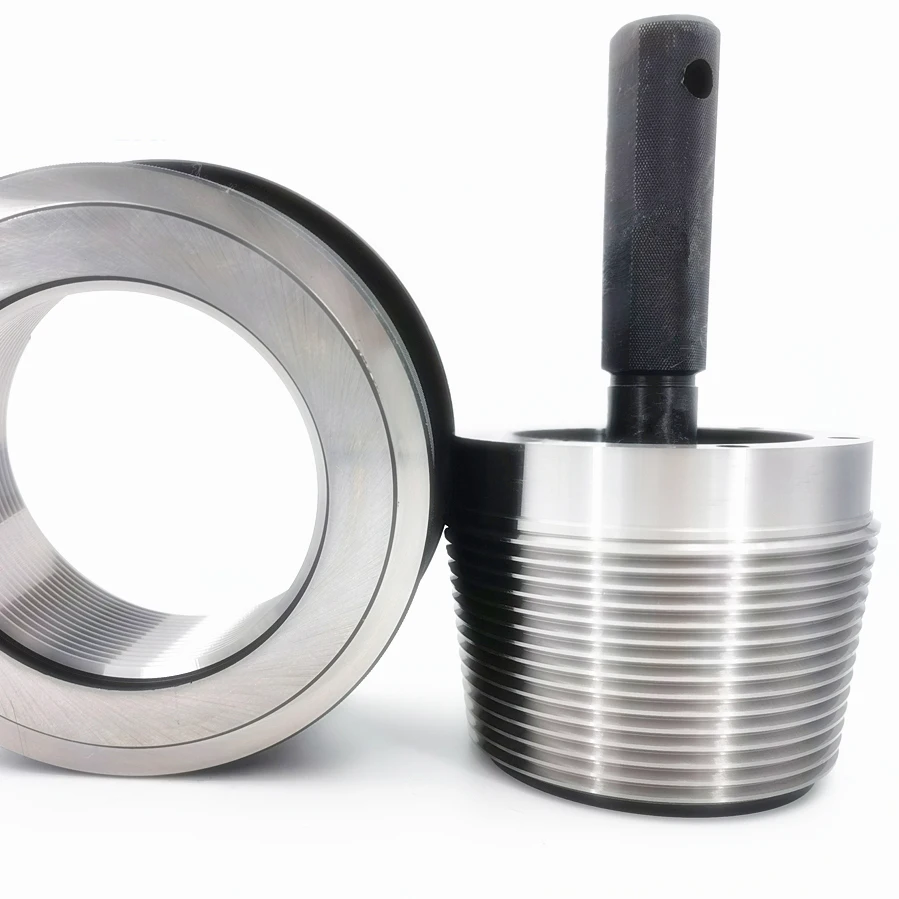

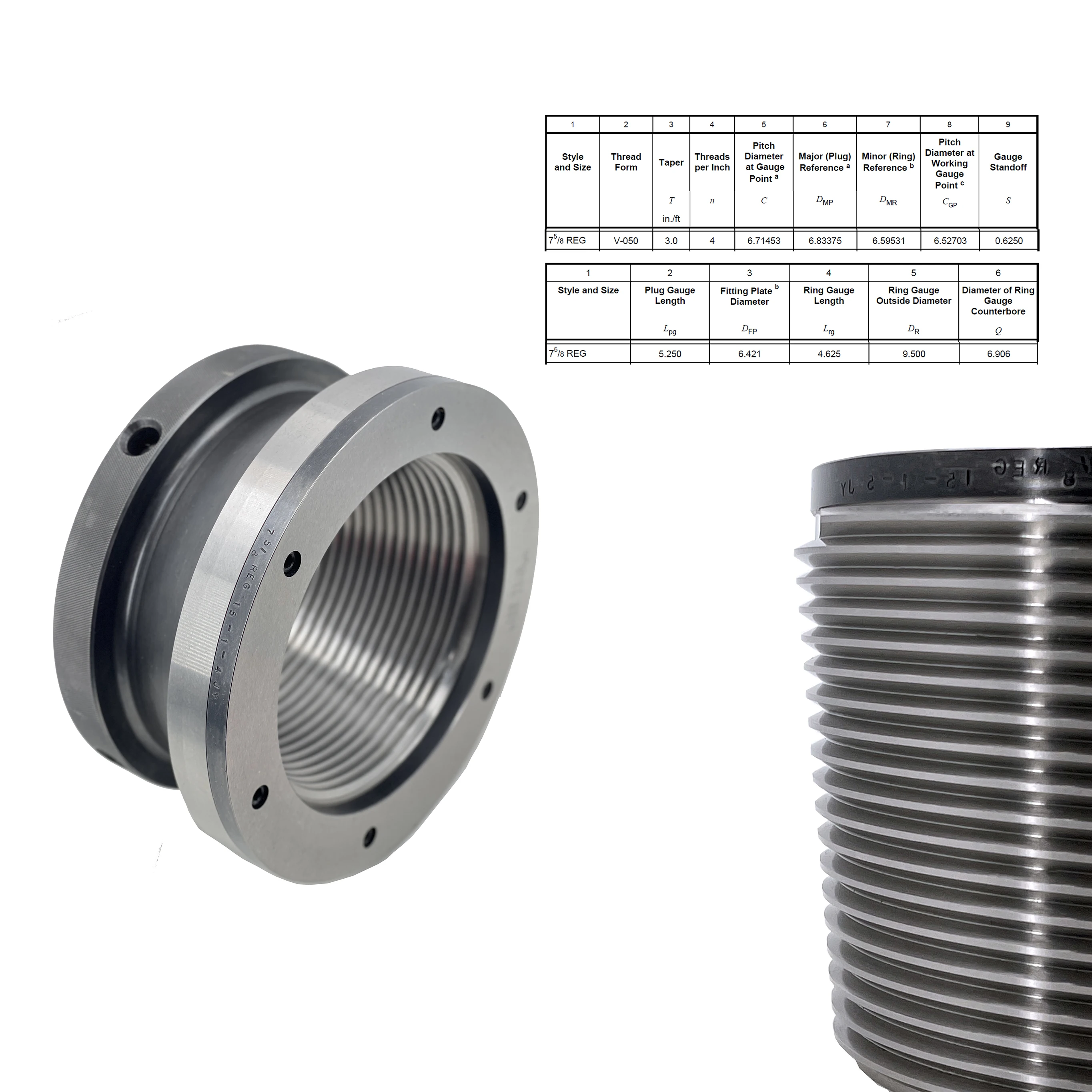

7 5/8 Plug Gauge
Length 5.250in
Length 5.250in
7 5/8 Fitting Plate b
Diameter 6.421in
Diameter 6.421in

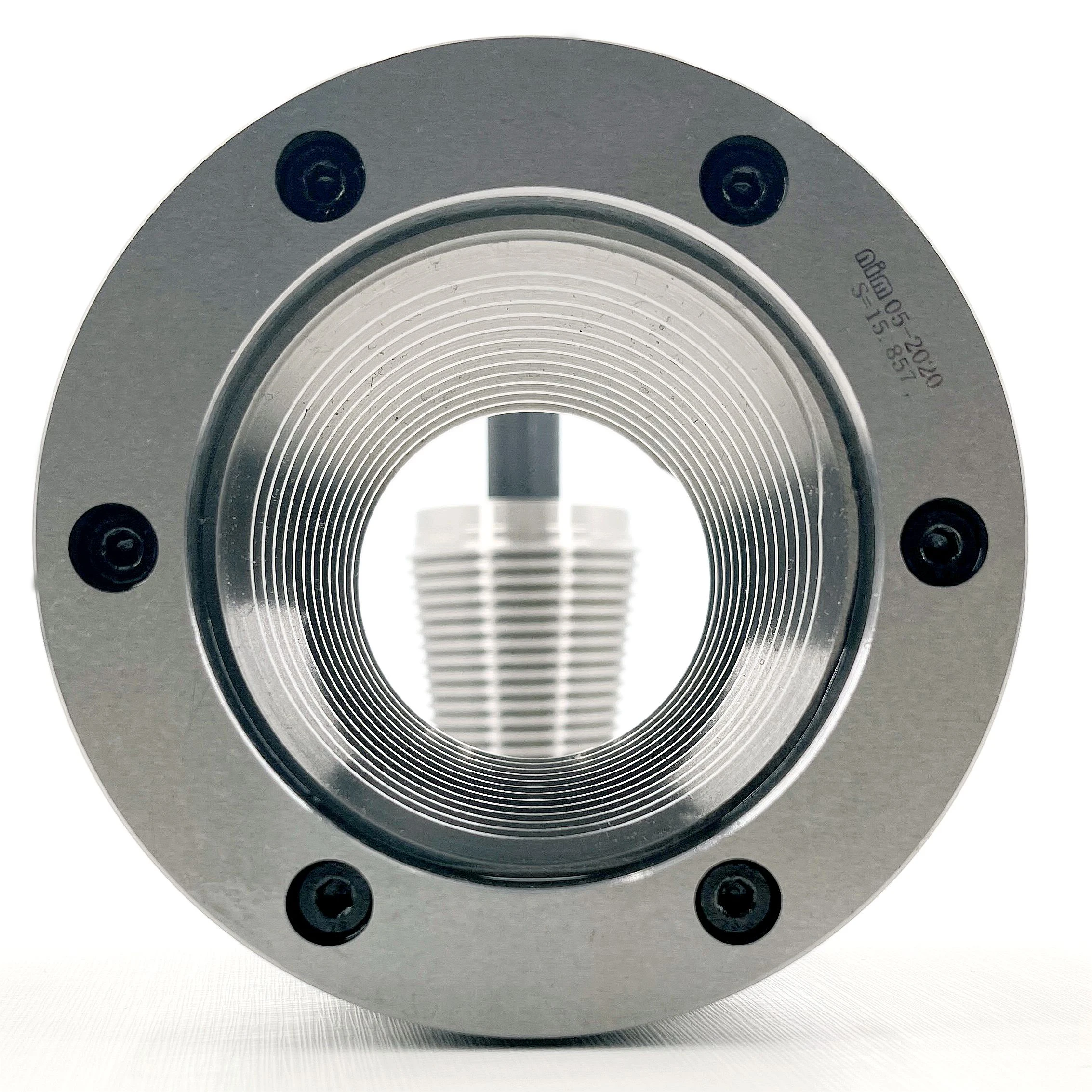

7 5/8Ring Gauge
Length 4.625in
Length 4.625in
7 5/8Ring Gauge
Outside
Outside
7 5/8 Diameter 9.500in
7 5/8 Diameter of Ring
Gauge Counterbore 6.906in
Gauge Counterbore 6.906in

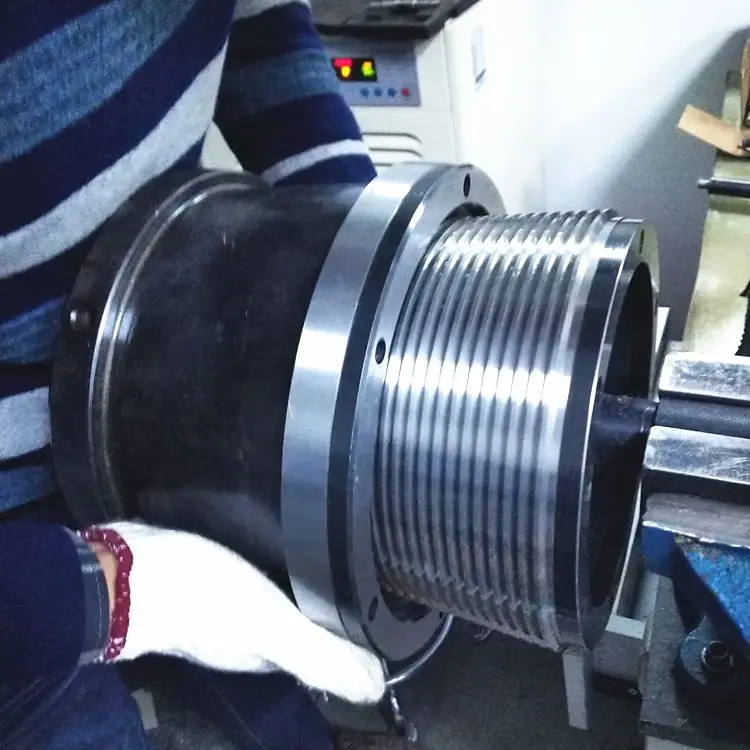

Product Usage
Product usage introduction
Tolerances on standoff values
a) Standoff of the Working ring gauge to the product pin: S2 +0.25/−0.13 mm (S 2 +0.010/−0.005 in.).
b) Standoff of the Working plug gauge to the product box: (S − S 1) + 0.25/0 mm [(S − S 1) +0.010/0 in.].

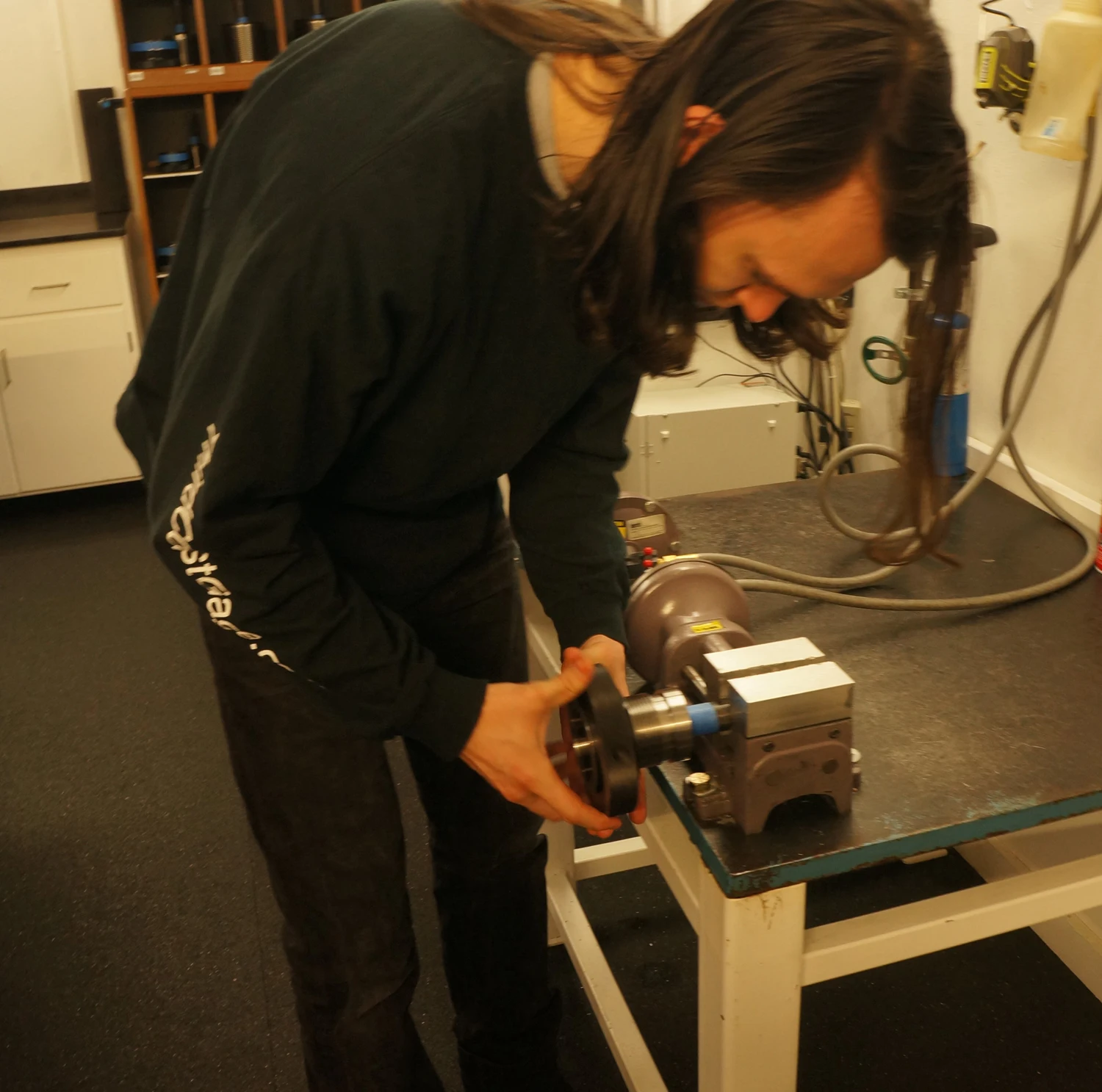

The project's measurement and calibration laboratory in the United States
Description of product use effect
The standoff value, S0, of certified Reference Master gauges is
the distance from the plane of the rotary shoulder on the plug gauge to the plane of the gauge point on the
ring gauge. The certified Reference Master ring gauge is used to establish the standoff value, S1, of the
Working plug gauge. The certified Reference Master plug gauge is used to establish the standoff value, S2,
of the Working ring gauge. S1 and S2 are measured values that the Working gauges stand off from their
certified Reference Master gauges and may be greater or less than S
the distance from the plane of the rotary shoulder on the plug gauge to the plane of the gauge point on the
ring gauge. The certified Reference Master ring gauge is used to establish the standoff value, S1, of the
Working plug gauge. The certified Reference Master plug gauge is used to establish the standoff value, S2,
of the Working ring gauge. S1 and S2 are measured values that the Working gauges stand off from their
certified Reference Master gauges and may be greater or less than S
Exhibition around the world
Participated in OTC (USA), NEFTGAZ (Russia), ADIPEC(Abu Dhabi) and CIPPE (China) exhibitions many times. Excellent product quality. Praised by customers from all over the world.
Customer praise
All kinds of Thread Gauge. We produce are sold to major oil producing areas in the world. Get praise from customers. Britain,India, Russia, Egypt and Ukraine's clientele have visited and studied the factory many times.

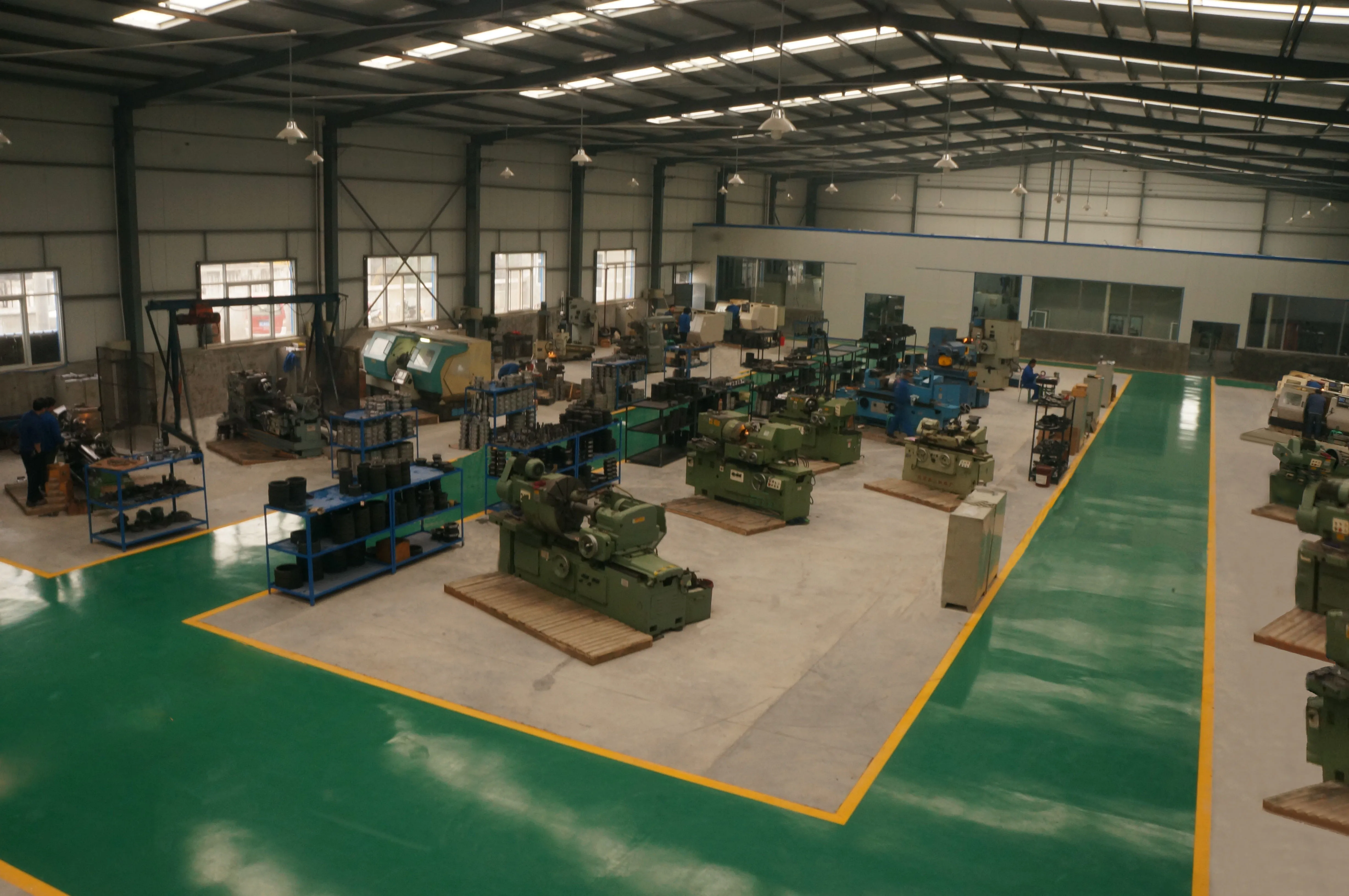

Company Introduction
Wuxi Breit Precision measuring tools co., Ltd is focused on the production of API Spec5B, API Spec7-2, API Spec11B Master&Working&Taper thread gauges, ACME, STUB ACME, GOST,BUTT, NPT, UN,Tr, M series gauges.
API Certificate of Authority Baoji Thread Gages Co.,Ltd API Spec5B-0032&API Spec7-2-0680
Our Advantages
Technical expertise
manufacturing technique technical experts.
High-quality Raw Materials
The company needs hardness, wear resistance and long-term characteristics according to The gauge, after years of research. Use the
best quality GCr15 in China.
best quality GCr15 in China.

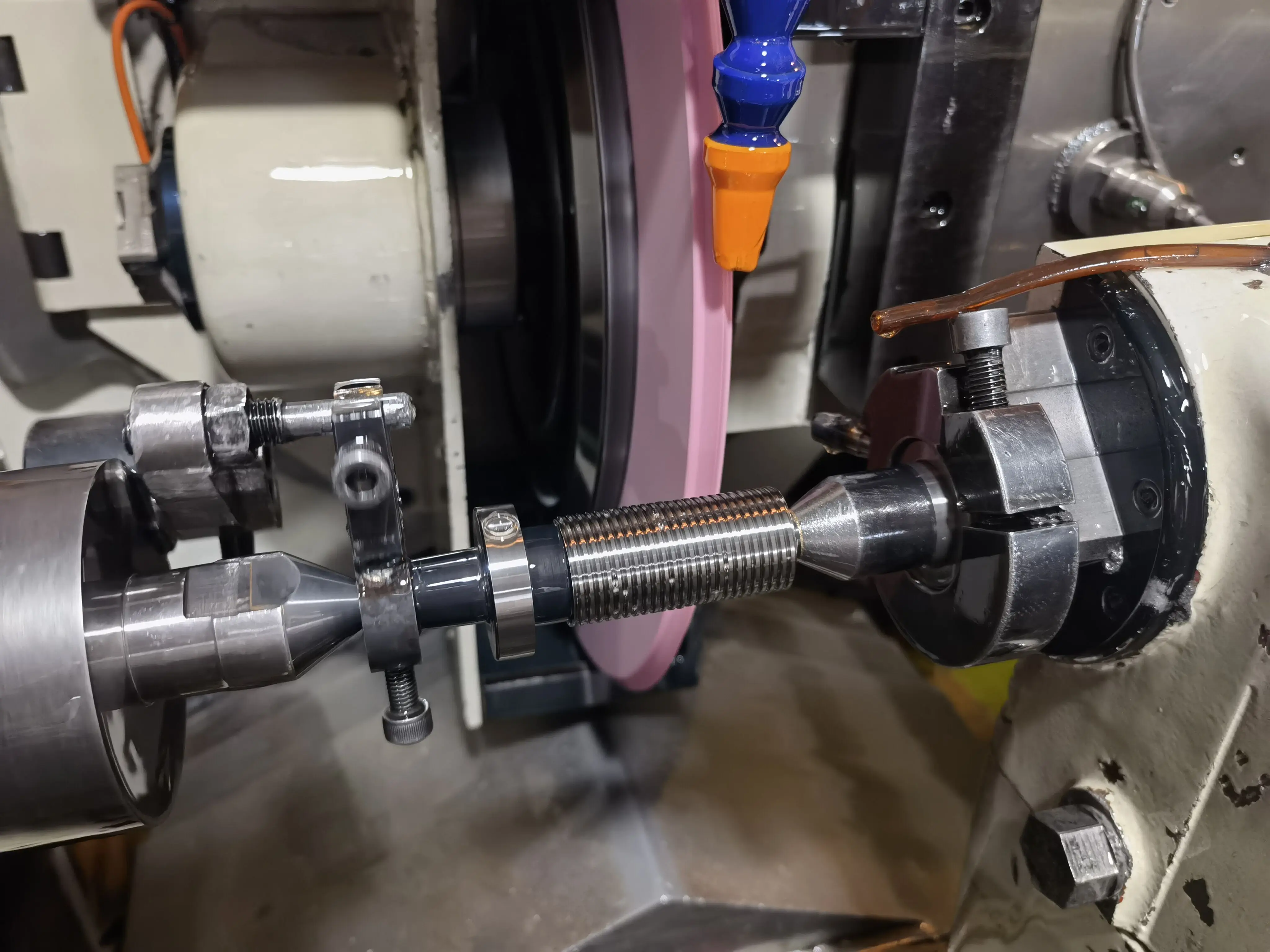

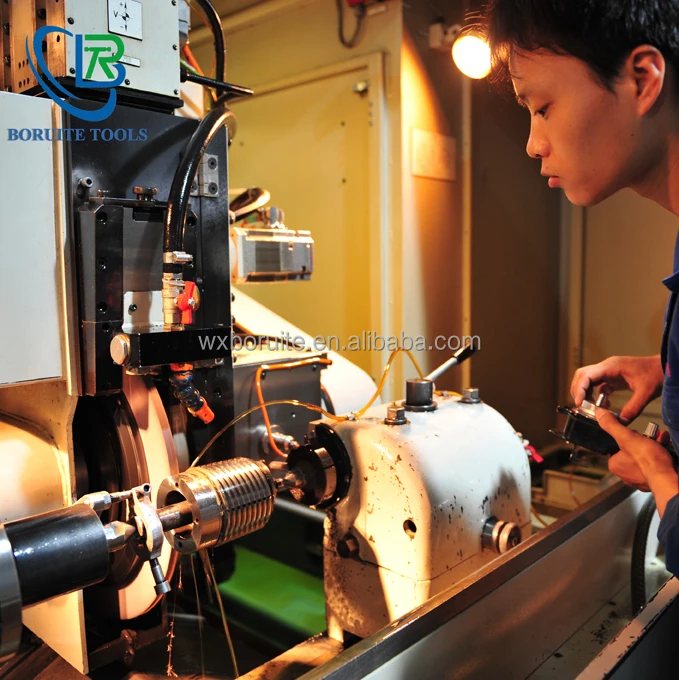

Standardized manufacturing process
After API's strict and meticulous review work. successfully approved the new review period.
APISpec7-2-0680 APISpec5B-0032
Aug.31.2021 -Aug.31.2024.
APISpec7-2-0680 APISpec5B-0032
Aug.31.2021 -Aug.31.2024.
High precision calibration test
ZEISS \\ HEXAGON high-precision GLOBAL and HEXAGON GAGER Coordinate Measuring Machine. equipped professional precision measurement technology testing equipment
Third-party calibration Certifications
The company produces various types of high-quality, high-precision gauges. Successfully passed the calibration test of various levels of calibration measurement units such as TGRI ,JSDG ,NIM.

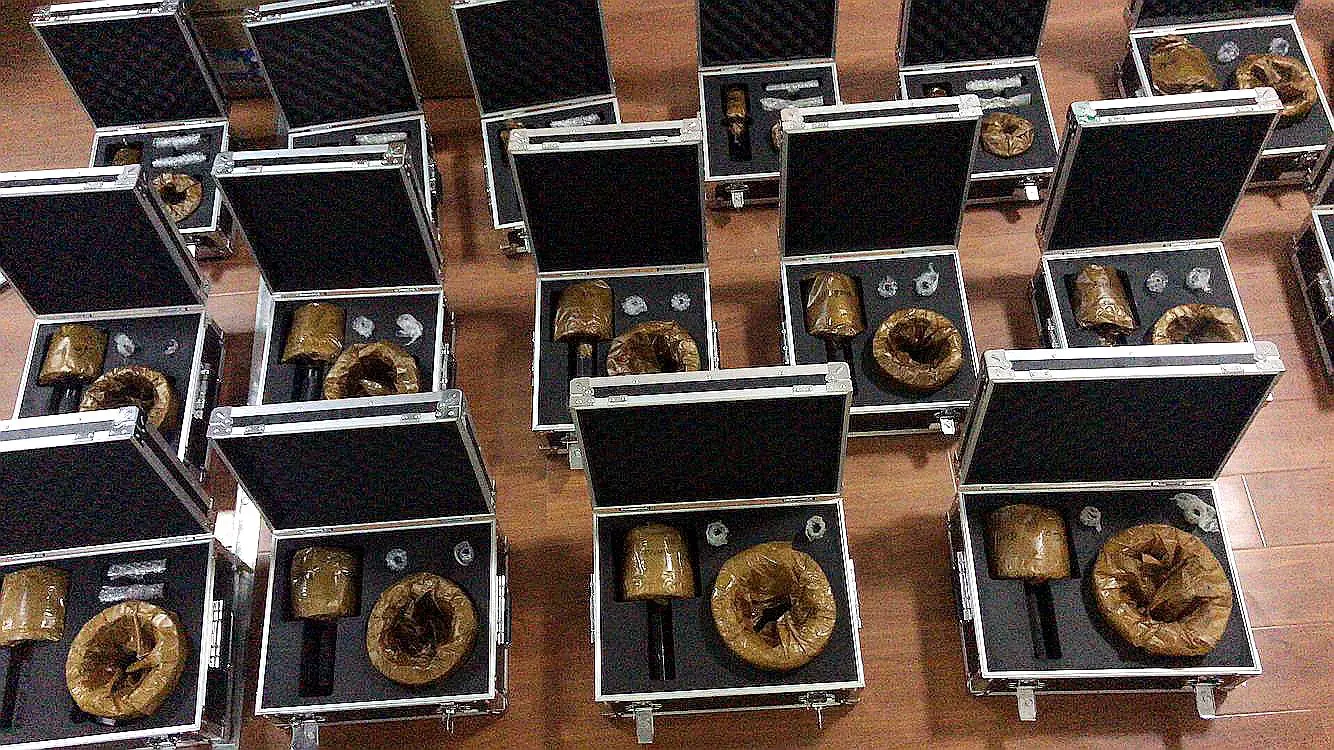

Packing&Shipping

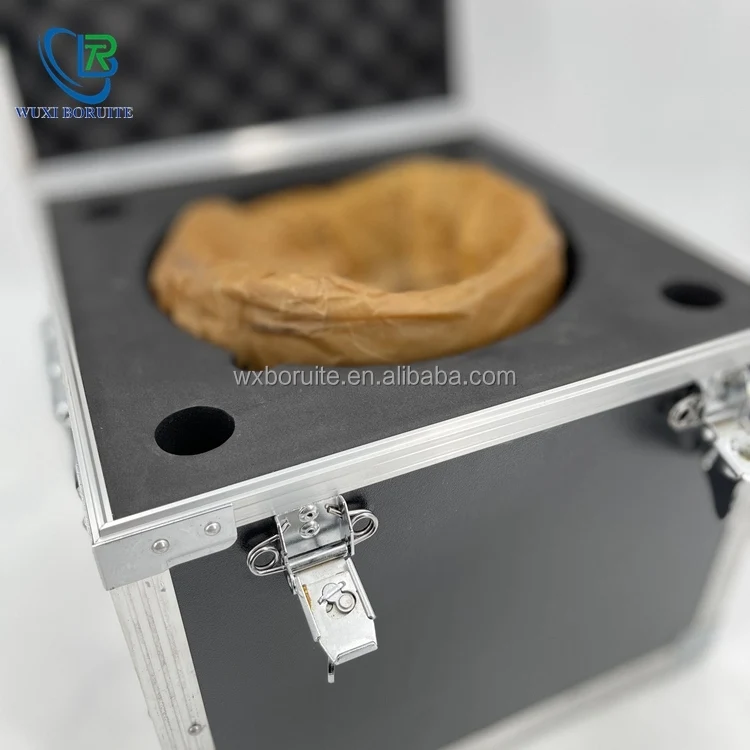

Aluminum alloy allframe box, anti-rust treatment, damping sponge.The Ring Gauge and Plug Gauge are placed separately.Air freight &TNT & DHL & FedEx. Safe, convenient and fast.
FAQ
I. ANSI/ASME Reference Thread Gauges Manufacturer: Wuxi Breit Precision measuring tools co., Ltd
II. API Spec7-2&5B Thread Gauges Manufacturer: Baoji Thread Gages Co,.Ltd.
II. API Spec7-2&5B Thread Gauges Manufacturer: Baoji Thread Gages Co,.Ltd.
ORDER INSTRUCTION:
When ordering, please provide more information for the following:
1. Type of Thread Form;
2. Size of Gauge; QTY ;
3. Decide master or working gauges ;
4. Ring or Plug or both; Box or Pin or both;
5. Decide Right hand or left hand, in case of API Spec 7-2 thread gauges.
For example : API Spec7-2 7-5/8" REG Ring and Plug Master Or Working Gauges ；QTY ;
When ordering, please provide more information for the following:
1. Type of Thread Form;
2. Size of Gauge; QTY ;
3. Decide master or working gauges ;
4. Ring or Plug or both; Box or Pin or both;
5. Decide Right hand or left hand, in case of API Spec 7-2 thread gauges.
For example : API Spec7-2 7-5/8" REG Ring and Plug Master Or Working Gauges ；QTY ;
