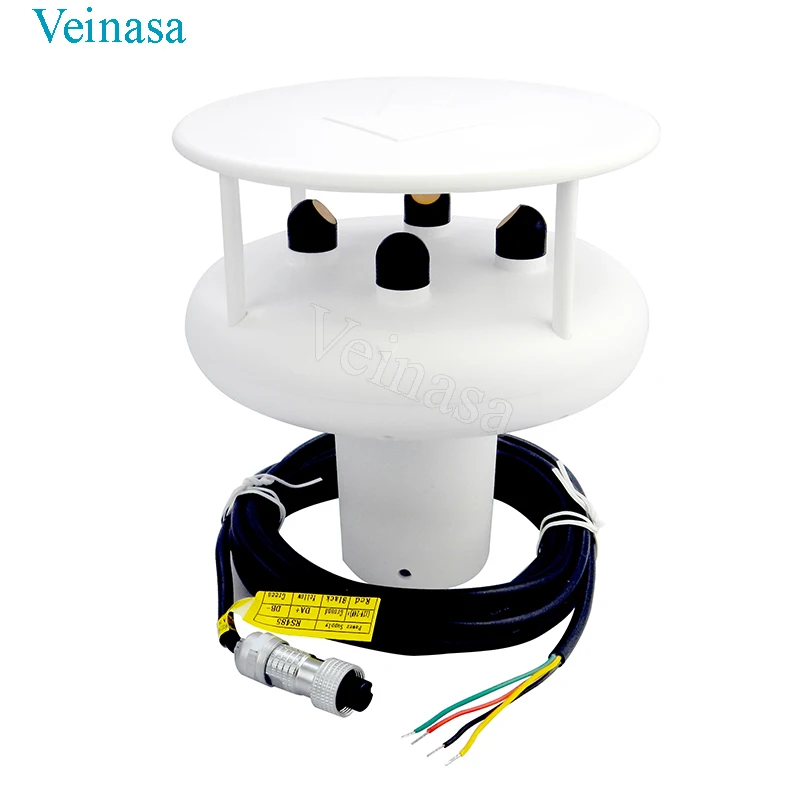

Veinasa CXS03 Auto Heating Weather Station 2 in 1 12V/24V Wind Speed and Direction Sensor Ultrasonic Outdoor Anemometer Modbus
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (1600705148207):
Product Overview
Description

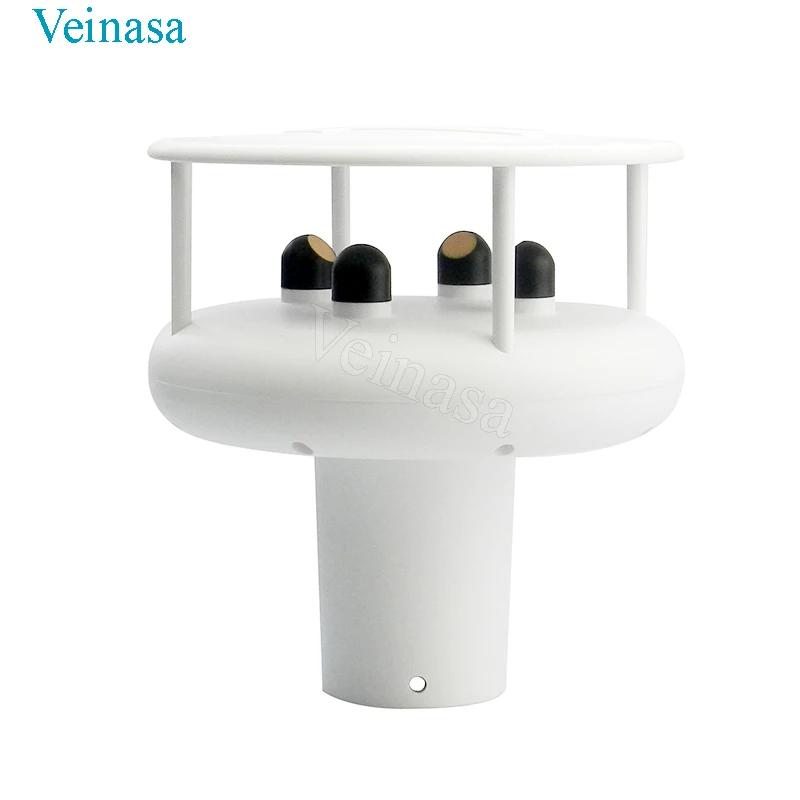

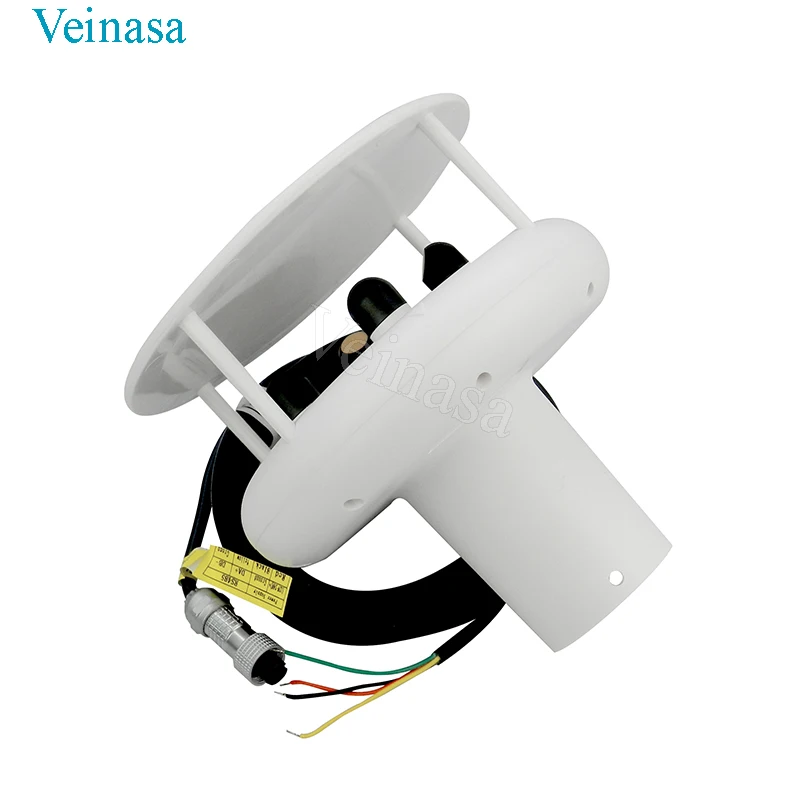

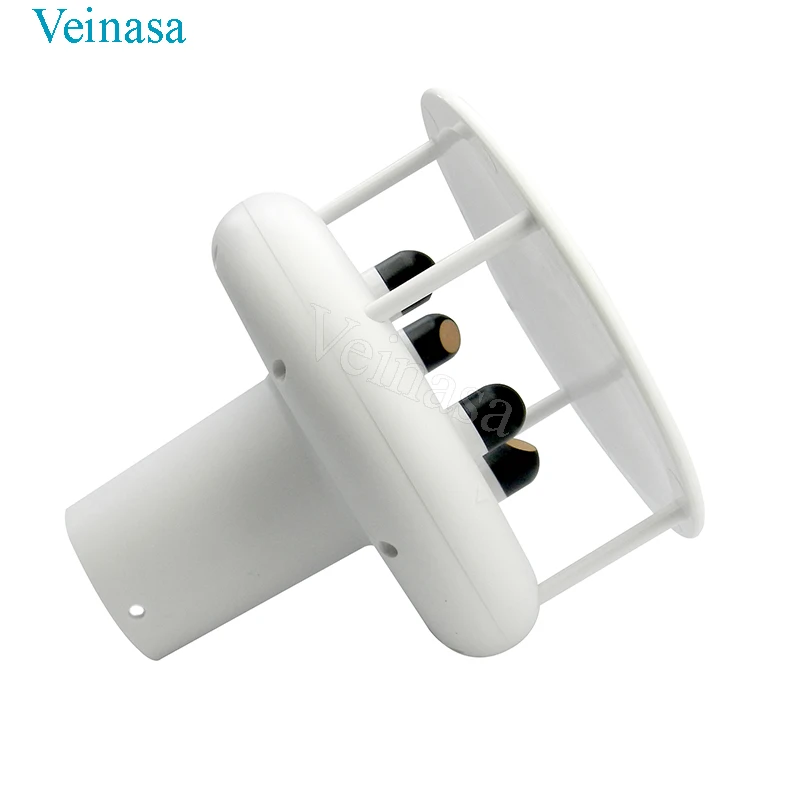

Veinasa-CXS03 Auto Heating Weather Station 2 in 1 12V/24V Wind Speed and Direction Sensor Ultrasonic Outdoor Anemometer Modbus
Products Description
Anemometer is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed, wind direction and acoustic temperature. Compact space structure makes the volume smaller and the appearance more beautiful; full ABS shell makes the weight lighter; integral heating can work normally in cold and freezing weather. It is recommended for wind power, tunnels, high-altitude buildings and other fields.
Sensor Parameters
Measurement range | Accuracy | Resolution | |||
Wind Speed | 0 - 60m/s | ±2% | 0.01m/s | ||
Wind Direction | 0 - 359° | ±3° | 1° | ||
Digital Output | RS232,RS485,SDI-12(Choose one) | ||||
Communication baud rate | 1200 - 19200 | ||||
Protocol | ModBus,NMEA-0183,SDI-12 | ||||
Protection level | IP65 | ||||
Operating temperature/humidity | -40℃ - +70℃; | ||||
0 - 100% | |||||
Power Demand | VDC: 7-30V | ||||
Power | 0.2W | ||||

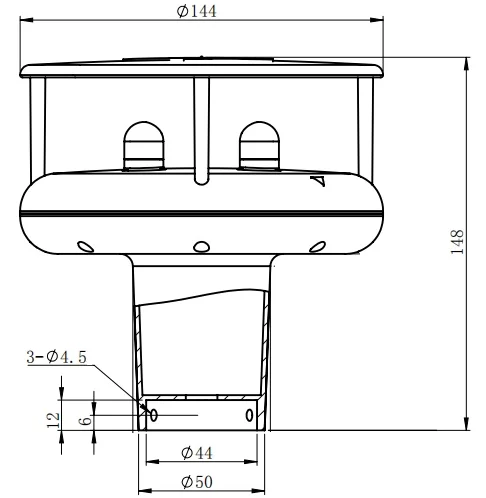

Dimensions / weight | Φ144×165mm | ||||
0.68kg | |||||
Material | ASA | ||||
Product Features
Main features:
No moving parts, no wear
Maintenance free, long service life
ASA shell, lighter
The reflection type of ultrasonic probe is adopted, and the structure is more compact
Overall heating, strong anti freezing ability
Adopt the acoustic wave phase compensation technology and random error identification technology to make the output more stable and accurate
Measurement compensation technology and protection technology are adopted for light rain, dense fog and lightning weather, with stronger environmental adaptability
Digital filtering technology, stronger anti electromagnetic interference ability
No moving parts, no wear
Maintenance free, long service life
ASA shell, lighter
The reflection type of ultrasonic probe is adopted, and the structure is more compact
Overall heating, strong anti freezing ability
Adopt the acoustic wave phase compensation technology and random error identification technology to make the output more stable and accurate
Measurement compensation technology and protection technology are adopted for light rain, dense fog and lightning weather, with stronger environmental adaptability
Digital filtering technology, stronger anti electromagnetic interference ability

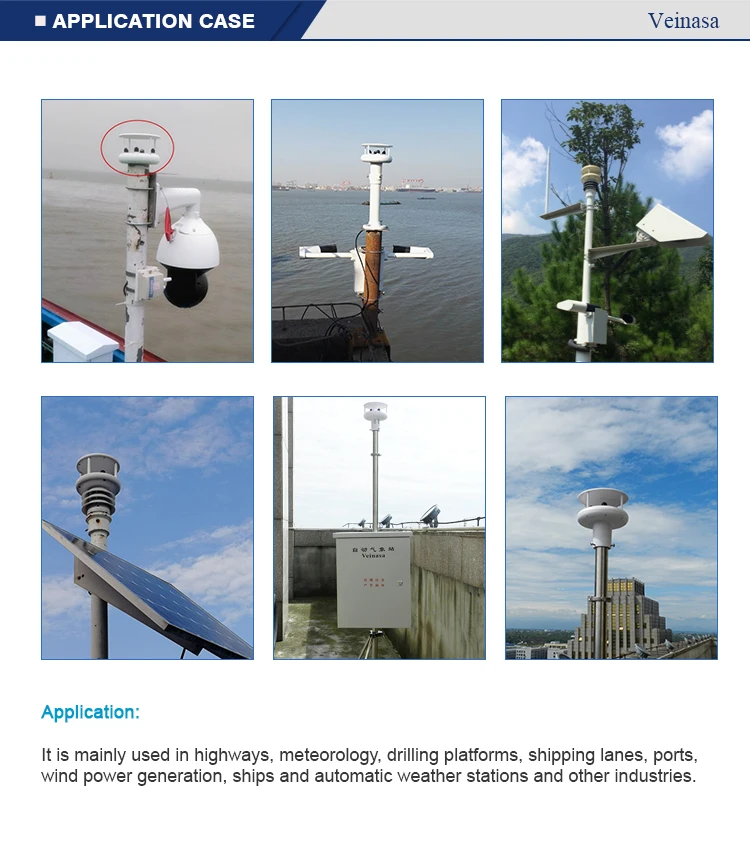

Application Field
Major application fields:
1.Meteorology, ocean, environment,
2.Airport, port, laboratory, industry,
3.Agriculture, transportation and other fields.
1.Meteorology, ocean, environment,
2.Airport, port, laboratory, industry,
3.Agriculture, transportation and other fields.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor CXS01.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like air pressure, temperature, relative humidity, we have this existing model Veinasa-THPRW-03.
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor CXS01.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like air pressure, temperature, relative humidity, we have this existing model Veinasa-THPRW-03.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Ultrasonic Wind Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Ultrasonic Wind Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
