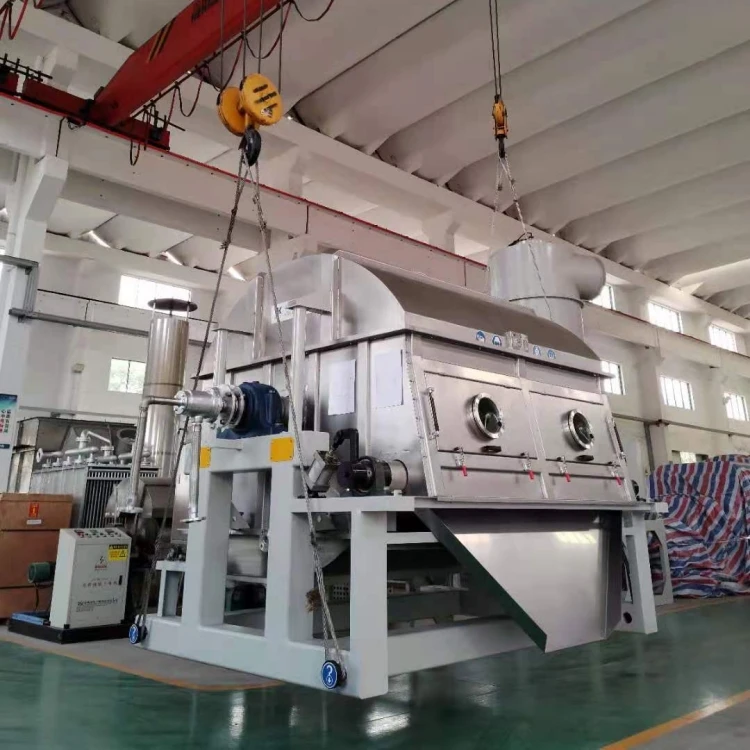

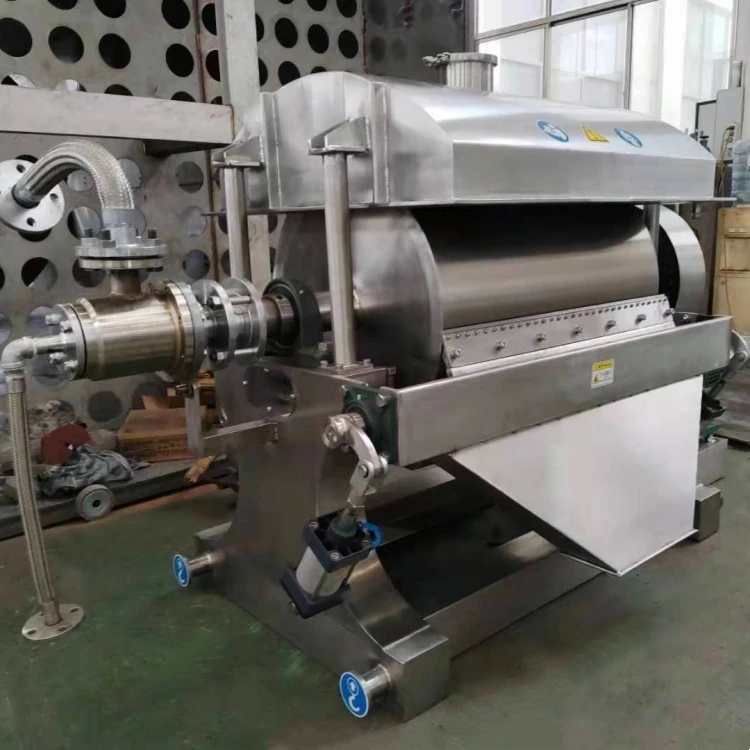

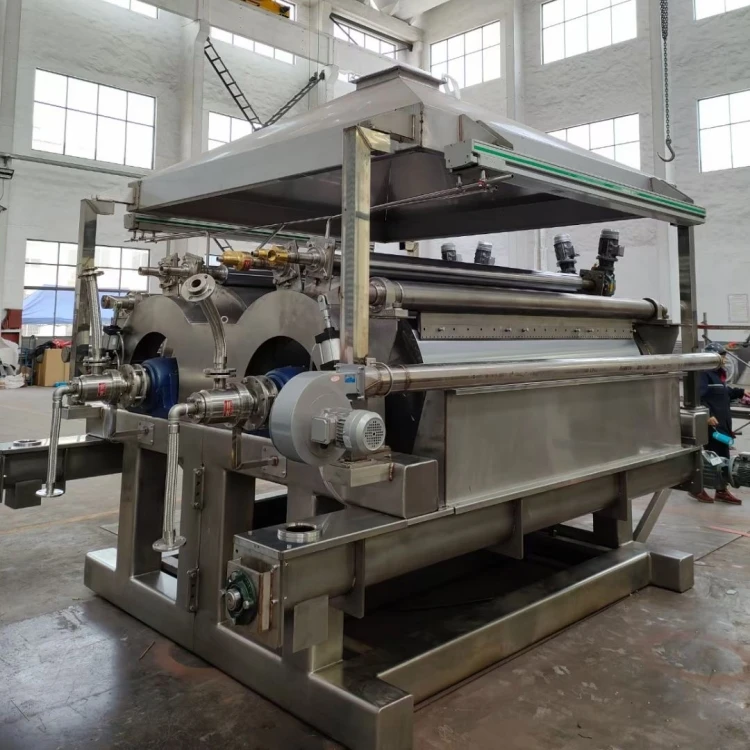

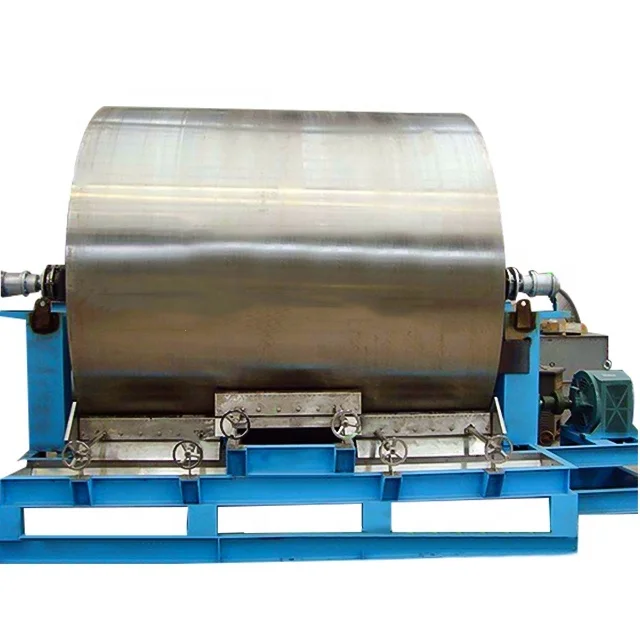

HG Rotary Scraper Dryer / Drum Scraper Dryer

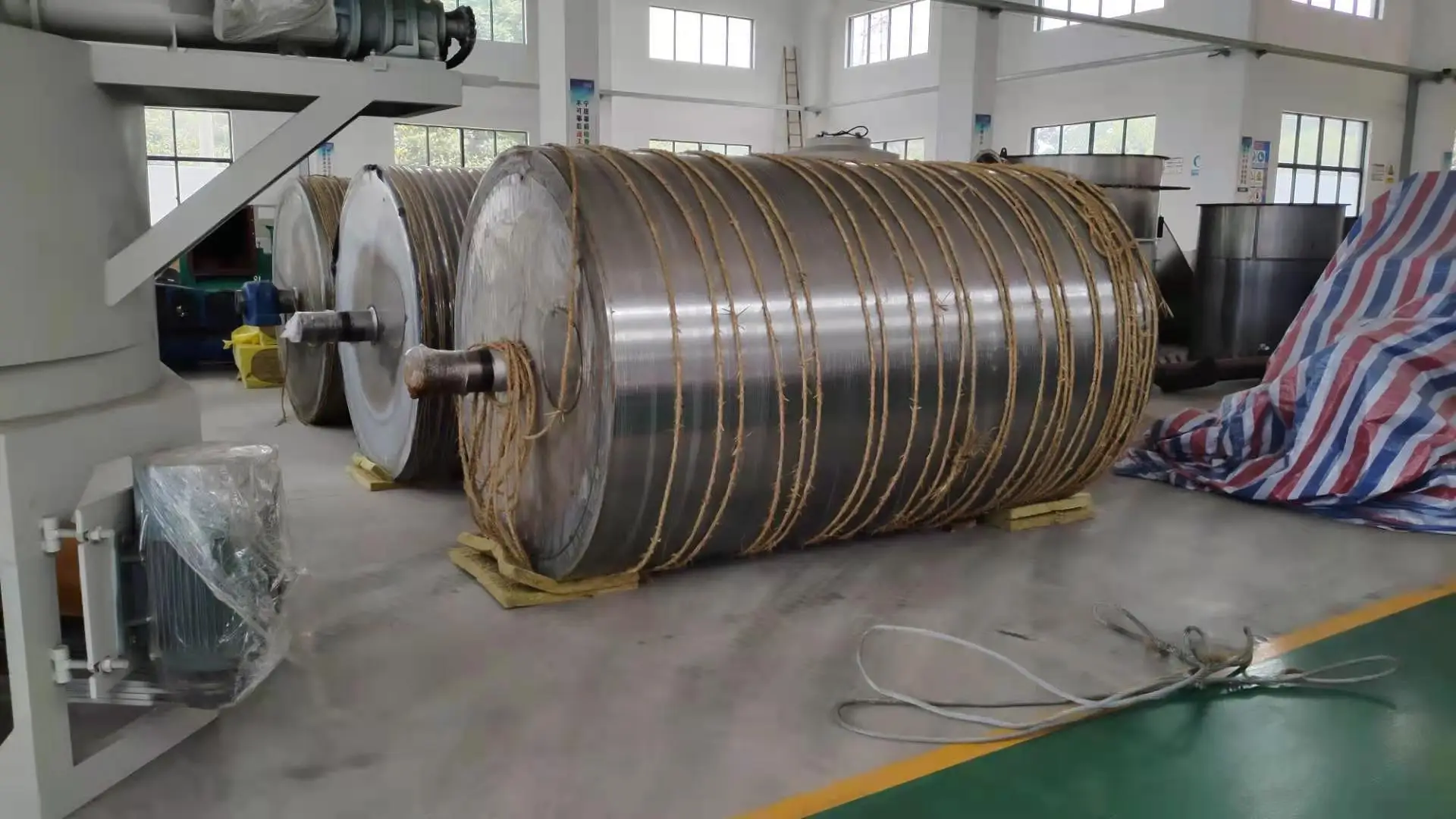

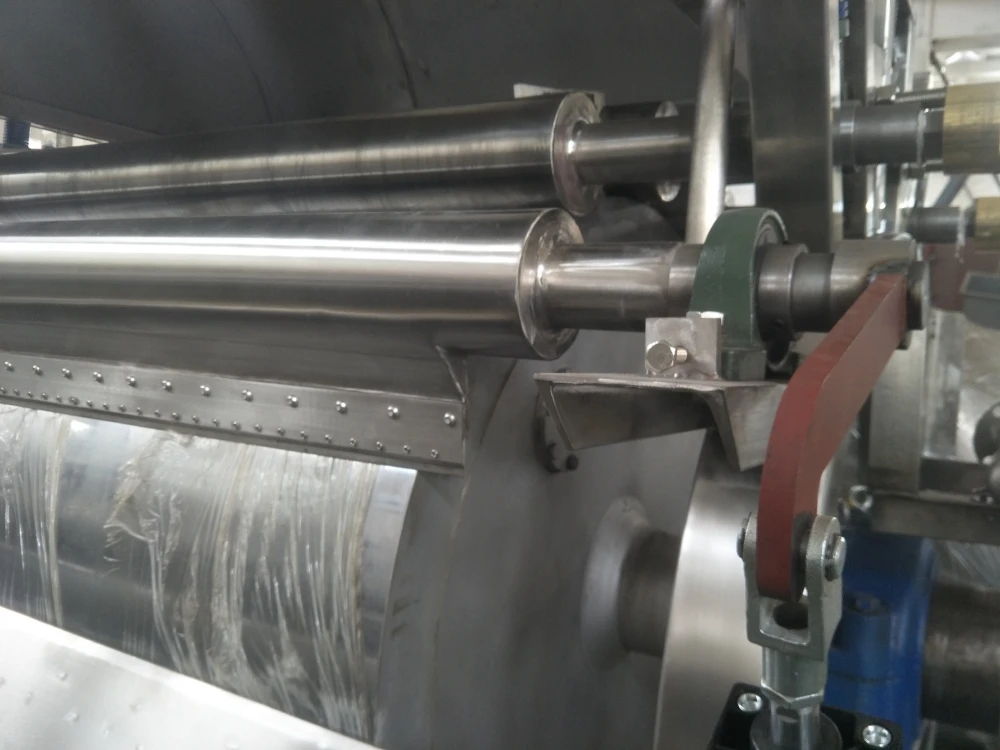

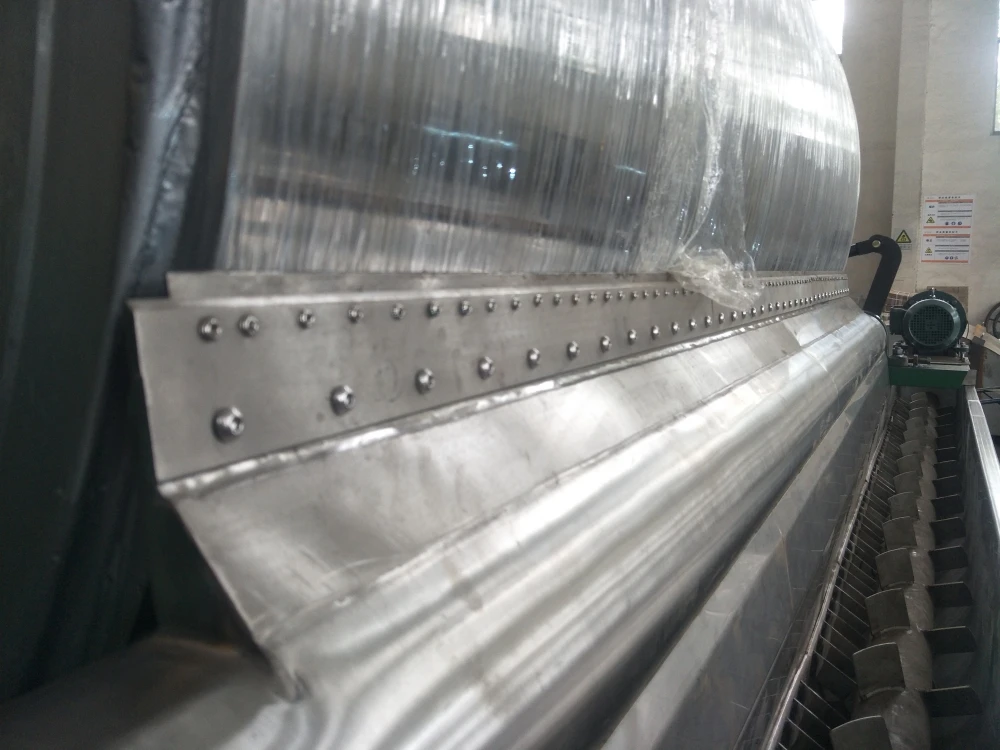

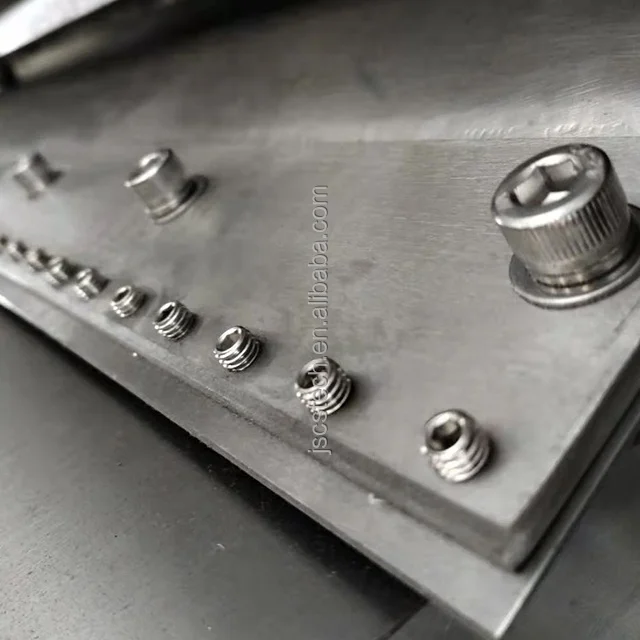

HG Series Rotary Scraper Dryer / Drum Scraper Dryer is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder,fall down to the spiral conveyor under the blade,and are conveyed,collected and packed. It is used in such trades as the food, chemical industry, medicine, etc.
HG Rotary Scraper Drum Dryer | ||||||||||||||
Model | Sizes of Cylinder (diameter*length)(mm) | Effective Heating Area(㎡) | Drying Capacity (kg/h) | Steam Consumption(kg/h) | Power of Motor (kw) | Dimension(L*W*H)(mm) | Weight(kg) | |||||||
HG-600 | Φ600x800 | 1.5 | 40-70 | 52-91 | 3 | 1700*800*1500 | 850 | |||||||
HG-700 | Φ700x1000 | 2.2 | 60-90 | 71.5-117 | 4 | 2100*1000*1800 | 1210 | |||||||
HG-800 | Φ800×1200 | 2.26 | 90-130 | 117-169 | 4 | 2500*1100*1980 | 1700 | |||||||
HG-1000 | Φ1000x1400 | 4.39 | 130-190 | 169-247 | 5.5 | 2700*1300*2250 | 2100 | |||||||
HG-1200 | Φ1200x1500 | 5.65 | 160-250 | 208-325 | 5.5 | 2800*1500*2450 | 2650 | |||||||
HG-1400 | Φ1400x1600 | 7 | 210-310 | 273-403 | 7.5 | 3150*1700*2800 | 3220 | |||||||
HG-1600 | Φ1600×1800 | 9 | 270-400 | 351-520 | 7.5 | 3350*1900*3150 | 4350 | |||||||
HG-1800 | Φ1800×2000 | 11.3 | 330-500 | 429-650 | 11 | 3600*2050*3500 | 5100 | |||||||
HG-1800A | Φ1800×2000 | 11.30 | 420-630 | 546-819 | 11 | 4100*2050*3500 | 6150 | |||||||
HG-2000 | Φ2000×3000 | 18.84 | 471-800 | 612-1040 | 15 | 4100*2550*4500 | 9500 | |||||||
Note: Some parameters are adjusted according to different materials in the design. | ||||||||||||||
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.

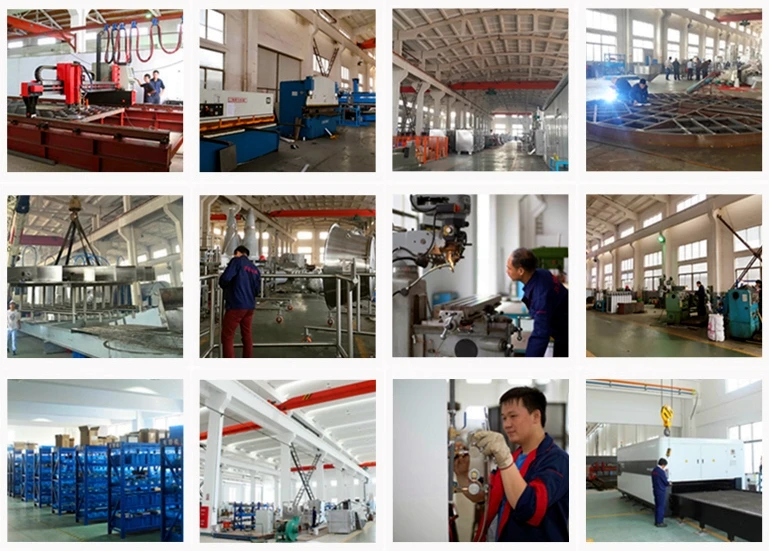

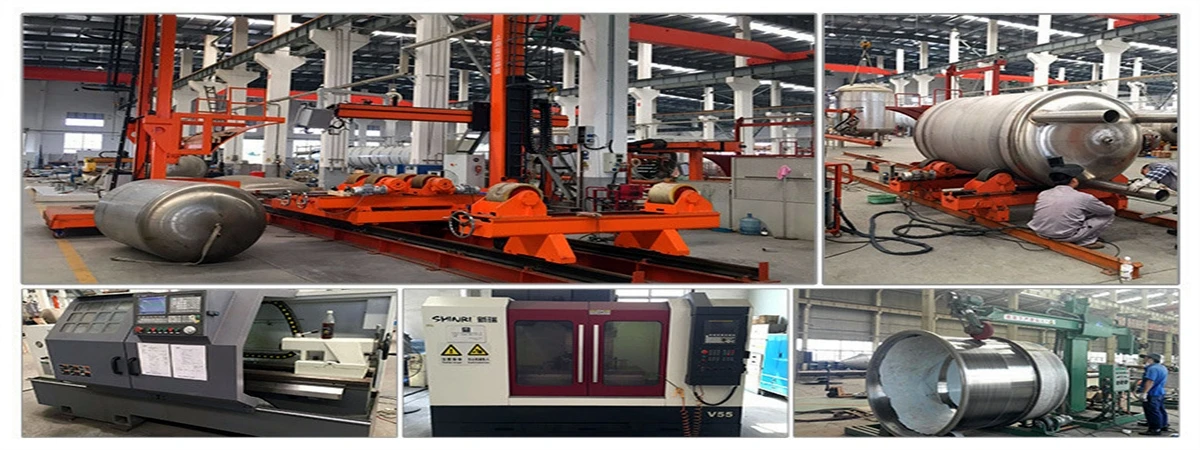

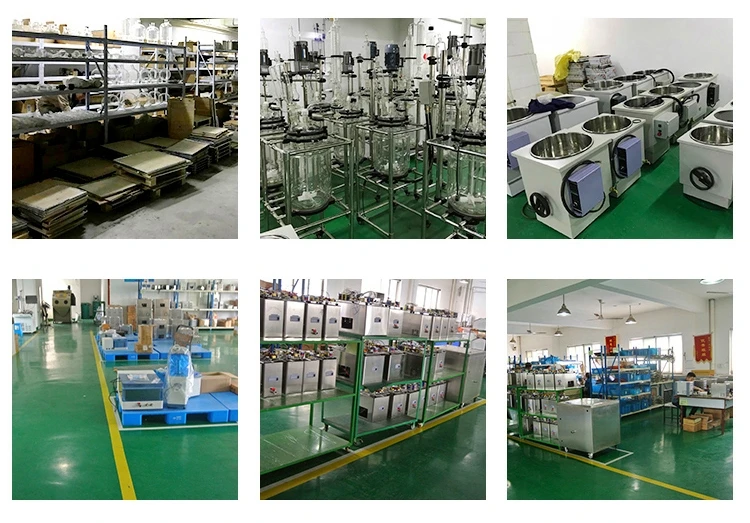

Multiple sets of advanced and sophisticated equipment
