(Angle boot 90 degree LC/APC to LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.652D (LSZH) yellow,3M
- Category: >>>
- Supplier: Dongguan Qingying Industry Co. Ltd.
Share on (1600705210384):
Product Overview
Description

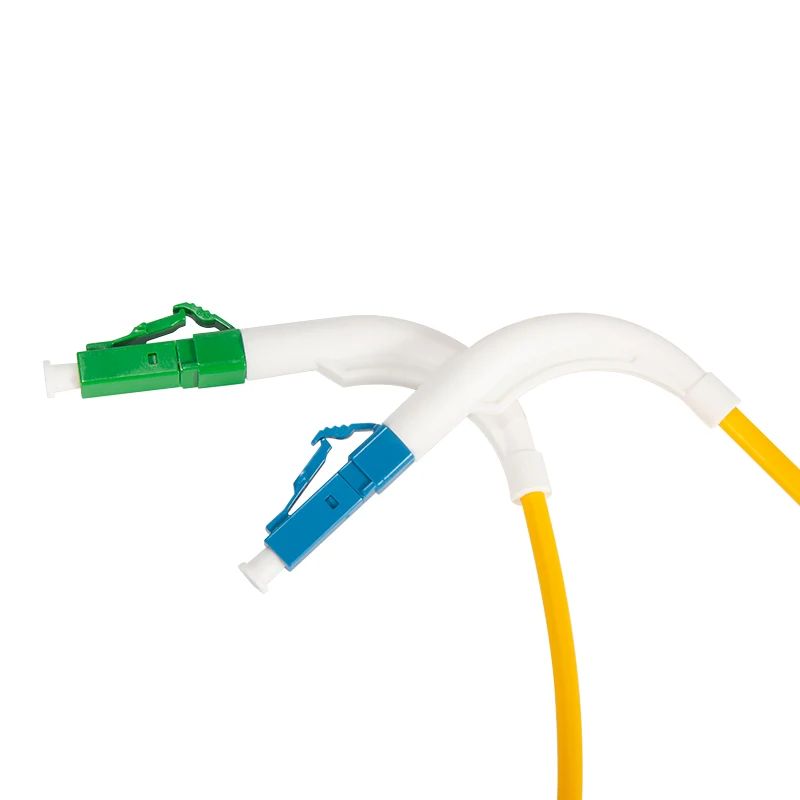

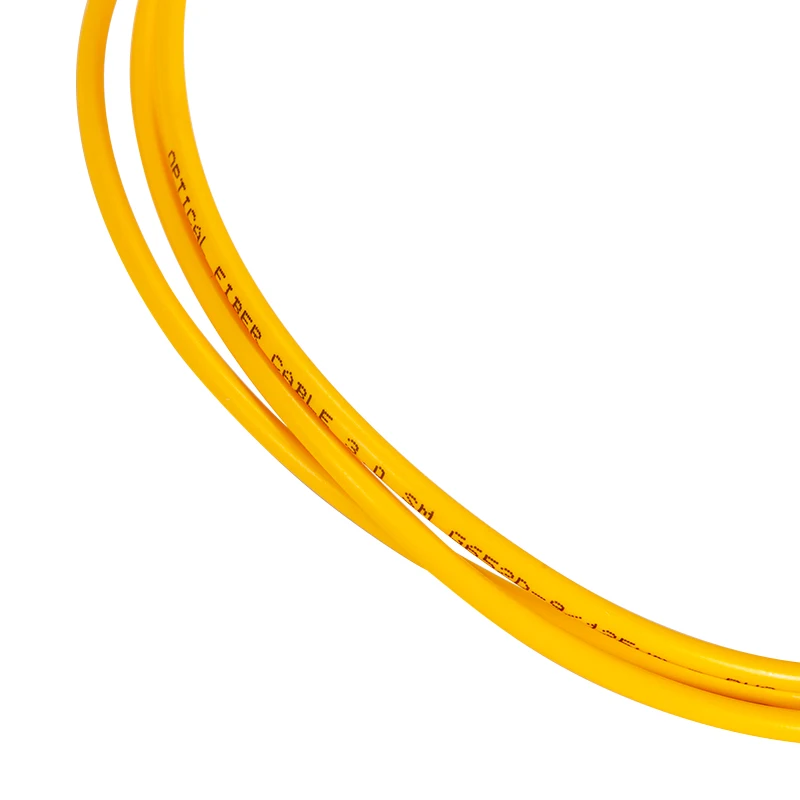

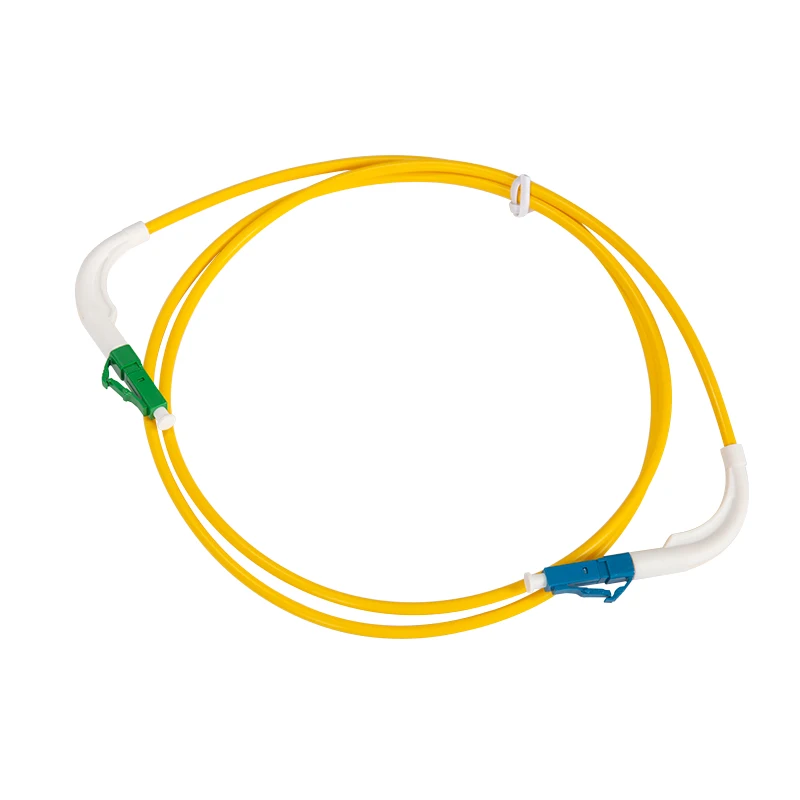

(Angle boot 90 degree LC/APC to LC/UPC Fibre Patch Cords OD3.0mm Simplex SM G.652D (LSZH) yellow,3M
Why Choose Us
① One-stop supplier from molding design, plastic injection.
② 10000 square meters manufacturing plant.
③ 10 Production lines, 300 workers.
④ An R&D team of 30 with degree, a quality system team of 30.
⑤ ISO 9001, CE, RoHS certification.
⑥ 12-month after-salewarranty.
Products Description
The patch cord premium standard LC & LC angle boot 90 degree jumpers. the angle 90degree boot connectors are ideal for high density networks or when additional cable management protection is desired. All materials used are according with Telecommunication industry requirements.
Standard used:
IEC61300 GR-326-CORE, Issue 4, February 2010 YDT 1272.1-2003 Optical fiber connector part I: type LC
Standard used:
IEC61300 GR-326-CORE, Issue 4, February 2010 YDT 1272.1-2003 Optical fiber connector part I: type LC
Features
1. Improve cable routing on high density panels
2. No twist or break fiber when polishing
2. No twist or break fiber when polishing
3. The internal wire holds the boot at the desired angle or direction
4. Installers can easily
The angle 90 degree boot can perfectly dress the fibers, is more convenient to connect on the equipment. We can provide APC and UPC type of 45 degree angle boot LC connectors.
Fiber Angle boot LC fiber optical connector is more convenient to connect on the
equipment. We can provide APC and UPC type of Flexible boot LC connectors. The Boot can be 90 degree and 45 degree.
equipment. We can provide APC and UPC type of Flexible boot LC connectors. The Boot can be 90 degree and 45 degree.

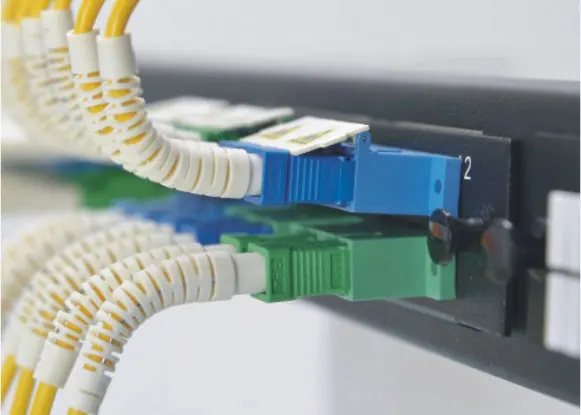

Angle boots for single-mode and multimode patch cords with LC fiber optic connectors
are ideal for high density networks or when additional cable management protection is desired. At any time, installers can easily
bend or reshape the SC flex boots into any desirable direction or angle.
Applications
Specifications
LC/UPC- LC/UPC Fiber Optic Patch Cord | FC/APC Field Installable Connector | |||||
Fiber Type | um | 9/125 | 62.5/125 | |||
Polishing | --- | Single mode | ||||
Insertion Loss | dB | ≤0.3 | ||||
Return Loss | dB | ≥50 | ||||
Repeatibility | dB | ≤0.1 | ||||
Interchangebility | dB | ≤0.2 | ||||
Operating Temp. | ℃ | ﹣25~﹢70 | ||||
Durability | times | ≥1,000 | ||||
Tensile Strength | N | ≥50 | ||||
Diameter | mm | 2.0, 3.0, or customized | ||||
Fiber Count | --- | Simplex | ||||
Material | --- | PVC, LSZH | ||||

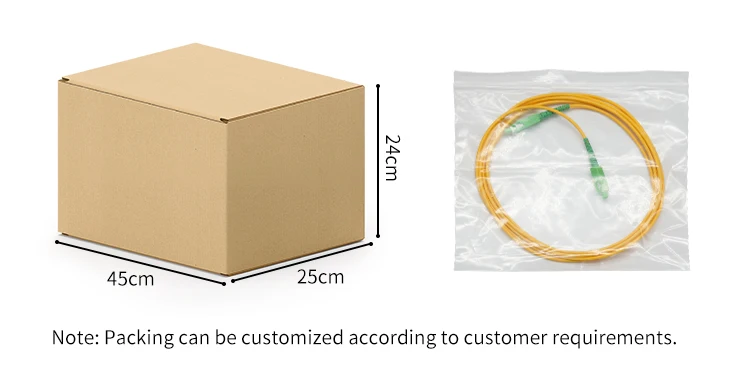

Packing
Recommend Products
Company Briefing
Founded in 2010, Dongguan Qingying Industrial Co., Ltd (QY) is a sophisticated fiber company located in two cities, Dongguan and Chongqing, in China. With more than 10,000m2 plant area, QY is now a company with integrated capability of R&D, production, trading and international sales.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
After-sales service
Return Window | Exchange Window | Warranty Period | Notes |
30 Days | 30 Days | 1 Year | In the case of not affecting secondary sales, a 30-day return is available for in-stock items (excluding customized products). |
Contact Us
aContact Person: Eva He
Weclome to send us inquiry, we will reply you within 24 hours.
Email: eva.he@qyftth.com
Phone/ WhatsApp/ WeChat: +86 13332632198
Phone/ WhatsApp/ WeChat: +86 13332632198
Weclome to send us inquiry, we will reply you within 24 hours.
