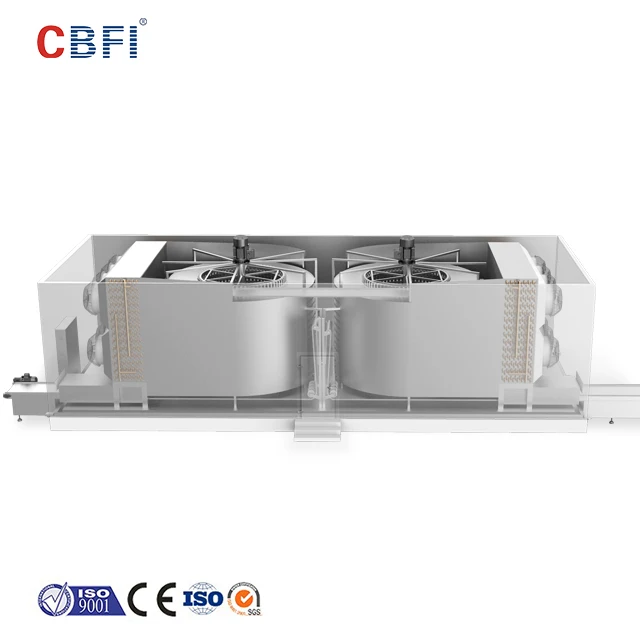

Economical spiral freezer/Industrial Seafood Shrimp Fish IQF Spiral Tunnel Quick Freezer
- Category: >>>
- Supplier: Guangzhou Icesource Co. Ltd.
Share on (1600705214280):
Product Overview
Description
Project Description
Are you still worried about these issues?
Low Technology
Low Added Value
Serious Loss

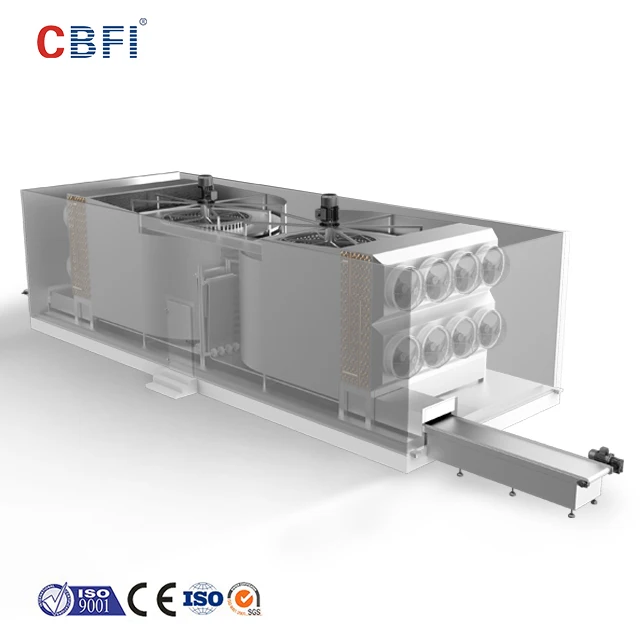

CBFI provides you double spiral quick freezer to solve your concerns!
Efficient freezing, compact and dexterous, stable and reliable, energy saving and power saving
Main Features
Quick freezing, the pre-processed food is placed in a low-temperature quick-freezing device, quickly frozen, and the core temperature of the food is reduced from -1 °C to -5 °C within 30 minutes through the maximum ice crystal formation zone, and the ice crystal diameter formed is less than 100 μm. The core temperature of the quick-frozen food must reach -18°C or less.
1. High-strength mesh belt made of imported special equipment, SUS304 food-grade stainless steel, conveyor belt with flange on both sides.2. The loose library body greatly facilitates cleaning, maintenance and overhaul.
3. The internal components fully meet the hygienic requirements for export food (HACCP) processing.
4. Long-life design, assembled internal structure (different from welded structure), easy to maintain and maintain.
5. Reliable transmission control made of all stainless steel materials, advanced technology of European BBY company.
6. The symmetrical and smooth annular air duct design inside the equipment, the inlet and outlet do not run cold.
7. High efficiency evaporator (efficiency is 25% higher than ordinary evaporator), super large fins with air turbulence structure, produced by the latest stamping process.
8. The stainless steel material of the library floor is made of an integral 3mm thick bottom surface, which will never leak without any risk of freezing and cracking the bottom plate.
9. The main electrical control components are produced by the French Schneider Electric Company.
10. Equipped with European standard waterproof stainless steel control cabinet.
11. The secondary conveyor tension reducer adopts SEW brand products, which has high efficiency and long life.
12. With hundreds of production experience of this type of equipment, very familiar with the requirements for freezing various products.
Appliacations
The low-tension spiral cooling tower device is suitable for free cooling scenarios in the exposed air contact state, and is common in frozen products that need to be cooled naturally from higher temperatures to room temperature, such as freshly baked bread, hot pastries and egg tarts, burgers, fried foods and other frozen products.
The spiral cooling tower device is divided into two types of structure: single type and double type, of which the single type structure includes two types: low inlet high output and high input and low output; The double-type structure is generally a low-in-low-out type.
The above three types are convenient for the overall layout of the production process of the front and rear sets of the customer's workshop, and meet the multi-faceted needs of customers.
The spiral cooling tower device is divided into two types of structure: single type and double type, of which the single type structure includes two types: low inlet high output and high input and low output; The double-type structure is generally a low-in-low-out type.
The above three types are convenient for the overall layout of the production process of the front and rear sets of the customer's workshop, and meet the multi-faceted needs of customers.
Product Configurations

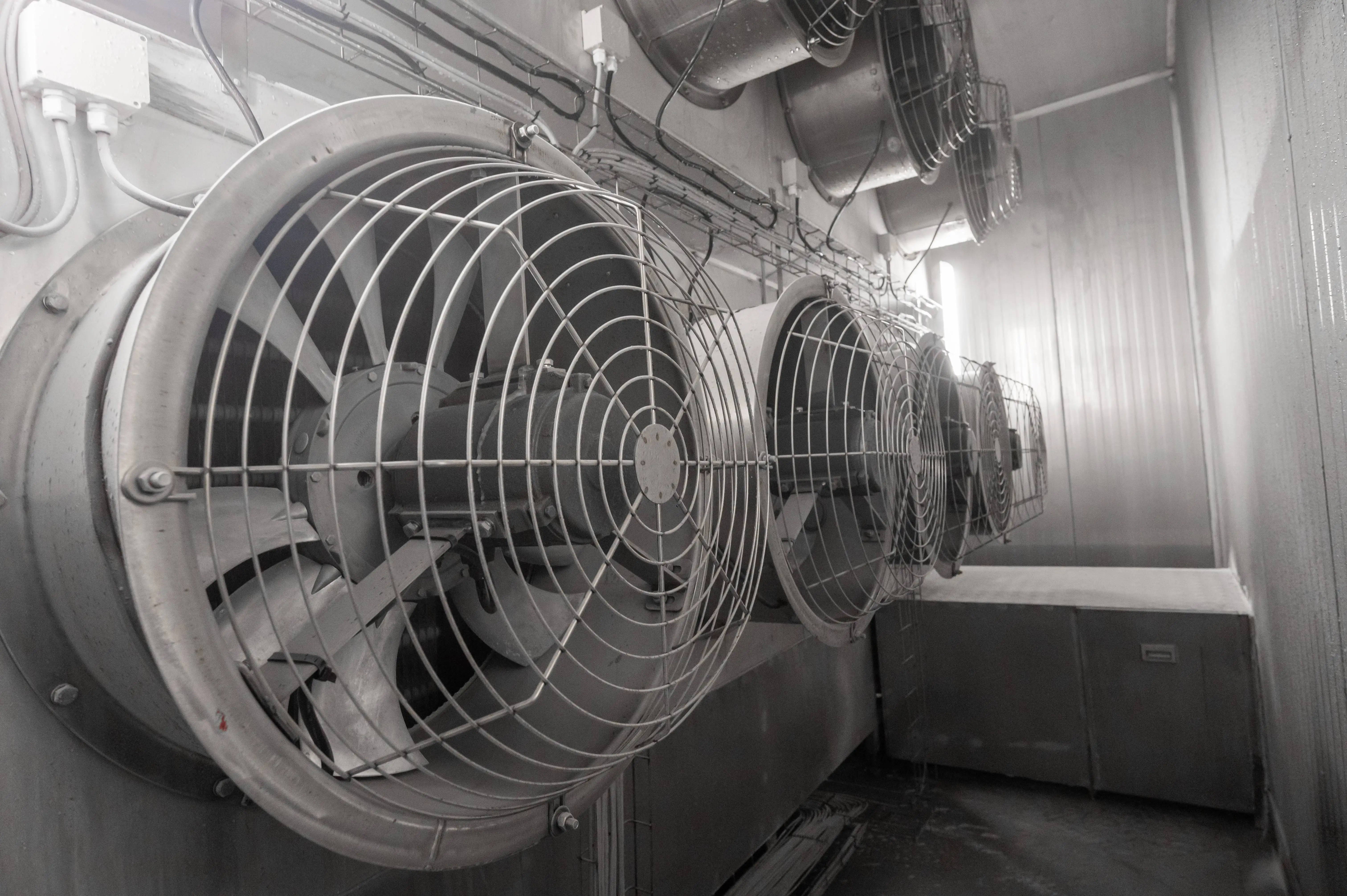

Refrigerant supply method
Provide hygienic evaporator, using advanced liquid supply method, heat exchange efficiency is more than 20% higher than traditional forms
Annular duct design
Symmetrical, smooth annular air duct design enhances heat transfer effect

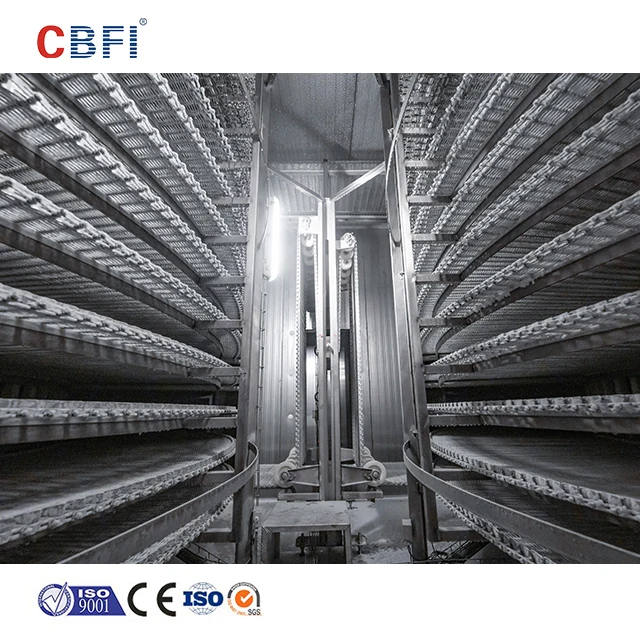

Stainless steel mesh belt
It can be equipped with freezer professional stainless steel mesh belt, plastic mesh belt and other conveyor devices
Stable and reliable quality
The warehouse body adopts the PU panels manufactured by the fully imported production line, and the quality is stable and reliable
Intelligent control system
Equipped with intelligent control system, equipped with automatic detection and alarm light device, convenient for operation and maintenance
Customization
1. The equipment can be designed according to different frozen products and customer requirements.
2. Production capacity from 200kg/h~5000kg/h (depending on the situation).
3. The diameter of the spiral turn cage is optional from 1200mm~4550mm.
4. The belt width is optional from 400~1372mm (16~54 inches).
2. Production capacity from 200kg/h~5000kg/h (depending on the situation).
3. The diameter of the spiral turn cage is optional from 1200mm~4550mm.
4. The belt width is optional from 400~1372mm (16~54 inches).

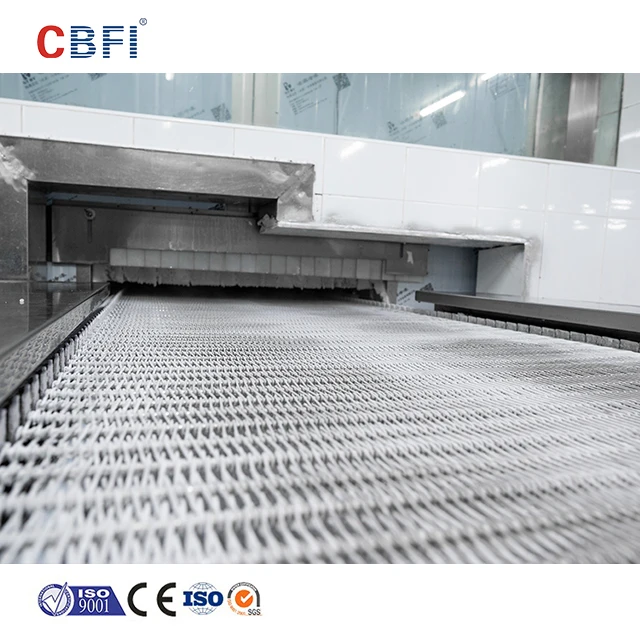

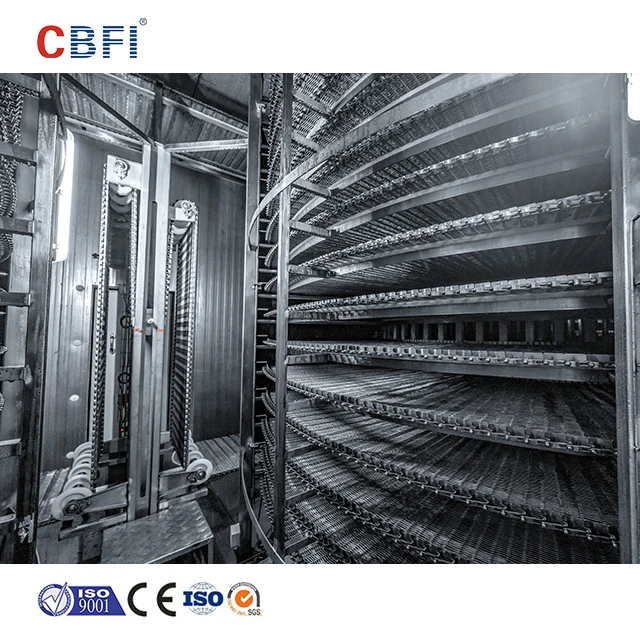

Conveyor
Conveyor mesh belt, special equipment manufacturing, high-strength stainless steel spring wire production, the strength fully meets the American Ashworth standard, the mesh belt is durable
Mesh belt drive
Using European advanced synchronous drive technology
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Cold Room Peoject
------------------------------Foreign Cold Storage Cases-------------------------------
Philippine Cold Storage
Vietnamese Fish and Shrimp Cold Storage
Lebanon Cold Storage
American Comprehensive Cold Storage
Tajikistan Cold Storage
Zambia Cold Storage
------------------------------Domestic Cold Storage Cases-----------------------------
GuangZhou Cold Chain Project
Phase 1:The size of the distribution warehouse is 16800㎡*8.5m, with a total of 1.
Phase 2:Distribution warehouse area 11000㎡*9.7m.
This project characteristics:Energy saving;Safety;High degree of automation;The function of the automatic monitoring system
Pan-Asian Cold Chain Project
This case park has a storage capacity of 70,000 tons, including 40,000 tons of low-temperature freezer storage, 20,000 tons of fresh-keeping cold storage, 10,000 tons of constant-temperature fresh-keeping storage, and 10,000 square meters of dry goods storage.Zhengzhong Cold Chain-Ammonia Three-dimensional Cold Storage
Construction year: 2015
Project Type: Logistics warehousing
Project capacity: 56,000 tons of cold storage
Project function: freezing/refrigeration
Temperature control requirements: -30℃~10℃
Project Type: Logistics warehousing
Project capacity: 56,000 tons of cold storage
Project function: freezing/refrigeration
Temperature control requirements: -30℃~10℃
Guangzhou Qiandama Agricultural Products Co., Ltd. mainly operates fresh supermarket chains, and now has more than 1,200 supermarket chains.
5000 Tons of Food Storage Cold Room Case
-23°C--18°C Food Storage Cold Storage(cold storage, chicken and other raw materials)
The project is the largest real snow and ice site in the city, which is located in Jiangmen, Guangdong. Cold rooms is more and more popular in the world.
More Project Cases>>www.icesourcegroup.com
Made in China Website>> icemakerchina.en.made-in-china.com
Our Services
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
