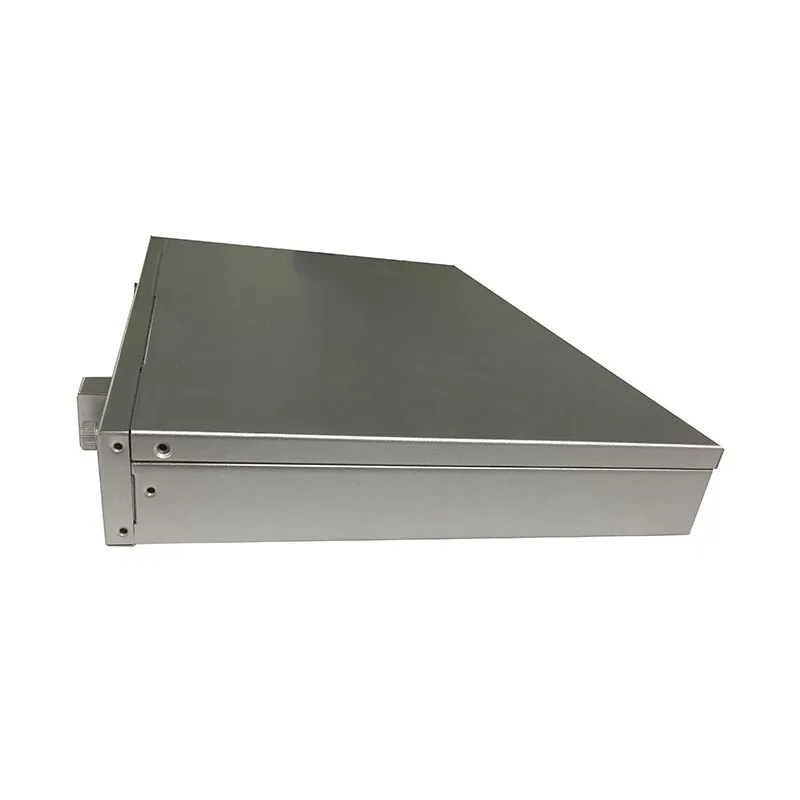

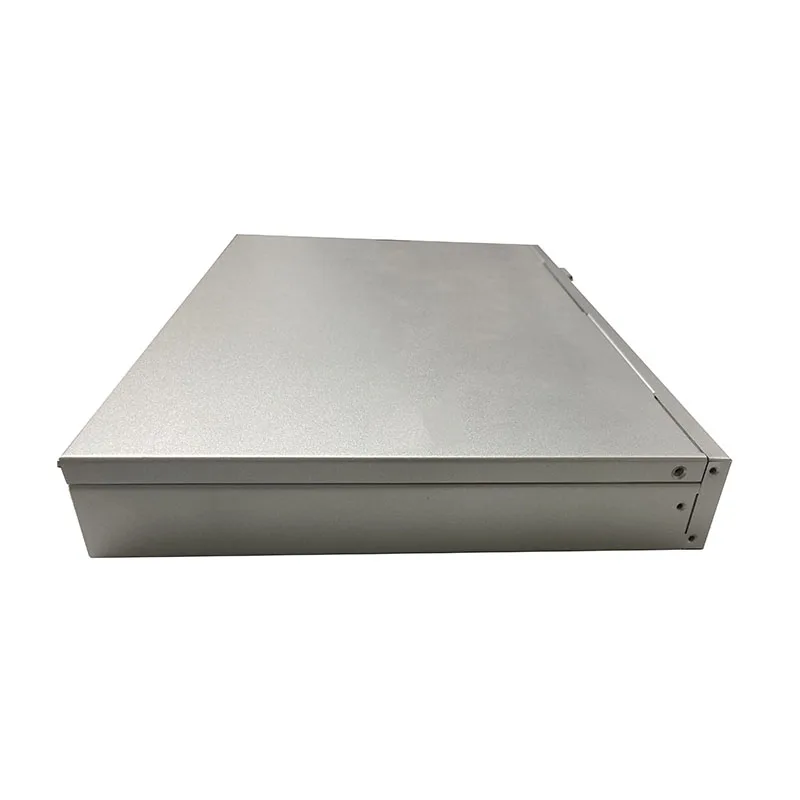

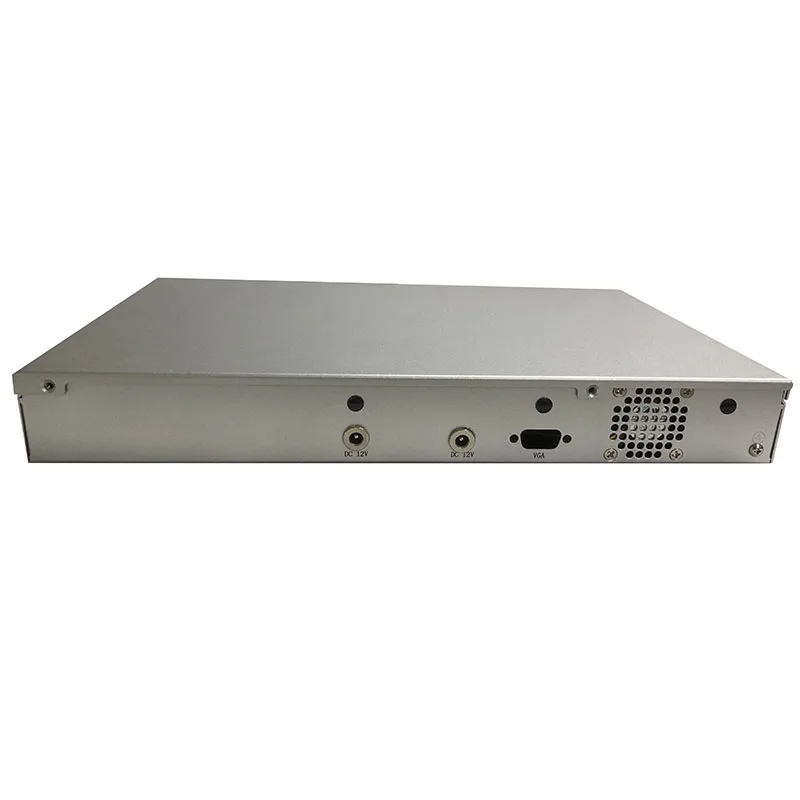

Desktop Network Appliance Powered by Intel Denverton Atom C3336 C3558 C3758 CPU with 6 LAN 2 SFP

Model No.

NC-C362-DP

Form Factor

Desktop

Platform

Processor Options

Intel Denverton Atom C3336 1.5GHz dual-core processor

Intel Denverton Atom C3558 2.2GHz 4-core processor,

Intel Denverton Atom C3758 2.2GHz 8-core processor

CPU Socket

Onboard

Chipset

SoC

OS Support

Windows Server, Linux/Centos

BIOS

AMI BIOS

System Memory

Technology

DDR4

Max. Capacity

64GB

Socket

2 x SODIMM

Networking

Ethernet Ports

6 x Intel i211AT Gigabit network card(Optional support Bypass function)

2 x SFP+ Optical port(C3758/C3558 support, C3336 doesn’t support)

Storage

M.2

1 x M.2 2280/22110

eMMC

32G/64G eMMC(Optional onboard)

mSATA

1 x Mini PCIe

Mini SAS

2 x Mini SAS

I/O Interface

LED

Power LED x 1(Front)

HDD Active x 1(Front)

WiFi LED x 1(Front)

LTE LED x 3(Front)

GPIO LED x 1(Front)

Power LED x 1(Rear)

HDD Active x 1(Rear)

LAN LED x 10(Rear)

Power Button

1 x Power Button

Console

1 x RJ45 Console

USB

2 x USB 2.0

1 x USB 3.0

Reset Button

1 x Reset Button

Display

1 x VGA

Power Input

12V DC-in power connector

Expansion

PCIe X1

1 x PCIe x1 slot

1 x Mini PCIe

1 x Mini PCIe slot

M.2

1 x M.2 Key A 2230 support WIFI

1 x M.2 Key B 3042/3052 support 4G/5G module

USB

2 x USB 2.0 Pin

Miscellaneous

Watchdog

Yes

Internal RTC with Li Battery

Yes

TPM

-

Cooling

Processor

1 x CPU fan

System

1x Cooling fan

Environmental Parameters

Temperature

-10℃~60℃(Operating)/ -20℃~70℃(Storage)

Humidity

5 ~ 90% Non condensing

System Dimensions

(WxHxD)

350×50×240mm

Weight

2kg

Package Dimensions

(WxHxD)

520x150x360mm

Weight

4.45kg

Power

Type/Watts

60W Desktop adapter

Input

2 x DC 12V redundant input

Approvals and Compliance

CE, FCC, RoHS
