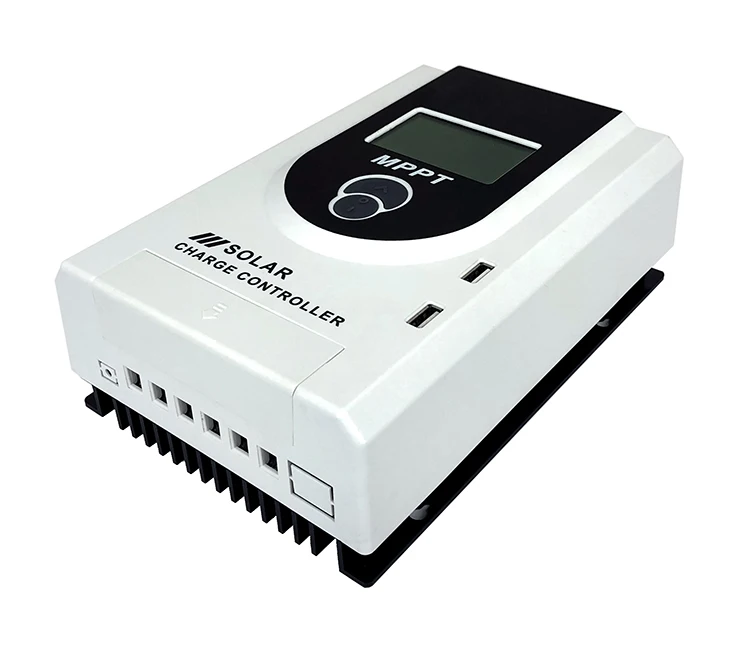

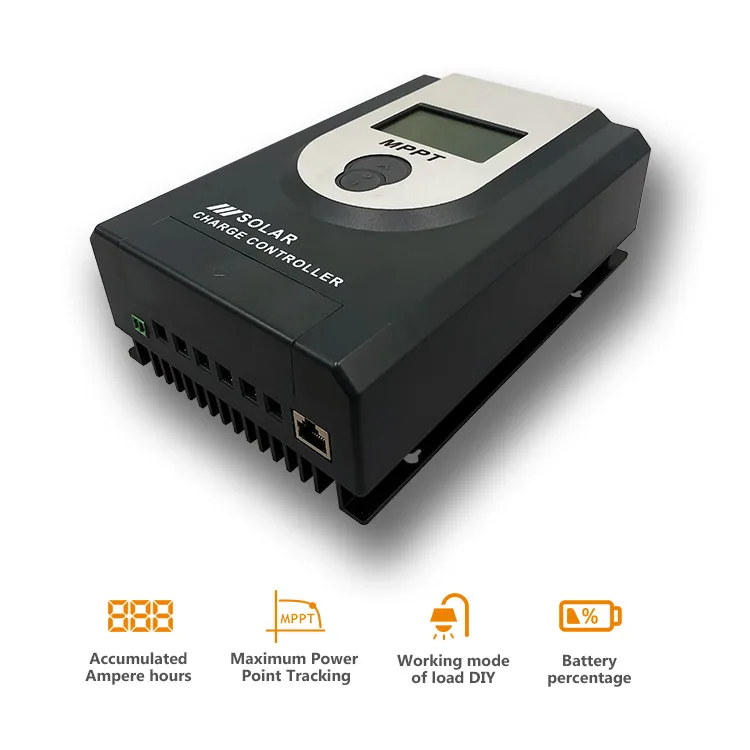

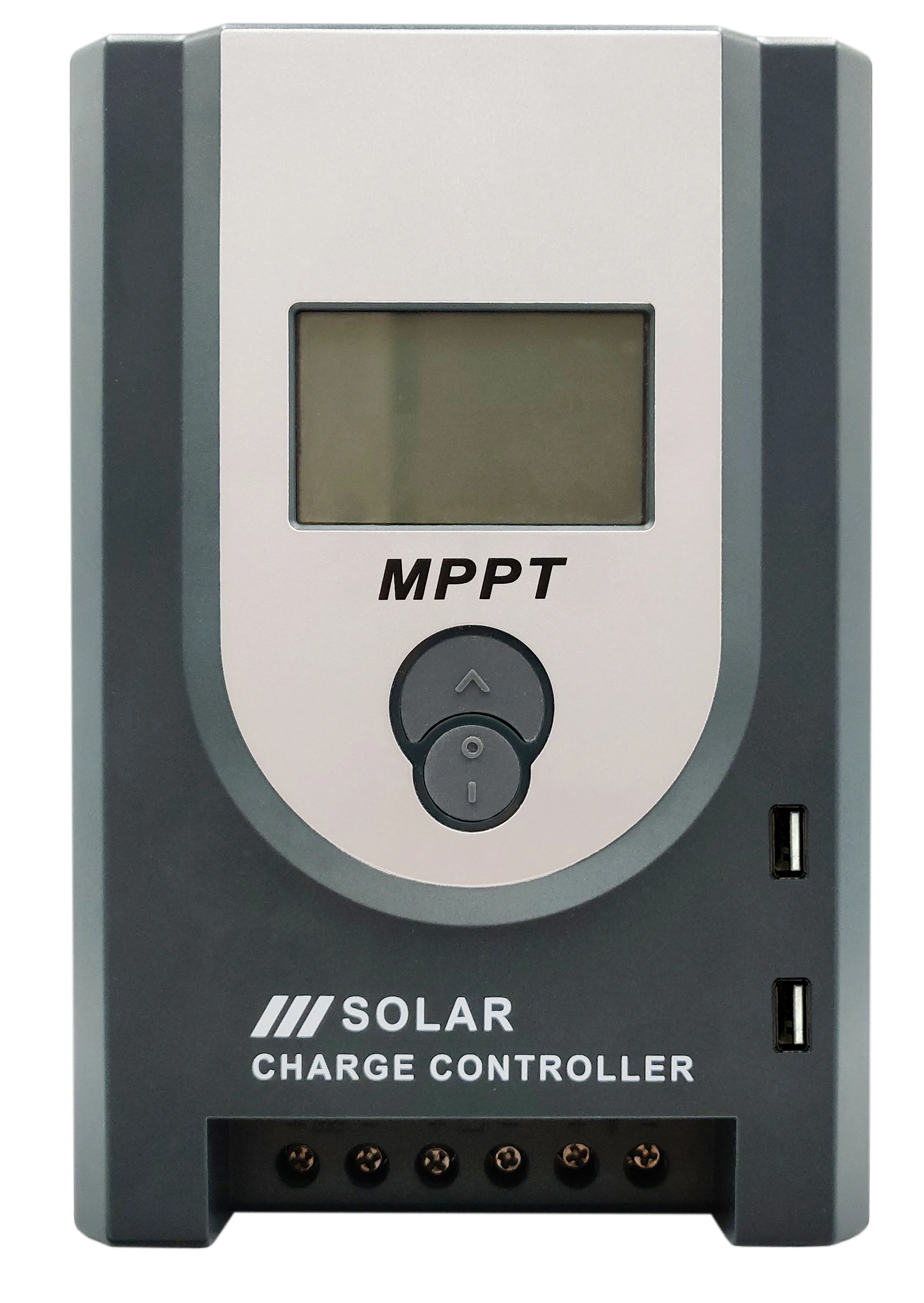

New intelligent 12v 24v 10a~40a circuit board mppt solar charge controller hybrid
- Category: >>>
- Supplier: COREPLUS INDUSTRIAL COMPANY LIMITED
Share on (1600705247809):
Product Overview
Description
Product Description
12V 24V suitable all battery regulator controllers MPPT solar charge controller 10A~40A
* Automatically adjust battery charging and discharging, battery voltage from 12V to 96V
* Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
* Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.

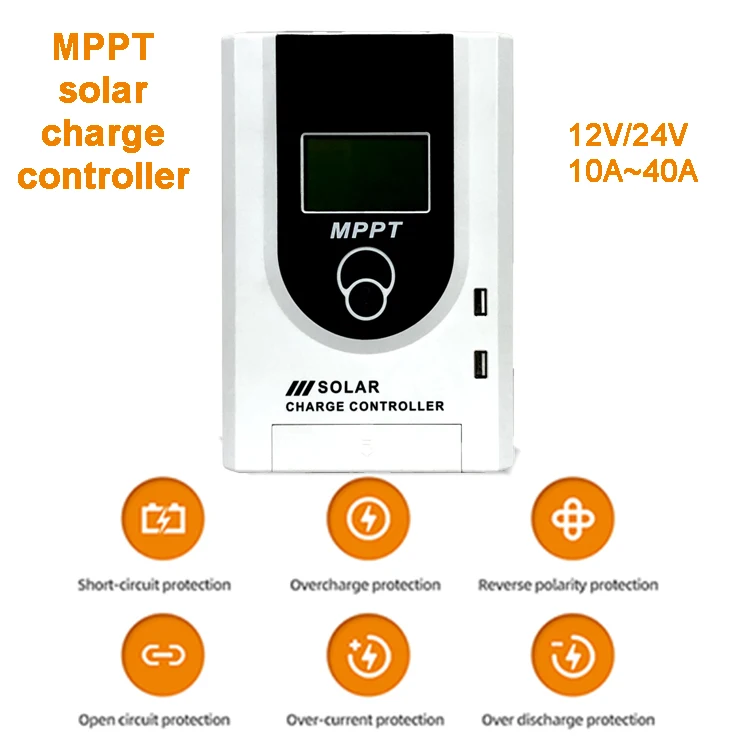

* MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
Product Feature
Product Parameters
Model | MPJ20 | MPJ40 |
INPUT | ||
Maximum PV open circuit voltage | 100V (at the lowest temperature) 92V (at standard temperature of 25℃) | |
Minimum PV voltage | 20V/40V/60V/80V | |
Rated charge current | 20A | 40A |
OUTPUT | ||
System voltage | 12V/24V auto | |
Rated discharge current | 10A | 20A |
Own consumption | ≤50mA | |
MPPT highest accuracy | 99% | |
Maximum charging efficiency | 97% | |
Charging control mode | Multi-stage (MPPT, Absorption, Float, Equalization, CV) | |
Float charge | 13.8V/27.6V | |
Absorption charge | 14.4V/28.8V | |
Equalization charge | 14.6V/29.2V | |
Load disconnection (LVD) | 10.8V/21.6V | |
Load reconnection (LVR) | 12.6V/25.2V | |
Load control mode | Normal, light control, light and timing control, timing control, reverse light control | |
Light control point voltage | 5V/10V/15V/20V | |
Battery type | GEL, SLD, FLD AND USR (default), Lithium batteries customization | |
OTHER | ||

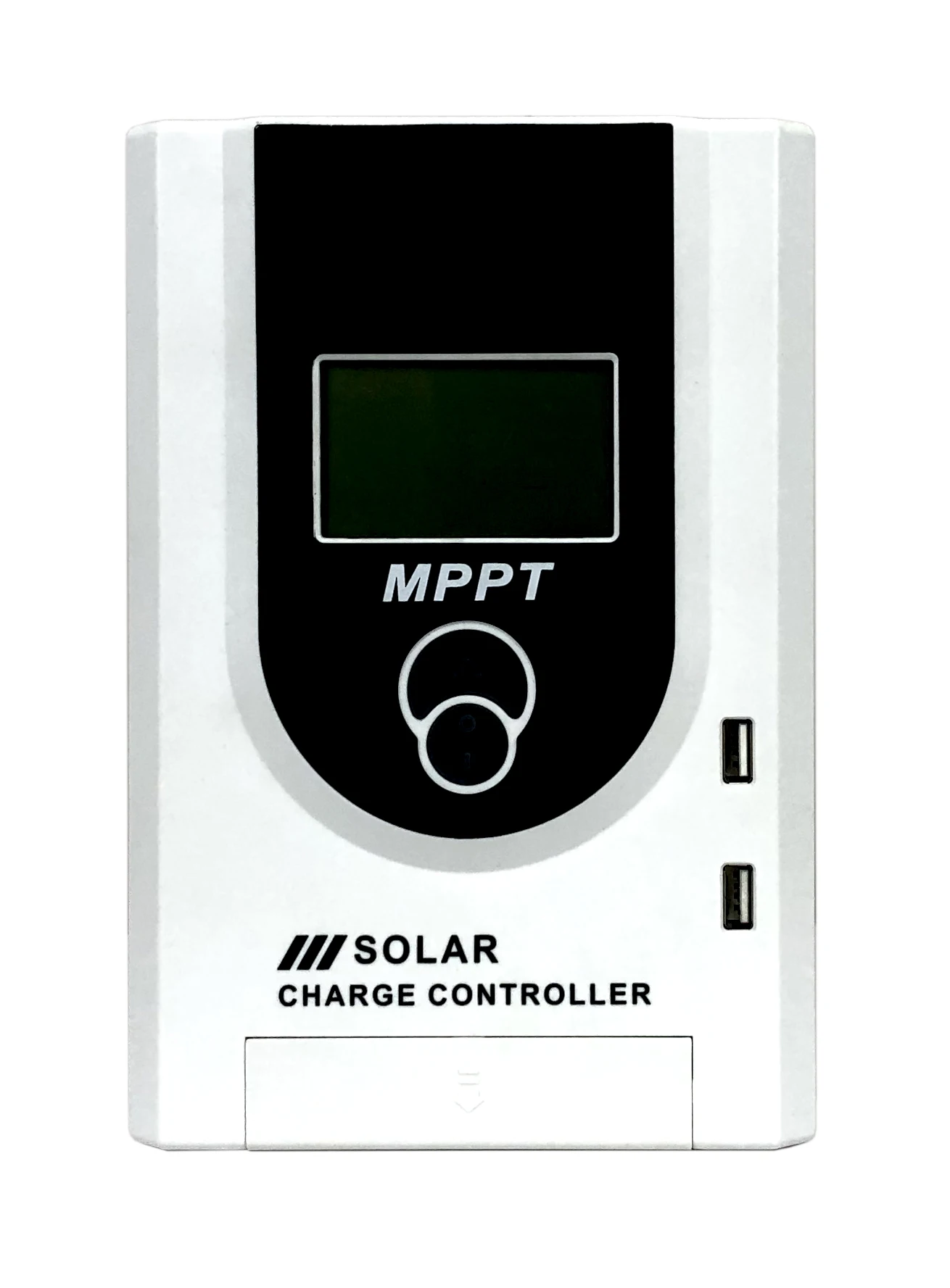

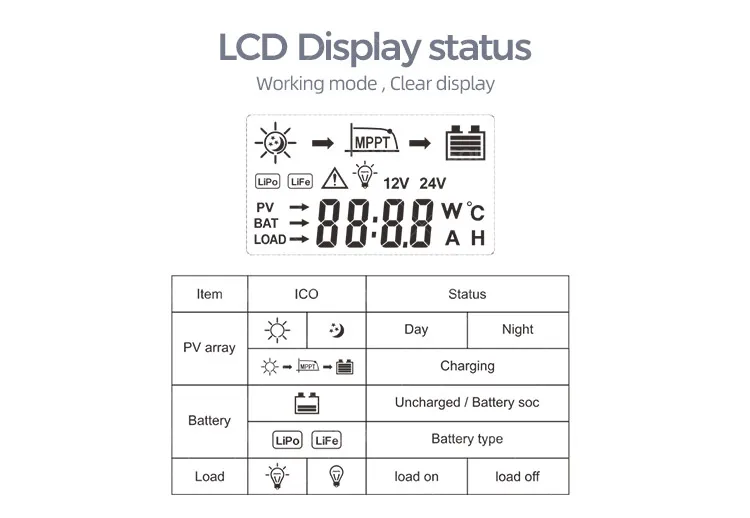

Human interface | LCD with backlight, 2 buttons | |

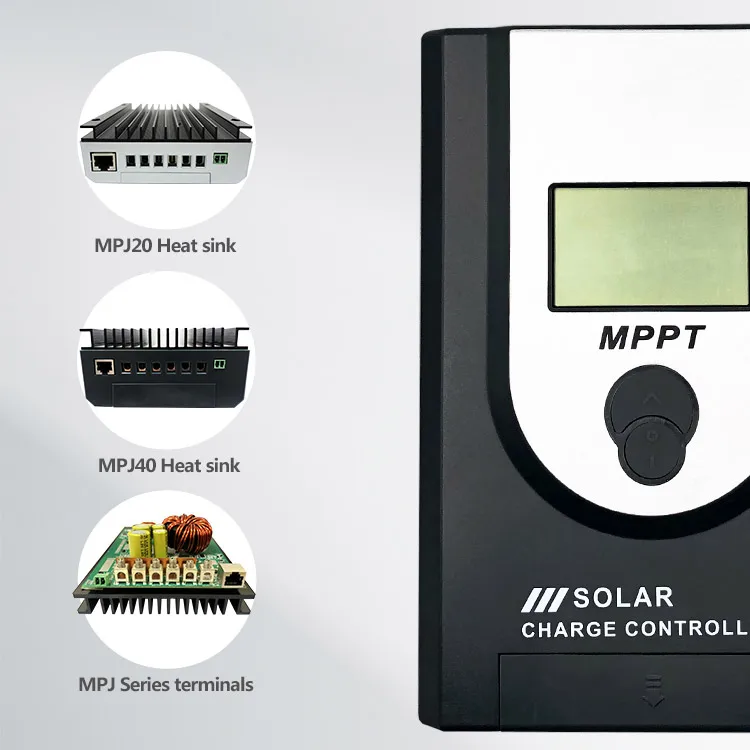

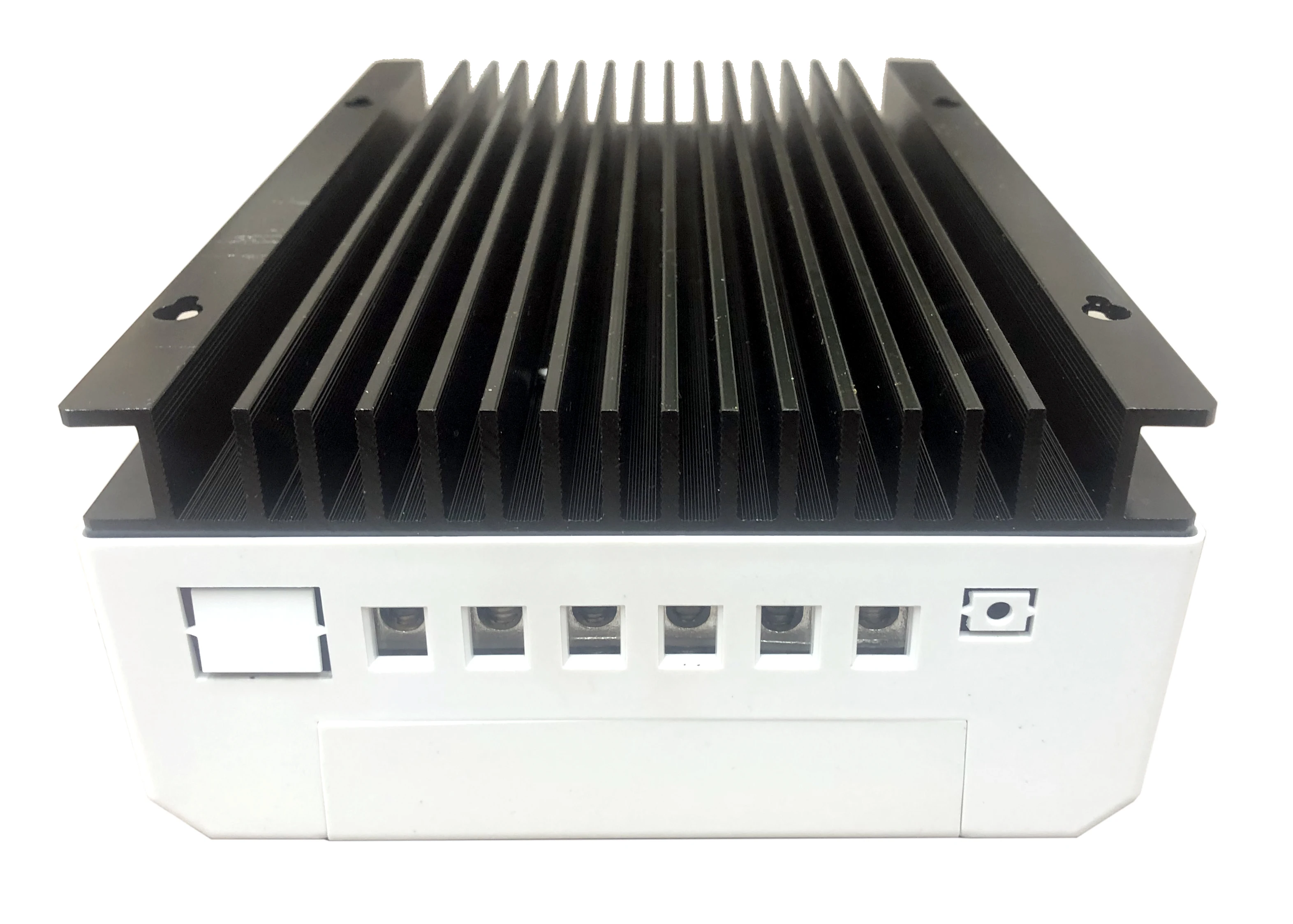

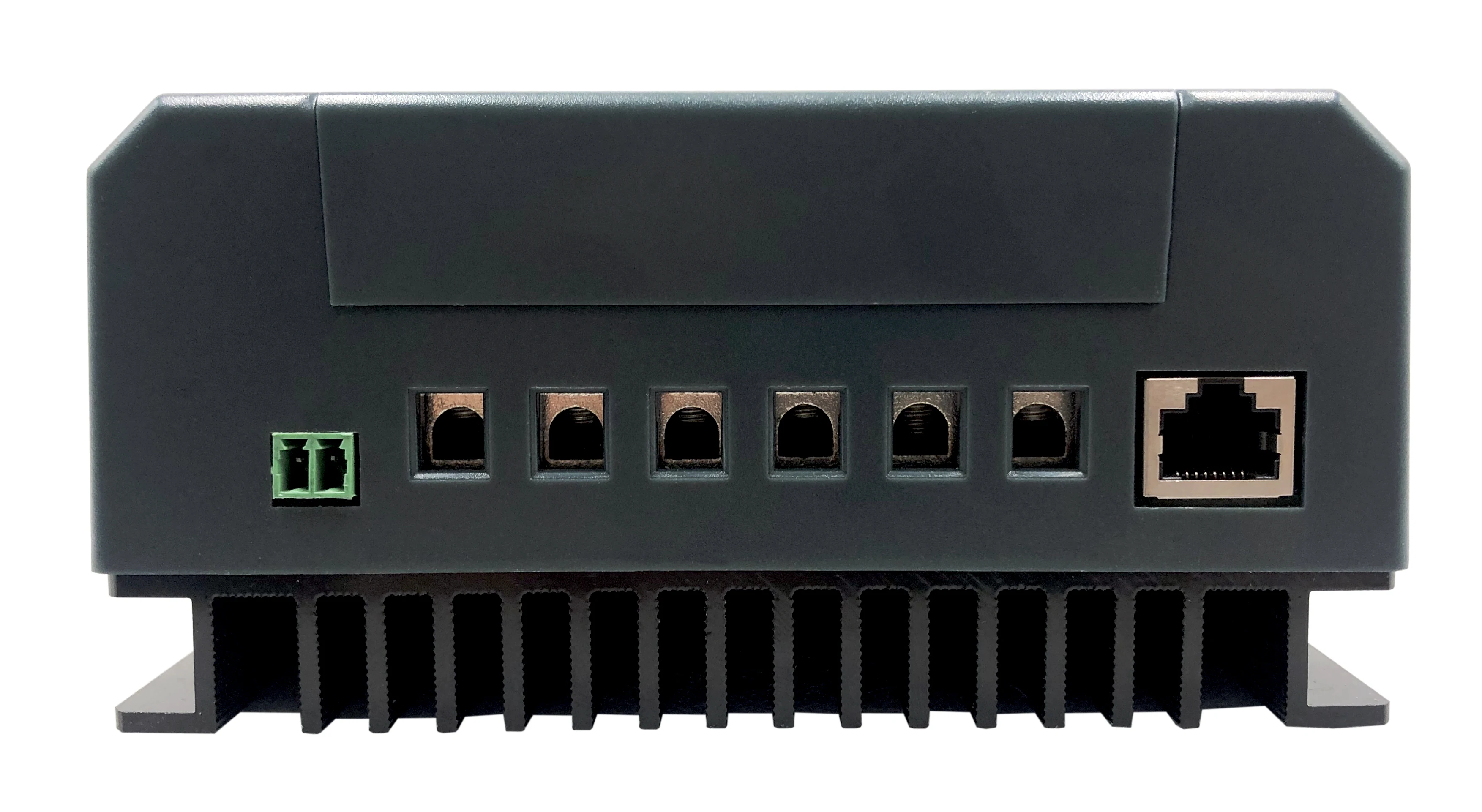

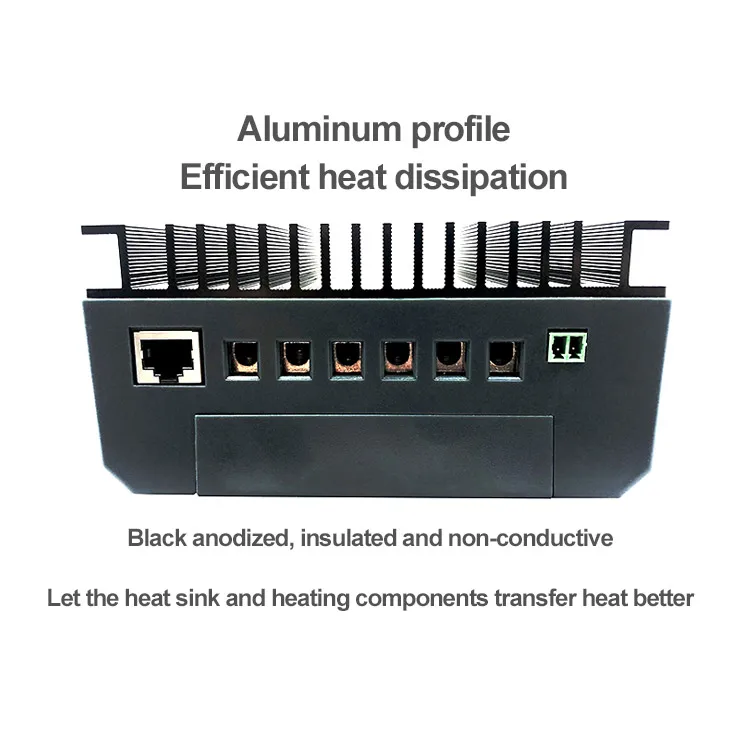

Cooling mode | AL alloy heat sink | |

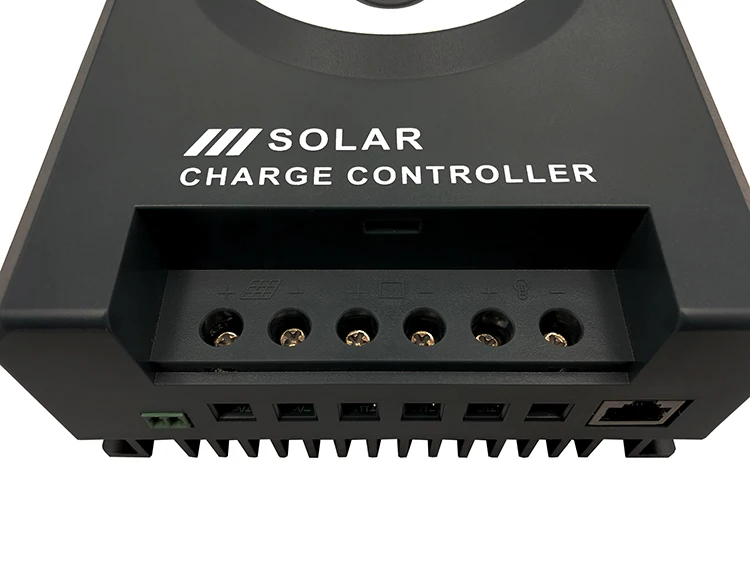

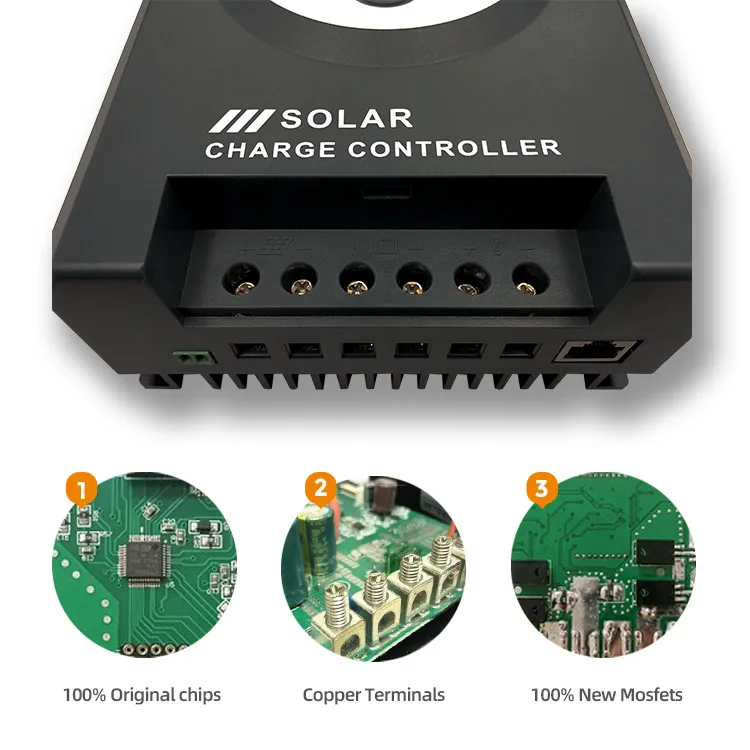

Wiring | High current copper terminal ≤16mm2 (3AWG) | |
Temperature probe | Build-in | |

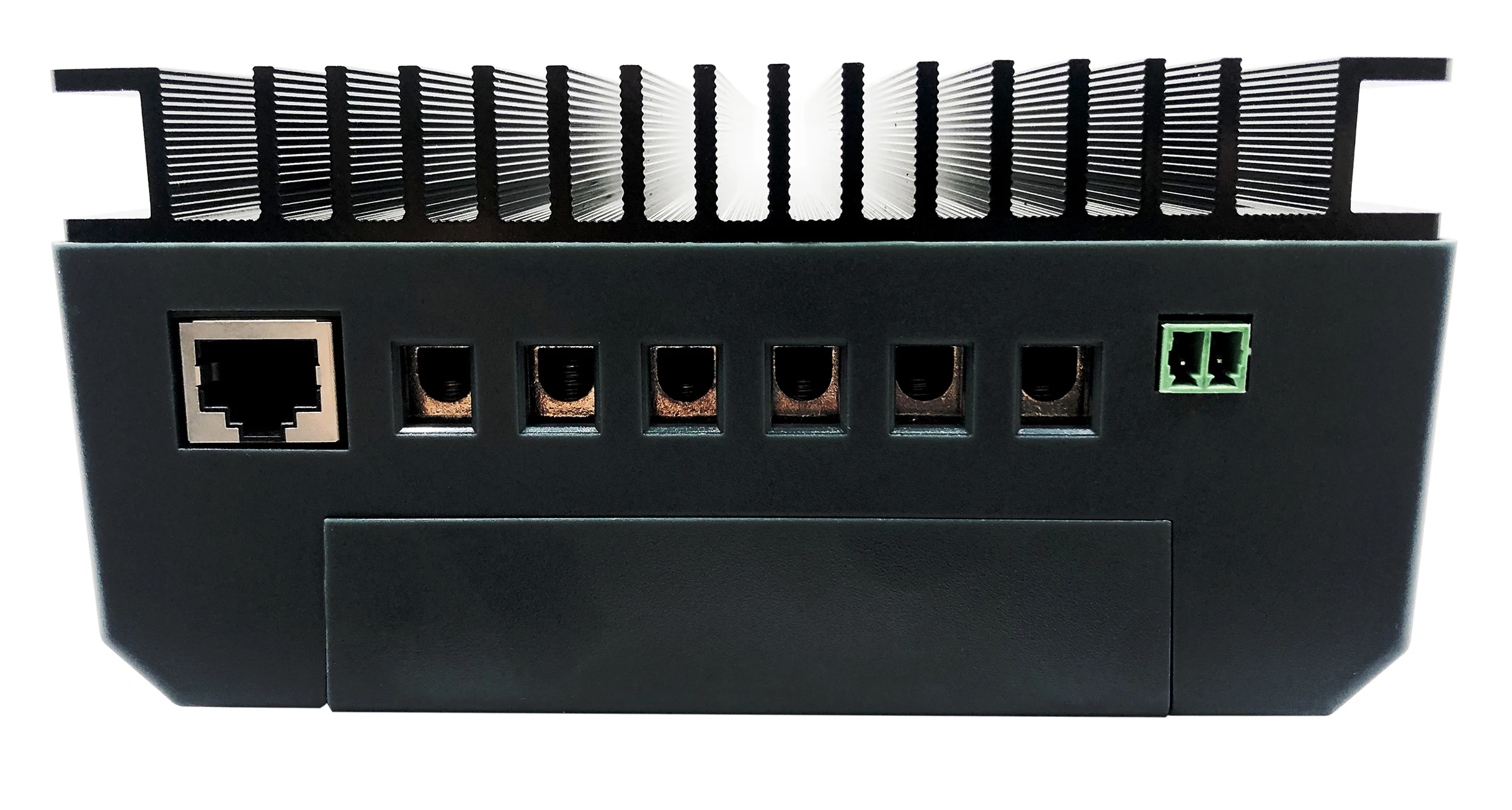

Communication mode | RS485, RJ45 port | |
Working temperature range | -20 ~ +55 ℃ | |
Storage temperature range | -30 ~ +80 ℃ | |
Humidity | 10% - 90% no condendation | |
Size | 175*120*47mm | 215*145*75mm |
Weight | 0.7kg | 1.57kg |
Note: Please operate at the ambient temperature allowed by the controller. If the ambient temperature exceeds the allowable range of the controller, please derate it. | ||
Product Display

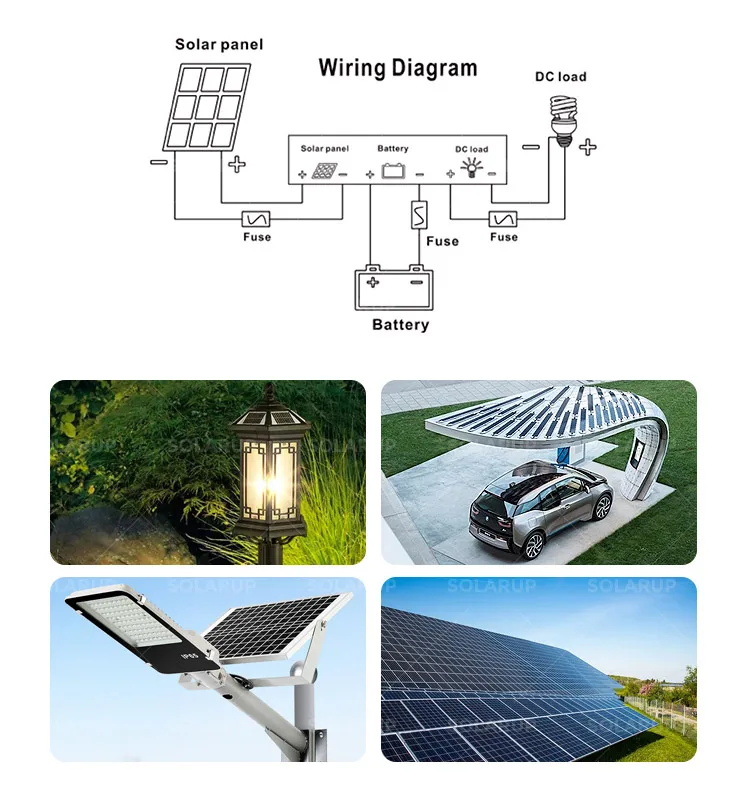

Product Uses
Packing & Shipping
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
FAQ
Q1: Do you support Ready To Ship OEM&ODM?
A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.\\
Q2. What is our advantage ?
A2.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Pass ISO9001.
Q3. How can we guarantee quality?
A3. Always a pre-production sample before mass production; and 38 quality inspections before packing. All of our products have passed certification of CE,CCC,UL PSE and RoHS. Supply MSDS shipping documents.
Q4. What can you buy from us?
A4. Solar tied inverter, Solar off grid hybrid inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, Battery charger, Solar lighting system, Power converter and so on.
Q5. How to select a suitable products?
A5. Visit our website and do not hesitate to contact with our sales, we will supply free technology info and competitive price.
