SS 1200XS SAMSONPAC Automatic Pillow Large product\clothes second pack or bag in bag flow packing machine
- Category: >>>
- Supplier: Foshan Senxun Packing Machinery Co. Ltd.
Share on (1600705255230):
Product Overview
Description
Product Description

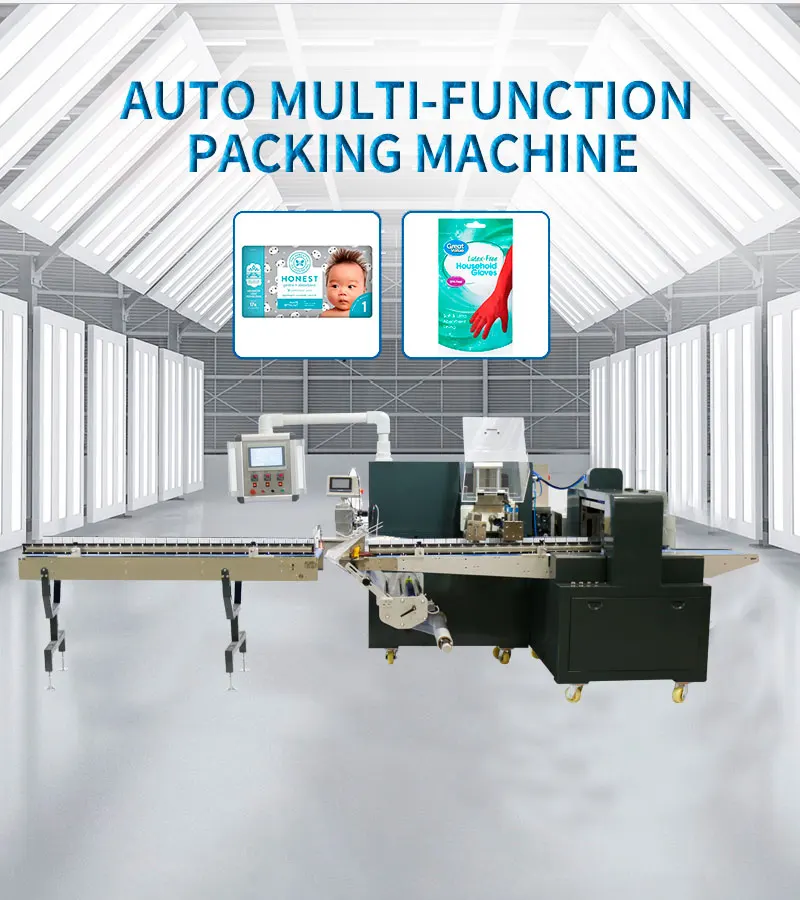

SS-1200XS-SAMSONPAC Automatic Pillow Large product\\clothes second pack or bag in bag flow packing machine
Technical Parameter
| Horizontal Packing Machines Parameters | ||||||
| Model | SS-300S | SS-350S | SS-450S | SS-450WS | SS-500S | SS-680WS |
| Width of film | ≤300mm | ≤350mm | ≤450mm | ≤450mm | ≤500mm | ≤680mm |
| Thickness of film bobbin | 30-75um | 30-75um | 30-75um | 30-75um | 30-75um | 30-75um |
| Dimension of film roll | outerdiameter≤ | outer diameter≤ | outerdiameter≤ | outerdiameter≤ | outerdiameter≤ | outer diameter≤ 300mm,inner diameter≤75mm |
| 300mm,inner diameter≤75mm | 300mm,inner diameter≤75mm | 300mm, inner diameter≤75mm | 300mm, inner diameter≤75mm | 300mm, inner diameter≤75mm | ||
| Single blade bag size | (70-6000)*(50-140)*(3-60)mm(L*W*H) | (70-6000)*(50-140)*(3-60)mm(L*W*H) | (100-6000)*(80-215)*(10-65)mm(L*W*H) | (100-6000)*(80-215)*(10-90)mm(L*W*H) | (100-6000)*(80-240)*(10-80)mm(L*W*H) | (80-6000)*(50-320)*(3-140)mm(L*W*H) |
| Single blade packing speed | 10-100bags/min | 10-100bags/min | 10-80bags/min | 10-80bags/min | 10-100bags/min | 10-40bags/min |
| Double blade bag size | (60-6000)*(50-140)*(3-55)mm(L*W*H) | (60-6000)*(50-140)*(3-60)mm(L*W*H) | NA | NA | NA | NA |
| Double blade packing speed | 20-200bags/min | 20-200bags/min | 20-200bags/min | NA | NA | NA |
| Power requirement | 220V,50HZ, | 220V,50HZ, | 220V,50HZ, | 220V,50HZ, | 220V,50HZ, | 220V,50HZ, |
| 3.8KW | 3.8KW | 4.6KW | 5.5KW | 4.6KW | 5.7KW | |
| Machine size | 3900*850* | 3900*850* | 4100*1050* | 4100*1050* | 4100*1050* | 5000*1200* |
| 1500mm | 1500mm | 1580mm | 1580mm | 1600mm | 1650mm | |
| Machine Weight | 600kg | 600kg | 900kg | 960kg | 810kg | 920kg |
| Motor configuration | servo | servo | servo | servo | servo | servo |
| Film running way | from top | from top | from top | from top | from top | from top |
| Cuting ways | rotary cut | rotary cut | rotary cut | rotary/ | rotary | rotary/ |
| reciprocation | reciprocation | |||||
| Sealing | back seal | back seal | back seal | back seal | back seal | back seal |
| Remark: Any other customized sizes request, please contact us | ||||||
Company Information
Certifications
Packaging & Shipping
FAQ
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: 7-15days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
