KF 1212W Wet Blasting Cabinet Vapour Blasting Machines
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600705267236):
Product Overview
Description
Product Description

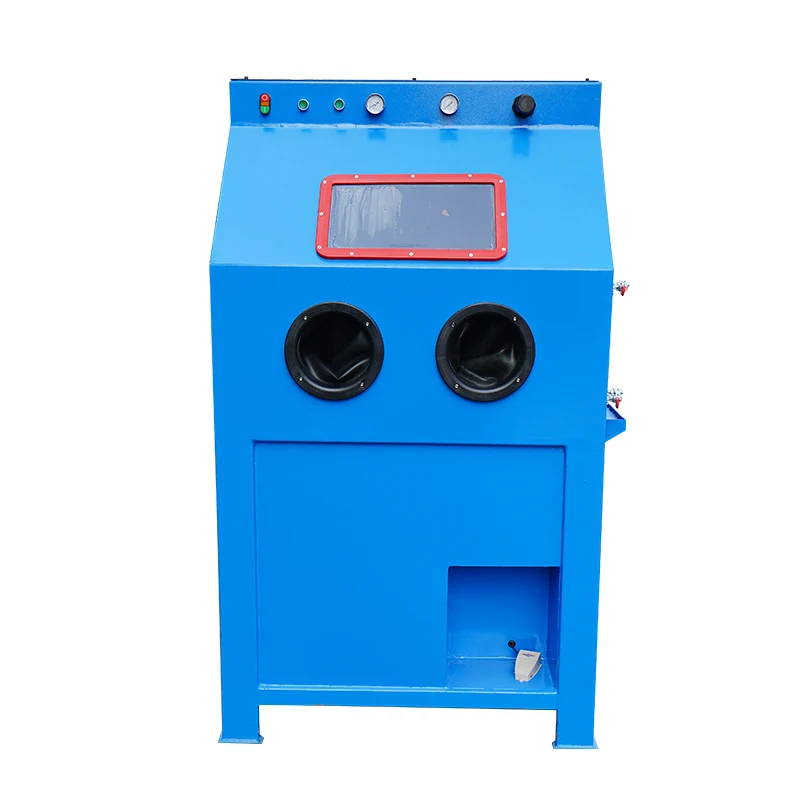

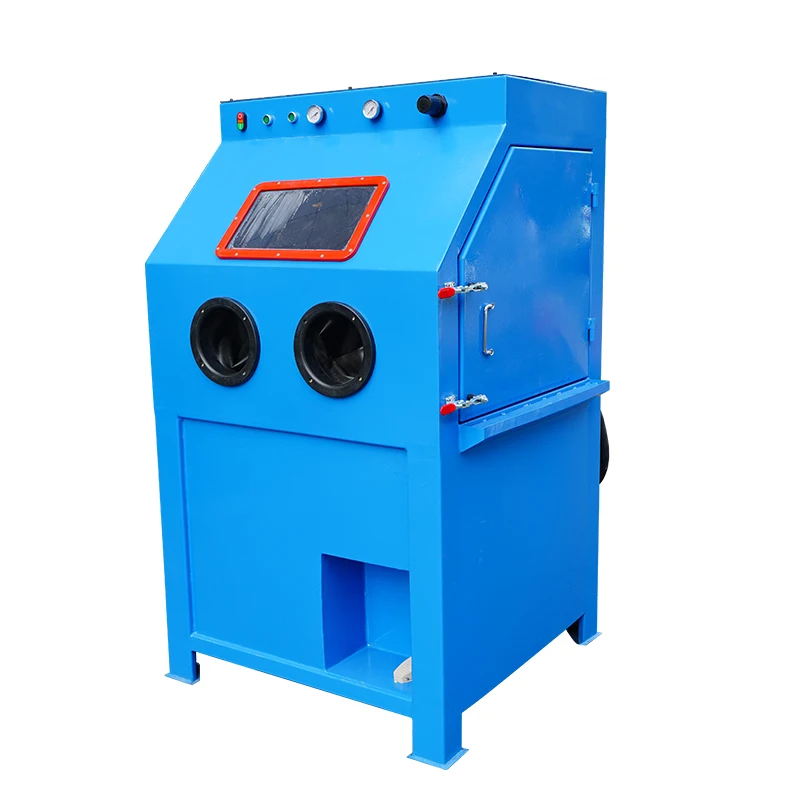

KF-1212W Wet Blasting Cabinet Vapour Blasting Machines
KF-1212W Wet blasting machine has a specially designed pump that agitates water and media into a slurry, and deliver the slurry to the blast nozzle is via a hoses located inside the machine. Compressed air is introduced at the blast nozzle to accelerate the slurry and provide the cleaning effect.
Wet sandblasting machine features:
* Contructed from 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
* Low voltage windscreen wiper and washer to maintain visibility of working chamber
* Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process,
* Reliable foot pedal controls the working of blast gun to increase operation safety.
* A demister at the back of the machine for better view of blasting process.
* Contructed from 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
* Low voltage windscreen wiper and washer to maintain visibility of working chamber
* Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process,
* Reliable foot pedal controls the working of blast gun to increase operation safety.
* A demister at the back of the machine for better view of blasting process.

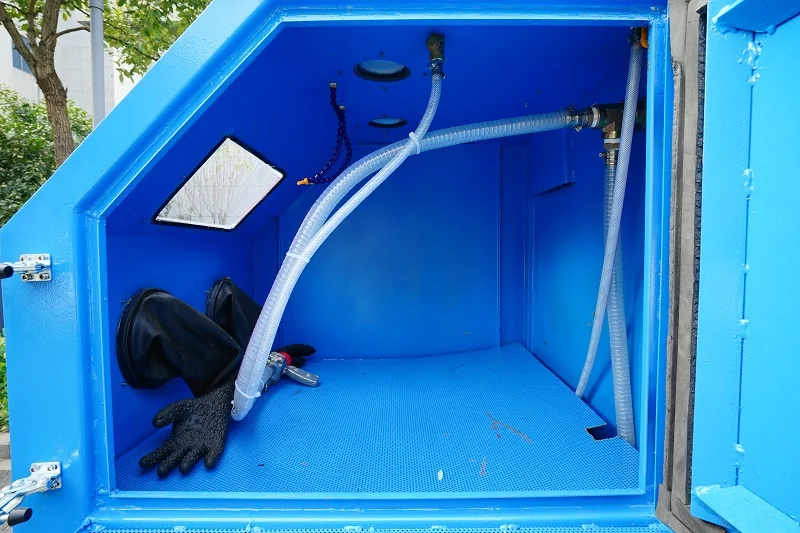

Blast Chamber

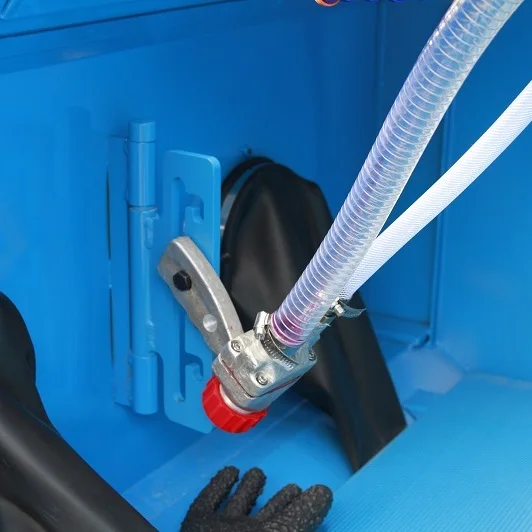

Wet Blasting Gun
Operating Panel

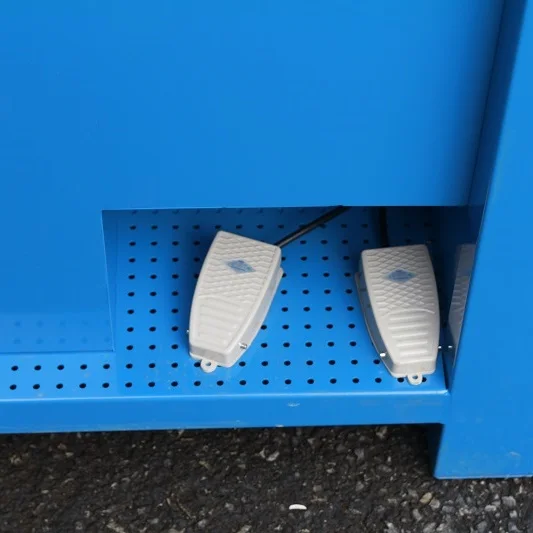

Foot Pedal Switch
Demister

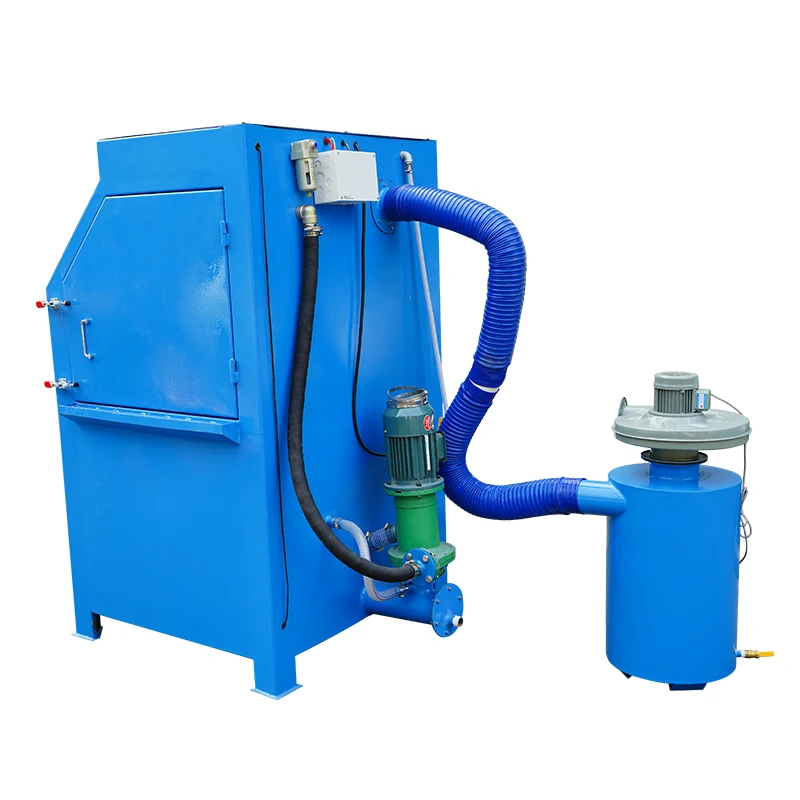

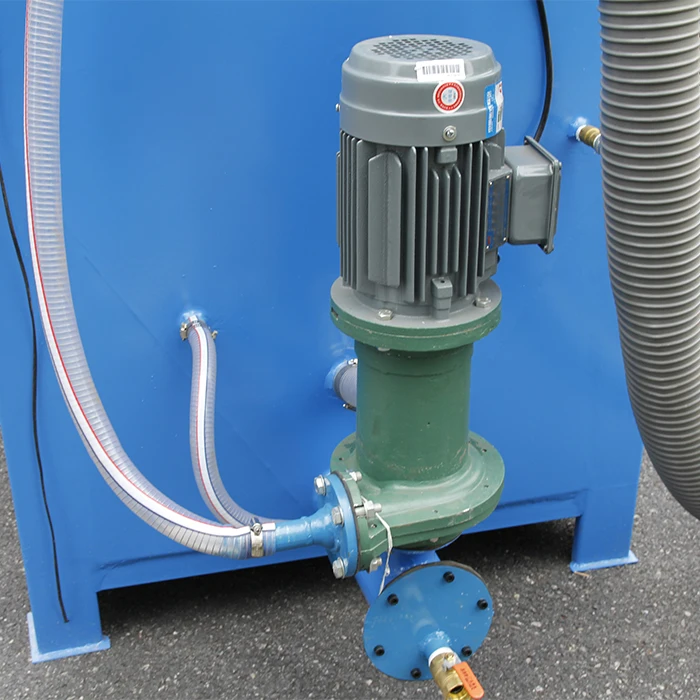

Slurry Pump
Why choose wet blasting machines?
The obvious advantage to wet blasting is that water-borne abrasive gives a finer and cleaner finish due to the flushing action of the water.
The obvious advantage to wet blasting is that water-borne abrasive gives a finer and cleaner finish due to the flushing action of the water.
As there will be no media impregnated into the component, and no any dust created by the break-up of media. For delicate or precise products. water's buffering action offers higher quality finish.
Specifications
Model | KF-1212W |
Outer size | 1300*1600*2000mm |
Working area | 1200*1200*800mm |
Motor | 2.2Kw |
Air requirement | flow 0.5-1.1m^3/min |
Light | 2*18w saving lamps |
Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (8mm) |
Air consumption for 1 gun | 0.4-0.8Mbar |
Volume of abrasive & water | 25L |
Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
Feed abrasive | 4-6kg |
Abrasive : Water | 1:3 |
Voltage | 380V/220V 3 phase (customized) |

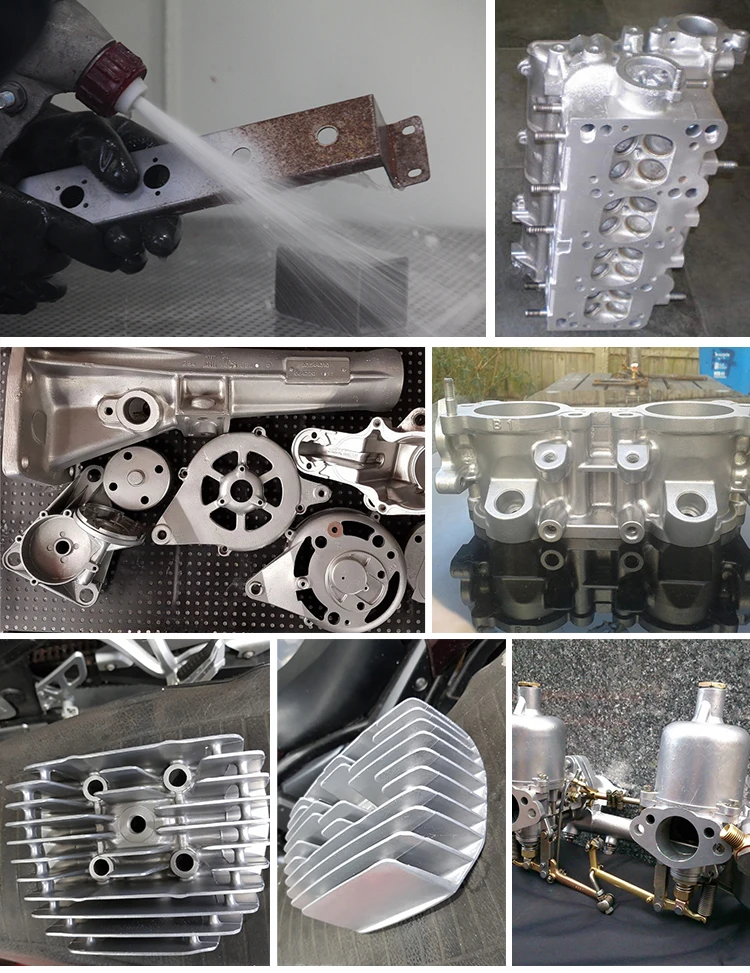

Application
Wet blasting, also known as vapor blasting or liquid blasting, is rapidly becoming the first choice for applications requiring the highest quality of surface finish. Water-borne media blasting deliver finer and cleaner surfaces.
Related Products
KAFAN Company
KAFAN is a manufacturer of sand blasting machines, sand blasting accessories, vibratory polishing machines, abrasive for sand blasting as well. We possess our own Technical & Research Department, International Trade Department, Production Department and Warehouse.
Certifications

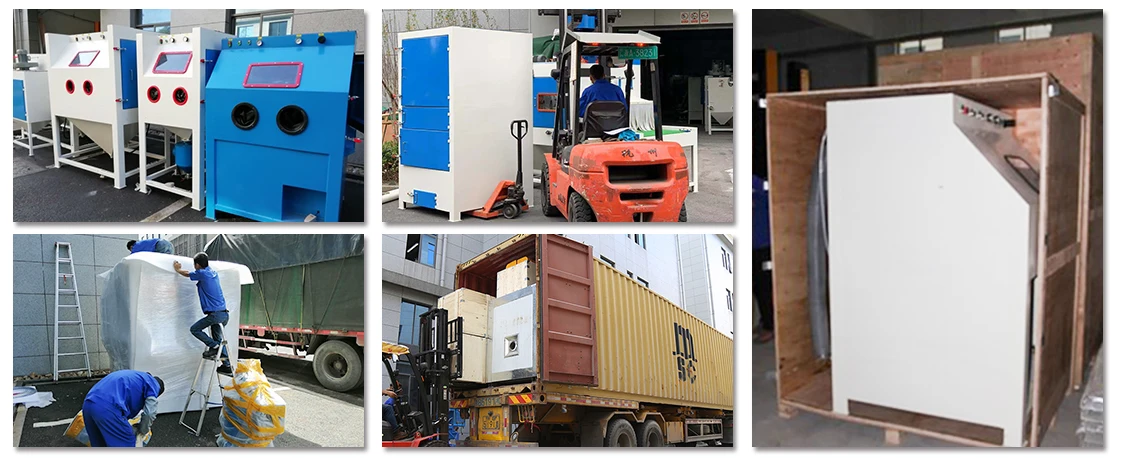

Product packaging
FAQ
1. Which model should I choose?
It is depend on your actual workpiece, whether it is simple or complicated. We have abundant types with different features to suit various customers requirement. What's more, we have also have hopper type and box feed type depending on whether you need frequently change powder colors.
3.The machine can work in 110v or 220v?
We exported into more than 80 countries ,so we can supply 110v or 220v working voltage ,when you order you just tell us which you want ,it will be ok.
4. Is it safe to order from Kafan?
Yes, 100% sure you are safe to order from us ,we exported into more than 80 countries, and in many countries we have agents or Distributors and we are The famous factory in the powder coating equipmen in china.
2. Why some other company supply machine with cheaper prices ?
Different machine function ,different grade parts choosed ,machine coating job quality or Lifetime will be different.
Different machine function ,different grade parts choosed ,machine coating job quality or Lifetime will be different.
3.The machine can work in 110v or 220v?
We exported into more than 80 countries ,so we can supply 110v or 220v working voltage ,when you order you just tell us which you want ,it will be ok.
4. Is it safe to order from Kafan?
Yes, 100% sure you are safe to order from us ,we exported into more than 80 countries, and in many countries we have agents or Distributors and we are The famous factory in the powder coating equipmen in china.
5. How about the Warranty?
Because of quality problem we supply free replacement included the shipping cost within one year according to the problem photo with series number.
Because of quality problem we supply free replacement included the shipping cost within one year according to the problem photo with series number.
