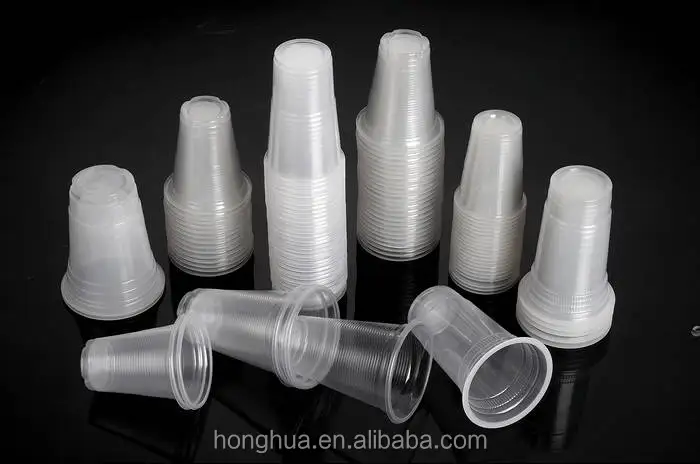

Custom Made Small Plastic Disposable Cup Making Machine China
- Category: >>>
- Supplier: Zhejiang Honghua Machinery Plastic & Rubber Co. Ltd.
Share on (1600705278182):
Product Overview
Description
Our Advantages
1. We are manufacturer with production experience for more than 20 years
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts
Product Paramenters
Forming area | 320X720mm |
Forming depth | 140mm |
Sheet thickness | 0.2-2mm |
Sheet roller diameter | 1200mm |
Width of sheet | 800mm |
Air pressure | 0.7Mpa |
Air consumption | 5000L/Min |
Water consumption | 100L/Min |
Max manufacturing speed | 40 Mould/min |
Power | 380V,50HZ |
Forming motor | 7.5kw |
Heating motor power | 68kw |
Main motor power | 4kw |
Feeding motor power | 5kw |
Rewinding motor power | 0.37kw |
Stacker motor | 2kw |
Weight | 8000kg |
Products Description
INTRODUCTION:

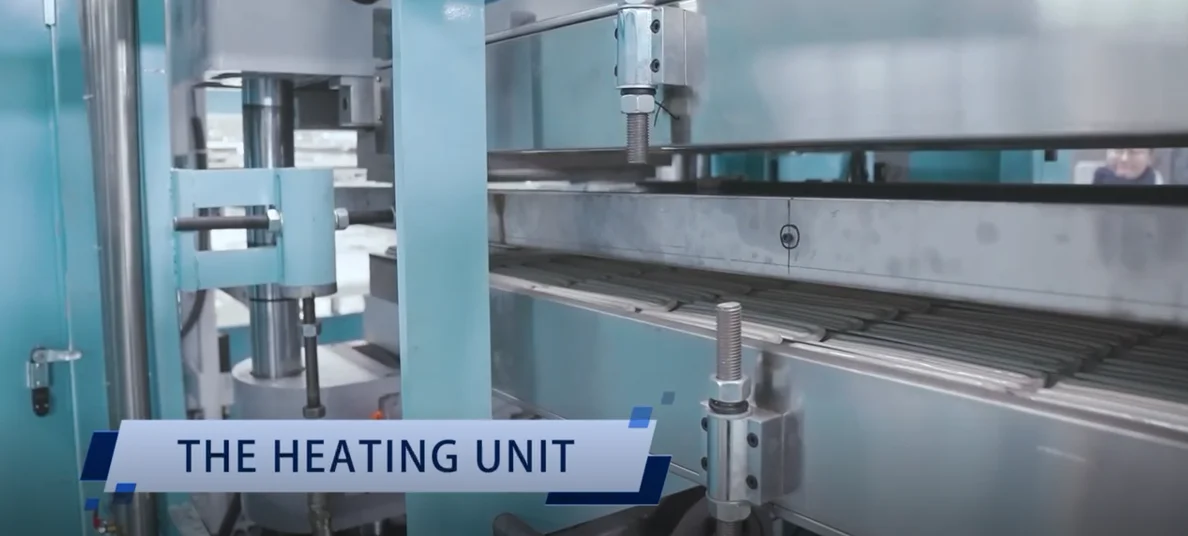

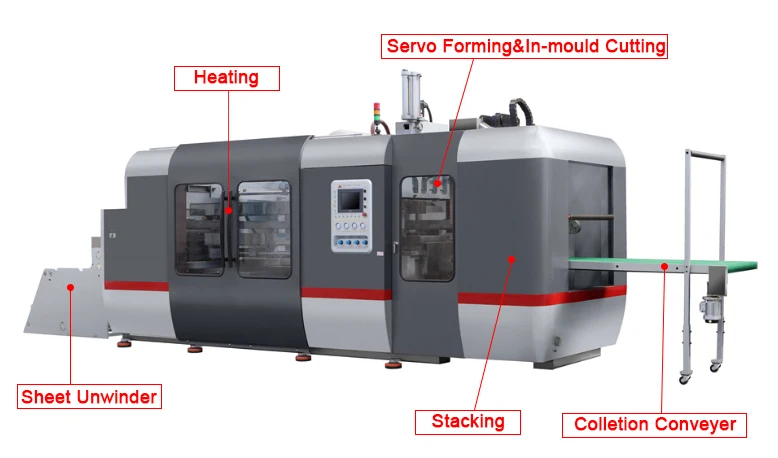

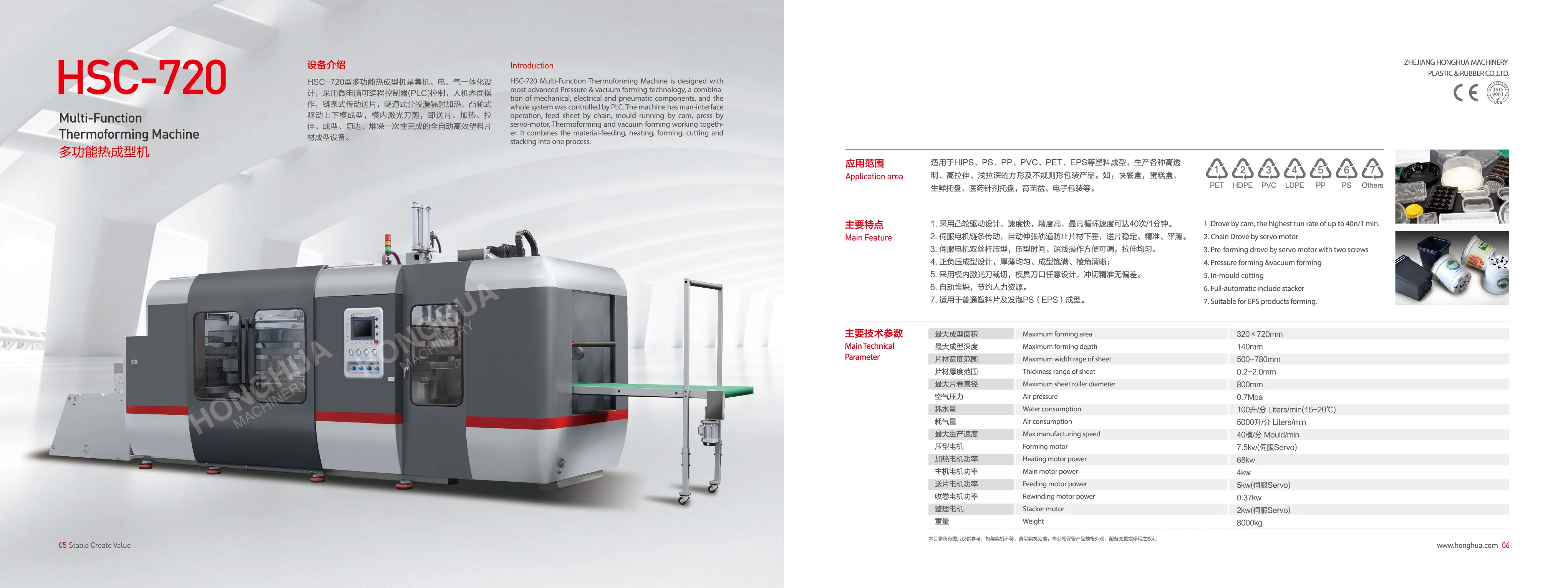

HSC-720 muti-function vacuum forming machine is designed with most advanced pressure&vacuum forming technology.a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by PLC.the machine has man-interface opertation,feed sheet by chain,mould running by cam,press by sevo-motor,thermoforming and vacuum forming working together.it combines the material-feeding,heating,forming,cutting and stacking into one process.
2. Chain drove by servo motor
3. Pre-forming drove by servo motor with two screws
4. Pressure forming &vacuum forming
5. In-mould cutting
6. Full-automatic include stacker
5. Suitable for EPS products forming.
HSC-720 muti-function vacuum forming machine is designed with most advanced pressure&vacuum forming technology.a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by PLC.the machine has man-interface opertation,feed sheet by chain,mould running by cam,press by sevo-motor,thermoforming and vacuum forming working together.it combines the material-feeding,heating,forming,cutting and stacking into one process.
MAIN FEATURES:
1 .Drove by cam, the highest run rate of up to 40 cycle/ min.2. Chain drove by servo motor
3. Pre-forming drove by servo motor with two screws
4. Pressure forming &vacuum forming

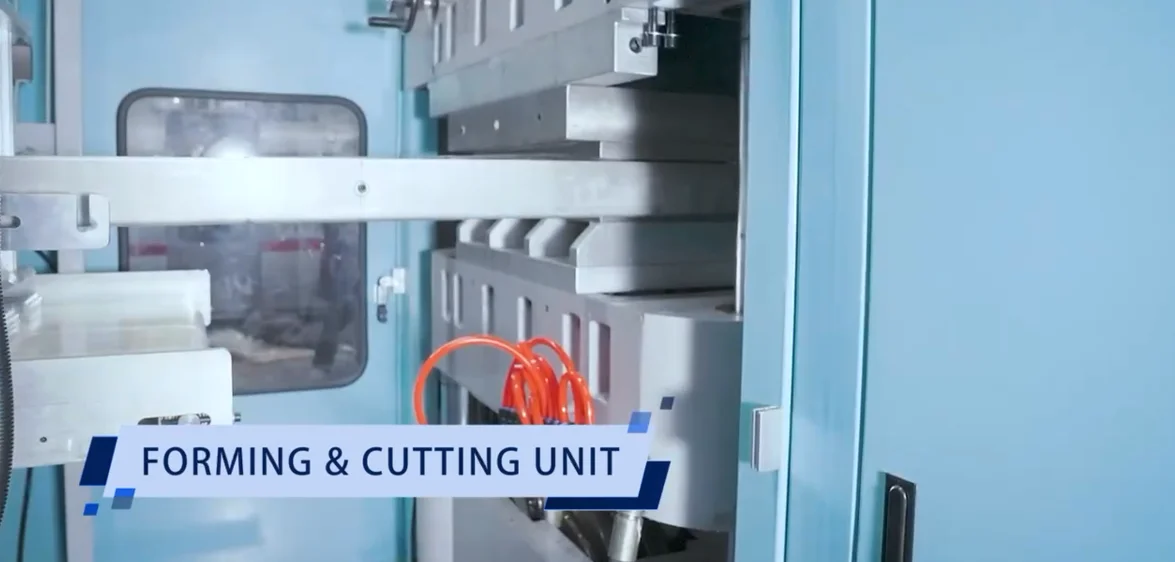

5. In-mould cutting

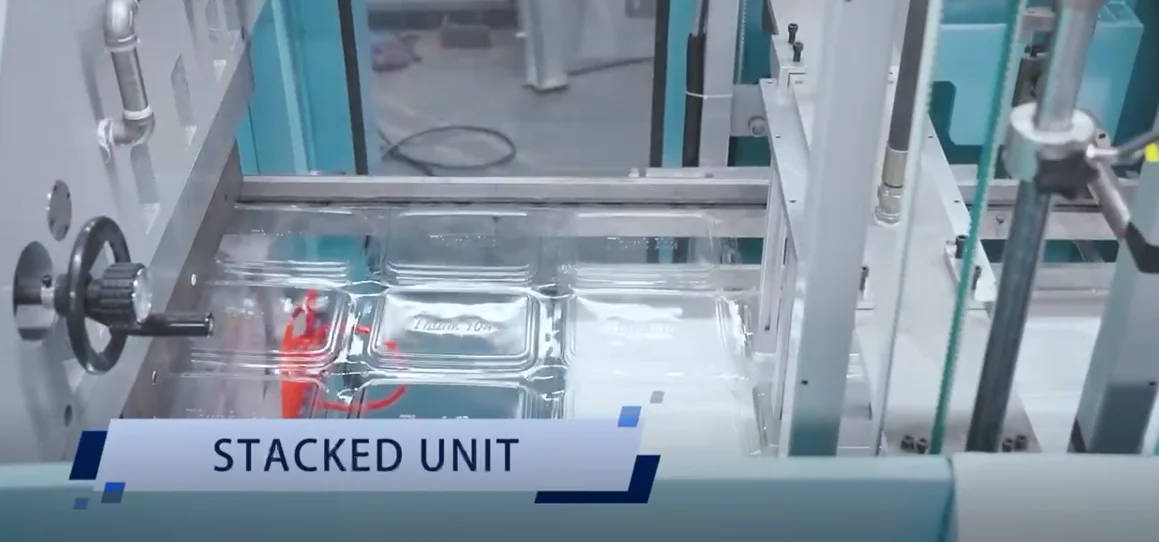

6. Full-automatic include stacker
5. Suitable for EPS products forming.
Our Workshop
Certifications
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
