High precision gear flowmeter with zero return function, all stainless steel diesel liquid flowmeter supplier price concessions
- Category: >>>
- Supplier: Katu Electronic (kunshan) Co. Ltd.
Share on (1600705290482):
Product Overview
Description
Products Description
principle characteristics
The FM500 gear flow sensor is built with double gears, which can calculate the volume of medium through the volume of high precision gear wheel and measure the fluid medium with small size. It is a new type of volumetric flow sensor, which is used to measure the flow or instantaneous flow of liquid in a pipe precisely continuously or intermittently.
- analog switch double output
-pnp /NPN switch arbitrarily
-LED liquid crystal display
- high pressure (1.0-45mpa)
- high and low temperature resistance (-40℃-150℃)
- various viscous media can be measured
- high precision and repeatability
- range specific width (1:100)
- wide measurement range
- strong anti-corrosion and anti-pollution ability (acid and alkali)
- analog switch double output
-pnp /NPN switch arbitrarily
-LED liquid crystal display
- high pressure (1.0-45mpa)
- high and low temperature resistance (-40℃-150℃)
- various viscous media can be measured
- high precision and repeatability
- range specific width (1:100)
- wide measurement range
- strong anti-corrosion and anti-pollution ability (acid and alkali)
Measuring range: | 0.005~330 L/min (customized range is supported) | power supply: | 16~30VDC |
output signals: | 4-20ma,PNP/NPN | medium temperature: | -30~80℃ (high temperature customized 150℃) |
measurement accuracy: | 0.5% f.s. | Withstand pressure: | aluminum (150bar), stainless steel(400bar), PP (50bar) |
repeatability: | 0.1% f.s. | Material: | shell: aluminum, stainless steel, display: stainless steel |

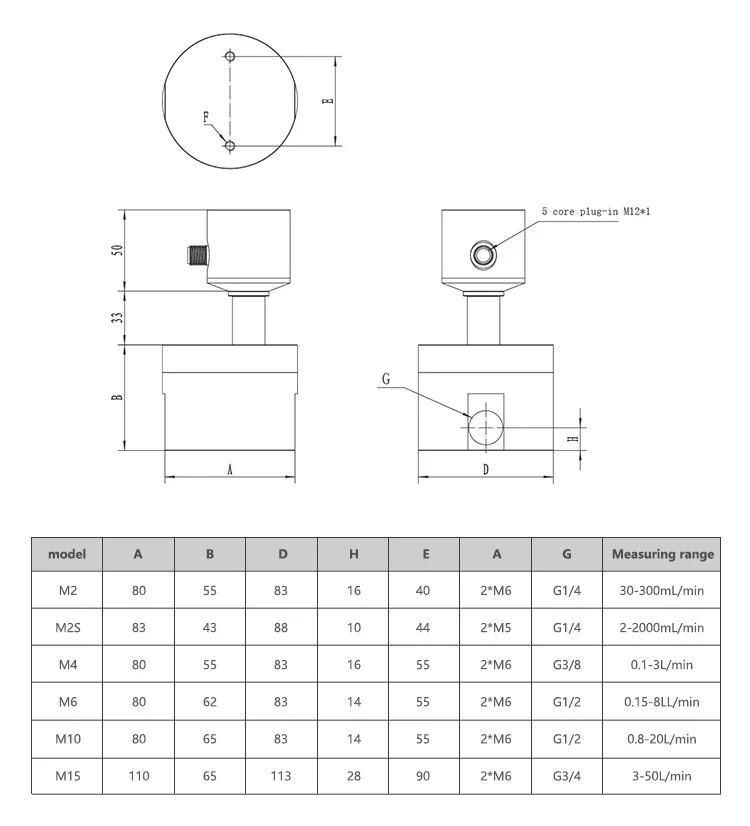

size
