SMDIM H1 Access Control Card Making Machine

Product Overview

Description

SMDIM-H1 Dual Interface Card Bonding Machine is used to bond COB module with copper wire. Machine adopts high-speed servo system and highly stable and precise spot welder with HF contravariant resistance, which is characterized with high precision, high stability and high speed.



Machine color can be made by your order

1. The system can follow and adjust the ultrasonic parameter automatically during running.

2. There are several programs for different sizes of sheets.

3. Servo motor controls the bonding location.

4. Use advanced ultrasonic technology with high electrical current instant bonding.

5. It is easy to load plastic sheet and easy to adjust with alarm system.

6. IO monitor display if any error.

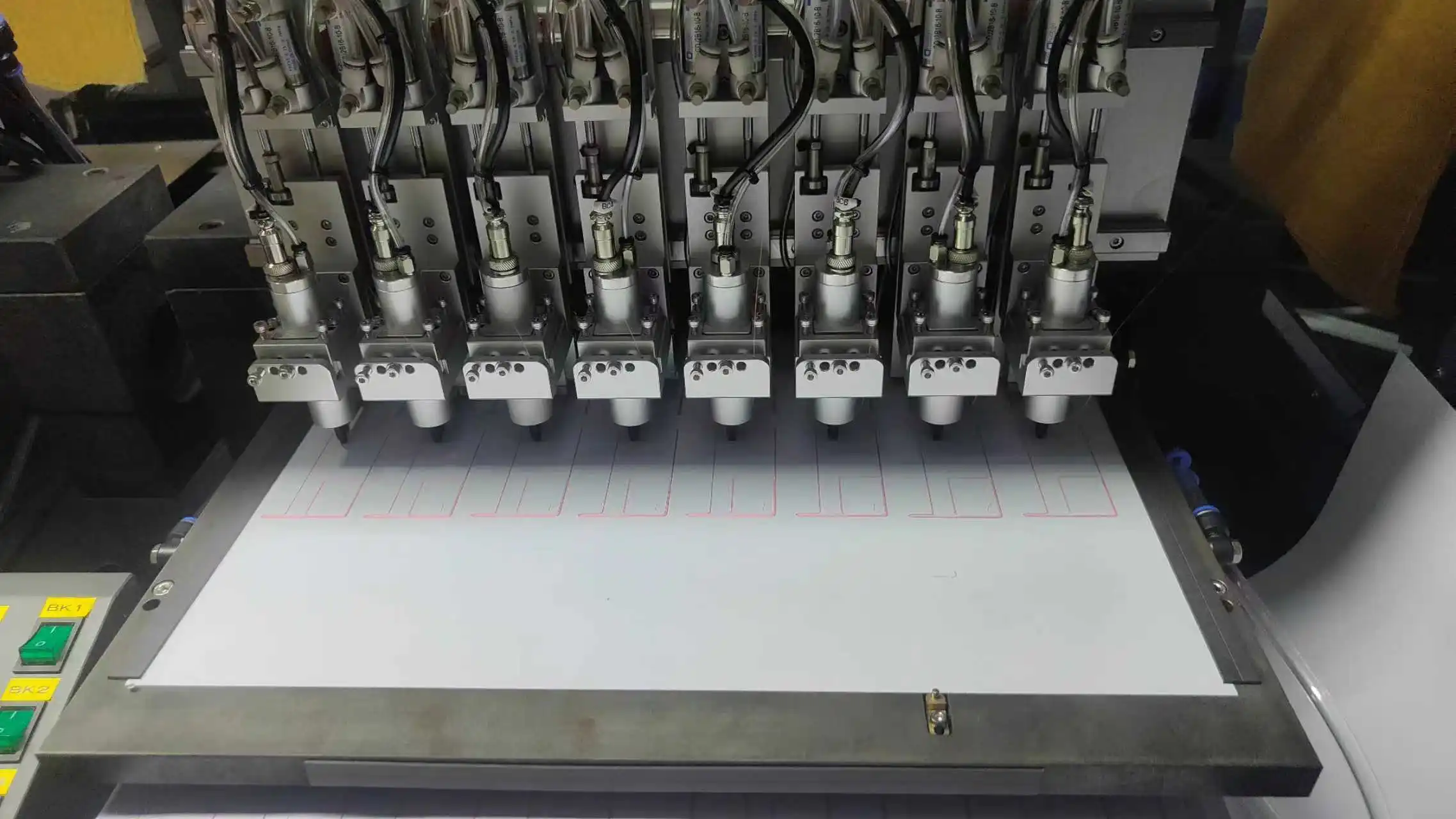

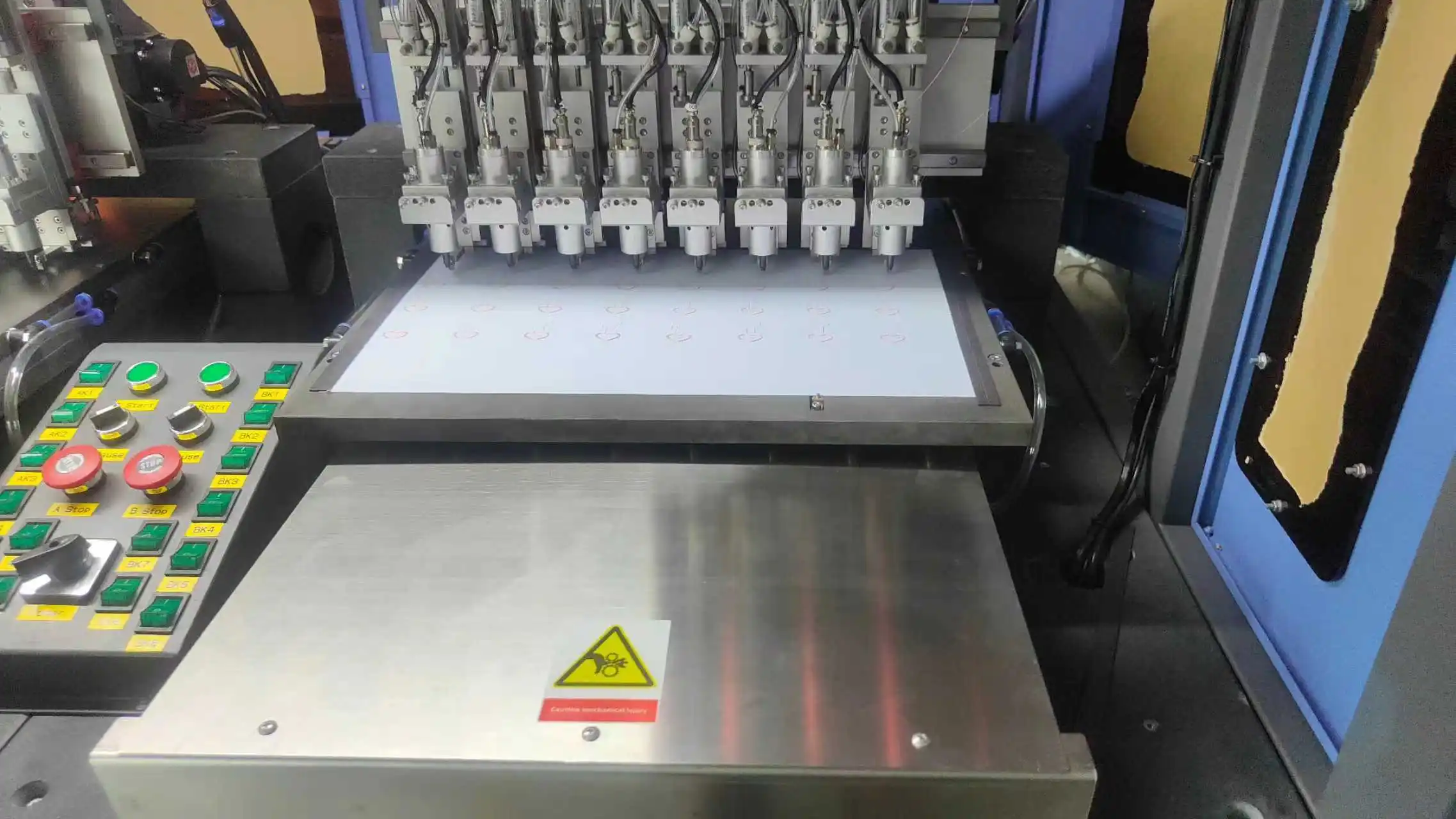

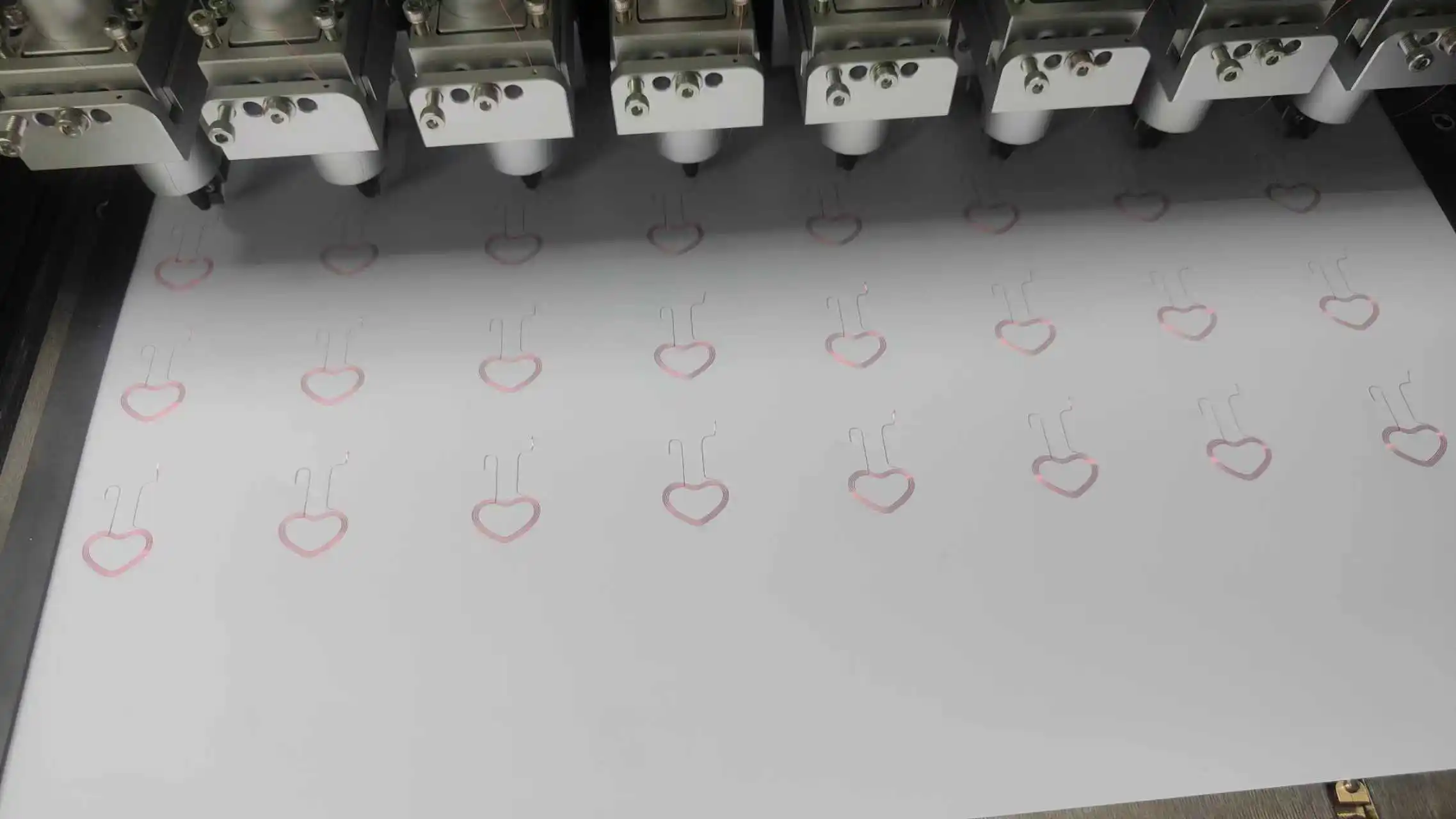

7. Machine has maximum 9units welding heads and operator can adjust the heads position. Operator can turn off some heads if change production for small format sheet.



8 welding heads, 5 welding heads, 1 welding head, all can be made by order

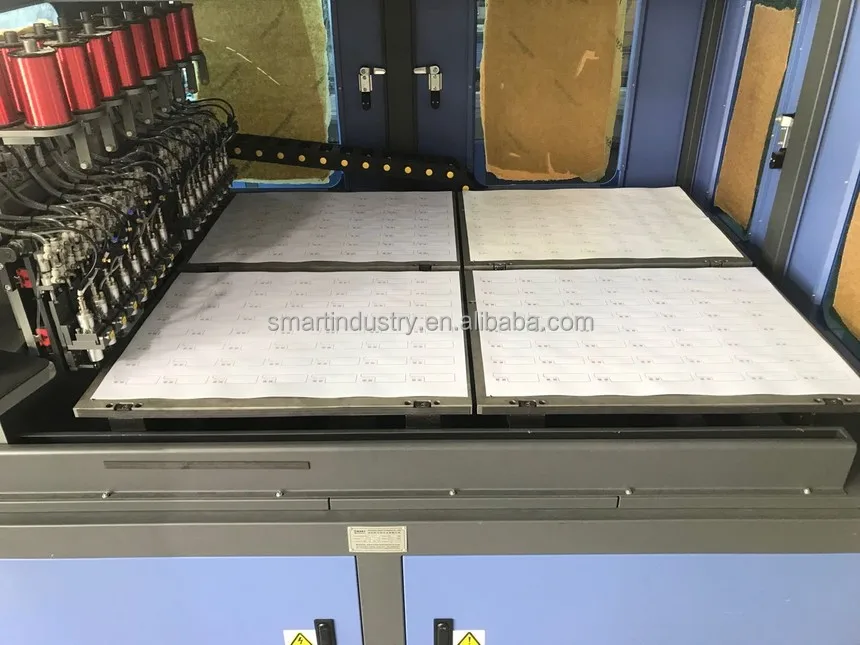

Maximum 9units embedding heads for 8*9 format and other formats.

Bonding Materials	ABS, PVC, PET, PETG, Teslin, Polycarbonate or other mixed plastic materials

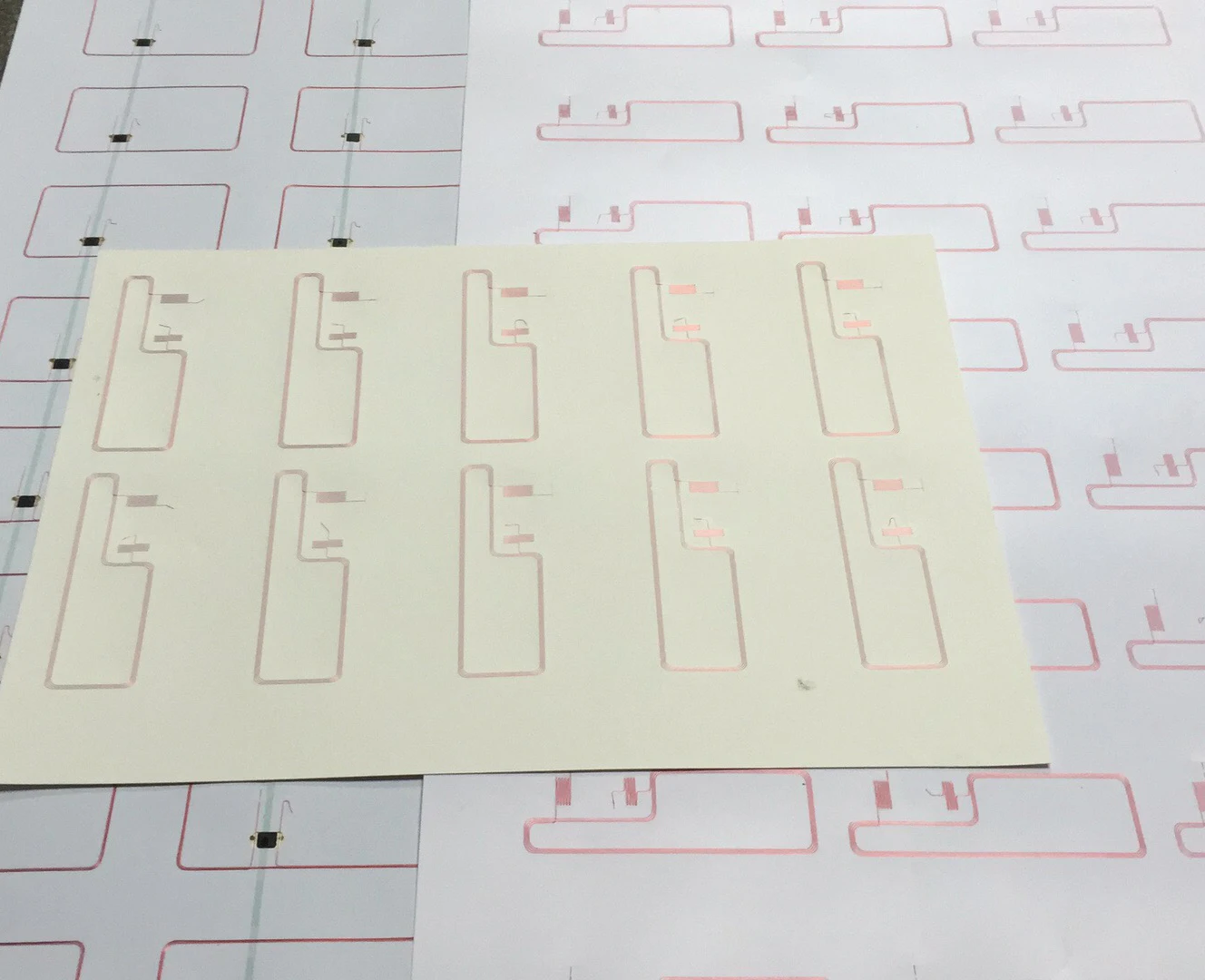

Bonding Layouts	2*5, 5*5, 3*7, 3*8, 3*9, 3*10, 4*8, 4*9, 6*8, 7*8
Bonding Heads	1-8 heads
Bonding Size	A4, A3, A3+, A2
Control Method	PLC, Touch Sceen, Servo System
Air Supply	0.6MPa      50Liter/minute
Servo Precision	X    and    Y      =0.125mm
Working Efficiency	2000-6000pcs per hour depends sheet format and embedding heads quantity
Voltage	220V or 380V    50/60Hz
Power	3KW
Packing Size	1850mm*960mm*1750mm
Net/Gross Weight	800KGS/900KGS



Quality Warranty: 2years.

Delivery Time: 20days from receive advance payment.

Installation and training: we offer engineers to buyer's factory for installation and training, or buyers arrange engineers to our factory for training.

Professional vacuum packaging with standard export wooden box.



Contact Us: www.smartmanufacture.com

Shenzhen Smart Industry Co., Ltd.            ISO9001:2015 and CE certificated

Mobile number & What'sapp & Wechat: +8613088669057

Company Certificates

Question:Your company is trading company or factory?
Answer: We are factory. We have our workshop and 23 workers and professional 6 engineers just for machines installation and 1 software engineer if customers need special requirements of machine. We are Factory, so we have cost advantage than others, we can offer support on time.

Question:How do your company control the machine quality?
Answer: First we control the raw materials quality.
            Second, we control the quality of machine when we are processing.
            Third, Our installment engineers will continue test machine minimum 3days.

Question:How about payment term, payment safety and delivery time?
Answer:We accept advance deposit, balance before shipment. And Irrevocable L/C at sight.                    Anybody can come to check machines when machines ready. Delivery time is 20 to 60

           days. It is according to order quantity and if customized products.

Question: What is your company after sale service?
Answer: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

             Our guarantee is 1-2 year. If there is any spare parts is broken, we can send them freely to you by our DHL or FedEx account.
