2 way radio shoulder PTT speaker mic/microphone for motorola kenwood i com sepura walkie talkie

Product Overview

Description

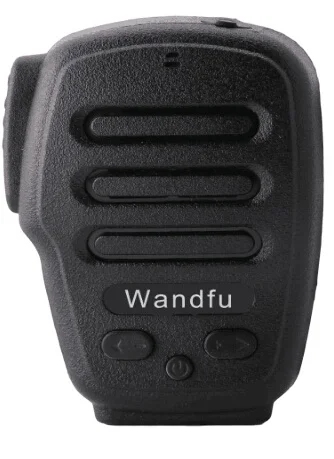

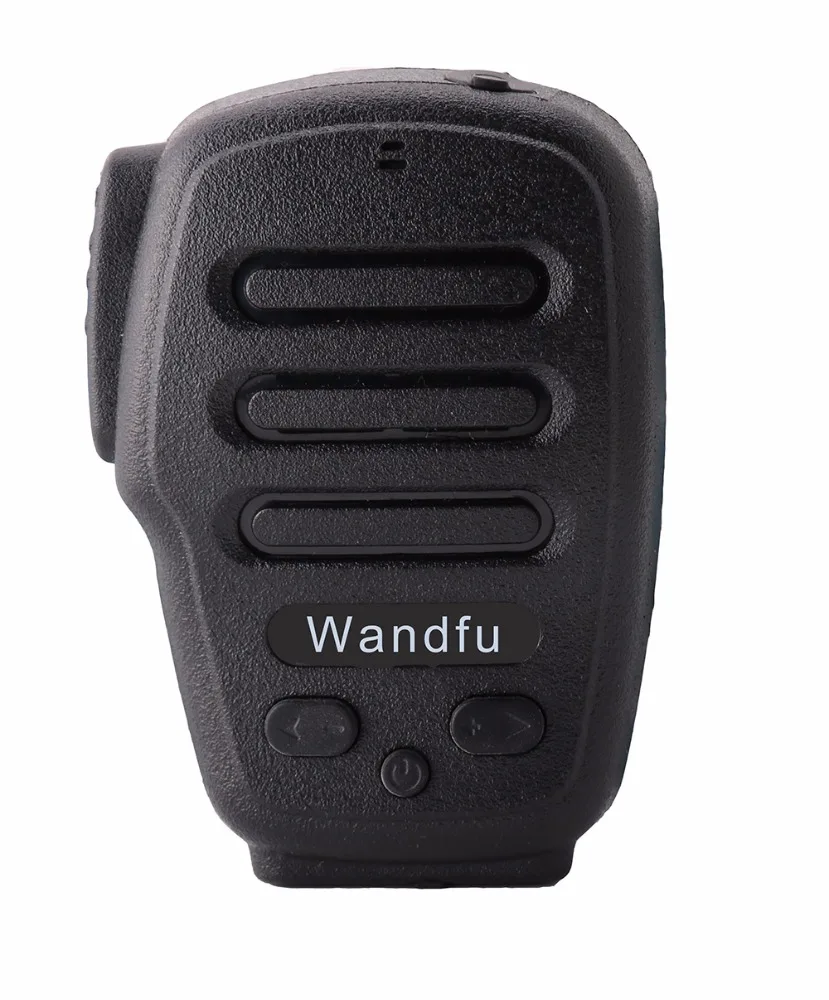

2 way radio shoulder speaker mic/microphone for motorola kenwood i-com sepura walkie-talkie radio -- BTH-003



Packaging & Delivery



Packaging Details:	Individual package inner, with strong carton box outer package
Delivery Detail:	3-7 working days for sample and based on the different quantity





BTH-003 Specifications:

Bluetooth Shoulder Micphone BTH-003
1.  DSP noise supression & Echo Cancellation
2. BT 3.0 Class 2 AGHSP, AGHFP Profiles
3. PTT button supported
4. Waterproof

Our product can pair all kinds of smart phone which support BT profiles  to realize handsfree function, one can  answer, reject, hang up calls, and also enjoy music. Moreover, it has PTT button, which can connect with bluetooth dongle/adapter,and realize wireless PTT talking, and has the micro-USB port and 3.5mm headset jack, which support multiple types of headphone.

BTH-003 Technique Specifications:



Bluetooth Chip	CSR BC5 MM
Bluetooth Version	Bluetooth 3.0
Bluetooth Profiles	HSP,HFP,A2DP,AVRCP
Bluetooth RF Spec	Class 2
RF Power	6dB
RF Sensitivity	-90db
Operation Range	10 Meters
RF Frequency	2.4~2.4835GHz
Audio Input 3dB Bandwidth	20kHz
THD+N @ 30mV rms input	0.0005
Audio Input SNR @ 8kHz	79dB
Audio Out THD+N@f =1kHz,R = 8ohm	0.006
CMMR	50dB
Audio Output Bandwidth	20Hz~20kHz
Average Talking Current @ 8Ω Load	200mA
Average Standby Current	6mA
Operating temperature	-15°C ~50 °C
Storage Temperature	-25°C ~60°C







BTH-003 Products Details:

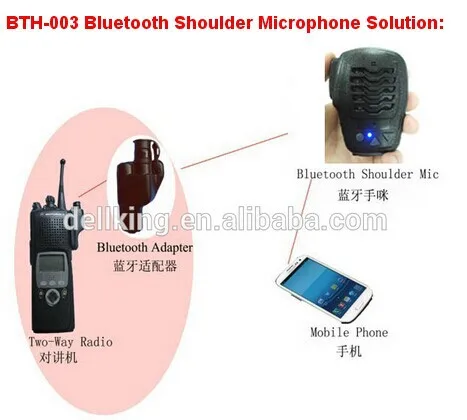

BTH-003 Bluetooth Shoulder Microphone Solution:







Feature of BTH-003 PTT Bluetooth microphone, wireless Bluetooth speaker:

1. Bluetooth V3.0 HSP, HFP, A2DP, AVRC Profiles Supported

2. Can connect with mobile phone for calls handling and stereo music

3. Switch to mono and stereo

4. Push-to-Talk PTT button support control to Bluetooth adapter/dongle

5. Can connect with various radio Bluetooth adapter/dongle

6. Support 3.5mm headset connector

7. DSP noise suppression and echo-cancellation, Crystal Voice Quality

8. Compatibility with various mobile phones

9. Connect to two way radio or mobile phone`

11. Firmware USB upgrade available.

12. Long life lithium battery (1600mA/3.7V)

14. 14 hours Talking time

15.500 hours standby time

16. 1 year warranty





BTH-003 Product Applications:
