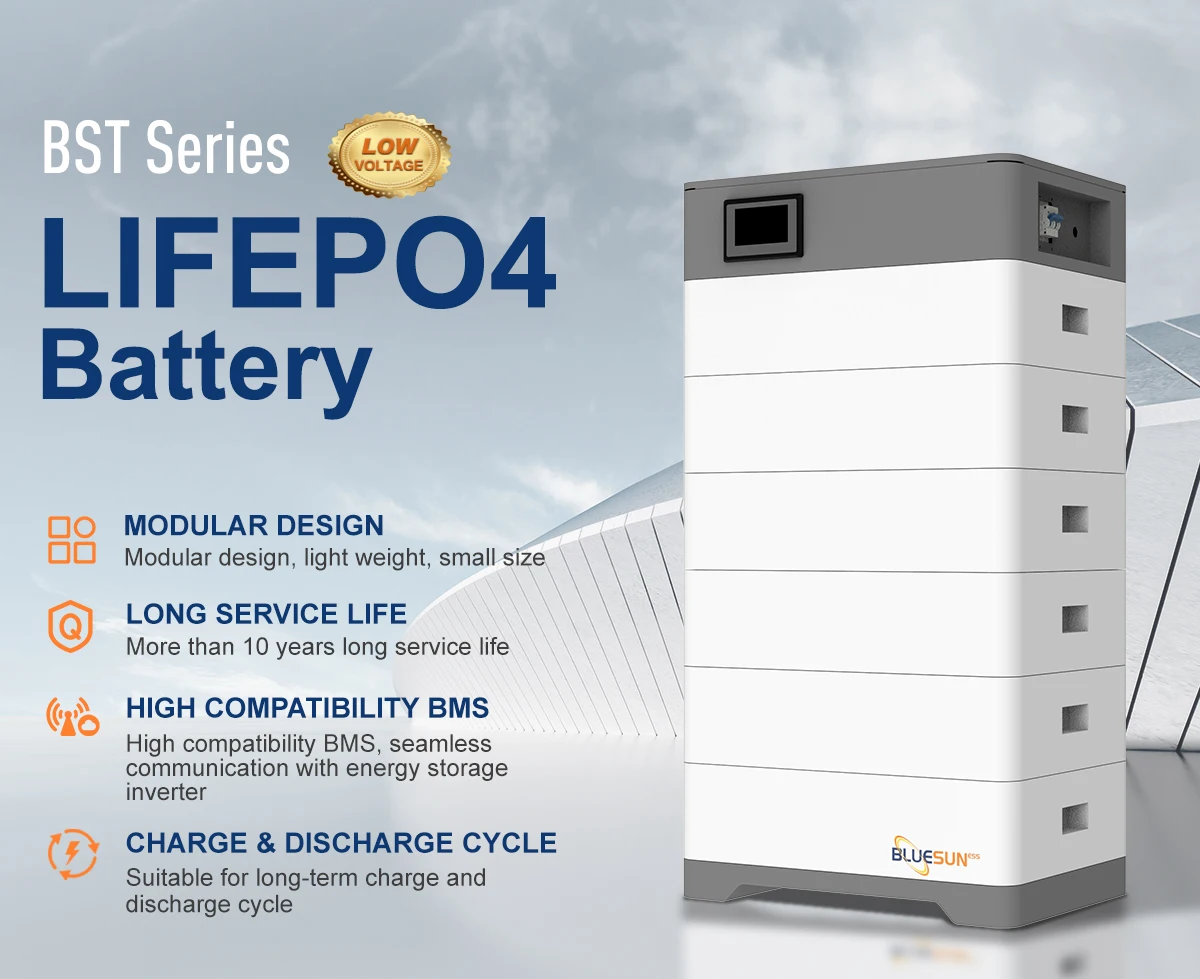

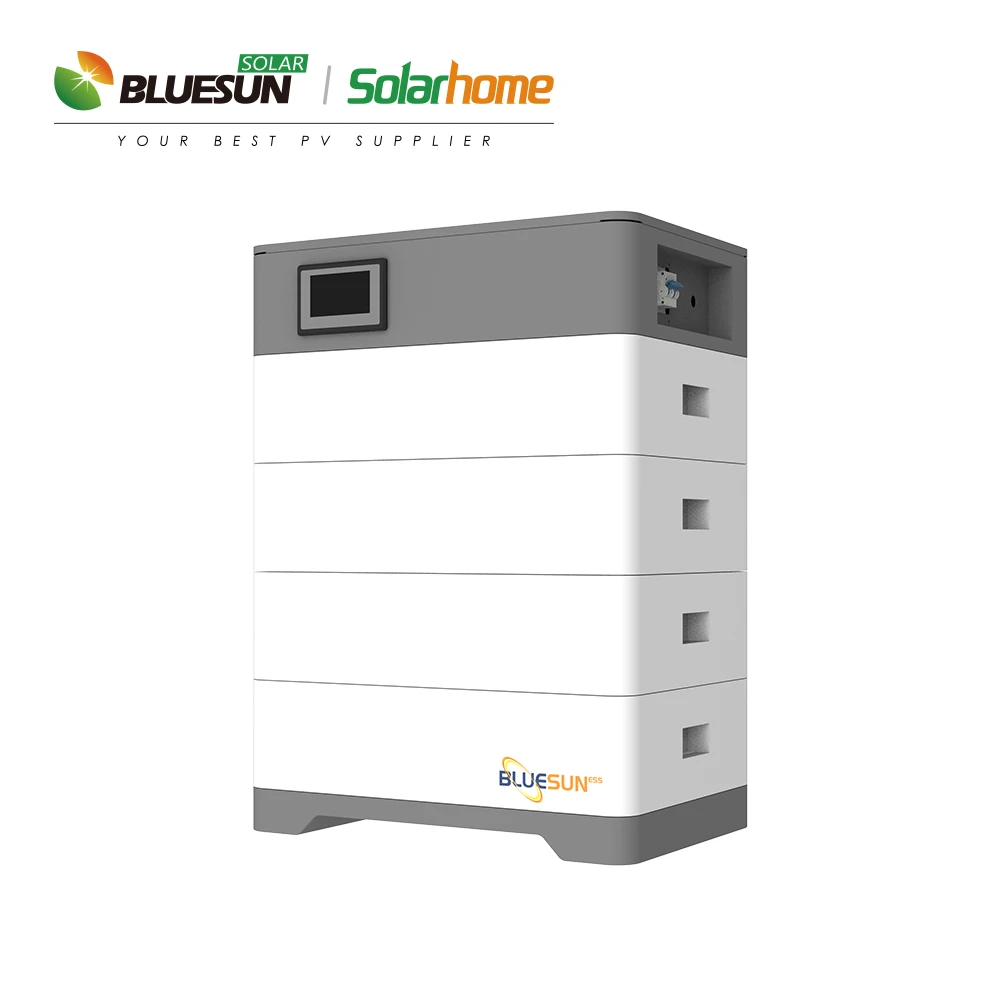

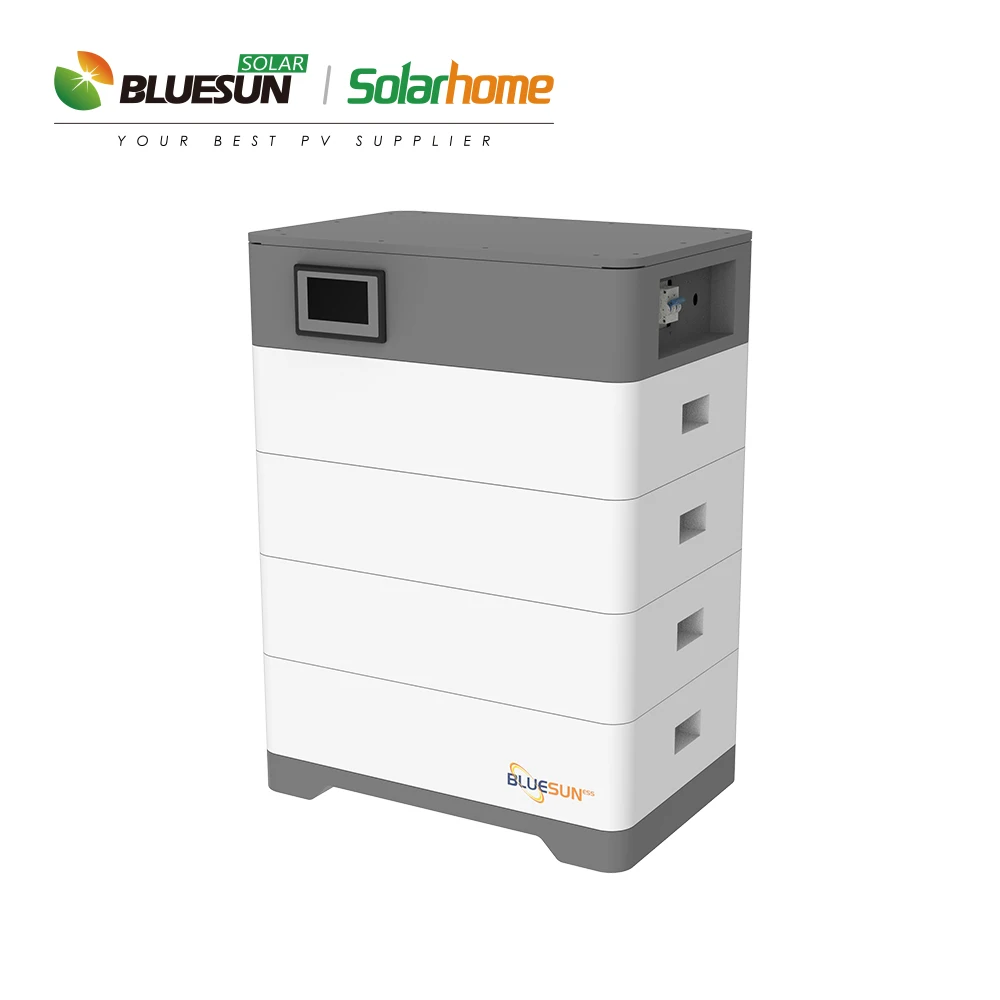

Buy solar energy storage battery stack 48v 200ah 51.2v 280ah lithium iron phosphate battery 100ah solar batteries in good price
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (1600705457189):
Product Overview
Description
Products Description
Product Parameters
MODEL | BST-5.0LV | BST-10.0LV | BST-15.0LV | BST-20.0LV | BST-25.0LV | BST-30.0LV | ||||||
Battery Type | LiFeP04(LFP) | |||||||||||
Nominal Voltage(V) | 51.2V | |||||||||||
Nominal Capacity(KWH) | 5.42KWH | 10.85KWH | 16.28KWH | 21.7KWH | 27.13KWH | 32.56KWH | ||||||
Usable Capacity(KWH) | 4.87KWH | 9.76KWH | 14.65KWH | 19.53KWH | 24.41 KWH | 29.30KWH | ||||||
Design Life | 10+Years （25 ℃/77F) | |||||||||||
Physical | ||||||||||||
Dimension(mm) | 600*400*385 | 600*400*534 | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 | ||||||
Weight (kg) | 80 | 125 | 170 | 215 | 260 | 305 | ||||||
ELECTRICAL | ||||||||||||
Cycle Life | >6000. 25°C | |||||||||||
Discharge Voltage(V) | 40-48 | |||||||||||
Charge Voltage(V) | 56 -58.4 | |||||||||||
Charge/Discharge Current(A) | 83 (Recommended) 100A(Max) | |||||||||||
Internal Resistance | ≤30mΩ | |||||||||||
BMS | ||||||||||||
Power Consumption | <2W (Work) < 100mW(Sleep) | |||||||||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | |||||||||||
SOC | Intelligent algorithm | |||||||||||
Communication | CAN/RS-485/RS-232 | |||||||||||
OPERATION | ||||||||||||
Operating Temperature Range | -10℃-50℃ | |||||||||||
Transport or Storage Temperate Range | -20℃-45℃ | |||||||||||
Humidity | 15% - 85% (No Condensing) | |||||||||||
WARRANTY | ||||||||||||
Product Warranty | 5 Years | |||||||||||
Performance Warranty | 10 Years | |||||||||||

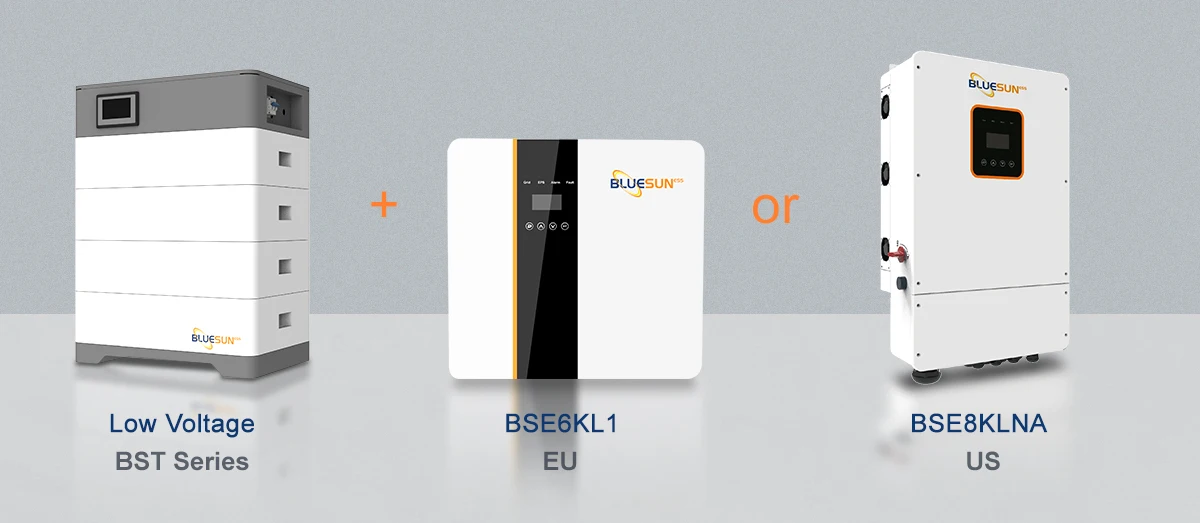

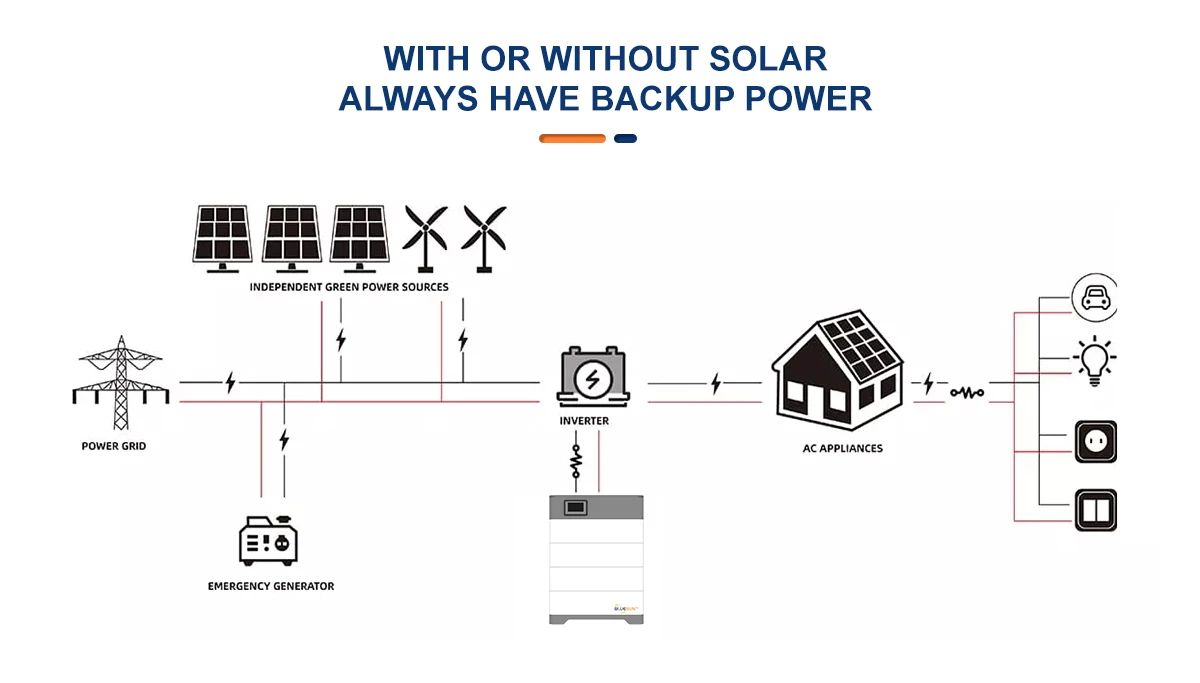

Matching inverter
High compatibility BMS, seamless communication with energy storage inverter

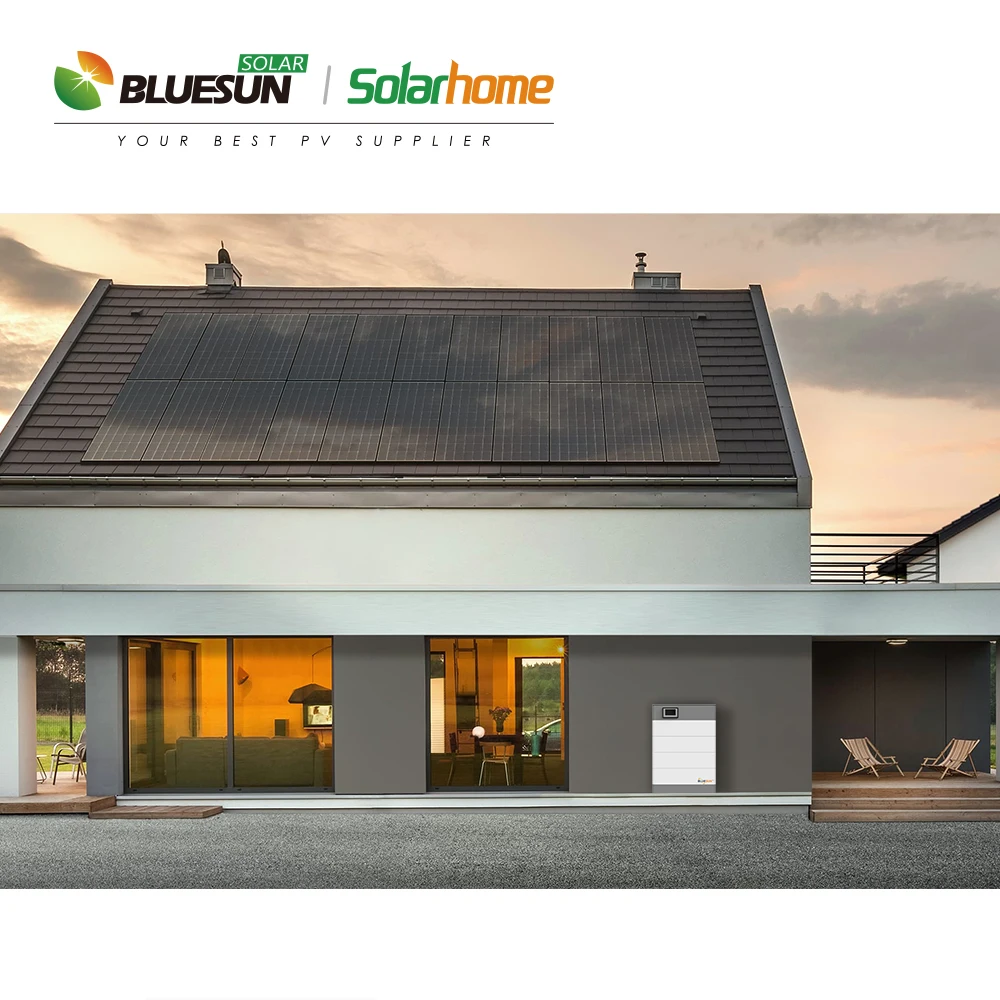

Projects

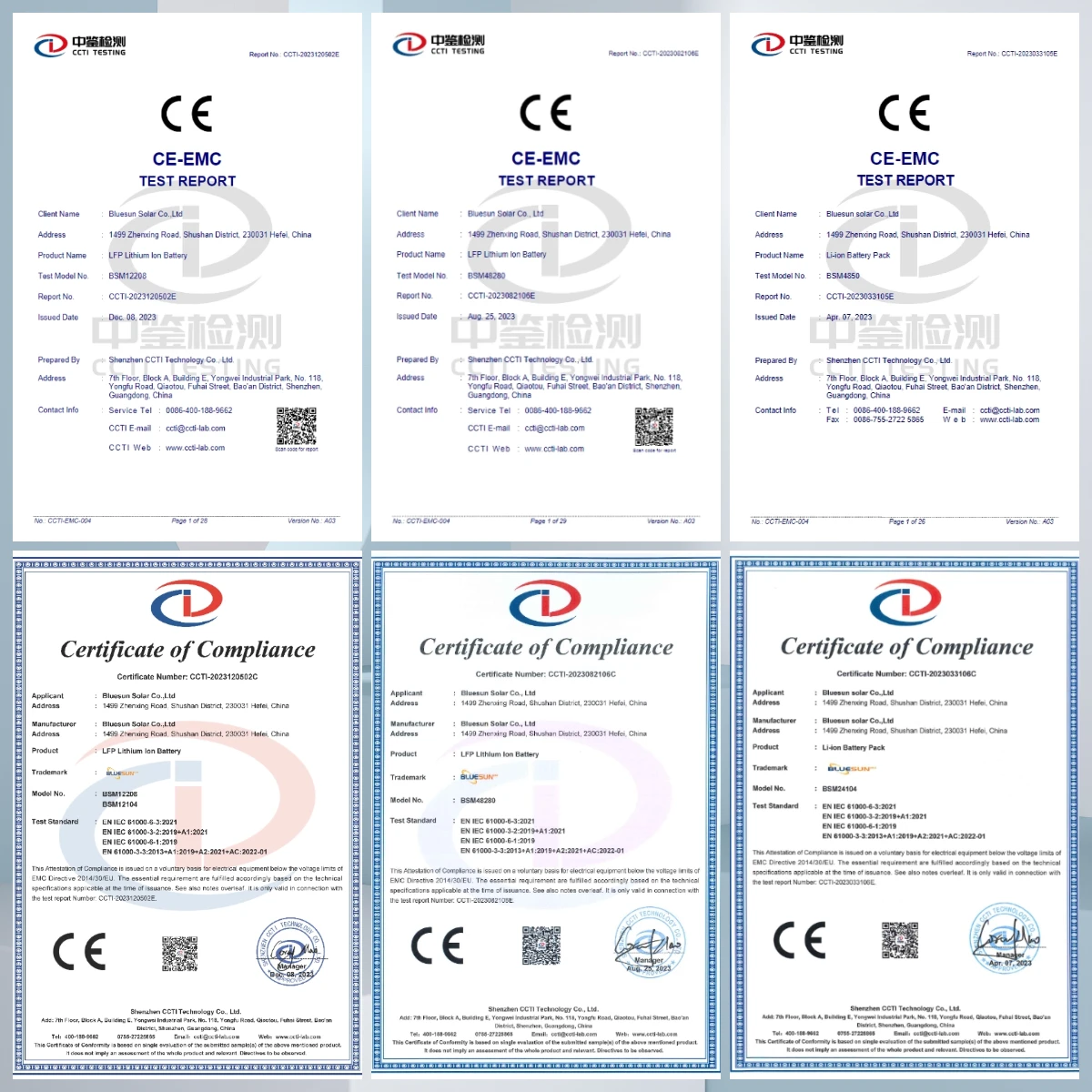

Certifications
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!
