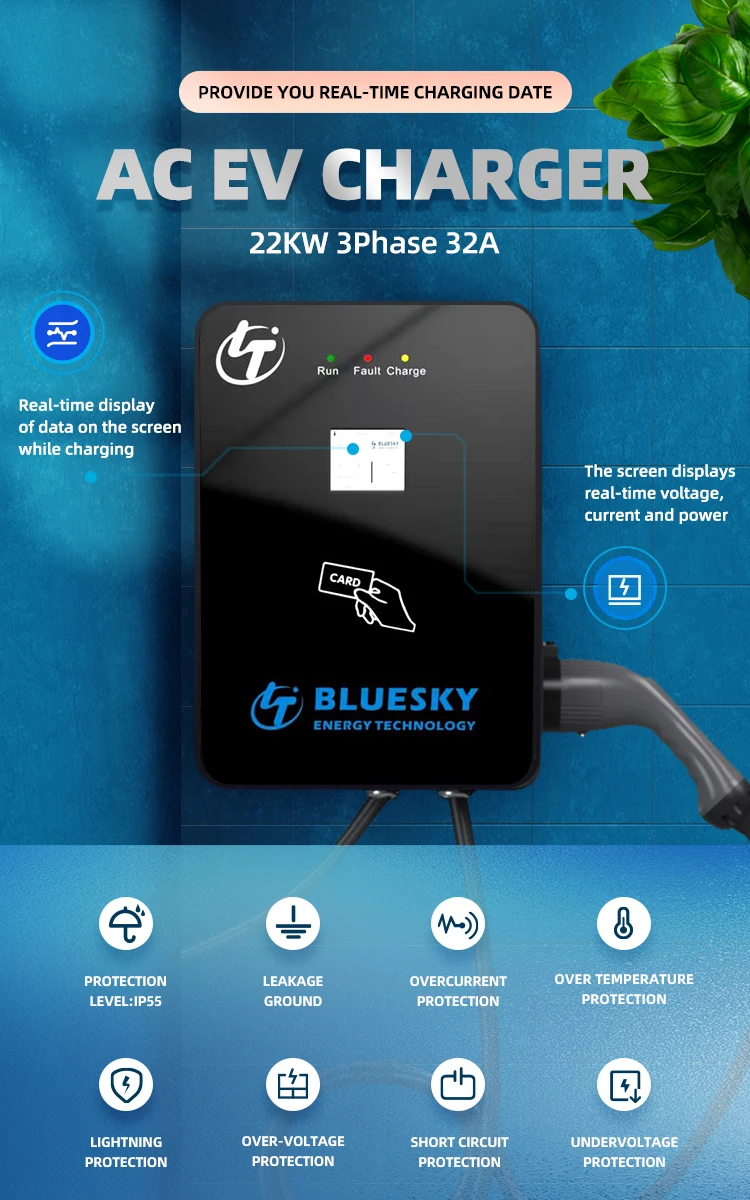

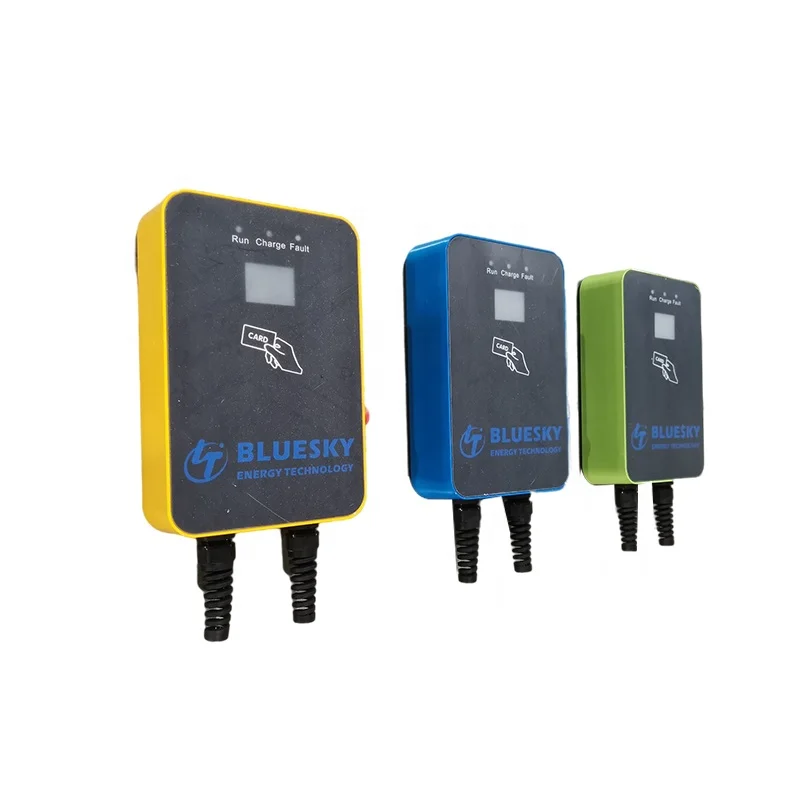

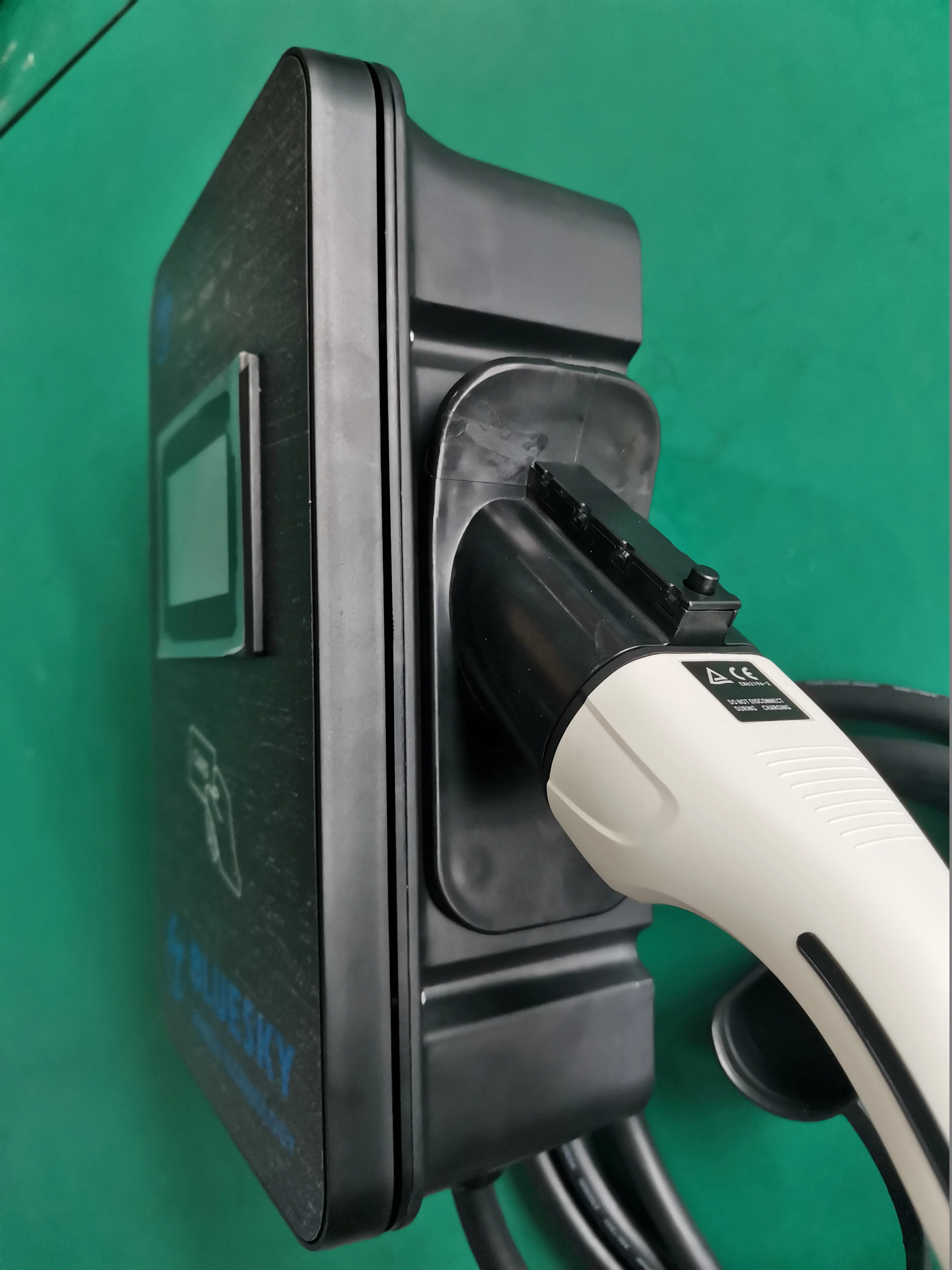

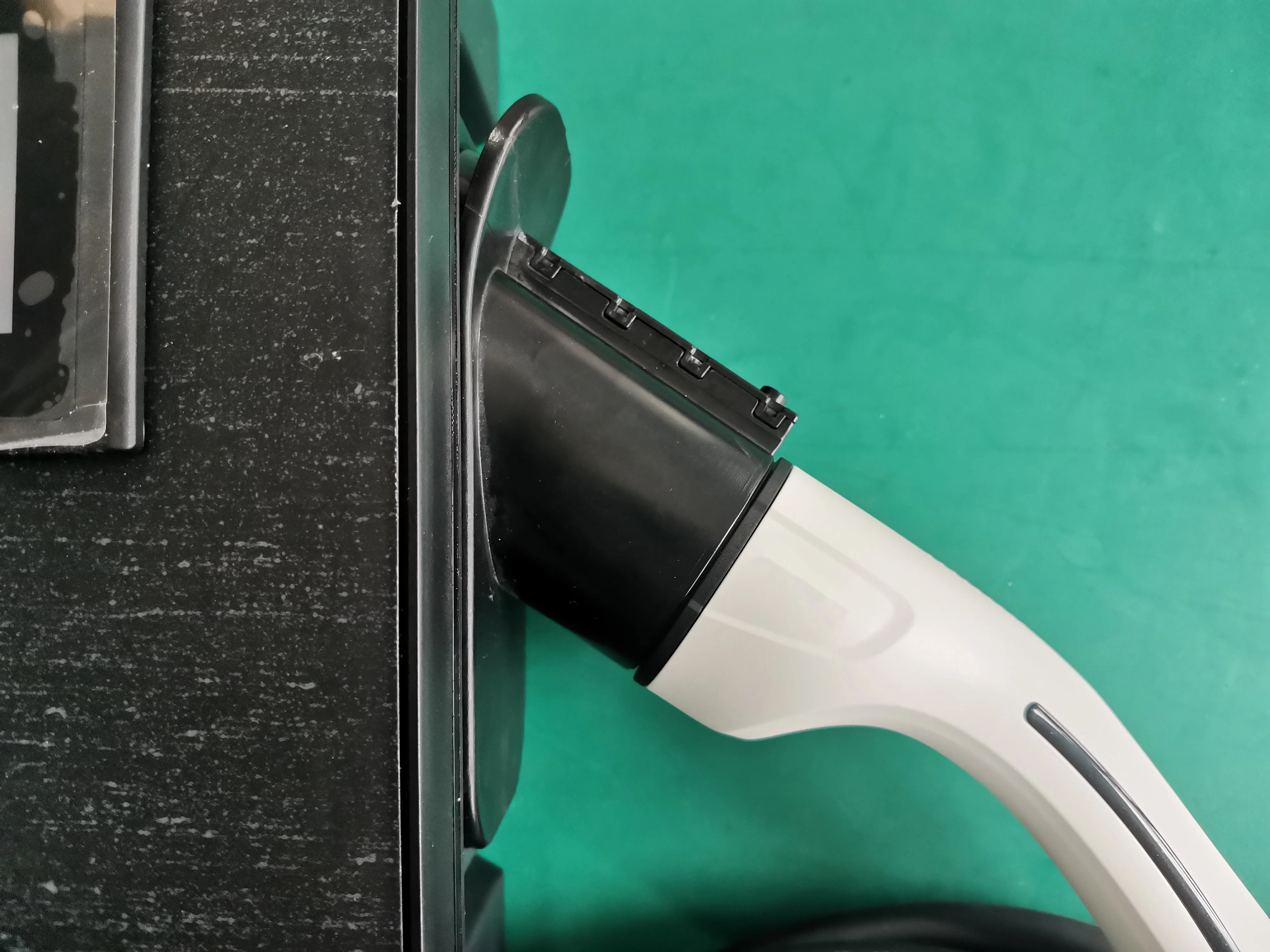

Bluesky 22kw Ev Charger OCPP 1.6 J 3 phase Type 2 electric car ev charger charging station Cable
- Category: >>>
- Supplier: Wenzhou Bluesky Energy Technology Co. Ltd.
Share on (1600705698873):
Product Overview
Description
——Input & Output—— | ||||||
Input/Output Voltage | 380Vac±20% | Output current | 32A 3Phase | |||

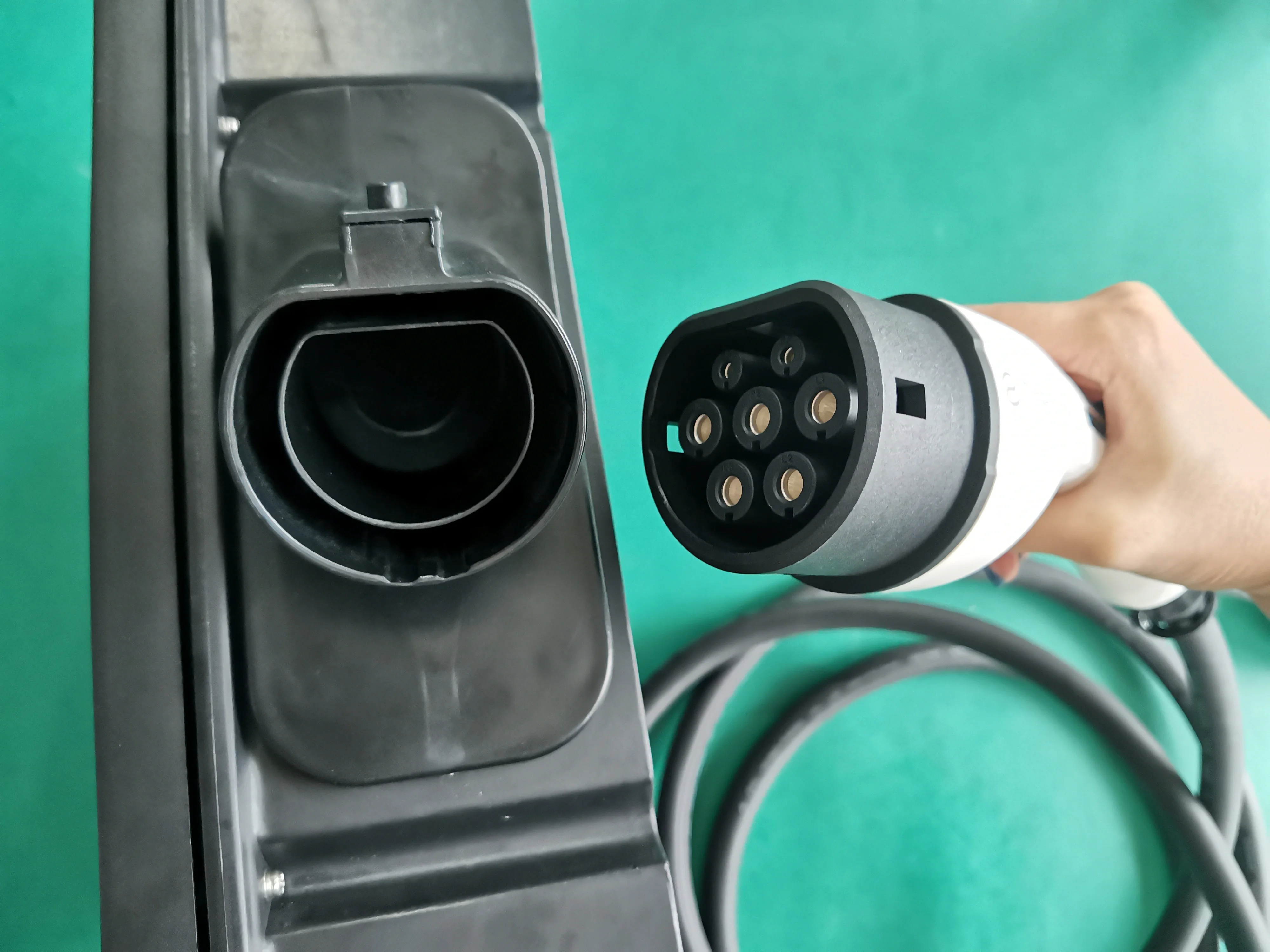

Input frequency | 55±10% | Charging gun type | IEC 62196-2 /GB/T20234.2 | |||
Rated power | 22 11KW | Cable length | 3.5 meters (Optional) | |||
Power Factor | >0.99 | Overall efficiency | 0.96 | |||
——Protection—— | ||||||
Overvoltage protection | yes | Undervoltage protection | yes | |||
Overload protection | yes | Short circuit protection | yes | |||
Earth leakage protection | yes | Over temperature protection | yes | |||
Lightning protection | yes | Overcurrent protection | yes | |||
——Function and Accessory—— | ||||||

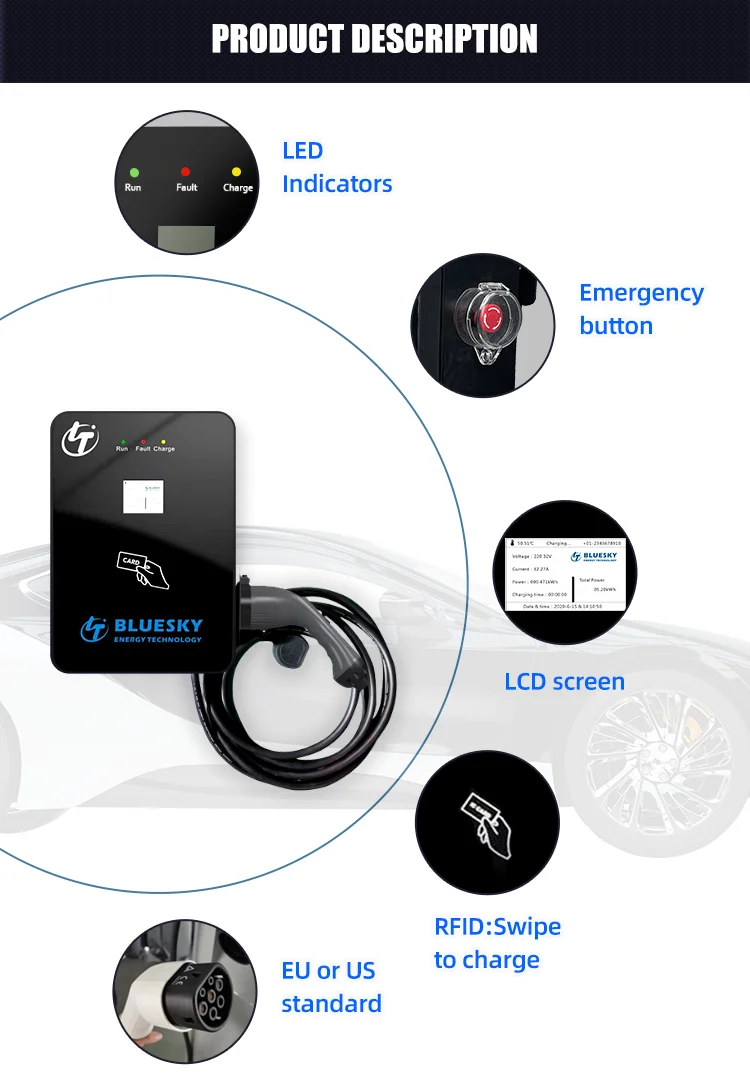

Network connection | Ethernet/WIFI/4G/No (Optional) | Visual Indication | LED Indicator light | |||
Communication Protocol | OCPP 1.6J/ No (Optional) | Push Button | Emergency Stop | |||
LCD Display | without or 2.4 / 4.3 inch screen (Optional) | Language | English (Optional) | |||
RCD | Type A(Optional) | Control | Plug&charge,RFID,APP | |||
——Working environment—— | ||||||
Protection degree | IP55 | Maximum altitude | Up to 2000m | |||
Environment temperature | -25℃~+60℃ | Cooling | Natural air cooling | |||
Storage temperature | -40℃~+70℃ | Operating humidity | ≤95% non-comdensing | |||
Applicable Scene | Indoor/Outdoor | Acoustic noise | ＜55dB | |||
Standby power consumpiton | 5W | |||||

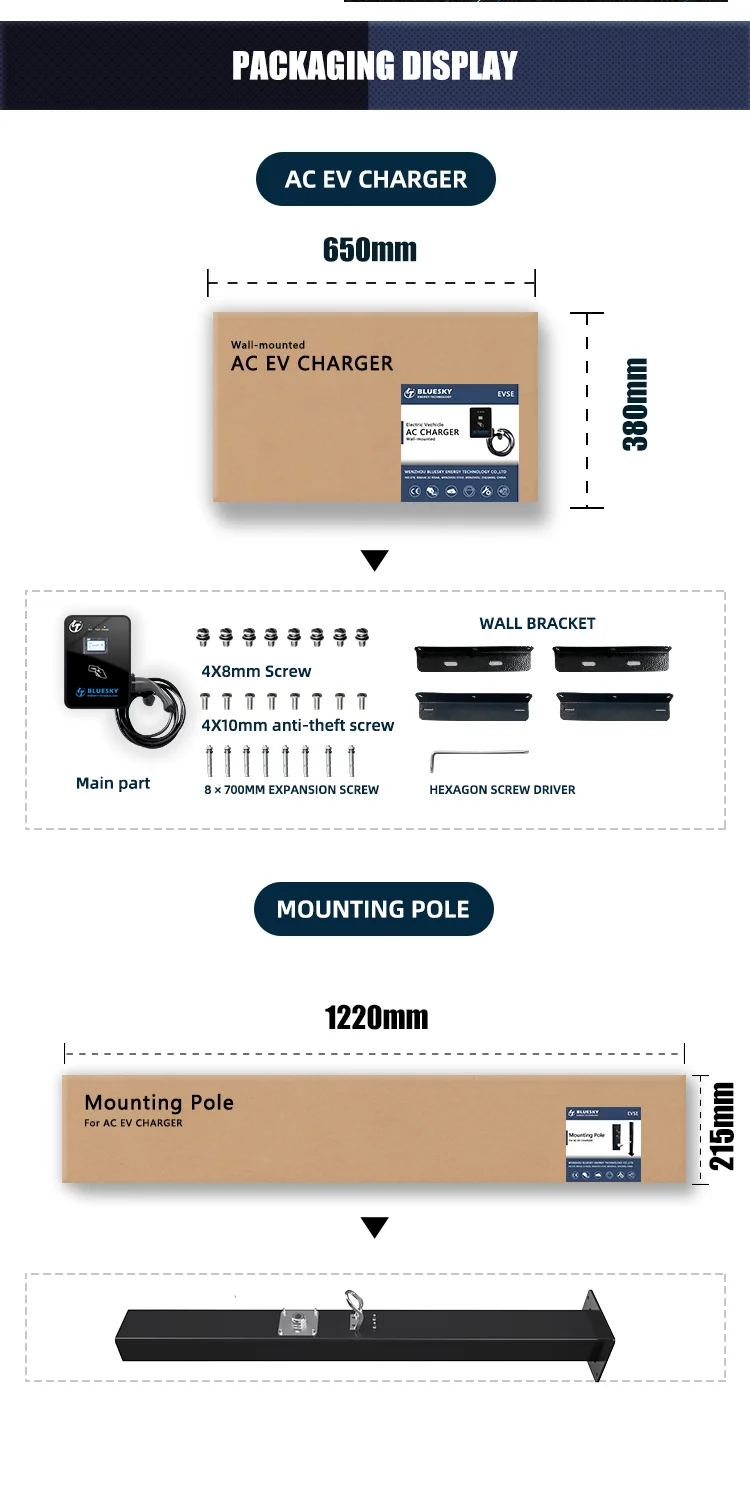

——Package—— | ||||||
Dimension (W/H/D) | 400*283*115mm | Weight | 6kg | |||
Certificate | CE, TUV, ISO,FCC, IP55, IK10 | |||||
We have rich experiences in EV Charging field. Thanks to cooperation with many clients from different continents and countries, We have customized lots of products for many clients. Thus we know how to provide more suitable products and solutions according to different regions. We are totally ready to provide our customers with timely, effective and full of care service to help them solve most of the EV Charging issues.
We are cooperating with customers from Belgium, installed in the parking area outside their own factory not only to provide charging benefits for their employees, but also to provide a charging place for electric vehicles on the market.
Cooperate with property companies in several smart communities. Install Ac charging stations in parking lots on the ground and underground. When the owner returns home at night the elec tric car can be charged. by the next morning the car will be fully charged.
The client is a new energy company, located in the bustling city center, mainly selling new energy electric vehicles. Our cooperation project is a 720KW charging stack, which allows customers to experience the charging function while also doing open charging opera tions.
We cooperate with a mall owner. the project is to build a DC charging station, which can attract more customers with electric vehicles to shop in the mall. And customers who own electric cars will not have low purchasing power.
Customers are owners of some compa-nies. Install AC EV charger to provide benefits for employees. This method has the effect of attracting and retaining talents. Research shows that people who buy electric cars are usually highly educated, making them the most ideal employees.
