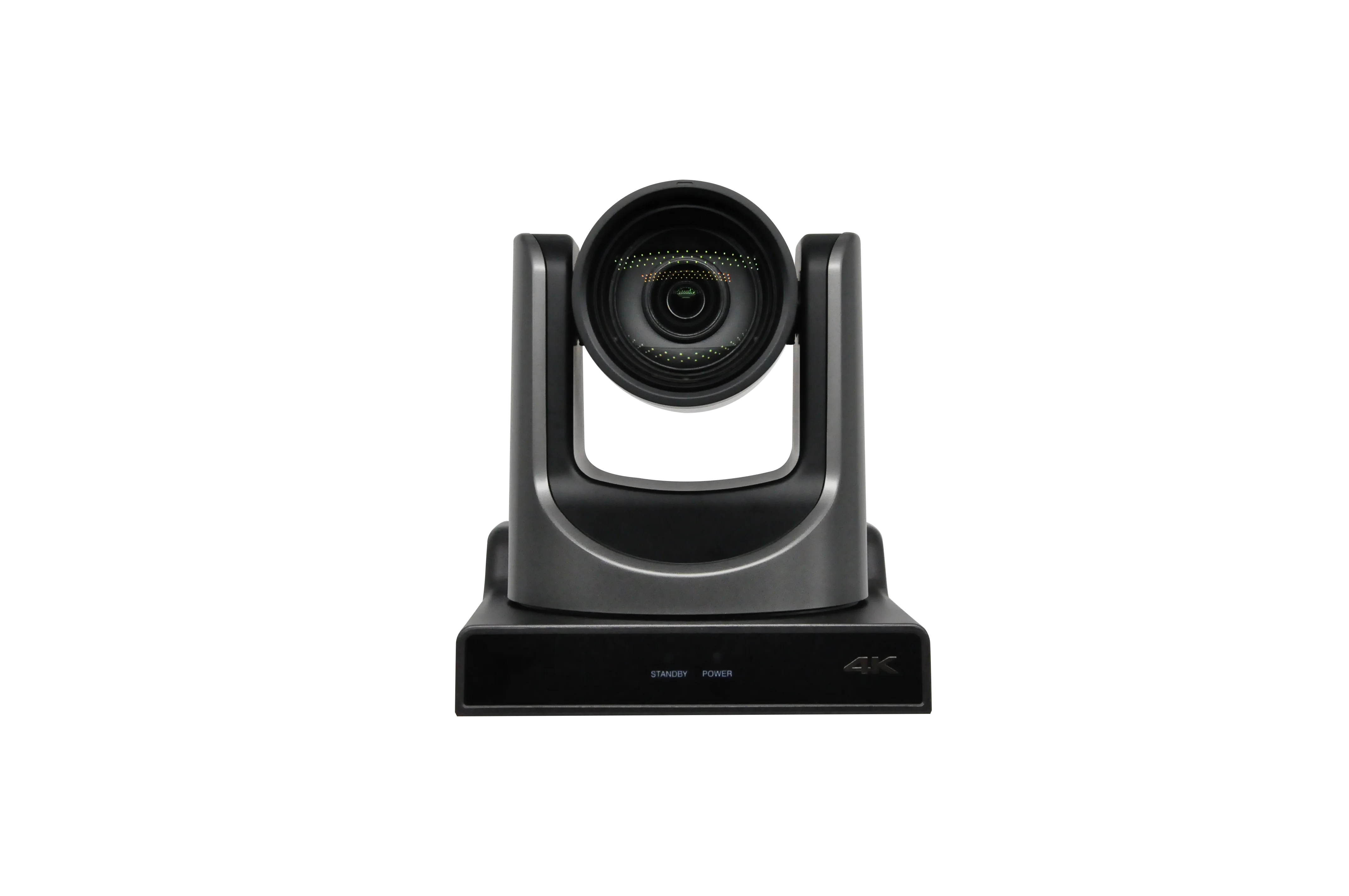

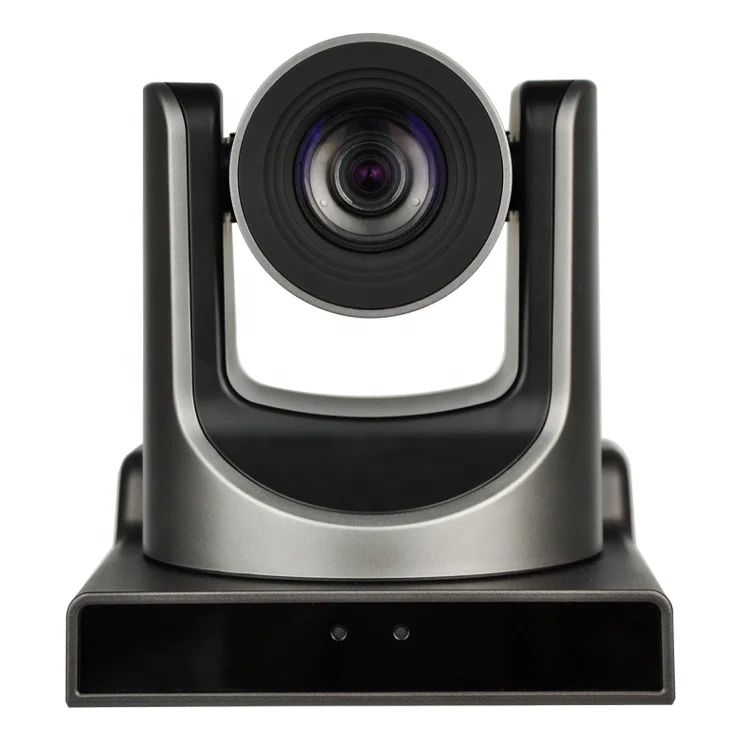

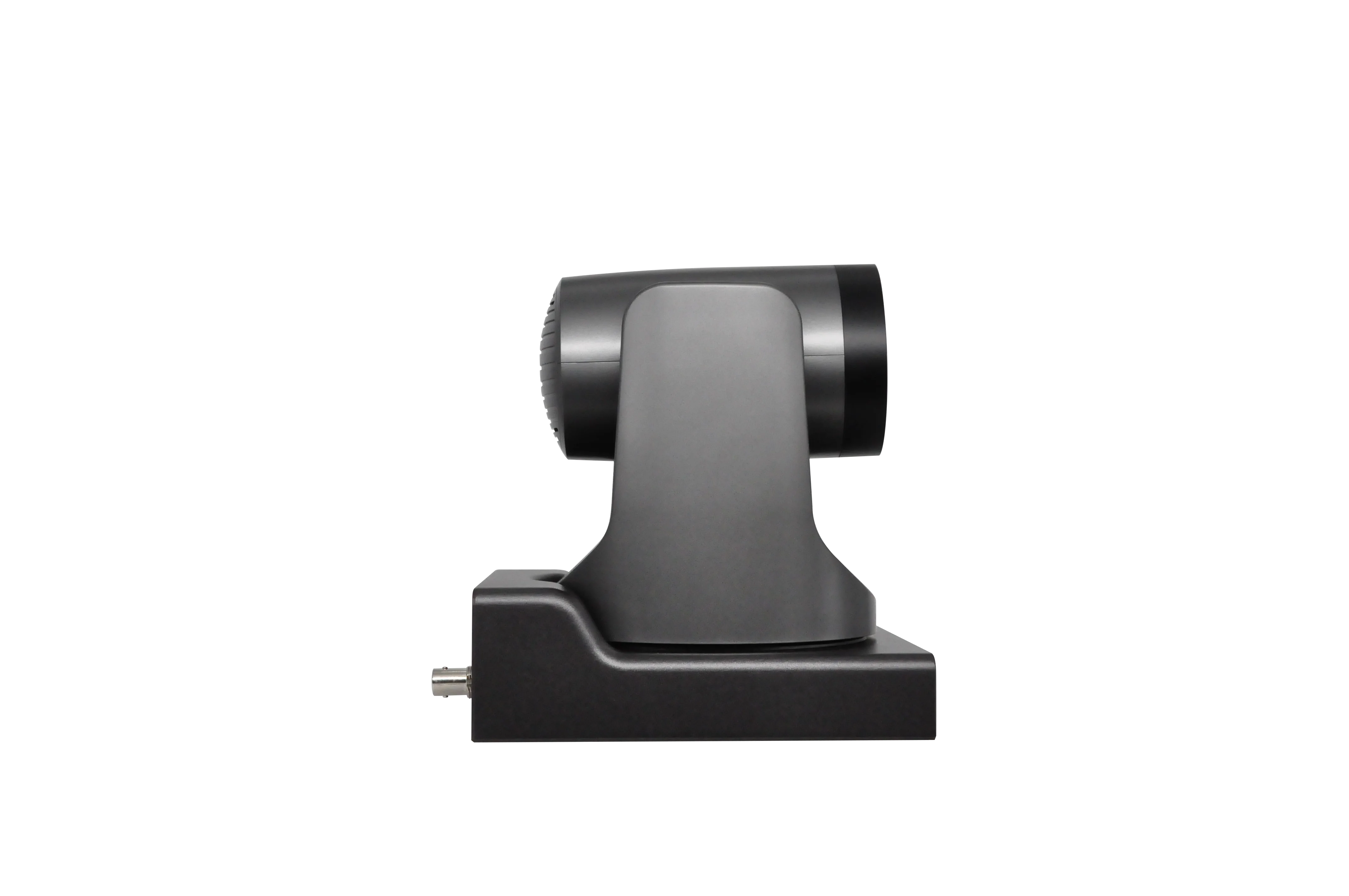

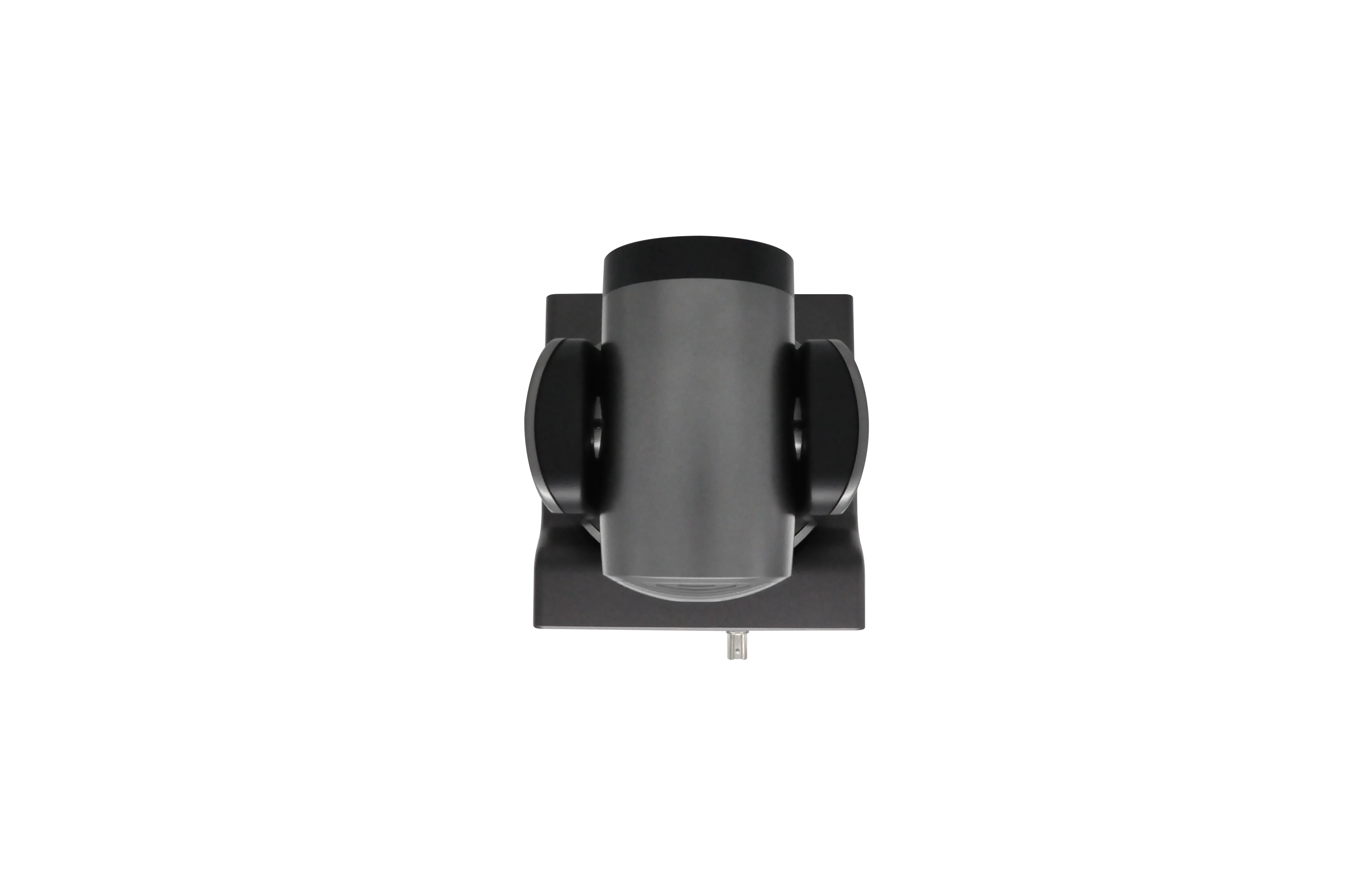

VX61CL 4K Auto Tracking Classroom Lecture Camera POE PTZ Conference Camera for Broadcasting
- Category: >>>
- Supplier: Shenzhen Vitalforce Electronic Co. Ltd.
Share on (1600705881497):
Product Overview
Description
Products Description
4K UHD
New-generation SONY 1/2.5-inch UHD CMOS sensor with up to 8.51 megapixels offers 4K (3840x2160) UHD
images, downward compatible with 1080P, 720P and other resolutions.
images, downward compatible with 1080P, 720P and other resolutions.
Rich interfaces
HDMI2.0 HD output supported; 3G-SDI interface is provided for effective transmission distance up to 150 m (1080p30). HDMI, 3G-SDI, USB3.0 and LAN able to output 4 HD digital signals simultaneously.
AI Tracking
The embedded NNE hardware uses deep learning technology to extract target characteristics; therefore, smooth human tracking is available, no matter where the speaker faces.
Supported NDI®|HX2 Protocol
The low-latency and high-quality audio & video
transmission and the flexible IP record & play mode
featuring real-time detection and interaction control to
effectively address the requirements for online video
production.
transmission and the flexible IP record & play mode
featuring real-time detection and interaction control to
effectively address the requirements for online video
production.
Remote Control
Through the LAN, RS232 and RS485 serial ports, the camera
can be controlled remotely
can be controlled remotely

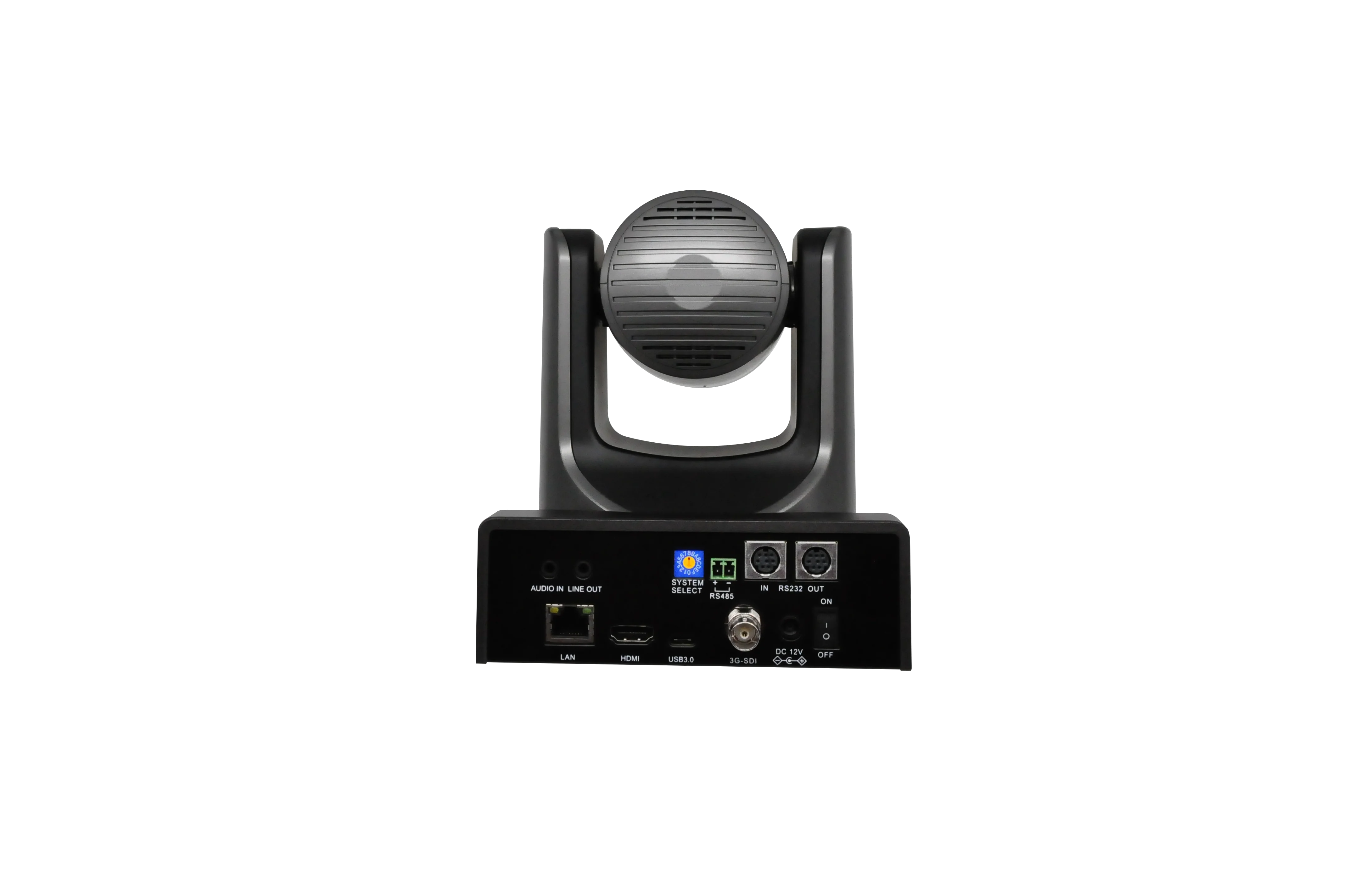

Input/Output Interface | ||||
HD Output | 1x HDMI: Version 2.0； 1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard | |||
SD Output | 1x 3G SDI: BNC type, 800mVp-p, 75Ω, follow SMPTE ST 2082-1 / SMPTE ST 2081-1, 292M, 424M standards | |||
USB Interface | 1 x Type-C: Up to 4K compressed video and 1080P original video can be output | |||
Network Interface | 1x RJ45: 10M/100M/1000M adaptive Ethernet; support PoE power supply | |||
Audio interface | 1x AUDIO IN: 3.5mmAudio Interface; 1 x LINE OUT: 3.5mm Line Out Interface | |||
Communication Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA /Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA /Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only | |||
Power Jack | JEITA type (DC IN 12V) | |||
