VICI non contact voltage electrical 12V to 1000V tester pen AC 3 with high sensitivity and curved detecting tip design

Share on (1600705883530):


Price:

Quantity:


Product Overview

Description

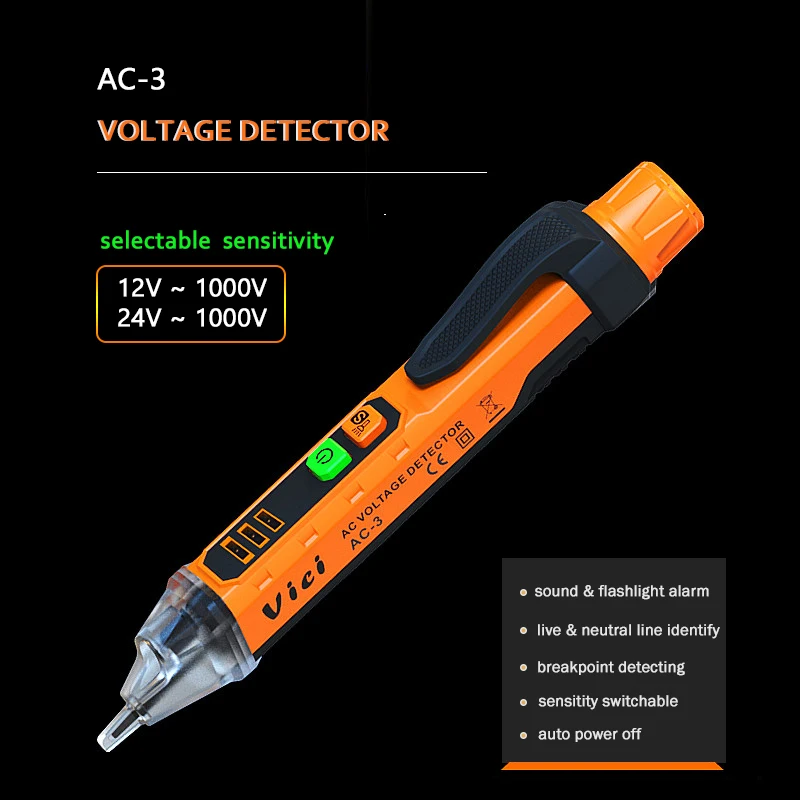

 VICI non contact voltage electrical 12V to 1000V tester pen AC-3 with high sensitivity and curved detecting tip design









Product Description



      Feature:


1.       Non-contact, much safer


2.       Sound & Light alarm

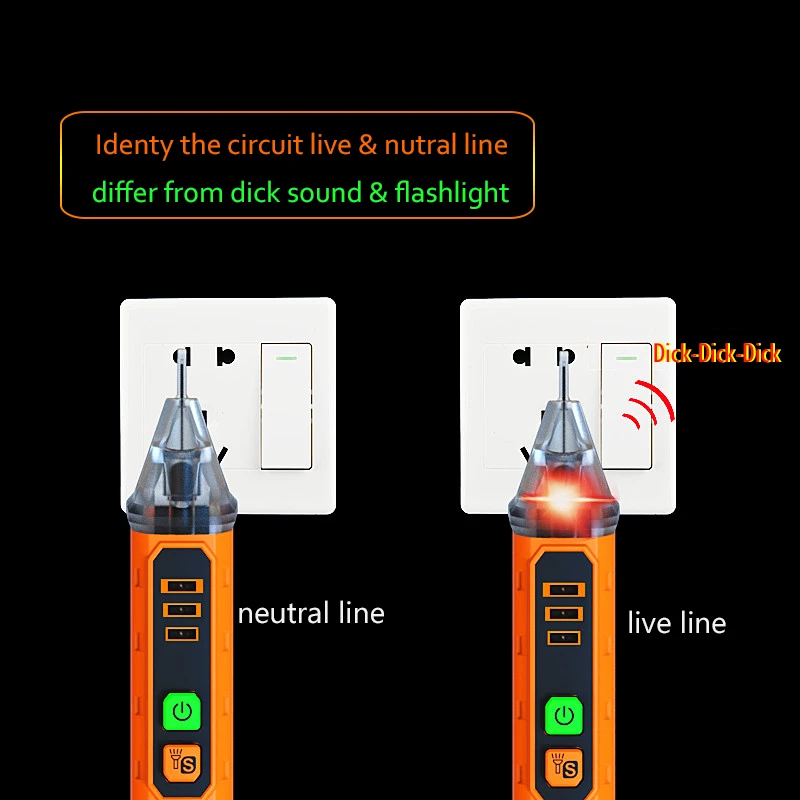

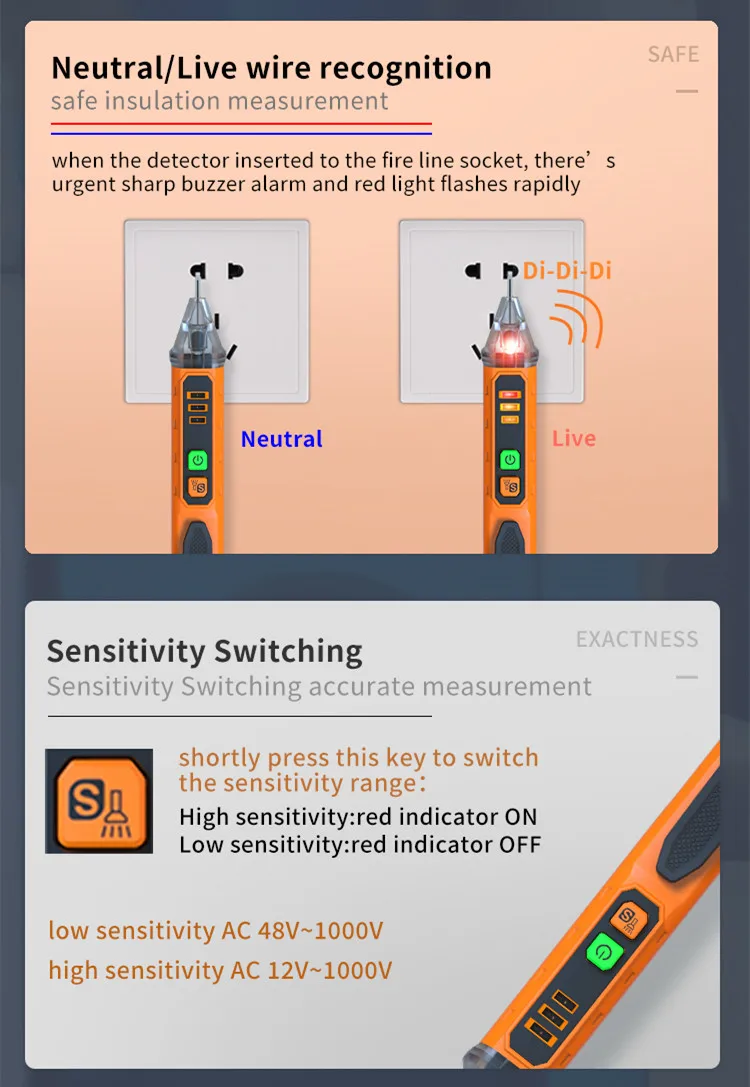

3.       Live/Neutral wire identification

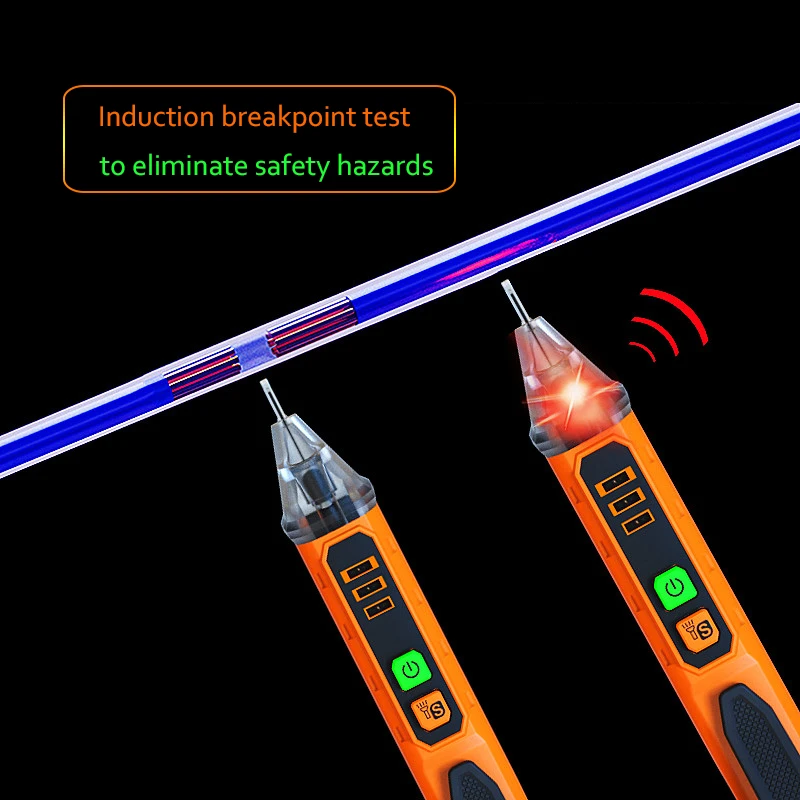

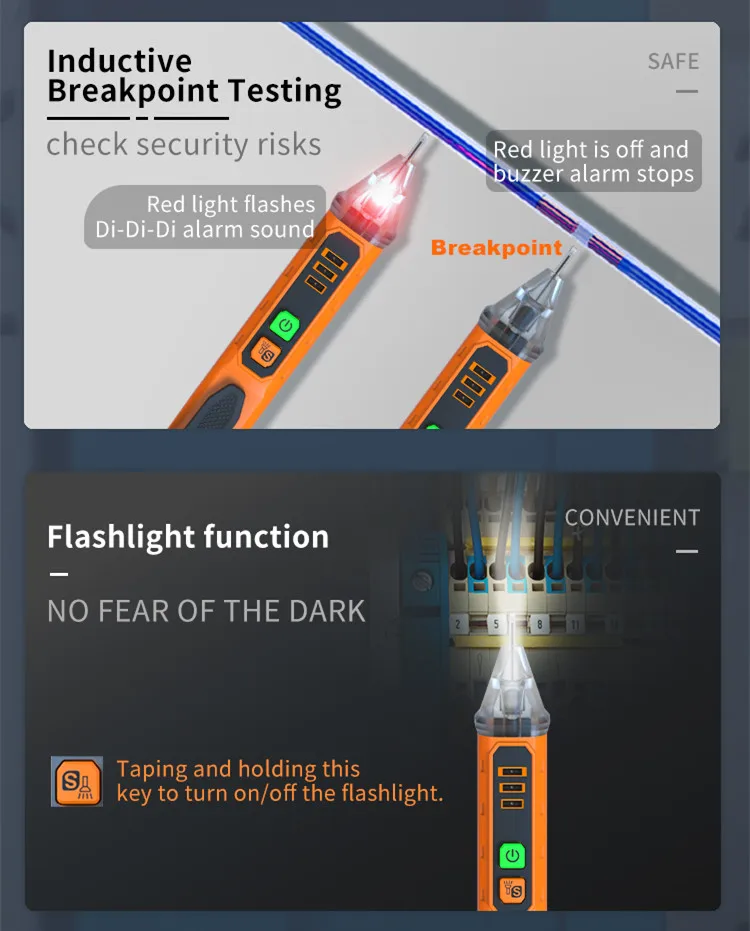

4.       Inductive Breakpoint Testing

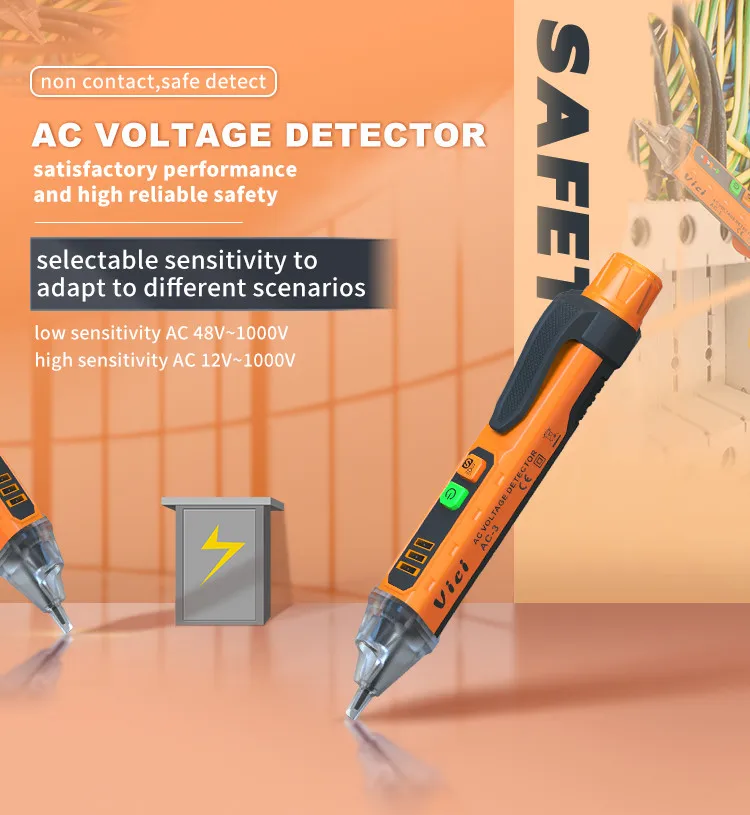

5.       Switchable sensitivity 12V~1000V


6.       With induced voltage signal indicator








        Specification:



























































AC voltage range



The default range is 48~1000V;


Press the “S” key to switch to 12~1000V



Frequency



50Hz/60Hz



Alarm type



Sound & Light alarm



Torch function



White LED torch light



Auto power off

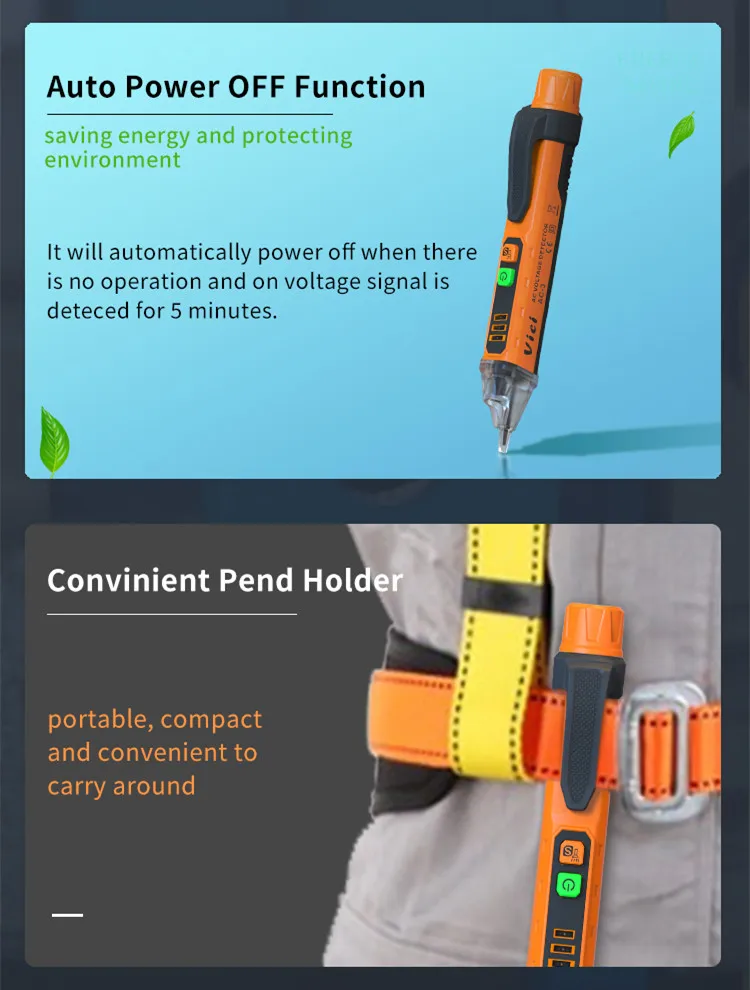

Auto shut down when no operation for 5 minutes & no voltage signal is detected



Low battery indication



3-times light flashes and once beeps sound when the voltage is<2.6V



Live/Neutral line recognition



According to the signal strength, the fire wire is with strongest signal



NCV sensitivity



3 sensitivity indicators



NCV sensitivity


indication method

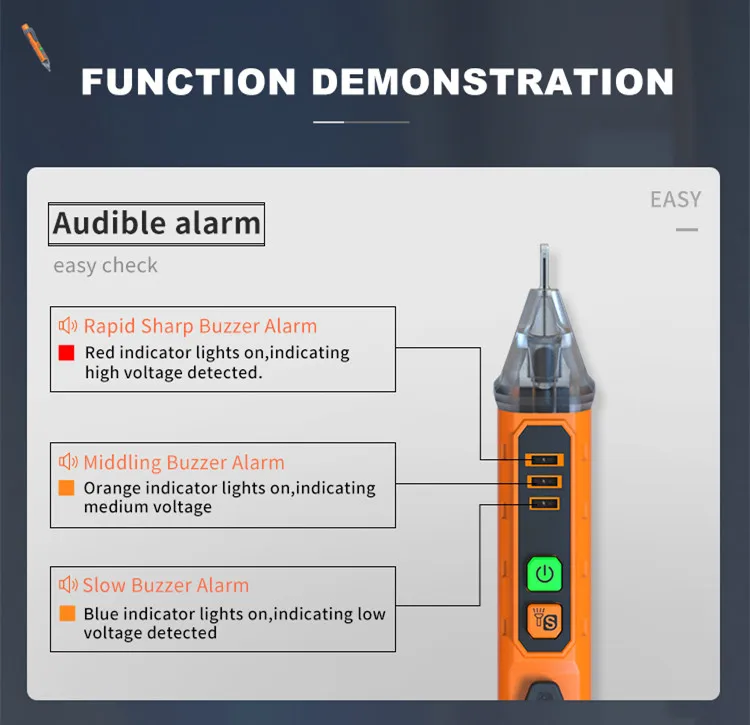

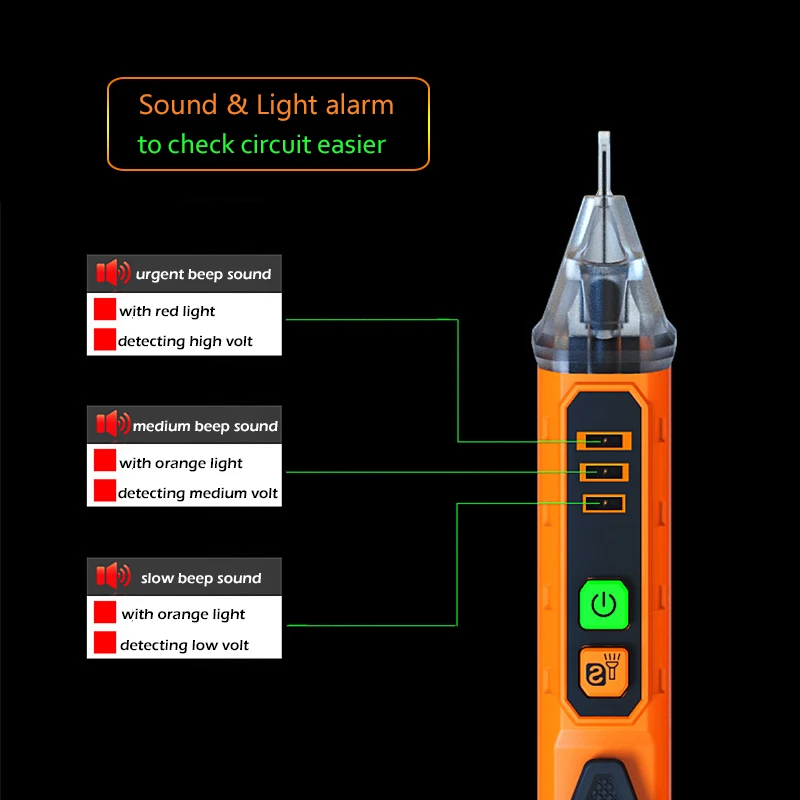

Sound & Light alarm function: with different decibel alarm sounds, red/orange LED light shows the strength of the signal



Working temperature



0 ~ 40



Storing temperature



-10~50



Safety level



CAT.III 1000V / CAT.IV 600V



Power supply



2* 1.5V AAA battery

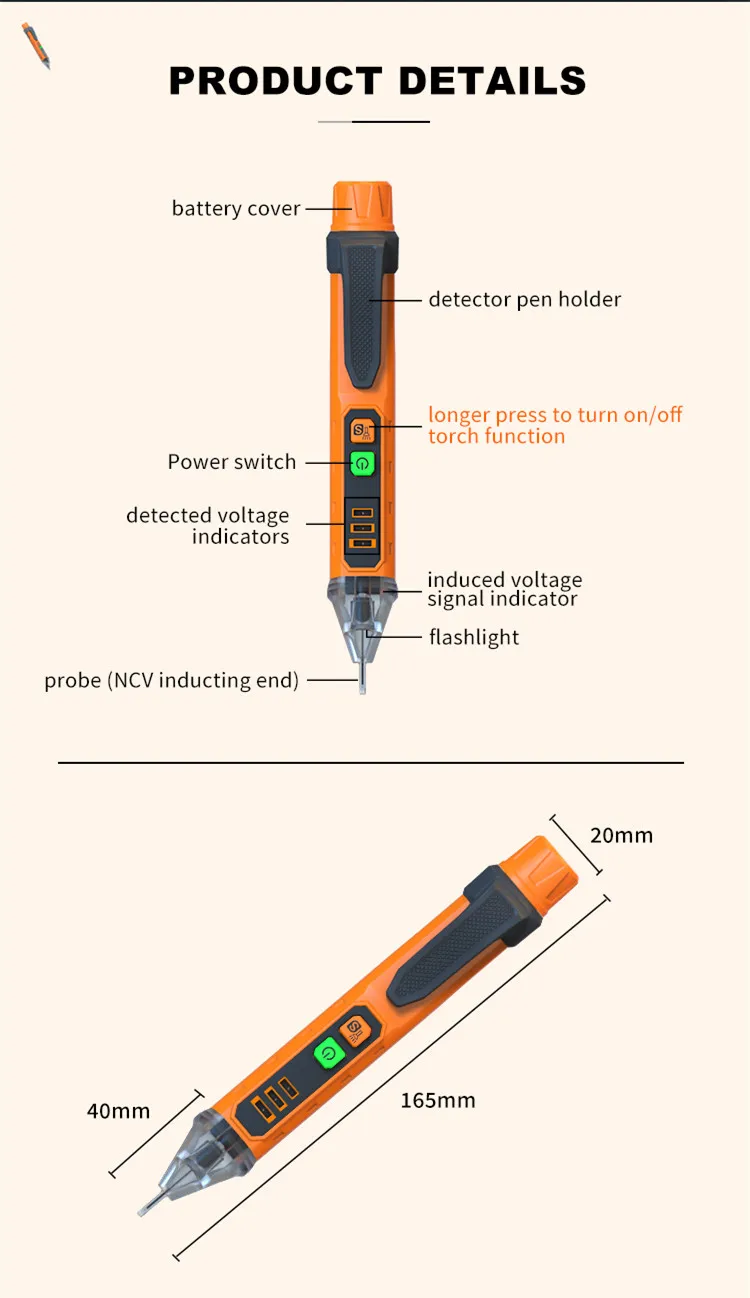

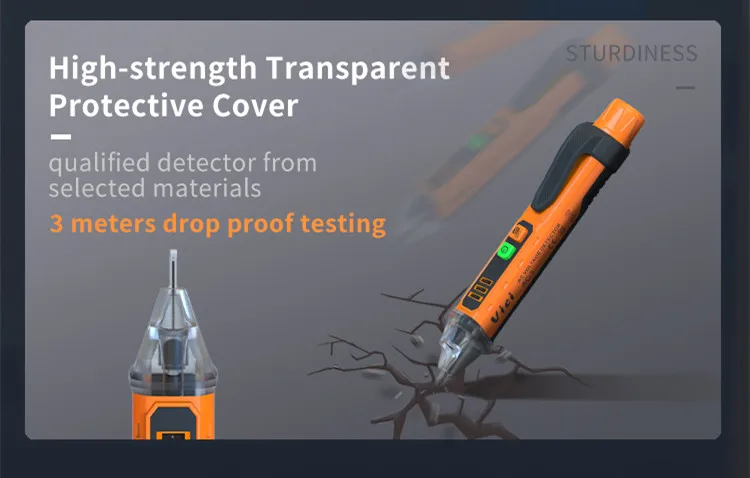

 AC-3 voltage detector 1.jpgAC-3 voltage detector 2.jpgAC-3 voltage detector 3.jpgAC-3 voltage detector 4.jpgAC-3 voltage detector 5.jpgAC-3 voltage detector 6.jpgAC-3 voltage detector 7.jpgAC-3 voltage detector 8.jpgAC-3 voltage detector 9.jpgAC-3 voltage detector 12.jpg
