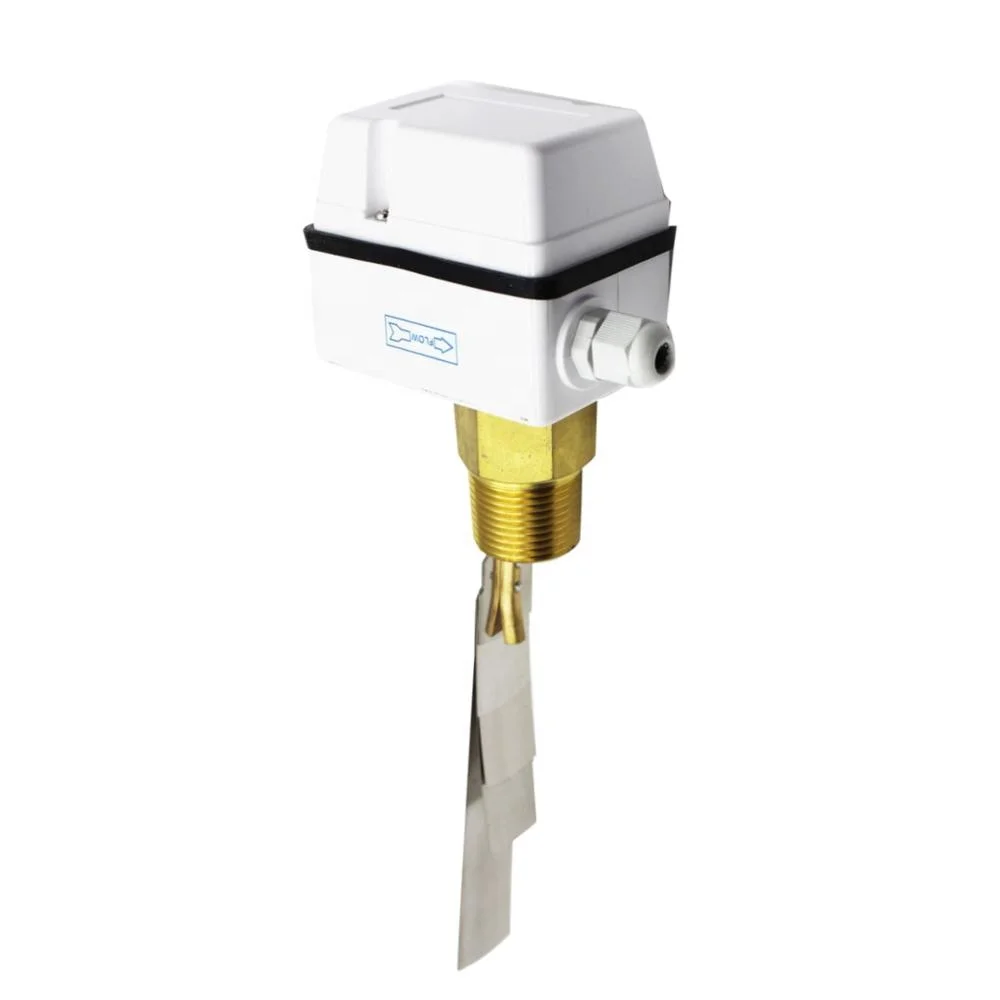

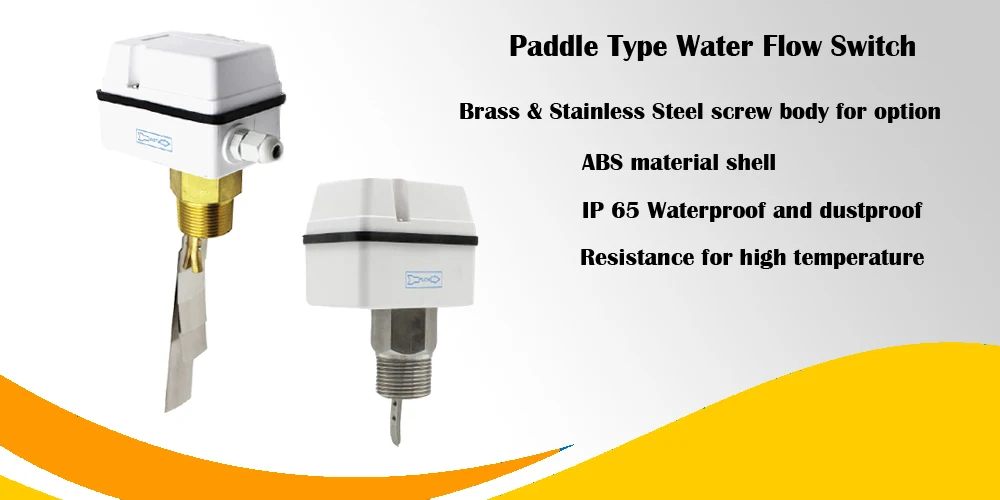

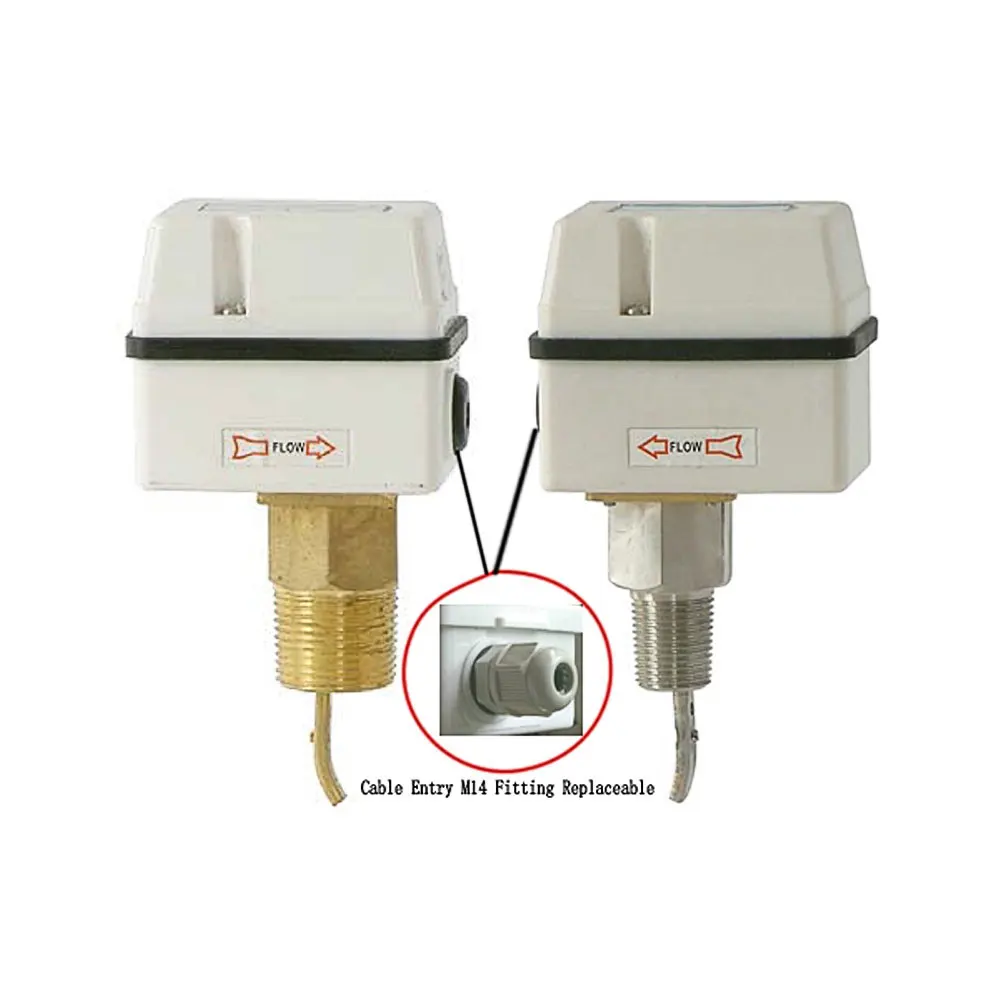

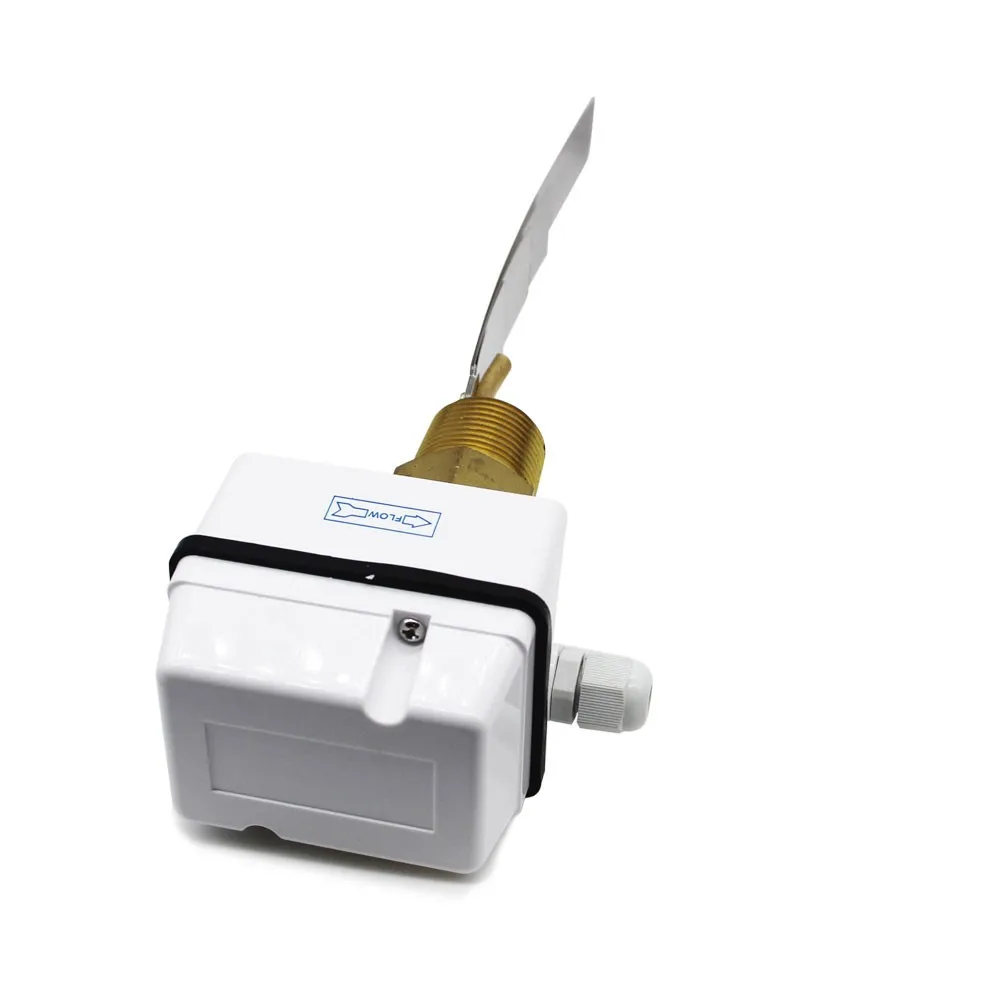

Amazon Hot sale Brass water flow switch paddle flow switch for air conditioning equipment

Amazon Hot sale Brass water flow switch paddle flow switch for air conditioning equipment

Category: Flow Switches >>>
Supplier: Hotowell,Technology,(xiamen),Co.,Ltd.

Price:$9.88 - $17.36

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

>> General

● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
● 15(8A) 250VAC switch rating
● IP65, class I enclosure

>> Specification

Type of operation On/Off, single-stage, micro switch
Output SPDT 15(8A) 24/250Vac
Flow rates See flow rate table
Flow rate setting adjustment Internal srew
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel

Liquid temperature -20C-120C
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg

>> Type & Data

Model	Connection	Medium	Material
HTW-AFS-15	1/2"-14NPT	Water	Brass
HTW-AFS-20	3/4"-14NPT			Brass
HTW-AFS-25	1"-11 1/2NPT			Brass
HTW-AFS-15S	1/2"-14NPT	Caustic Liquid	Stainless Steel
HTW-AFS-20S	3/4"-14NPT			Stainless Steel
HTW-AFS-25S	1"-11 1/2NPT			Stainless Steel
