Product Overview
Description
Henan 125tph Road Machinery Hot Mix Asphalt Plant
Main Features
1.Modularized design, easy installation and transportation;
2.High performance, save energy drying drum system;
3.Strictly test vibrating screen system;
4.High accuracy weighing system;
5.High-efficiency mixing system adopt twin-shaft batch mixer;
6.Famous brand air compressor and high quality pneumatic system used;
7.Easy & stable control system.
Detailed Images

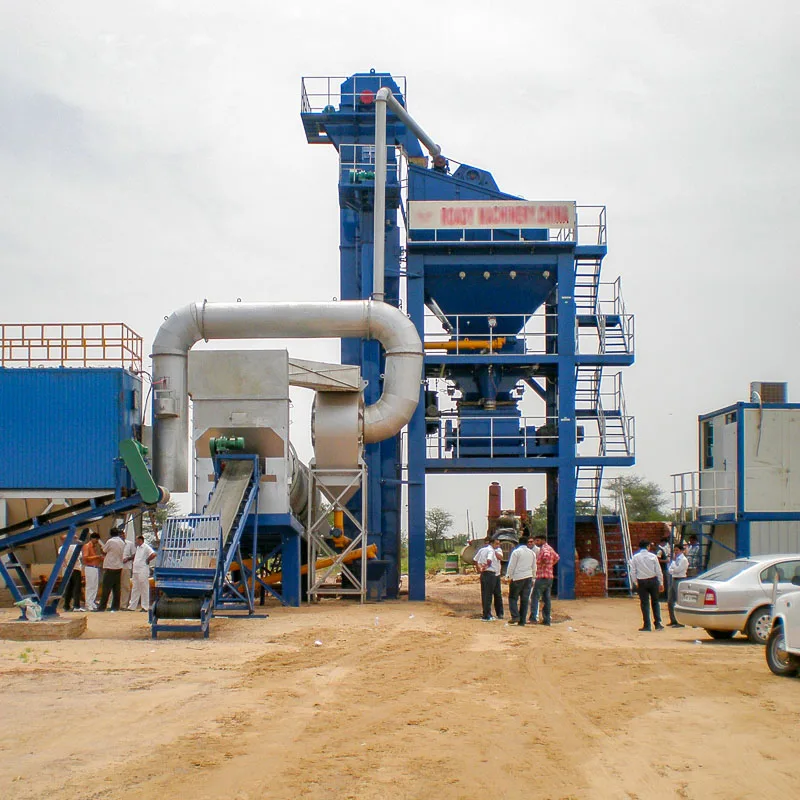

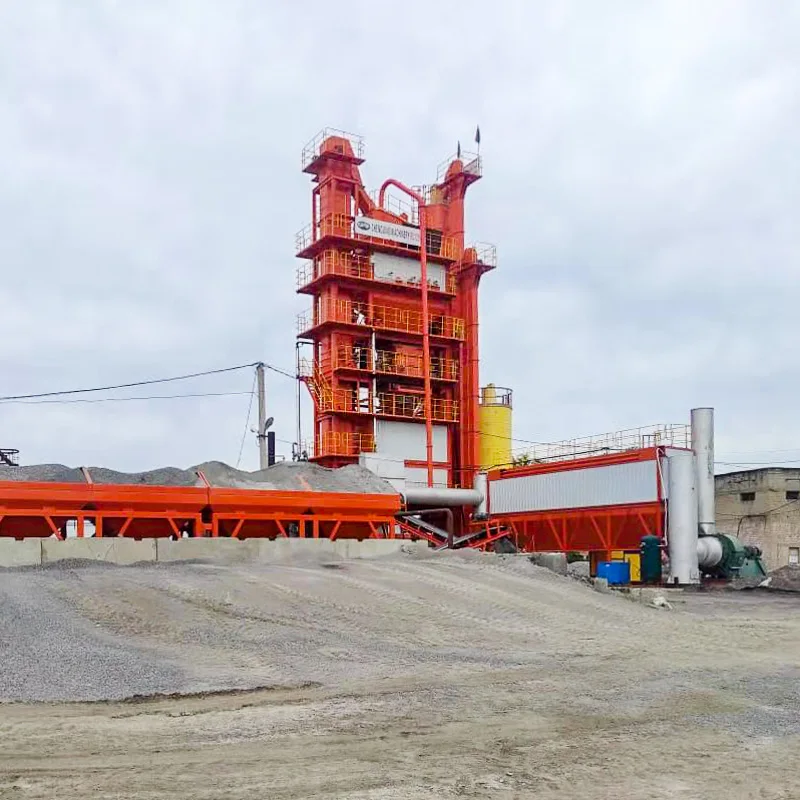

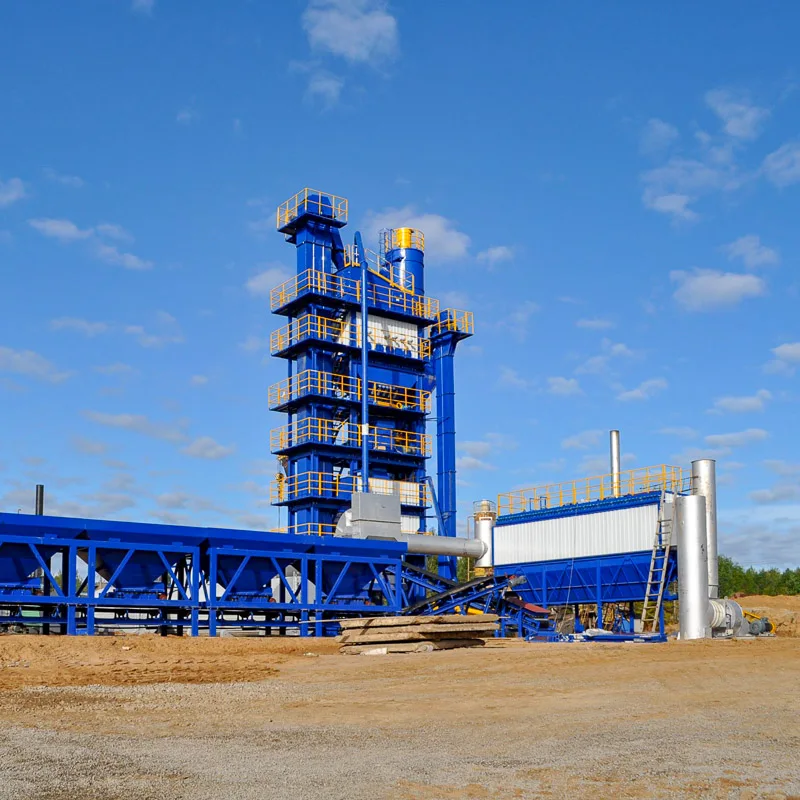

Henan 125tph Road Machinery Hot Mix Asphalt Plant
Key Specifications
Henan 125tph Road Machinery Hot Mix Asphalt Plant
Model | RD125 |
Rated Production Capacity | 125t/h |
Oil Consumption | 6.5kg/t |
Figure Dimension | 35m×31m×15m |
Total Power | 348.32KW |
Operation | Manual, auto manual, auto |
Cold Aggregates Supply System | Cold aggregate hopper:4×8m³ |
Conveyer belt width:500mm | |
Drying Drum | Φ1.8m×8m |
China Brand Light Oil Burner | Rated oil consumption:850kg/h |
Hoisting System | Hot aggregate elevator:1×11KW |
Filler elevator:1×4KW | |
Vibrating Screen | Four layers |
Weighing system | Hot aggregate weighing hopper:1500kg; Weighing accuracy:±0.15% |
Filler weighing hopper:260kg; Weighing accuracy:±0.15% | |
Asphalt weighing hopper:120kg; Weighing accuracy:±0.1% | |
Mixer Capacity | 1600kg/batch |
Dust Collecting System | Gravity dust catcher + Bag dust catcher |
Filler Supply System | Filler silo:1×30m³ |
Asphalt Supply System | Asphalt tank:2×50m³ |
Hot oil heater:0.4 million kcal (fuel: diesel oil)
| |
Electric Control System | Control room:3m×2.2m×2.5m |
Control system: PLC+ touch screen/computer |
Certifications
Packing &Delivery
- Port: Shanghai,Qingdao,Tianjian,or other China port
- Lead Time :25-30 days after payment
Exhibitions

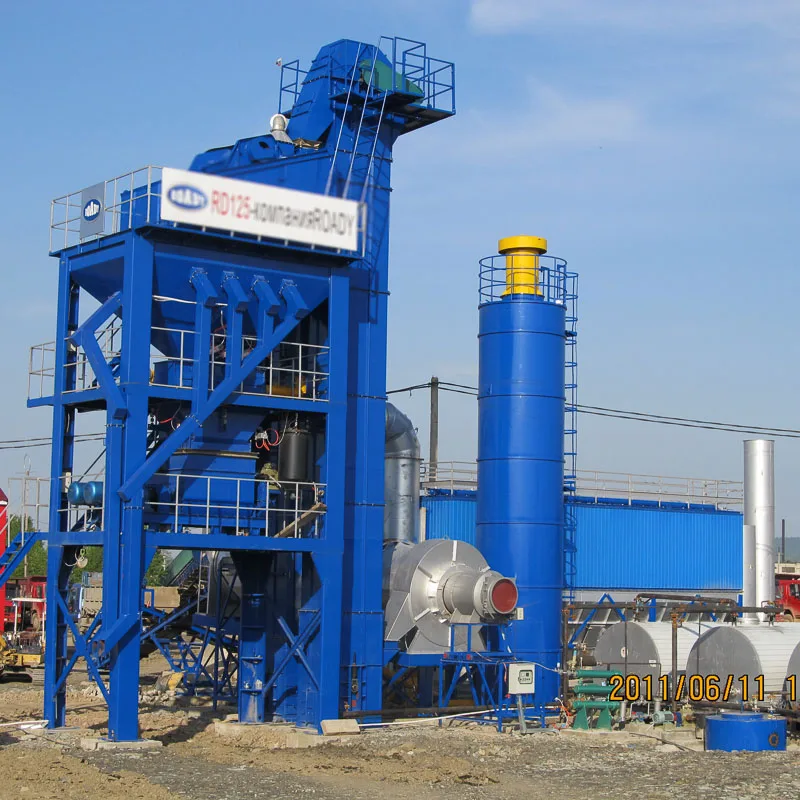

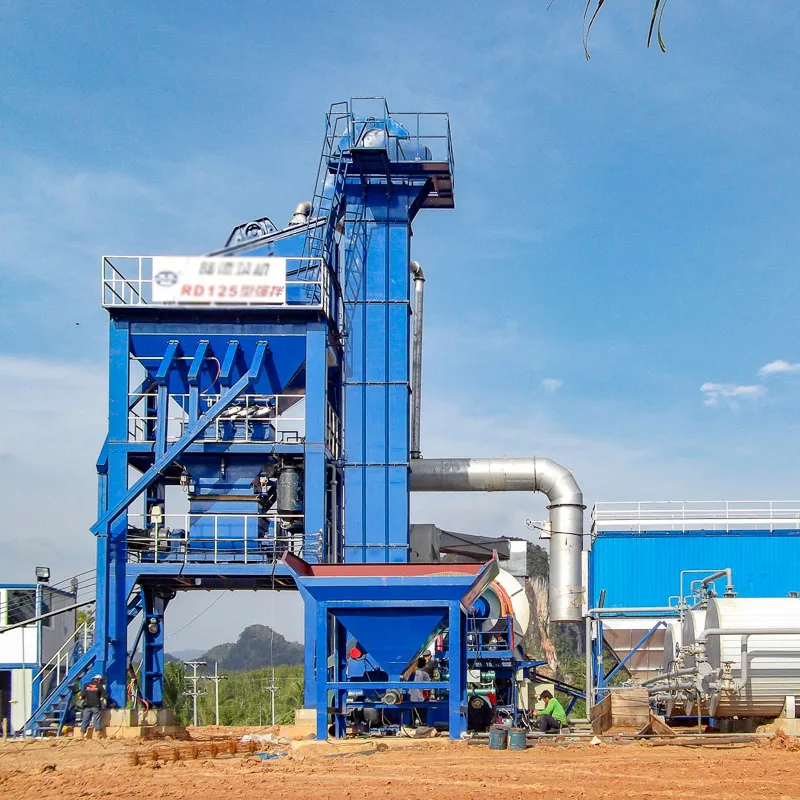

Henan 125tph Road Machinery Hot Mix Asphalt Plant
