Хорошая цена, электрический обогрев, автомобильная окрасочная камера/Автомобильная окрасочная камера/окрасочная комната
- Category: Spray Booths >>>
- Supplier: Shandong,Longxiang,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

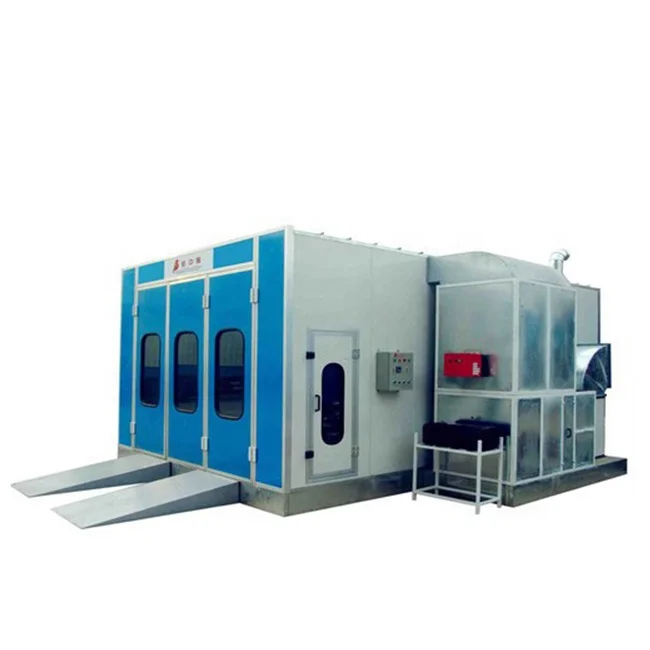

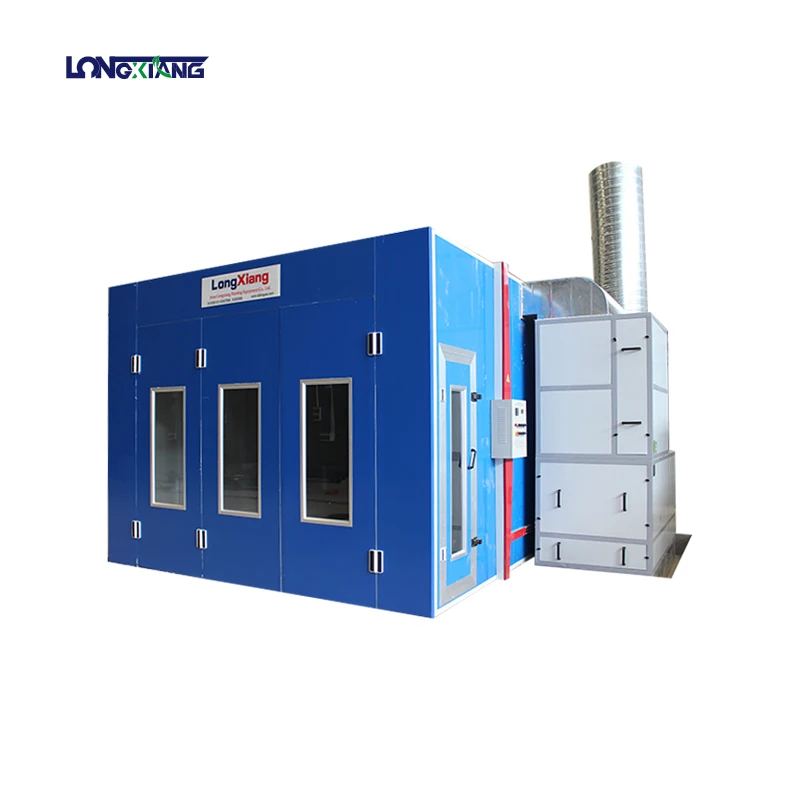

Auto Paint Room Automotive Car Spray Booth Car Body Painting Machine
Product Paramenters
LX-5 | ||||||||
Outside size | 7000×5350×3400mm(L×W×H) | |||||||
Inside size | 6900×3900×2650mm(L×W×H) | |||||||
Entrance door | 3 folds，3000x2600 mm(W×H), bending steel door | |||||||
Emergency door | 650*2000mm(W*H),equipped with handle lock | |||||||
Main System | ||||||||
Cabin system | Wall panel | -Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. | ||||||
Basement | -Galvanized steel assemble,280mm high,quadrate steel support,5 rows of grills -3 ramps, 970*2000mm(W*L)/pc | |||||||

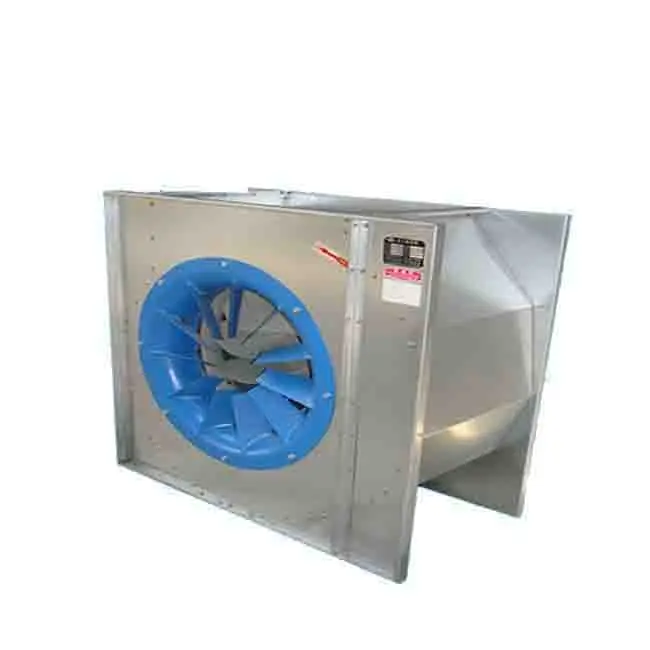

Ventilation system | Inlet fan | 1*7.5kw double-intake centrifugal fans, air capacity:21000m³/h for each set | ||||||
Outlet fan | 1*7.5kw double-intake centrifugal fans, air capacity:21000m³/h for each set | |||||||
Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful. -Cabinet for the fan*1unit ,air duct*2units. -Elbow:90°*1 unit. | |||||||
On-load airflow speed | 0.4m/s,ventilation rate:315time/h | |||||||
Heating system | Burner | Italy RIELLO RG5S oil burner, heating capacity: 260000Kcal/h, with pneumatic damper from spraying to baking cycle | ||||||
Heat Exchanger | 1.2mm thickness SUS304 stainless steel | |||||||
Max.temperature | 80℃，heating time:4-5min(20-60℃)， fuel consumption is 6-8kg/vehicle | |||||||
Cabinet | Rock-wool insulation*1 unit, heat insulation and preservation,inflaming retarding | |||||||
Lighting system | Ceiling lights | 8*4pcs*16w LED lighting | ||||||
Side lights | 8*2pcs*16w LED lighting | |||||||
Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% | ||||||
Ceiling filter | EU5 grade high efficient filter,filtering rate＞98% | |||||||
Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |||||||

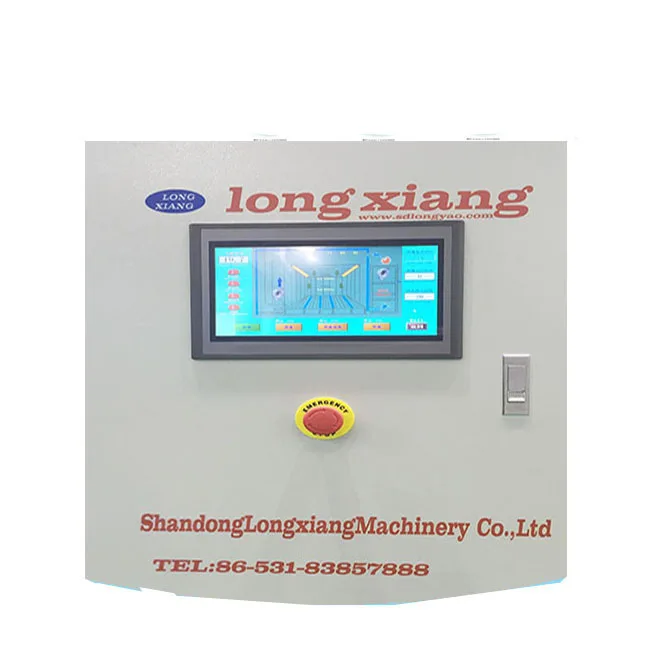

Control system | Control panel | Intelligent control system | ||||||
Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc | |||||||
Total power | 16 KW | |||||||
Voltage/ frequency | 380V,50HZ,3phase | |||||||
Company Profile
Product Process
Longxiang owns the professional roof making line, uncoiling and laminating machine, steel plate shearer, bending machine, punching machine ect.
Our car paint room production steps are various, after these detailed production can complete a whole high quality durable paintroom production, the specific steps are as follows:
Why Choose Us
Professional service in installation, after-sales, international business based on our teams are in mature.
1. LONGXIANG supports 24 hours online service , perfect after sales service system.
2. LONGXIANG provides short delivery time within 1 week.
3. Engineers available to serve machinery overseas.
4. LONGXIANG support 12-month warranty and will help to maintain it all lifelong.
2. LONGXIANG provides short delivery time within 1 week.
3. Engineers available to serve machinery overseas.
4. LONGXIANG support 12-month warranty and will help to maintain it all lifelong.
Product packaging
Delivery Details:Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
Packing Details:Standard exportation packing with polyfoam / wooden box / carton.Our package is very professional. We use the iron bracket package and it can fix the product and prevent them from broken. Moreover, every components with label and it easy for customers to distinguish.
Packing Details:Standard exportation packing with polyfoam / wooden box / carton.Our package is very professional. We use the iron bracket package and it can fix the product and prevent them from broken. Moreover, every components with label and it easy for customers to distinguish.
Exhibition
We had attended the FMC and AMR also the Automechnika shanghai exhibiton for many years.
Customer visit from all over the world.
FAQ
1. Q: What is your delivery date?
A: Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
2. Q: Can you design the spray booth according to our request?
A: Of course. All product can be customized with your own designs.
3. Q: Are you a factory or a trading company?
A: We are a factory and have the own design&production&conpetitive price advantages.
4. Q: Can I order special color which I like?
A: Yes, we can produce machines with blue, white, red and grey to meet your requirement.
5. Q: Where is your factory located? How can I get there?
A: Our factory is located in Longyao Industrial park, Shandong provience, china. About an hour from Jinan international airport. Welcome to our factory from all over the world.
6. Q: How about your service?
All product have one year warranty and life-long technology support.
A: Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
2. Q: Can you design the spray booth according to our request?
A: Of course. All product can be customized with your own designs.
3. Q: Are you a factory or a trading company?
A: We are a factory and have the own design&production&conpetitive price advantages.
4. Q: Can I order special color which I like?
A: Yes, we can produce machines with blue, white, red and grey to meet your requirement.
5. Q: Where is your factory located? How can I get there?
A: Our factory is located in Longyao Industrial park, Shandong provience, china. About an hour from Jinan international airport. Welcome to our factory from all over the world.
6. Q: How about your service?
All product have one year warranty and life-long technology support.
