factory price platform delivery price excavator track chassis with matilda 4-wheel balance system
Packaging & Shipping
Introduction:

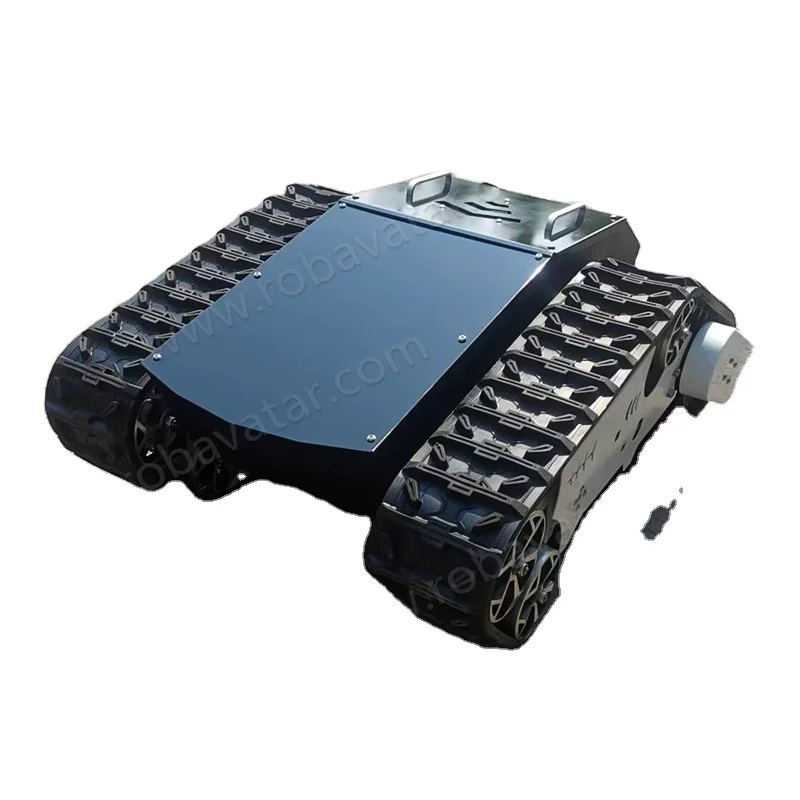

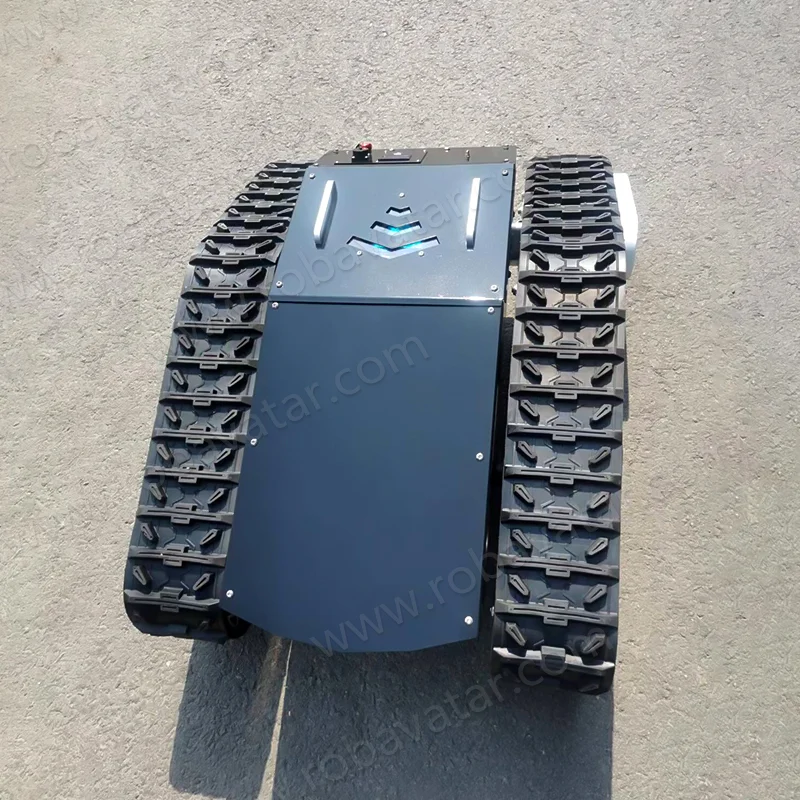

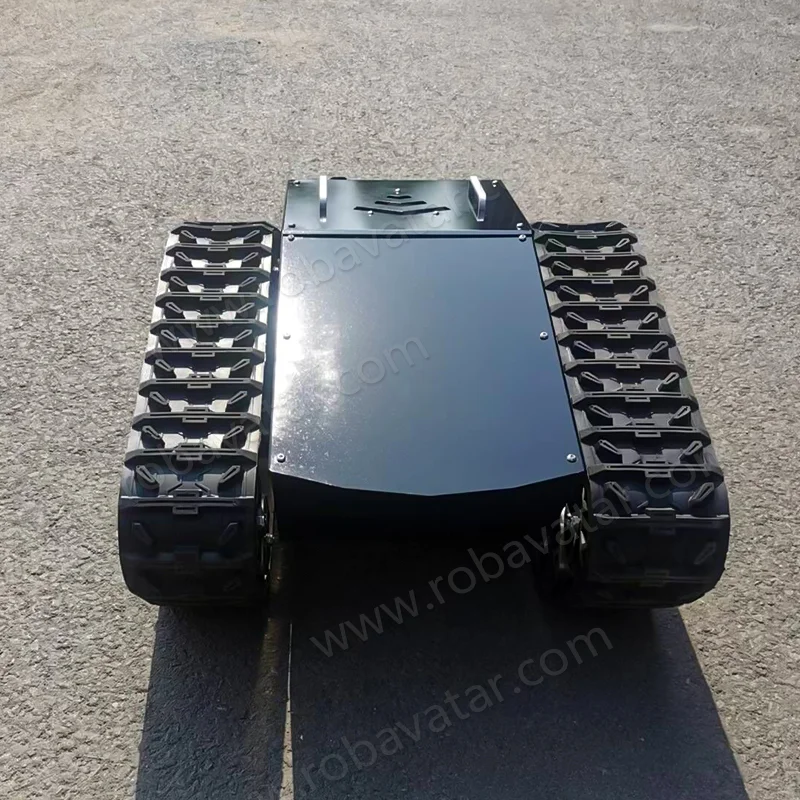

AVT-10T has Christie Suspension system and Matilda 4-wheel balance system,better shock absorption and terrain capability. Carrying 100kg, it can reach any rough area.
Features:
1. 140mm ground clearance, excellent trafficability.

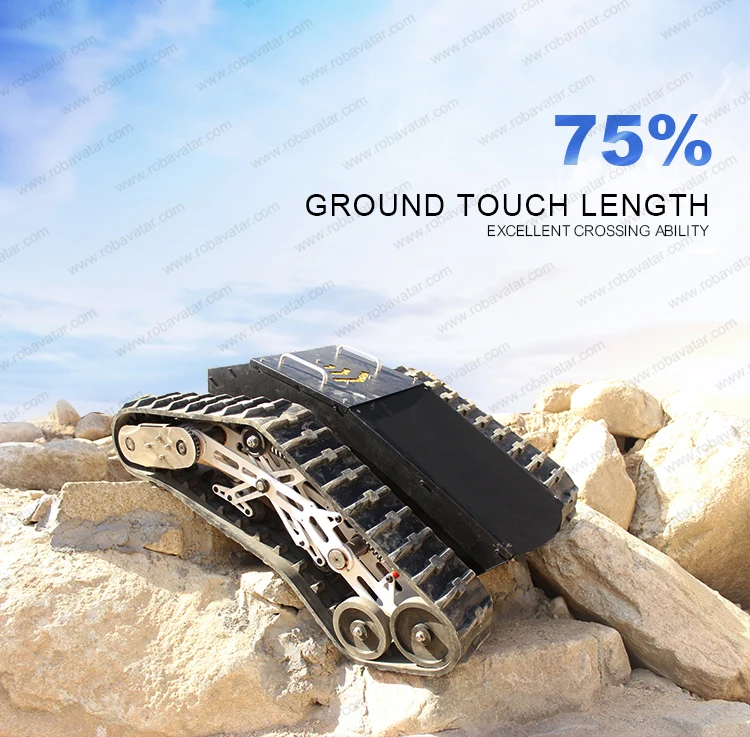

2. 75% ground touch length, excellent crossing ability.
3. Superior grip, perfect obstacle-crossing performance.
Specification:
Item | Data | Item | Data |
Body Material | 304 Stainless Steel Skin, Galvanized Square Tube | Dimension | 1020*700*405mm |
Track Material | Quality Rubber Embedded with Kovlar Fiber | Internal Size(Excluding Battery) | 600*320*240mm |
Self Weight | 85KG | Chassis Weight | 95KG |
Motor | Kane Motor 110BL03 | Track Circumference | 2.3m |
Track Width | 150mm | Motor Rated Torque | 2.5N |
Drive Wheel Diameter | 148mm | Rated Torque | 60NM |
Wheel Material | Aluminium | Ground Contact Length | 74cm |
Reduction Ratio | 1:7.5 | Reducer | NMRV50 |
Surface Treatment | Sprayed / Partially Painted | Running Speed | 0-6KM/H |
Motor Parameter:
Model | 110BL03 |
Poles | 8 |
Phase | 3 |
Rated Voltage | 48 VDC |
Rated Speed | 1400 RPM |
Rated Torque | 6 N-m |
Rated Current | 8 Amps |
Output Power | 1884 Watts |
Peak Torque | 18 N-m |
Peak Current | 24 Amps |
Torque Constant | 0.078 N-m/Amps |
Anti-Potential Constant | 81.6 V/kRPM |
Moment of Inertia | 320 Kg·mm2 |
Lead Length | 500 mm |
Body Length | 187 mm |
Weight | 9.6 kg |
