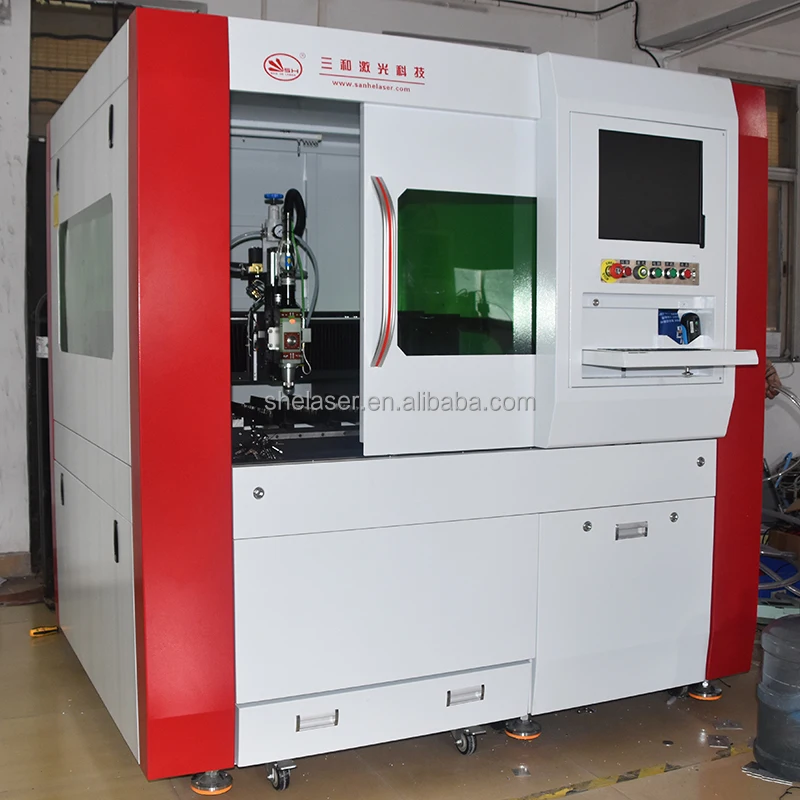

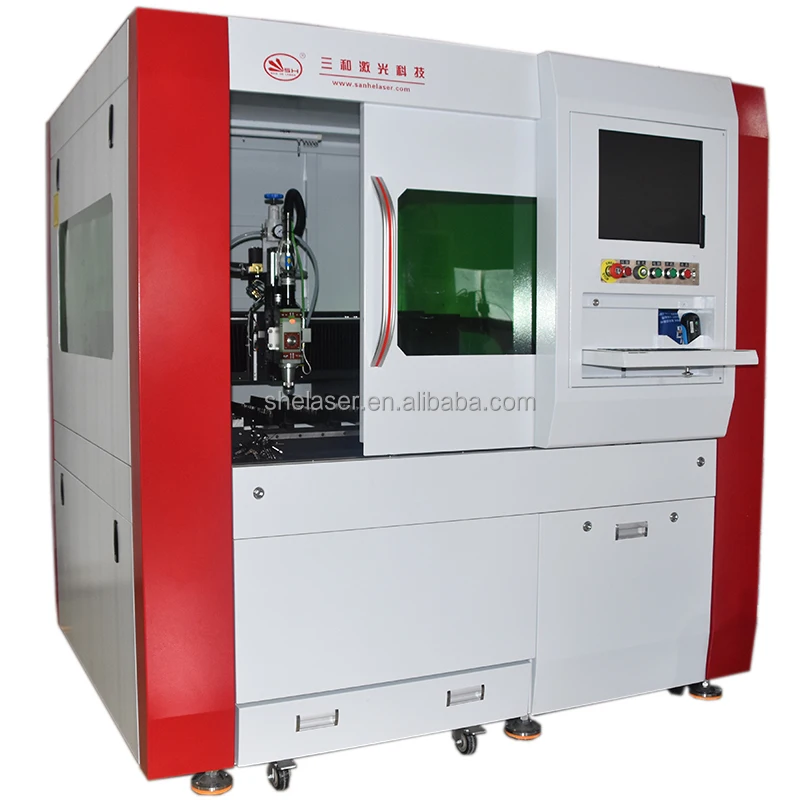

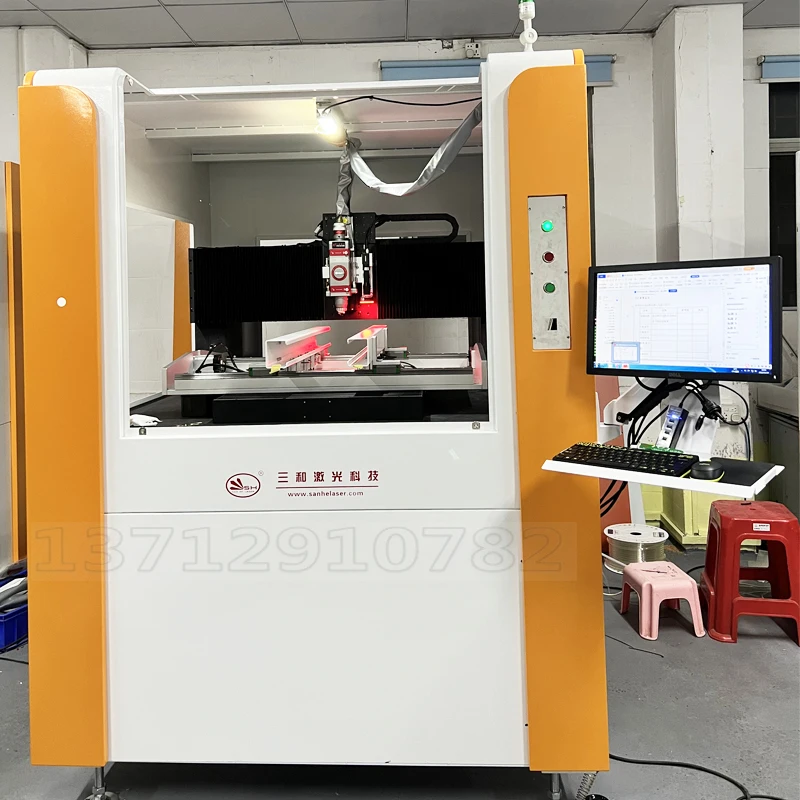

200w Sanhe Laser Manufacturer SMT Stencil Fiber Laser Cutting Machine Used for Printer Mesh
- Category: >>>
- Supplier: Dongguan Sanhe Laser Technology Co. Ltd.
Share on (1600706214031):
Product Overview
Description
This is a high-precision SMT laser cutting machine. It adopts the fiber laser with long-life air cooling technology imported from abroad. Its beam quality is good, its luminous life is long, and its photoelectric conversion efficiency is high. There is no need to replace the lamp tube, and it is free of maintenance costs. The use of air cooling technology greatly saves power consumption. The minimum spot diameter can be focused to 0.016mm, making the hole wall more smooth and flat. During the cutting process, a small amount of industrial oxygen is used to assist the cutting, which has no impact on the environment.

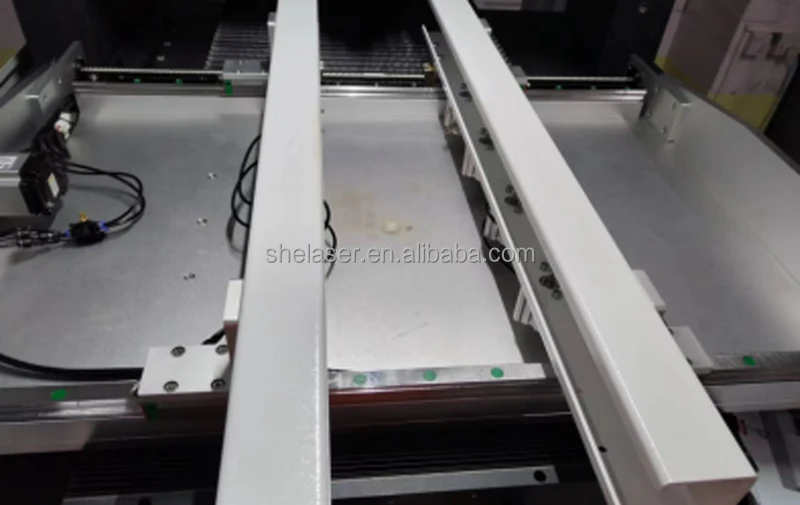

The working width (effective cutting range) of the fixture platform is 600mm * 700mm, and the width is adjusted by the motor.

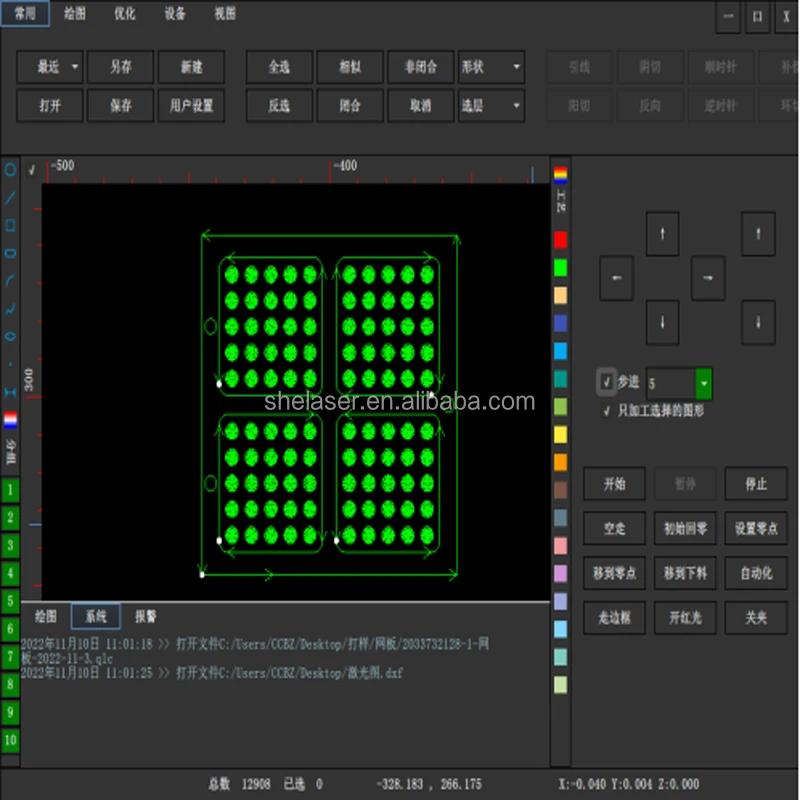

Taking the processing of products as shown in the figure below as an example, the required accuracy is+/-0.01mm for cutting circular holes with an aperture of 0.15mm. The physical drawing and processing drawing are shown in the figure:

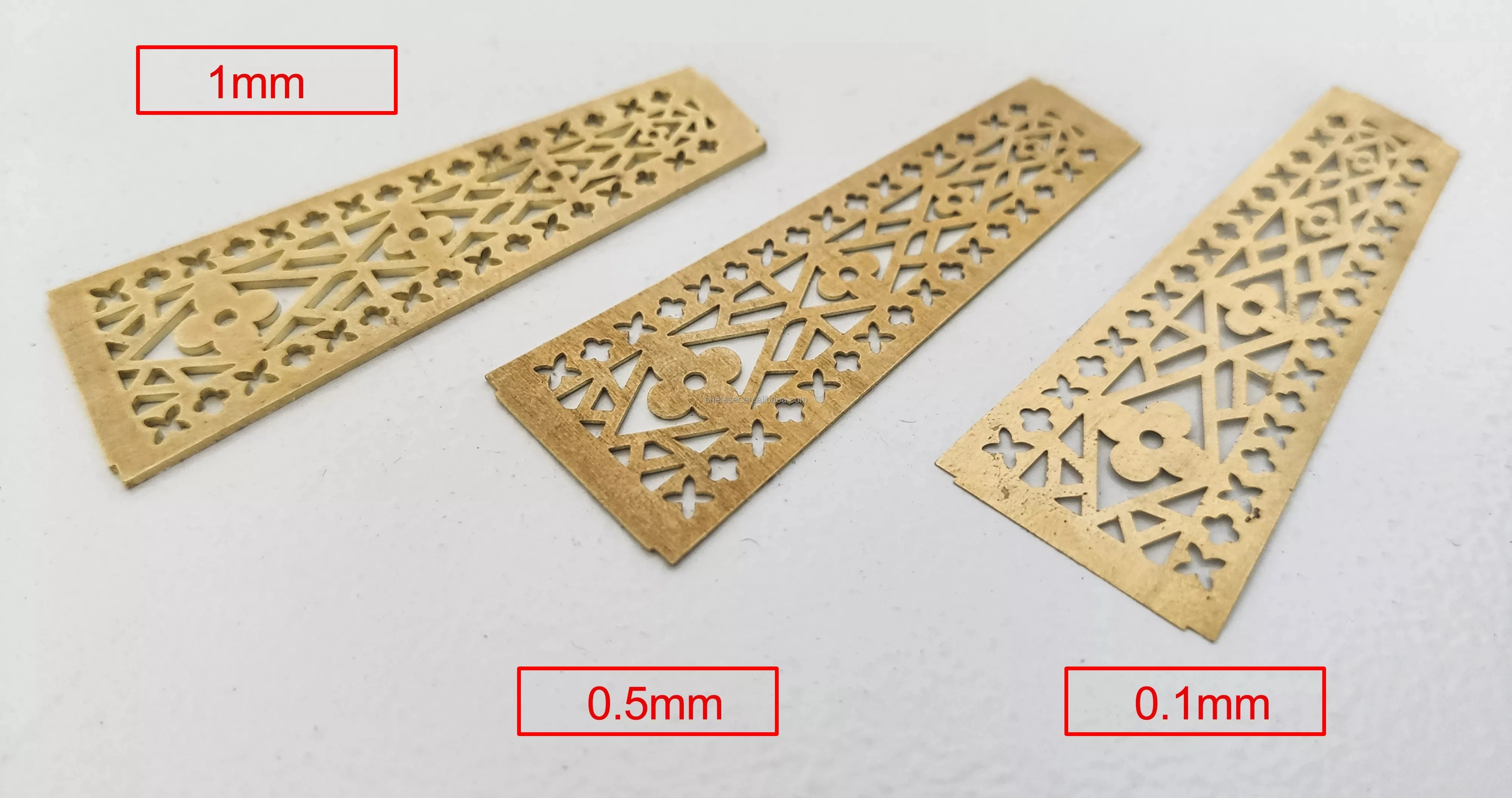

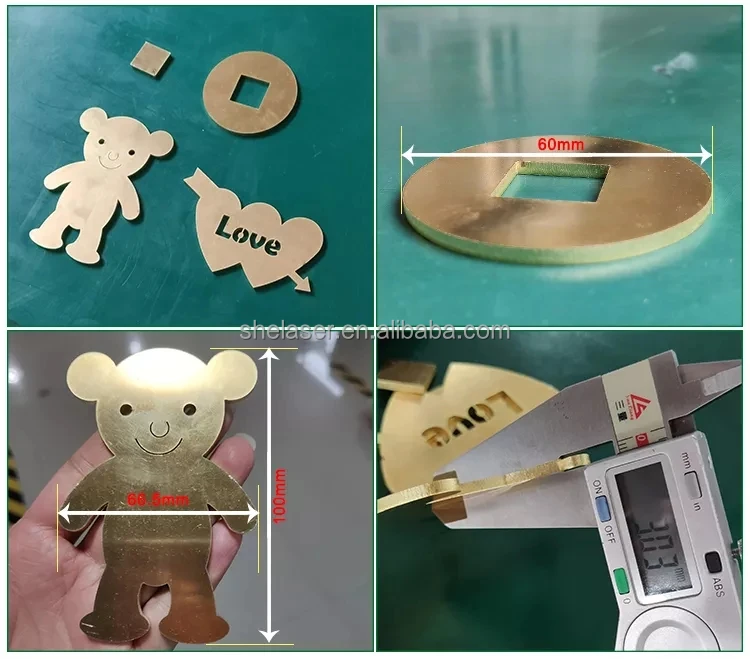

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like stainless steel sheet, mild steel plate,
carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper
sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, etc.
What’s the Technical data of Fiber Laser Cutting Machine ?
Equipment model | 3HE-MF200W |
Laser type | fiber-optic laser(IPG) |
Laser working medium | optical fiber |
Laser wavelength | 1060-1080 nm |
RATED OUTPUT POWER | 200W |
Beam quality | <0.373mrad |
X-axis distance | 800mm |
Y-axis distance | 800mm |
Effective cutting range | 600*700mm |
Positioning accuracy | ±2um |
Repeat positioning accuracy | ±2um |
Max. Moving speed | 120m/min |
Support graphic format | PLT,AI,BMP,DST,DXF format (support for CORELDRAW, AI,PHOTOSHOP, AUTOCAD) |
Power Supply | 220V50Hz/16A |
cooling way | air cooling |
cutting accuracy | ±0.01mm |

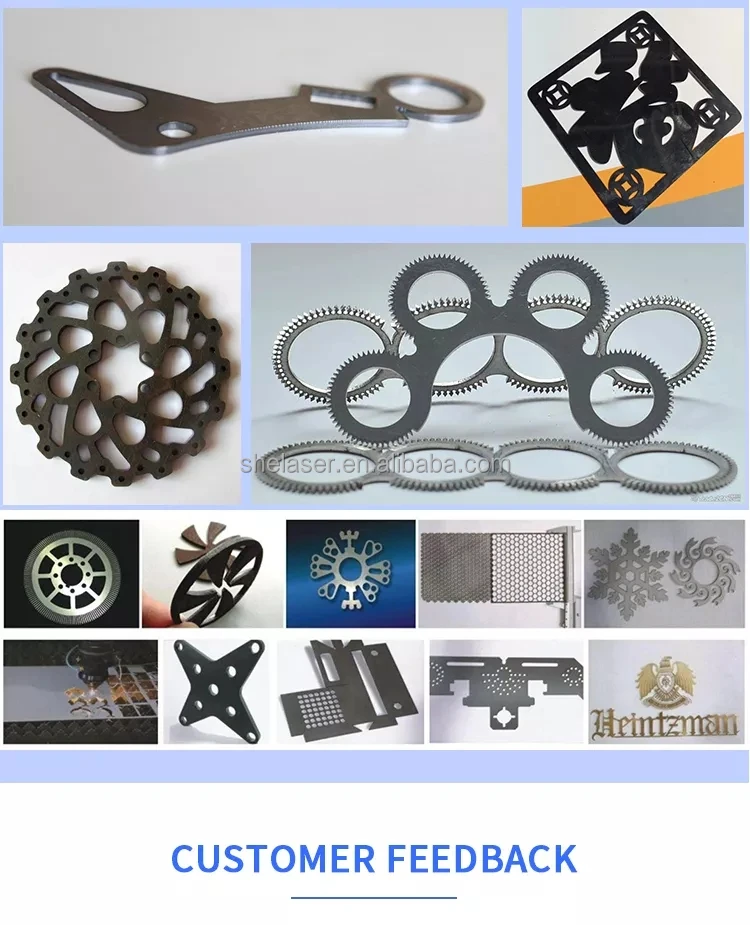

Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture billboard, advertising, signs, signage, metal letters, LED letters,
kitchen ware, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets
processing, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, glasses frame, electronic parts,
nameplates, refrigeration machinery, agricultural machinery, food machinery, kitchen stainless steel countertops, aerospace
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2) Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting/welding thickness,
then I will recommend you the most suitable machine for you.
3) Q: Are you factory or trading company?
A: We are factory, which manufactures cutting/welding machines , with 15 years experience.
4) Q:How can i do if the machine goes wrong?
A: Online service is offered,please contact with our sales.If needed,we will send our engineers to your place to maintain.
