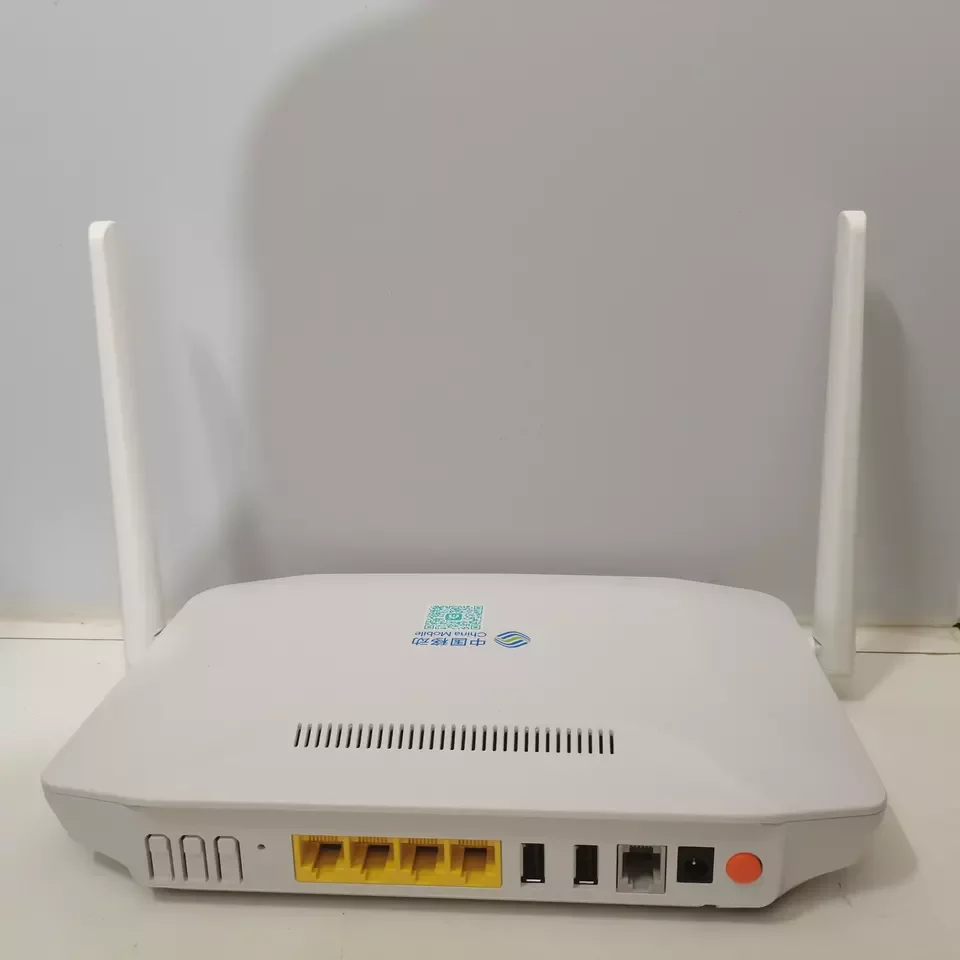

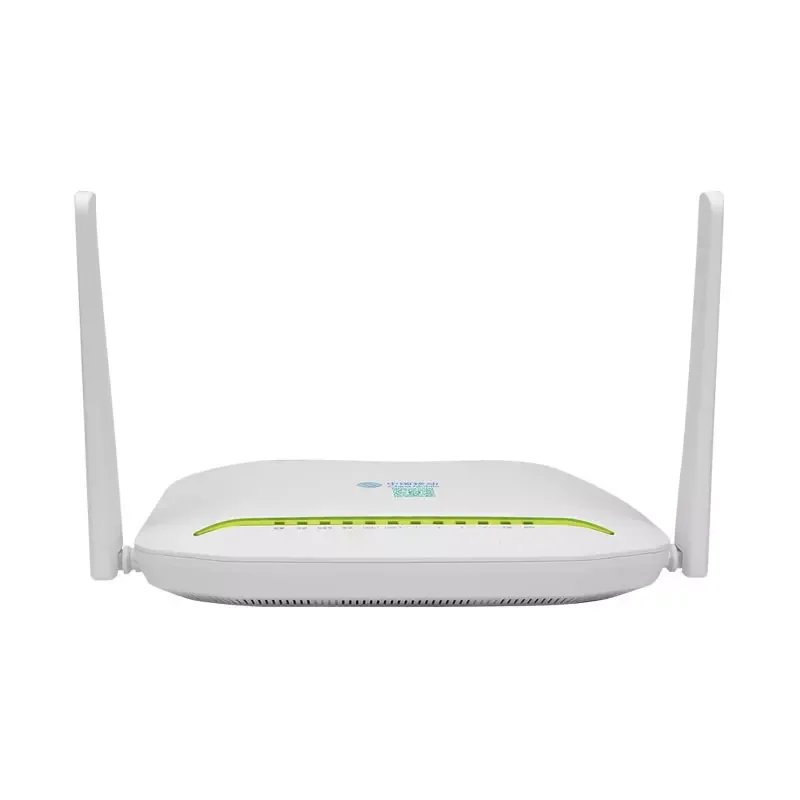

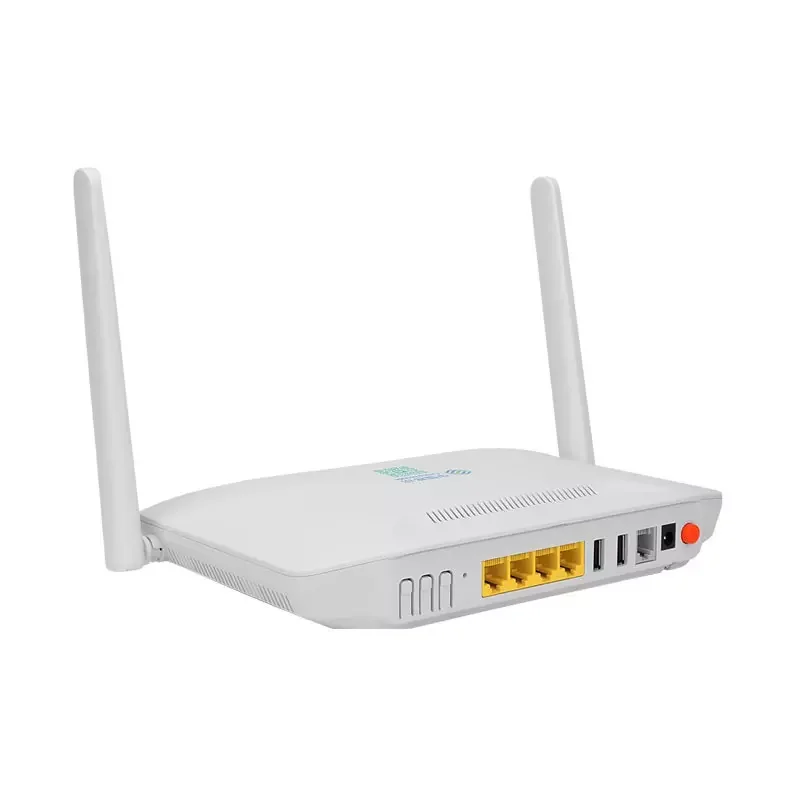

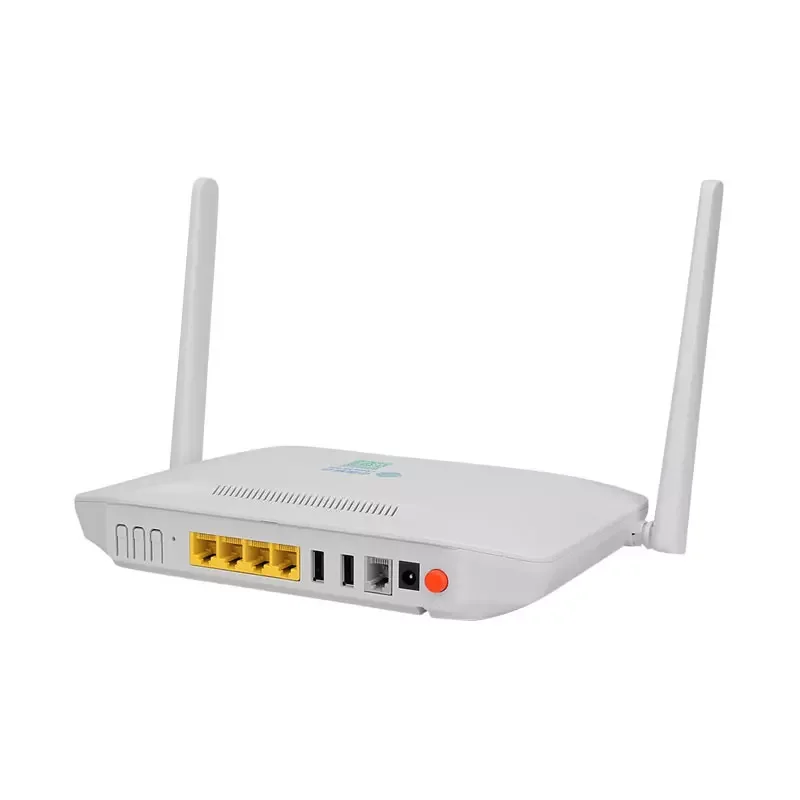

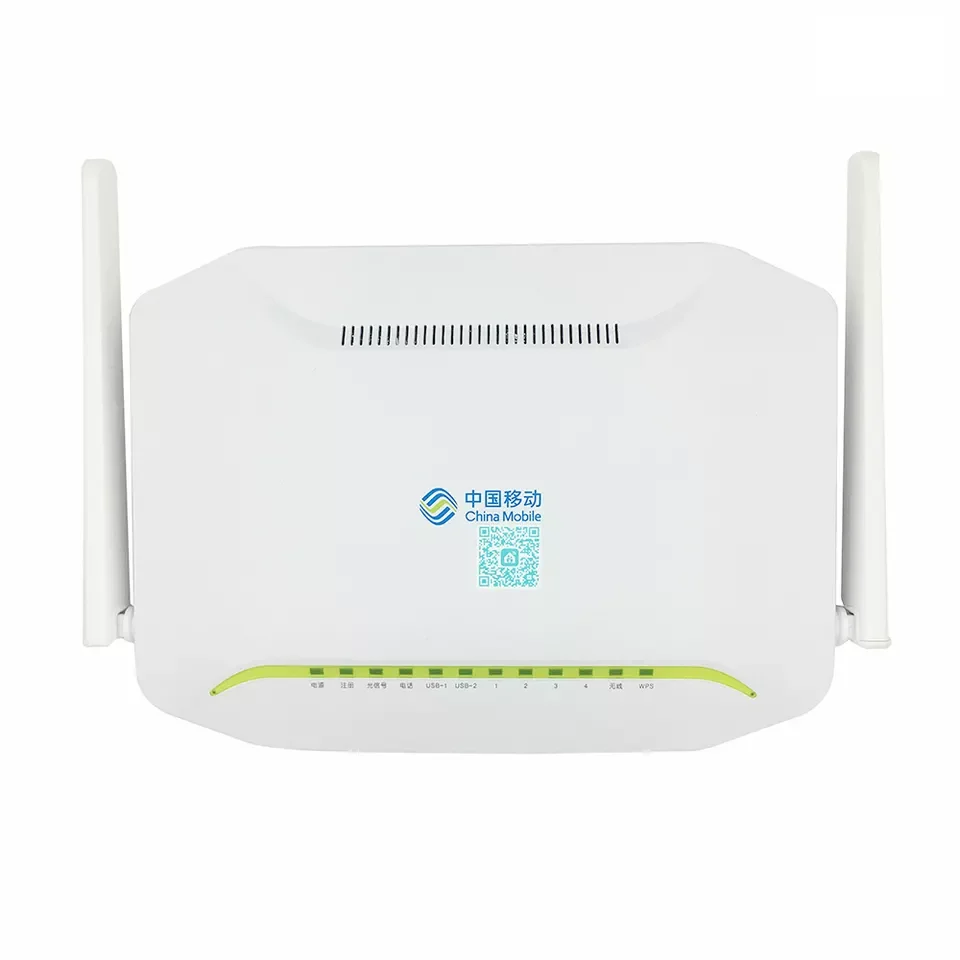

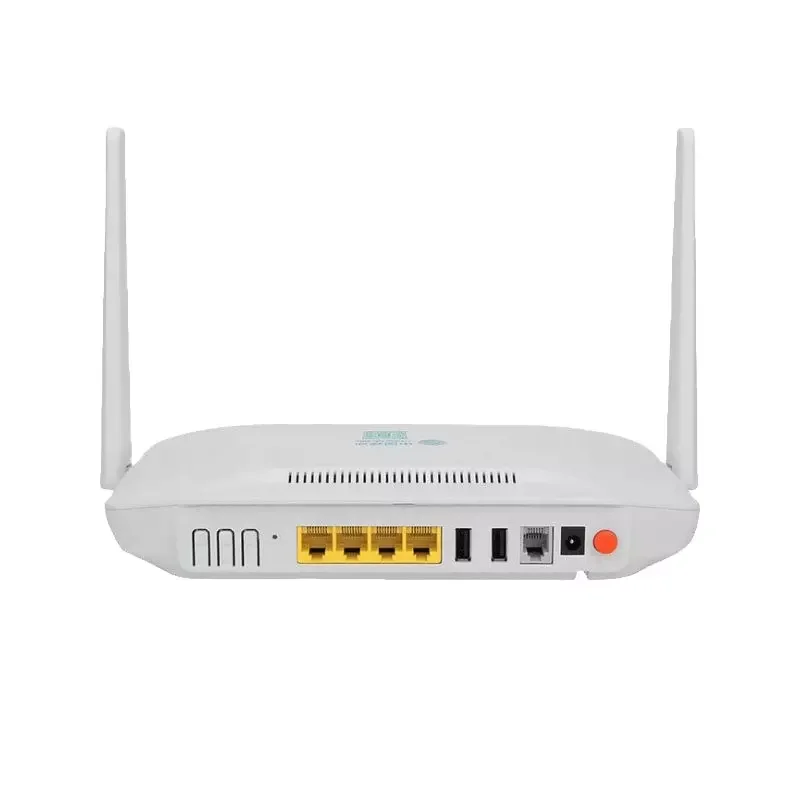

Second Hand FTTH ONU Hg6821M Dual Band Wifi EPON ONT 4GE 2USB 1POTS WIFI 2.4G/5.8G GPON/EPON Onu
- Category: >>>
- Supplier: Shenzhen Ciaok Electronices Co. Ltd.
Share on (1600706358783):
Product Overview
Description
Second-Hand FTTH ONU Hg6821M/6823M Dual Band Wifi EPON ONT 4GE+2USB+1POTS+ WIFI 2.4G/5.8G GPON/EPON Onu
Product Description
Product Features
Hg6821M is an EPON or GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario. It provides subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access, convenient network storage services and high speed internet access. It has a small, smart appearance and green, energy-saving advantage. Using TR069 and OAM protocol, O&M cost can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis and performance statistic functions.
Network Interface:
EPON Interface: 1 * EPON interface (SC/PC), Transmission Rate: 1.25Gbps upstream and downstream
User Interface:
LAN: 4*10/100/1000Mbps Base-T interfaces with RJ-45 connector
Voice: 2*POTS interfaces with RJ-11 connector
WLAN: 1*WLAN Interface
USB: 2*USB 2.0 host Interfaces
Hg6821M is an EPON or GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario. It provides subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access, convenient network storage services and high speed internet access. It has a small, smart appearance and green, energy-saving advantage. Using TR069 and OAM protocol, O&M cost can be reduced effectively by supporting remote service provisioning, intelligent fault diagnosis and performance statistic functions.
Network Interface:
EPON Interface: 1 * EPON interface (SC/PC), Transmission Rate: 1.25Gbps upstream and downstream
User Interface:
LAN: 4*10/100/1000Mbps Base-T interfaces with RJ-45 connector
Voice: 2*POTS interfaces with RJ-11 connector
WLAN: 1*WLAN Interface
USB: 2*USB 2.0 host Interfaces

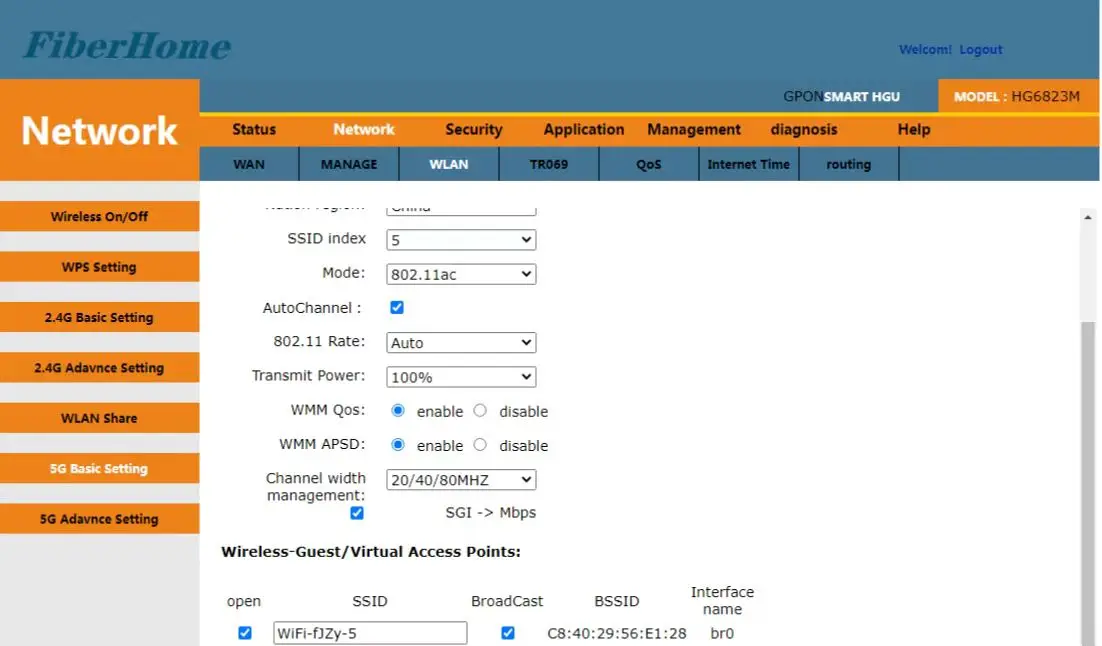

Dual Band WIFI 2.4G+5.8G
Features:
1000BASE-PX20+ optical Interface
MPCP (Muti-Point Control Protocol)
OAM and extended OAM
DBA (Dynamically Bandwidth Assignment)
MAC address/LOID (Logical ONU Identifier) authentication
IGMP snooping and controllable multicast
Layer3 routing function
Loop back detection
Dying Gasp alarm
SIP,H.248 and MGCP
G.711/G.723.1/G.729A and T.30/T.38
802.11g/802.11b/Mixed work mode
WPS and Multi SSID function

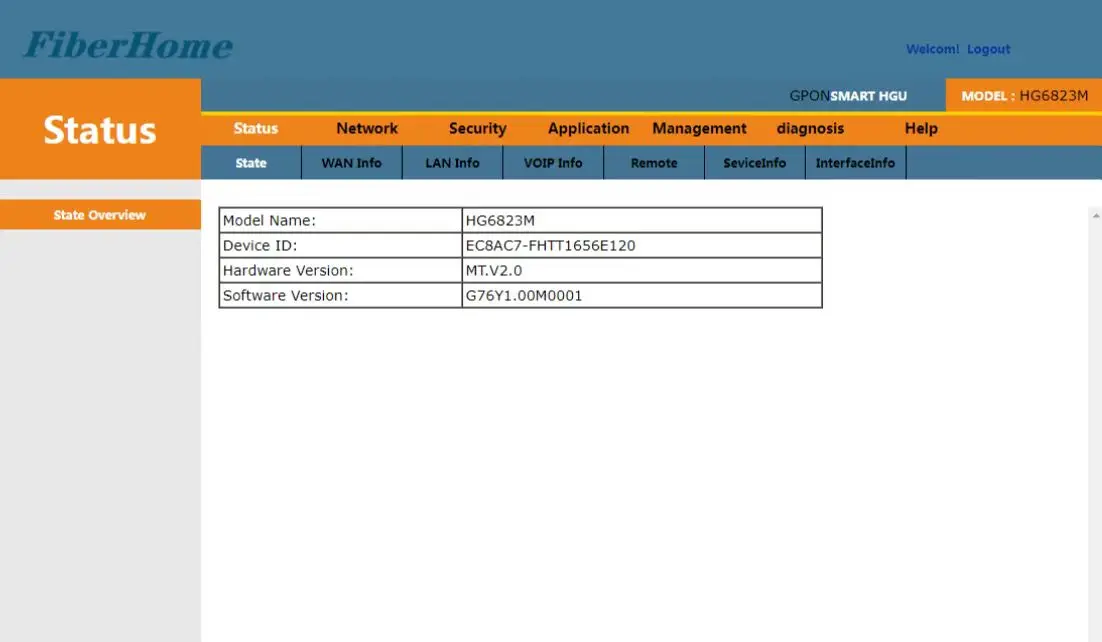

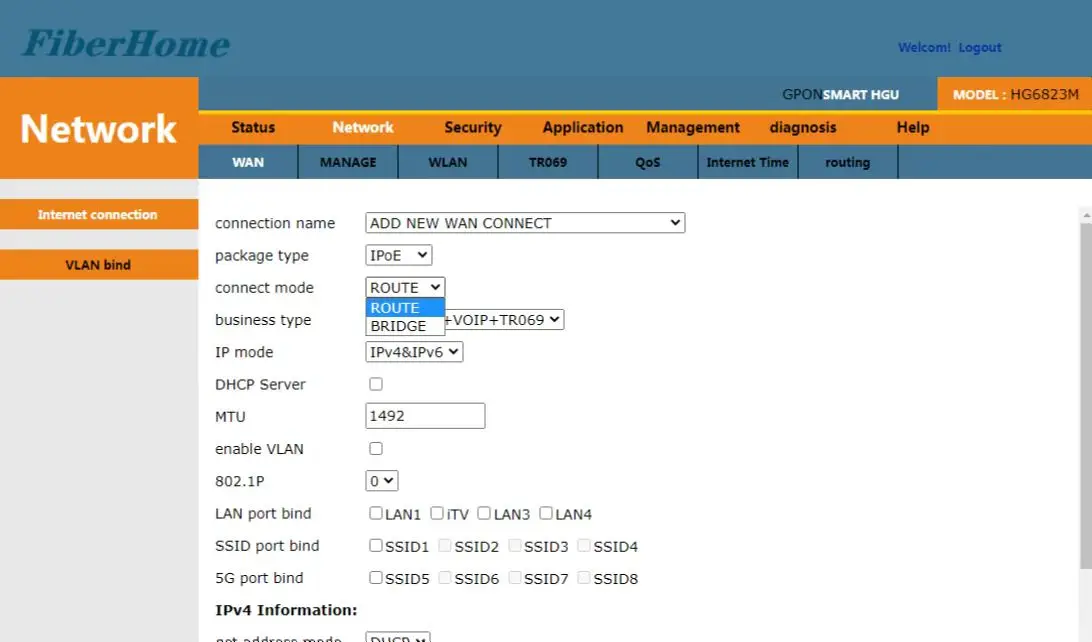

Local WEB management, Remote TR069 and OAM management
Physical and Environmental Specifications:
Power Consumption: 10W
Power Supply: 12V DC
Operating Temperature: -5 ~ 45°C
Humidity: 5 ~ 95% relative humidity
Dimensions: (W×H×D) 220mm×40mm×165mm
Net Weight: 0.6kg
Features:
1000BASE-PX20+ optical Interface
MPCP (Muti-Point Control Protocol)
OAM and extended OAM
DBA (Dynamically Bandwidth Assignment)
MAC address/LOID (Logical ONU Identifier) authentication
IGMP snooping and controllable multicast
Layer3 routing function
Loop back detection
Dying Gasp alarm
SIP,H.248 and MGCP
G.711/G.723.1/G.729A and T.30/T.38
802.11g/802.11b/Mixed work mode
WPS and Multi SSID function
Local WEB management, Remote TR069 and OAM management
Physical and Environmental Specifications:
Power Consumption: 10W
Power Supply: 12V DC
Operating Temperature: -5 ~ 45°C
Humidity: 5 ~ 95% relative humidity
Dimensions: (W×H×D) 220mm×40mm×165mm
Net Weight: 0.6kg
Model | Configuration | ||||||||
LAN | Telephone | Wifi | PPPOE | Firmware | |||||
HG6821M | 4GE | 2pots | Dual band 2.4+5.8G | yes | English | ||||
it is dual band wifi+4GE port+ bridge+remote management
