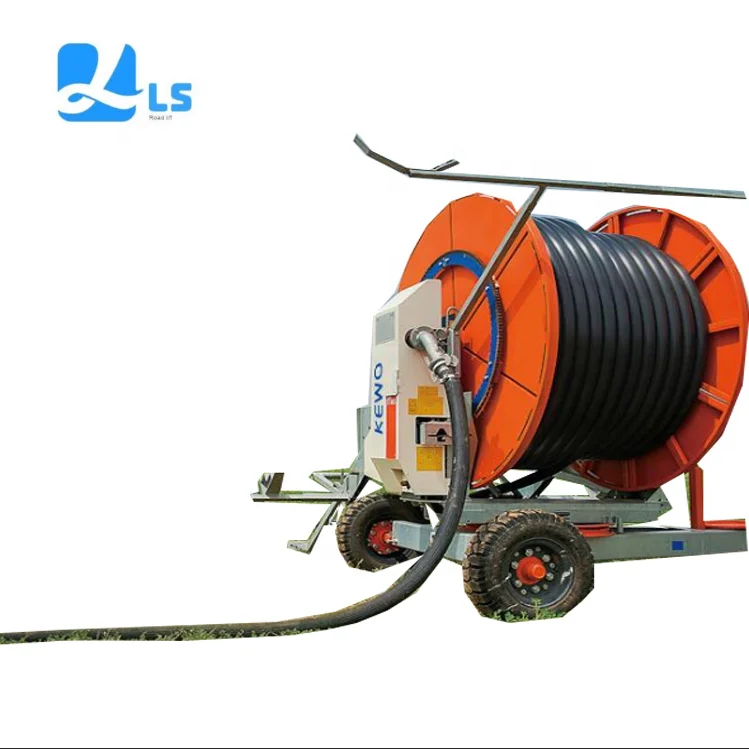

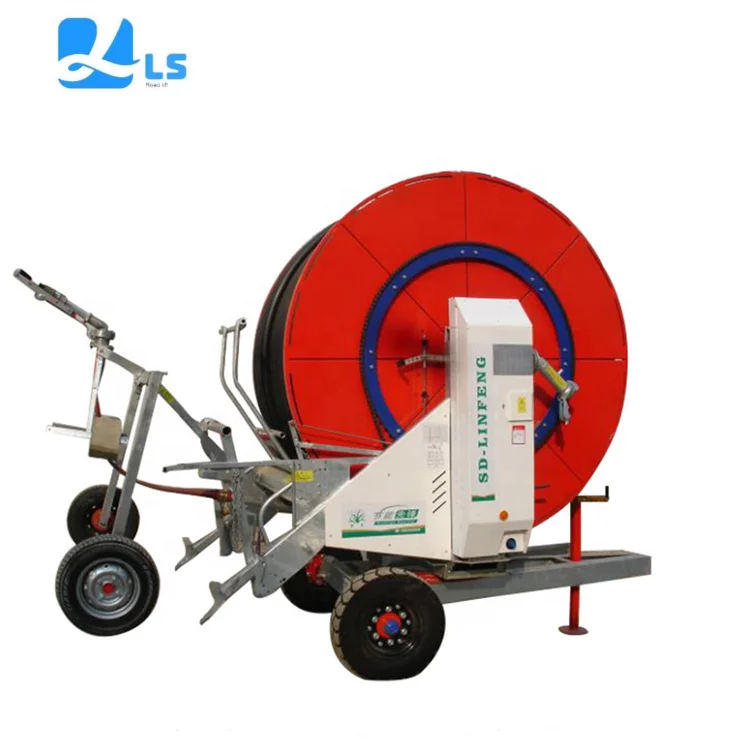

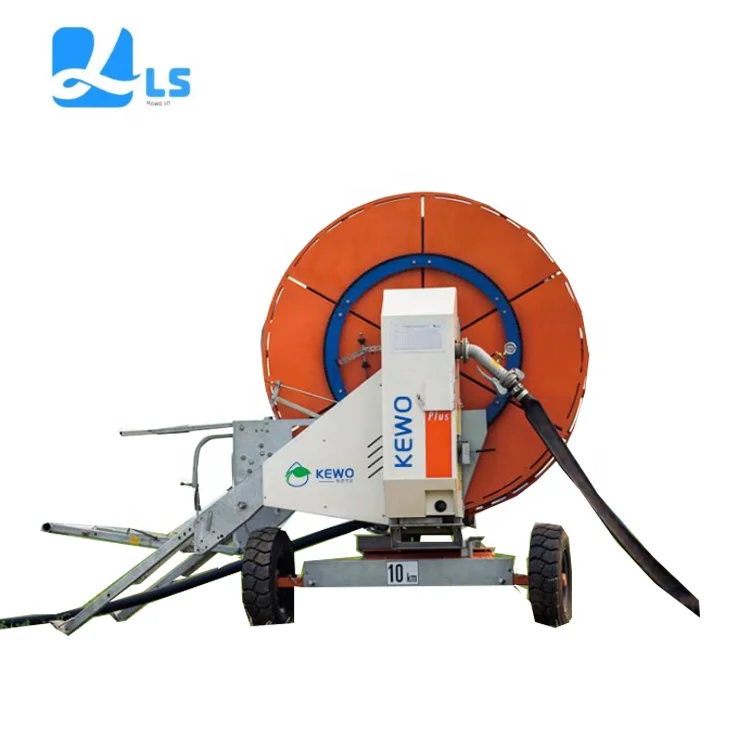

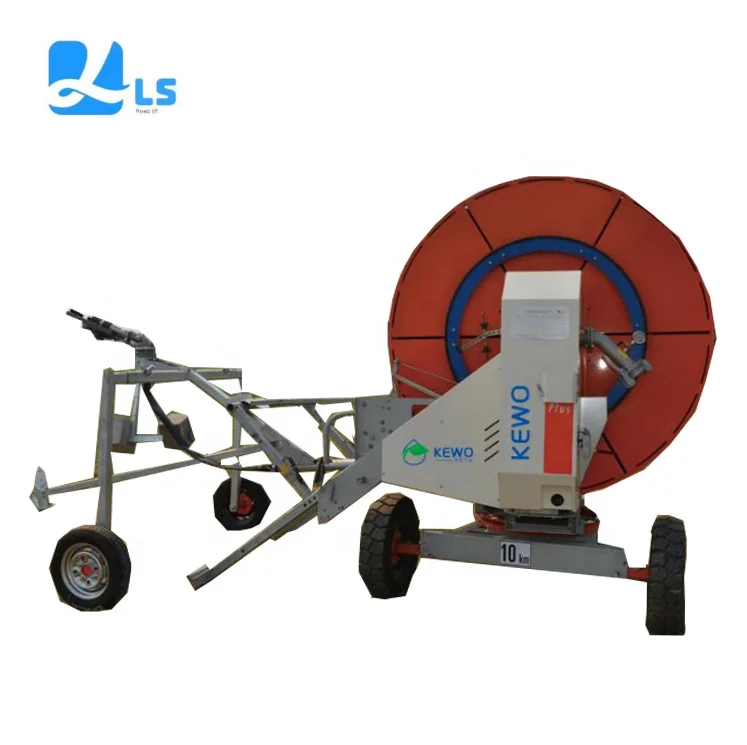

Field water fertilizer integrated sprinkler winch type sprinkler reel type irrigation vehicle agricultural sprinkler
- Category: >>>
- Supplier: Yiwu Lusheng Machinery Equipment Co. Ltd.
Share on (1600706597694):
Product Overview
Description
Products Description
Field water fertilizer integrated sprinkler winch type sprinkler reel type irrigation vehicle agricultural sprinkler

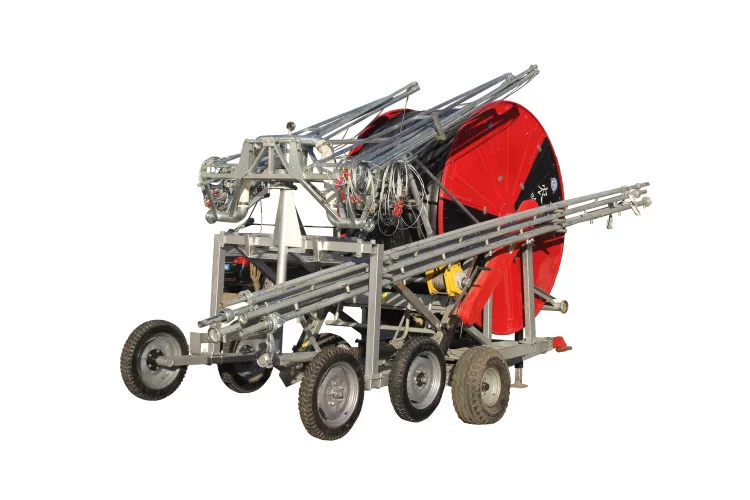

Place the main machine at one end of the irrigation plot, use the traction force to drag the water delivery pipe wrapped on the main machine and the water spraying trolley connected to the water delivery pipe out to the other end of the plot, connect the water source and reach a certain working water pressure. This water spraying trolley starts to spray water to the farmland through the spray gun or cantilever. At the same time, the main machine uses the water pressure to generate a certain mechanical kinetic energy through the work of the water turbine, gearbox and rotating system, The reel starts to rotate, and the rotation of the reel drives one end of the water conveyance pipe plot to roll back to the host. In this way, the reel is rotating, and the water spraying crane moves back at a constant speed at the set speed, spraying water while walking until the whole plot is irrigated. When the trolley moves to the host, the host can lift the trolley and fix it on the host. At this time, the entire irrigation process is completed, the water source is cut off, and the equipment can enter the next plot for another irrigation.
1. Functional design: new technology and good performance. The application of new technology brings good performance price ratio. A large number of general-purpose components are used to standardize the equipment structure 2. Recovery system: safe and reliable PE pipe recovery, which ensures the constant recovery speed of PE pipes and makes them automatically arranged, and automatically stops when irrigation is completed, once irrigation and drainage are completed, and once pipe drainage failure occurs 3. Chain rotation: It is accurate, efficient and low energy consumption. The japonica sprocket used for reel rotation has accurate teeth and ensures the safe operation of equipment, as well as the production life operation and low maintenance consumption of drive sprocket under strong working force. 4. Save water and labor. Since the sprinkler can control the amount of water sprayed to avoid surface runoff and deep leakage loss, generally, surface sprinkler can save 30-50% of water. Mechanization and automation can greatly save labor and reduce field labor. According to statistics, the amount of labor required for sprinkler irrigation is only 1/5 of that for surface irrigation 5. Improve the land utilization rate. When irrigation is adopted, no irrigation ditches and ridges in the field are needed, which can make full use of the cultivated land and improve the land utilization rate. Generally, the cultivated area can be increased by 7-10% 6. Simple installation, simple operation, safe use, high efficiency and water saving 7. In view of the existing operation mode and water conservancy conditions in rural China, the company specially launched 40 and 50 series of small reel sprinkler to reduce the operating cost, which mainly reflects: high efficiency, simplicity, long service life, water conservation, environmental protection, small investment, flexibility, portability and high efficiency |
