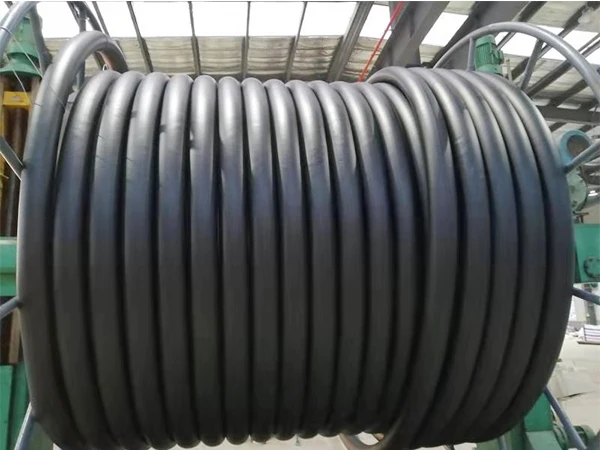

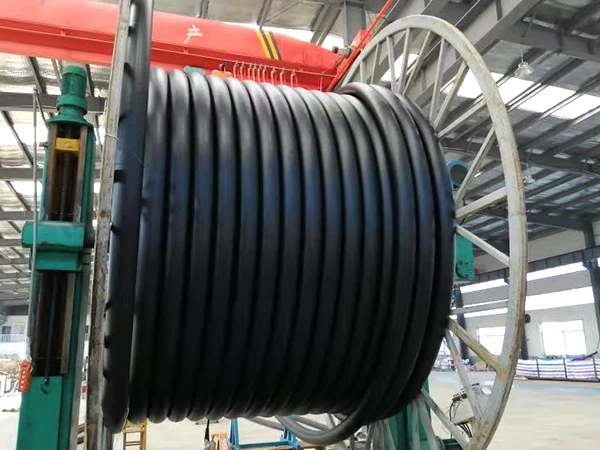

4 Braided Reinforced Continuous Composite Pipe
- Category: Composite Pipes >>>
- Supplier: Wuxi Longterm Machinery Technologies Co. Ltd.
Share on (1600706618643):
Product Overview
Description
Product Description
Pipe introduction
This Pipe is designed with three or more layers of structure, the medium conveying layer and the outer protective layer are all made of thermoplastic, the reinforcement layer is made of wire or steel strip, and the insulation layer can also be added according to customer's requirements. Thermoplastics can choose high density polyethylene (HDPE, 60 C) and crosslinked polyethylene (PEX, 90 C) according to the medium temperature. The reinforcing layer can be made of steel wire (braided) or steel strip (winding) according to the pressure, environment and use.
Specification
Model | ID | Wall Thickness mm | Working Pressure MPA |
DN40-PN5.5 | 40 | 8.0 | 5.5 |
DN40-PN7.0 | 40 | 8.5 | 7 |
DN50-PN5.5 | 50 | 8.0 | 5.5 |
DN50-PN7.0 | 50 | 8.5 | 7 |
DN65-PN5.5 | 65 | 9 | 5.5 |
DN65-PN7.0 | 65 | 9.5 | 7 |

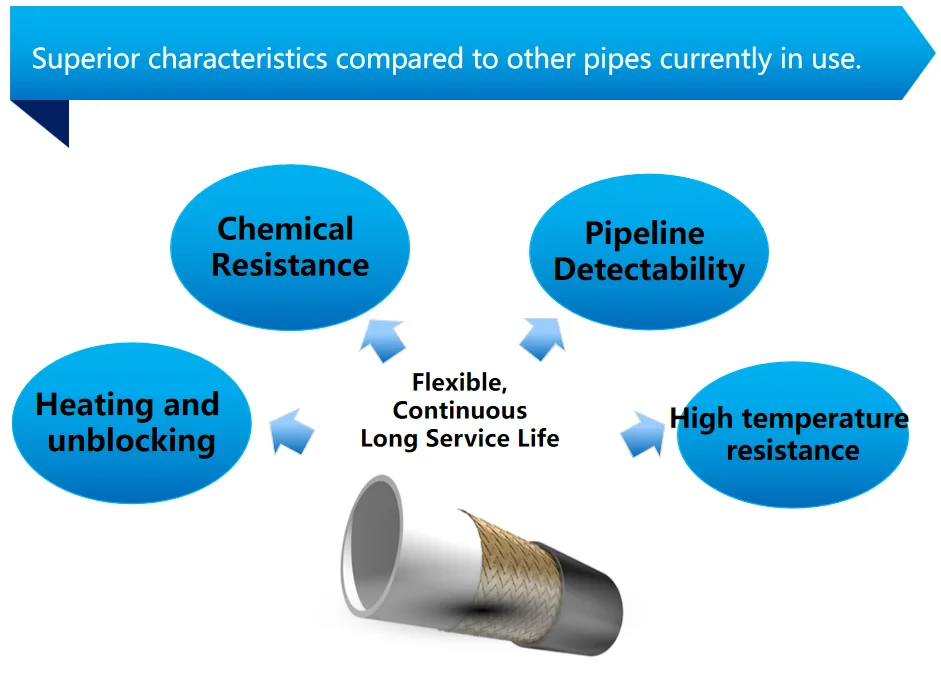

Feature
1. No brittle fracture and aging phenomenon, good safety performance.
2. With excellent corrosion resistance, it is suitable for transporting corrosive media containing H2S, CO2, CL-, etc.
3. With good flexibility and excellent tensile properties, it is easy to lay and traverse with the terrain.
4. Easy installation and maintenance, which can save 50% of construction and installation costs.
5. It has good wear resistance and can be recycled and reused.
6. It has good anti-ultraviolet performance and can be used in the sun for a long time.
7. It has the function of heating and removing blockage. When using condensation and freezing tubes, the special equipment can be directly heated to remove blockage and thaw, but it will not affect the service life of the tubes.
8. With electric heating function. Special equipment is used to ensure that the constant temperature of the pipeline is below 60°C, which is especially suitable for medium transportation with high wax content and high freezing point.
2. With excellent corrosion resistance, it is suitable for transporting corrosive media containing H2S, CO2, CL-, etc.
3. With good flexibility and excellent tensile properties, it is easy to lay and traverse with the terrain.
4. Easy installation and maintenance, which can save 50% of construction and installation costs.
5. It has good wear resistance and can be recycled and reused.
6. It has good anti-ultraviolet performance and can be used in the sun for a long time.
7. It has the function of heating and removing blockage. When using condensation and freezing tubes, the special equipment can be directly heated to remove blockage and thaw, but it will not affect the service life of the tubes.
8. With electric heating function. Special equipment is used to ensure that the constant temperature of the pipeline is below 60°C, which is especially suitable for medium transportation with high wax content and high freezing point.
Application.
1. It is suitable for oil, gas and water gathering and transportation pipelines on the surface of oilfields, especially for normal temperature single pipeline transportation, heavy oil heat tracing transportation and high gas content medium transportation.
2 Suitable for transporting corrosive media containing H2S, CO2, CL, etc.
3. Suitable for high-pressure water injection and polymer injection.
4. Suitable for downhole fracturing and acidizing measures.
5. Suitable for the application of temporary pipelines on the ground.
2 Suitable for transporting corrosive media containing H2S, CO2, CL, etc.
3. Suitable for high-pressure water injection and polymer injection.
4. Suitable for downhole fracturing and acidizing measures.
5. Suitable for the application of temporary pipelines on the ground.

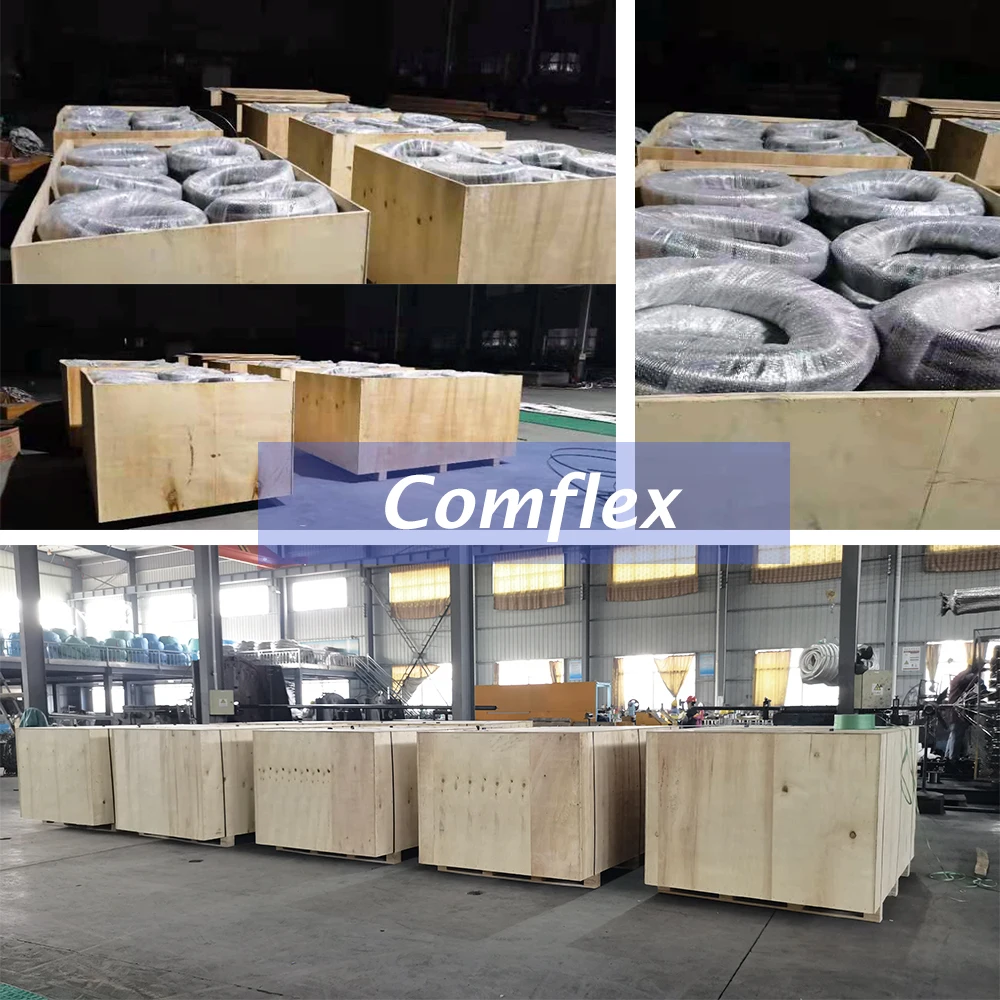

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

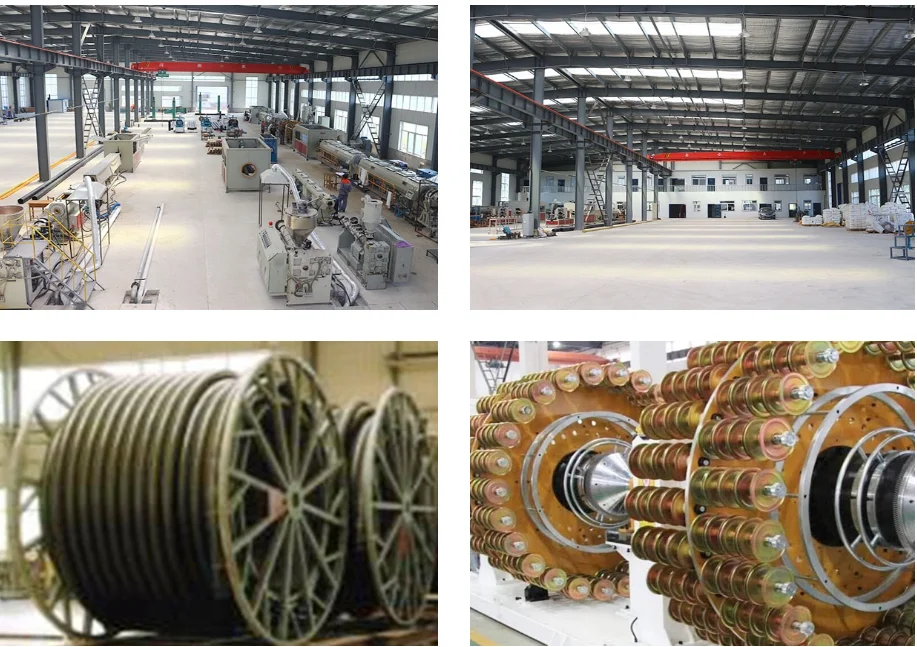

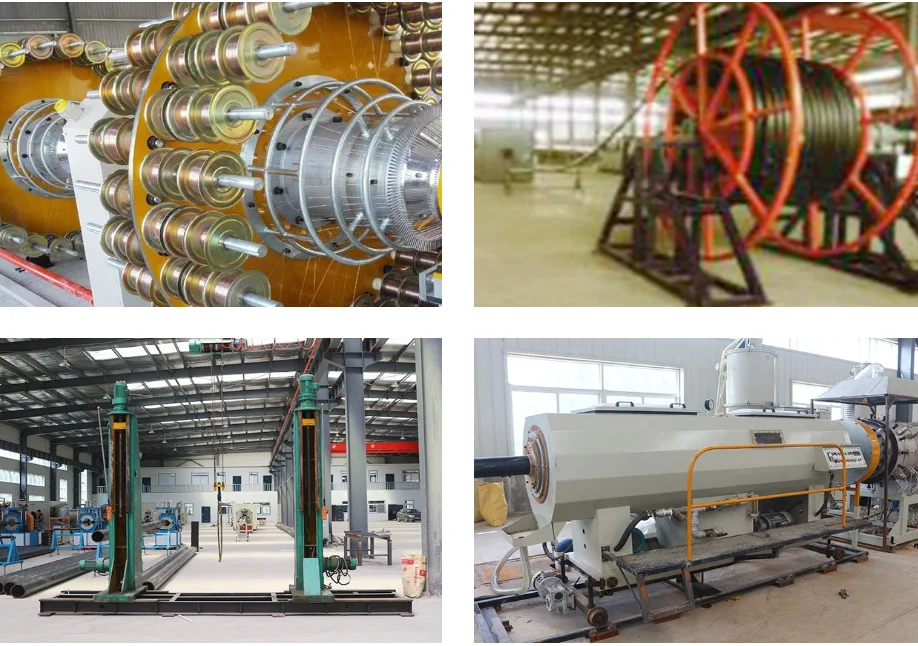

Company Profile
A professional hose manufacturer for 35 years, mainly engaged in the research, development and application of non-metallization of metal pipelines in the fields of land oil fields, offshore oil fields, urban pipeline networks, chemical industry and construction. The leading products are steel mesh skeleton plastic composite pipes, ultra-high molecular weight polyethylene plastic pipes, plastic composite pipes, continuous reinforced plastic composite pipes for onshore oilfields, continuous flexible pipes for shallow sea oilfields, steel skeleton plastic composite pipes, polyethylene (PE) urban Gas and water supply pipes, polypropylene (PP) chemical industry, building water supply, heat supply pipes and other major series.
FAQ
Q: Why do so many suppliers choose us?
A: Because we are one of most professional manufacturer of the metal hose with more than 35 years of experience.
Q: What sizes can you make?
A: All sizes from DN40 up to DN100
Q: What kind of fittings can you supply with the metal hose?
A: Nuts, adapter, camlock couplings, nipple, with BSP or NPT thread, we can customize our hose according to your requirement
A: Because we are one of most professional manufacturer of the metal hose with more than 35 years of experience.
Q: What sizes can you make?
A: All sizes from DN40 up to DN100
Q: What kind of fittings can you supply with the metal hose?
A: Nuts, adapter, camlock couplings, nipple, with BSP or NPT thread, we can customize our hose according to your requirement
