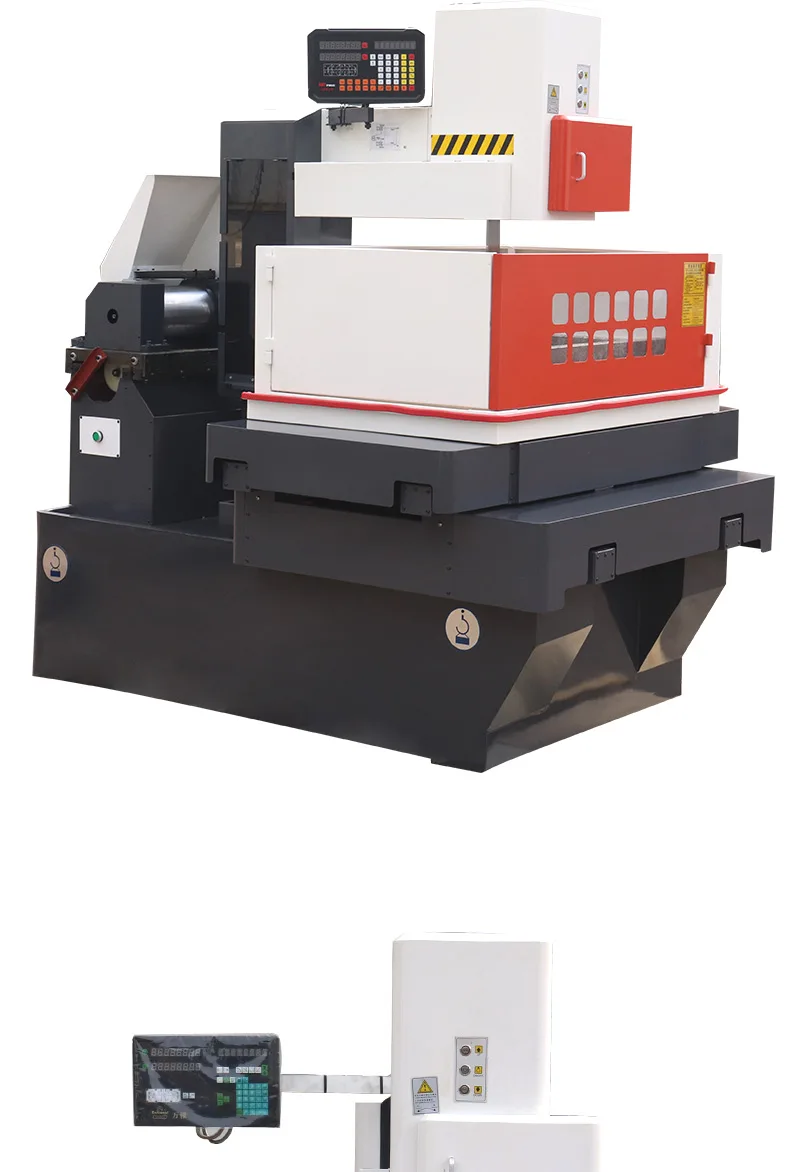

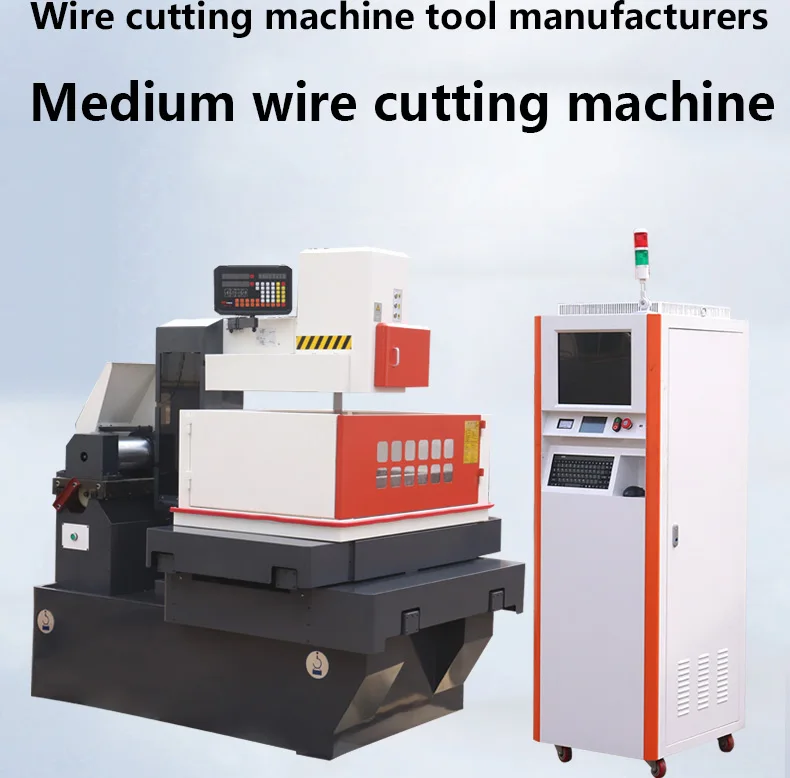

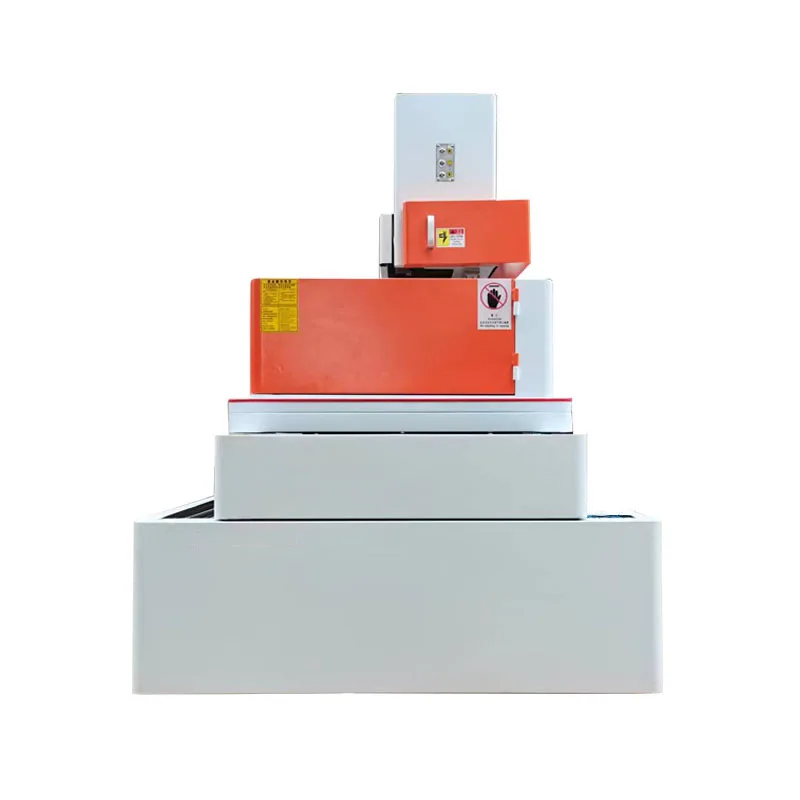

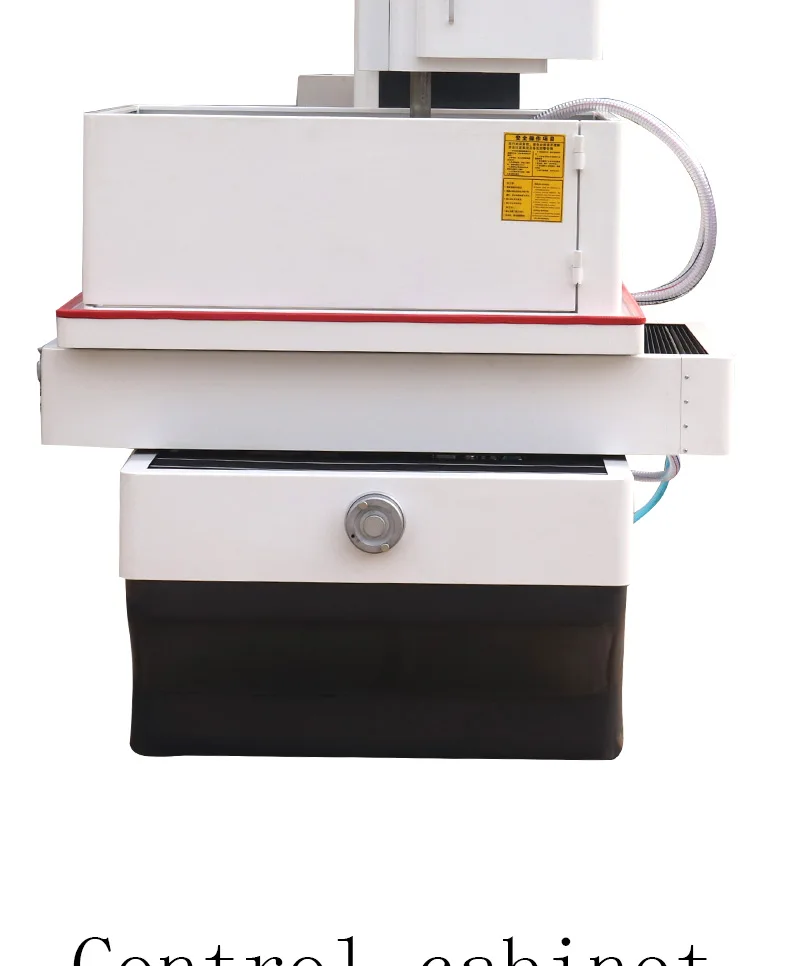

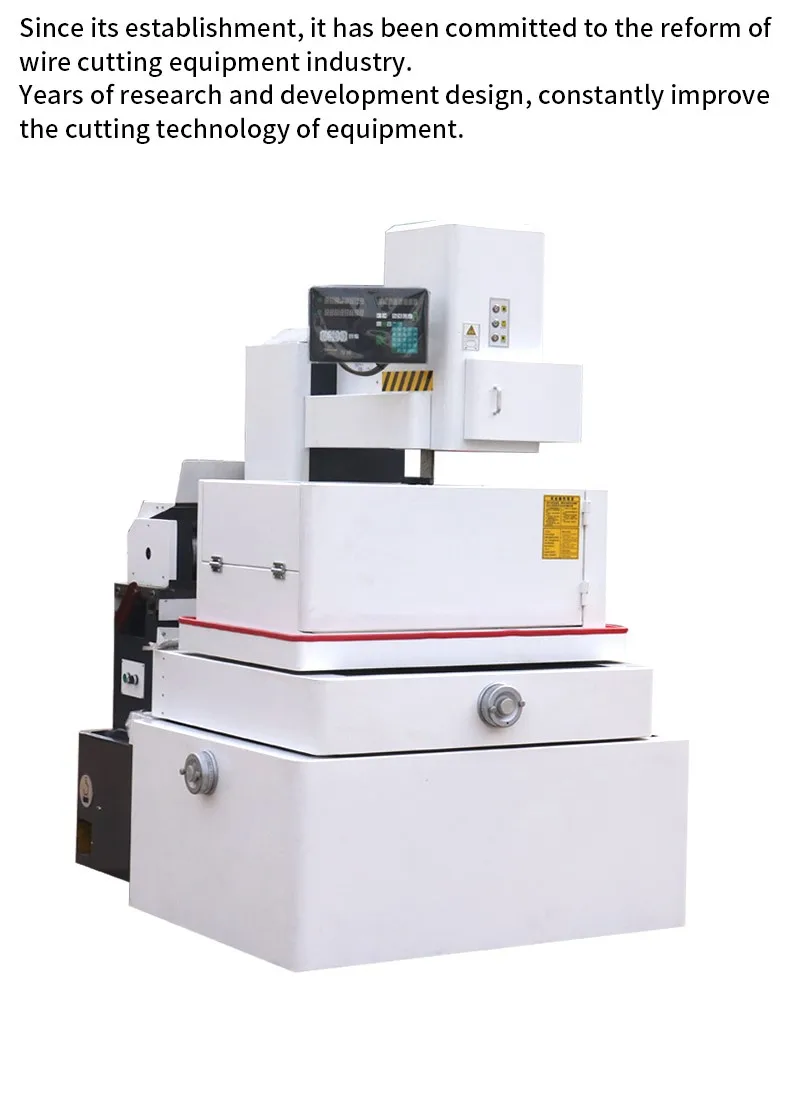

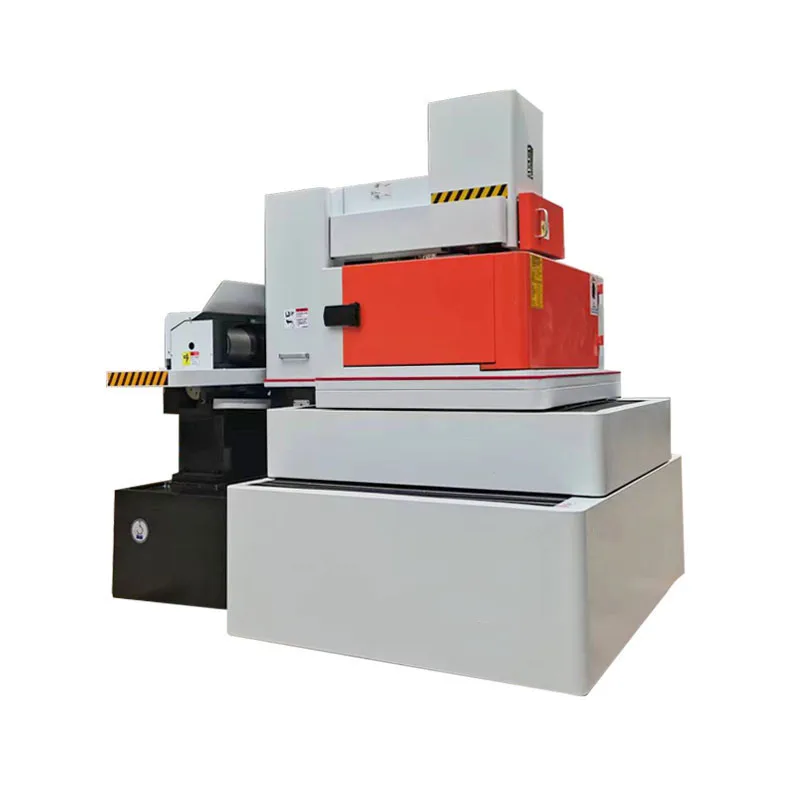

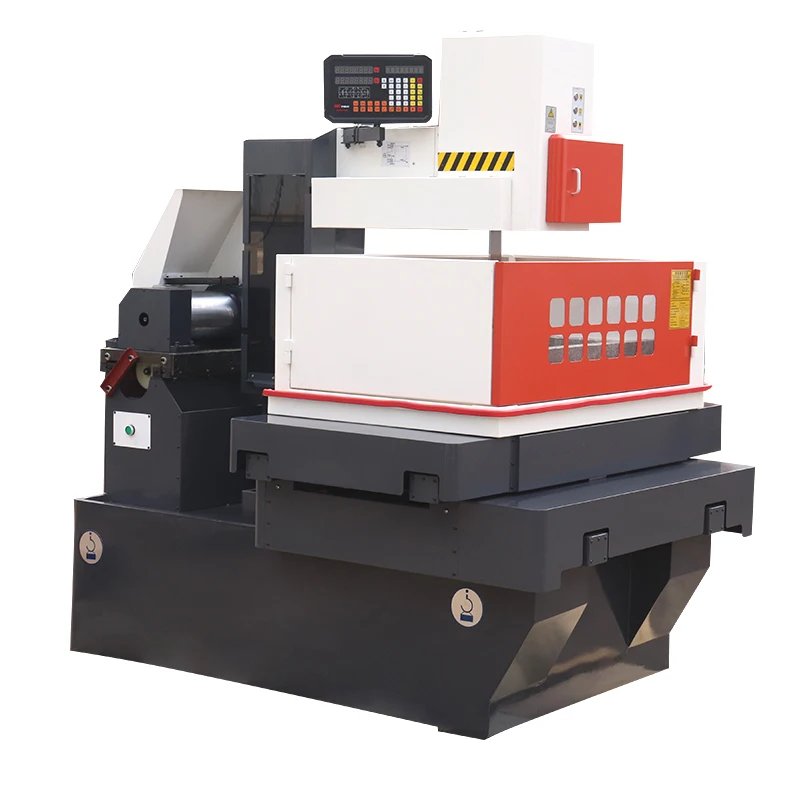

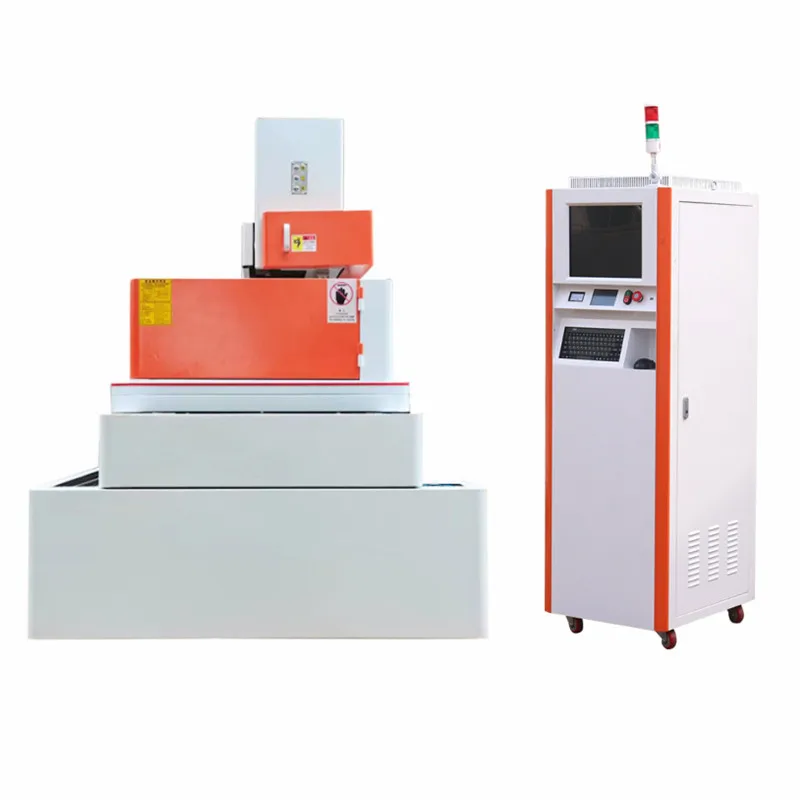

SF 40 Middle Speed Wire Cutting EDM Wire Cutting Machine For Sale

Product Overview

Description

SF-40 Middle Speed Wire Cutting EDM Wire Cutting Machine For Sale

ITEM	SF-32	SF-40	SF-50	SF-63
Worktable size (mm)	760*520	850*600	1000*750	1160*820
X, Y axis travel	400*320	500*400	630*500	800*630
Machine weight (KG)	1850	2160	2730	3420
Z-axis lifting mode	Electrical
A-axis travel size (mm)	280
Electrode wire diameter (mm)	Φ0.12-Φ0.20mm
Wire feed rate	7 levels adjustable
Process accuracy(Vertical)	Multi-cut:10×10×30(square)≤0.005mm
	One-cut≤0.012(Multi-cut)(Octagon)≤0.008mm
Cutting speed (mm²/min)	0-180
Process roughness	Multi-cut:Ra≤1.2μm
	One-cut:Ra≤2.5μm
Maximum cutting thickness (mm)	240	240	300	300
Maximum cutting taper (°/mm)	±3°/80
Power (KVA)	2.5
Motor drive system	Stepping motor or AC servo motor*(Opition)
Maximum workpiece weight	180	260	400	600
Machine size	1560*1100*1680	1600*1200*1680	1830*1390*1780	2060*1650*2050
