Lan Cable UTP FTP STP Cat6 cat7 cat8 copper cca network cable
- Category: >>>
- Supplier: Ningbo,Holden,Cable,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Product Name | High speed 4 pair network cable | |
| Coductor | Copper / Aluminum, based on client's requirements | |
| Construction | Bare copper wire/customization | |
| Insulation jacket | ||
| PVC sheath | ||
| Colors | Assorted upon request | |
| Voltage | 75/150V | |
| Application | Ethernet 10-100 Base-TX ATM Trunk wiring 100VG-Anylan 1000 Base-T Multi-media. | |
| Specifications | CCC ISO certificated | |
Strict QC | ||
Prompt delivery | ||
| OEM/ODM | Available | |
Sample | Free, freight charge prepaid or negotiation | |
Payment Term | T/T, L/C | |
| MOQ | 100 boxes | |
Port Of Loading | Ningbo | |
Delivery Detail | 10days after confirming the order | |
Characteristics

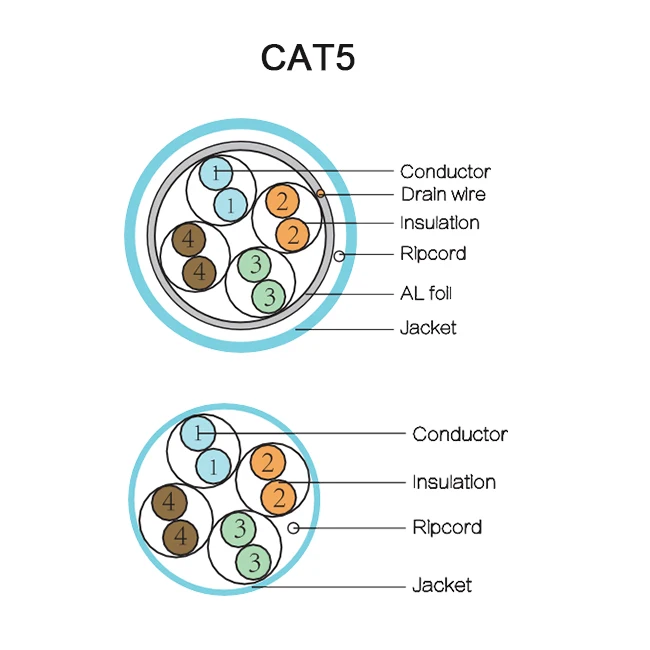

Item (n) | Structure (mm) | Insulation thickness (mm) | Approx overall dia. (mm) |
FTP CAT5E | 4x0.48 | 0.92 | 6.4 |
FTP CAT5E | 4x0.50 | 0.94 | 6.5 |
FTP CAT5E | 4x0.52 | 0.96 | 6.5 |
UTP CAT5E | 4x0.48 | 0.90 | 5.2 |
UTP CAT5E | 4x0.50 | 0.91 | 5.3 |
UTP CAT5E | 4x0.52 | 0.93 | 5.3 |
FTP CAT6 | 4x0.50 | 0.98 | 7.3 |
FTP CAT6 | 4x0.55 | 1.03 | 7.4 |
FTP CAT6 | 4x0.57 | 1.05 | 7.4 |
UTP CAT6 | 4x0.50 | 0.96 | 6.3 |
UTP CAT6 | 4x0.55 | 1.01 | 6.4 |
UTP CAT6 | 4x0.57 | 1.03 | 6.4 |
