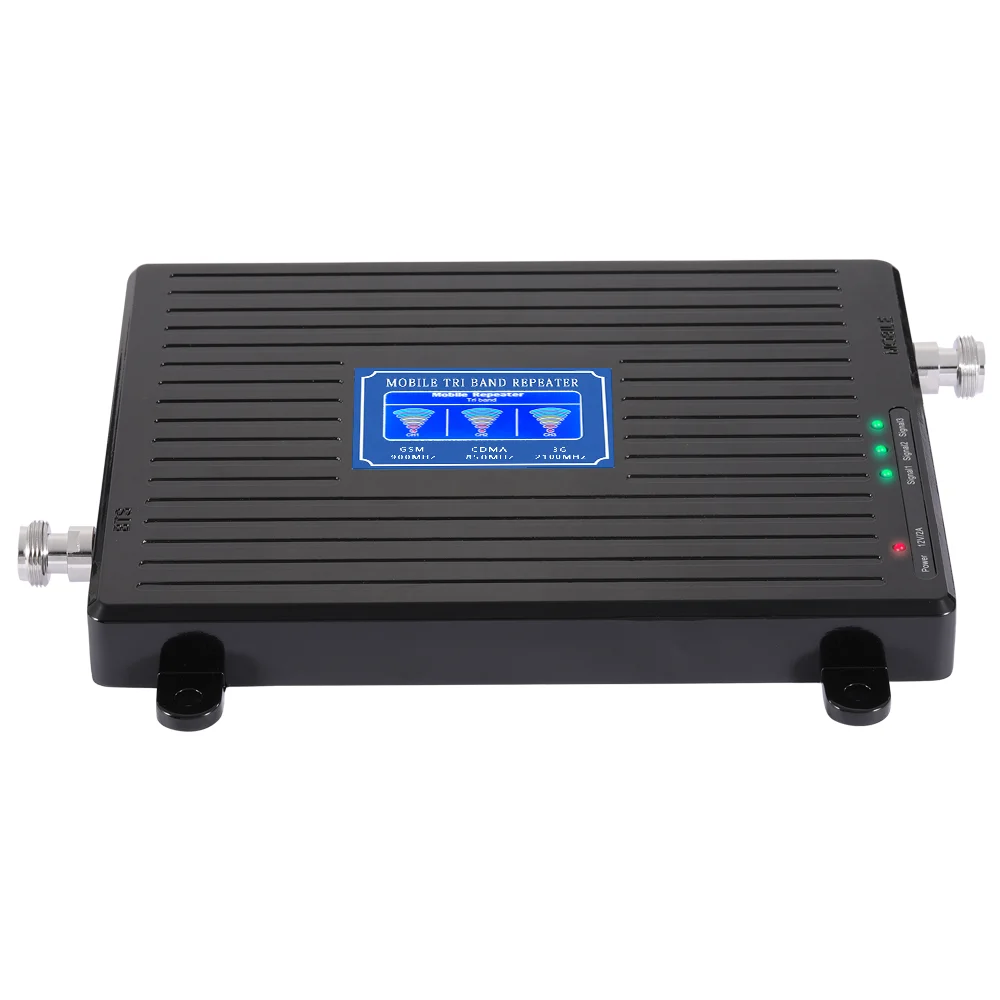

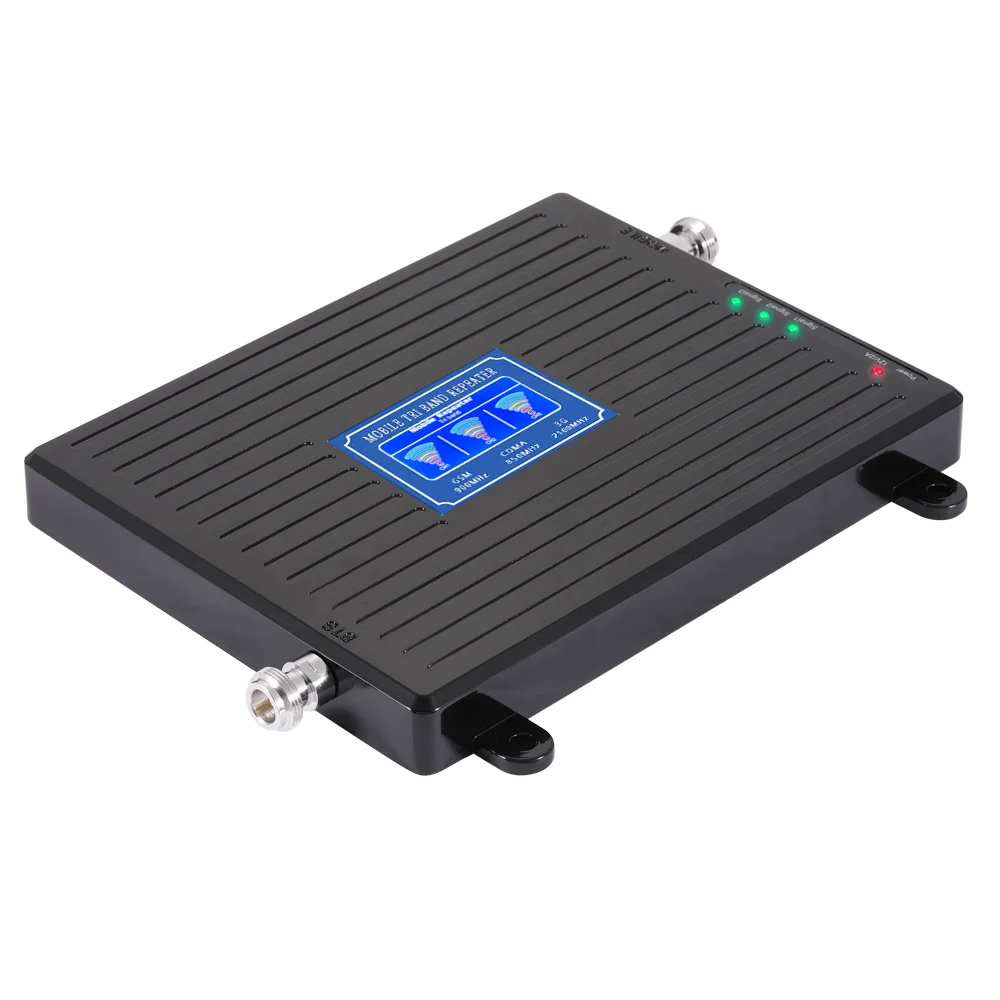

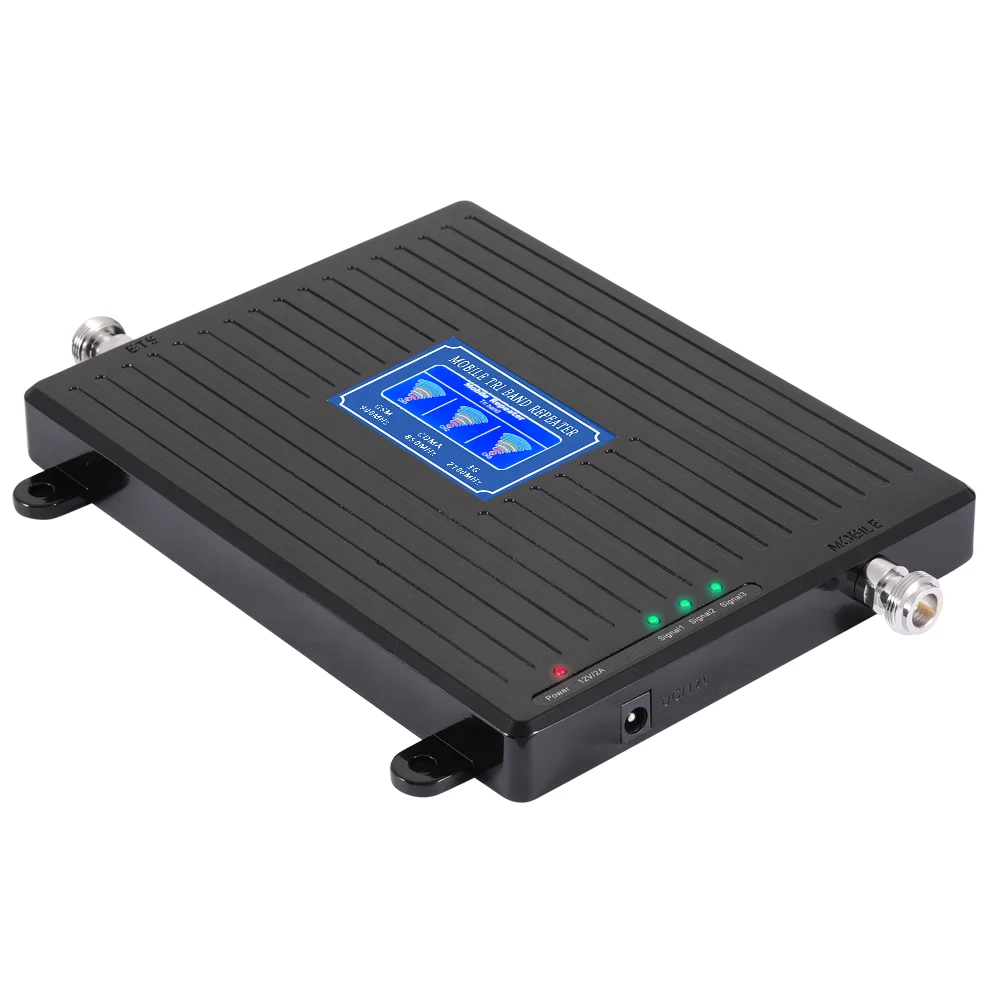

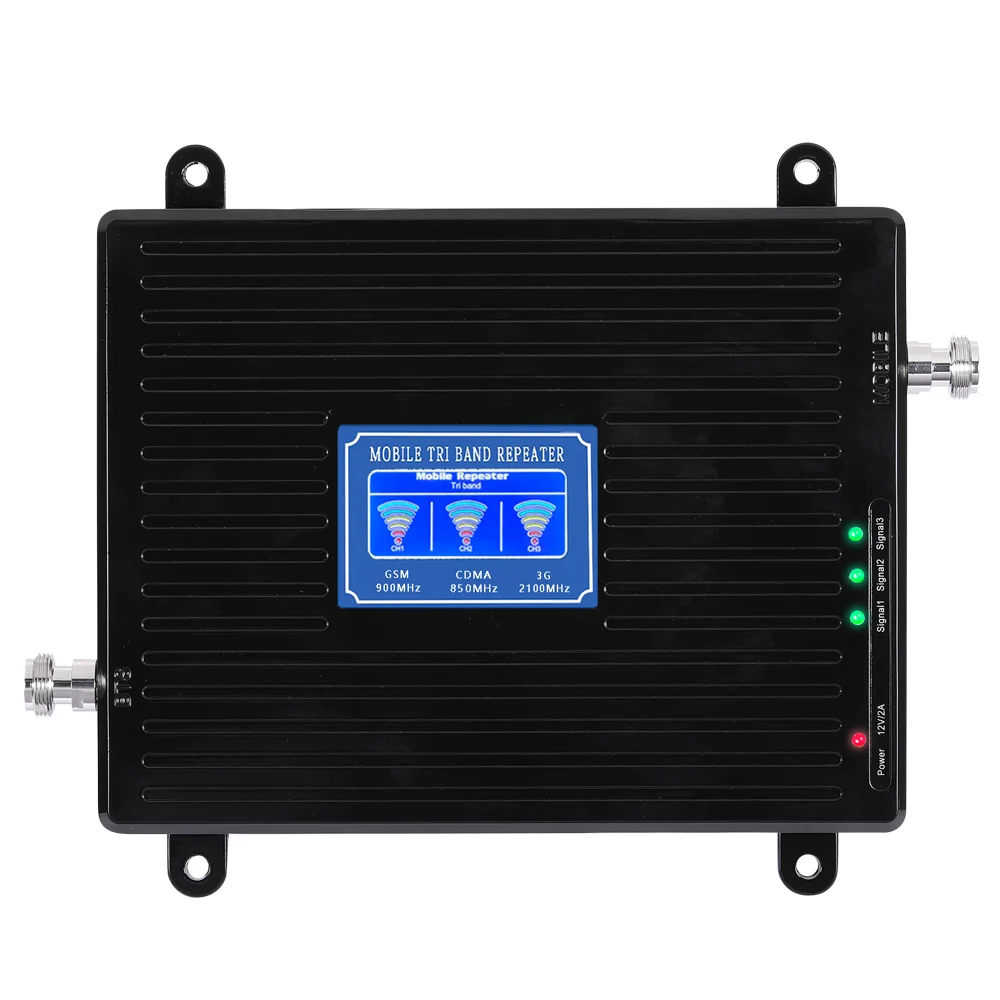

Hot Selling Gsm Cdma Tri Band 900 850 2100Mhz 4G Mobile Signal Repeater Lte Network Mobile Signal Booster/cellular
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1600706978885):
Product Overview
Description
Products Description
Product Paramenters
Technique Specification | ||||||
Model No | SS91-CGW | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Rang | GSM | 890 ~ 915 MHz | 935 ~ 960 MHz | |||
CDMA | 824 ~ 849 MHz | 869 ~ 894 MHz | ||||
W-CDMA | 1920~1980 MHz | 2110~2170 MHz | ||||
Output Power | 20 ±2dBm | 20 ±2dBm | ||||
Gain | 65±2 dB | 70±2dB | ||||
Ripple in Band | ≤3dB | |||||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Noise Figure | ≤ 6 dB | |||||
VSWR | ≤2 | |||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | |||||
Power Comsumption | < 24W | |||||
Impedance | 50 ohm | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||
Dimensions (D x W xH ) | 140*100*20(mm) | |||||
Weight | ≤ 0.25Kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
Product installation
Other accessories
This link does not include any accessories shown in the above figure. If necessary, you can contact us to purchase
Application&Note
Other frequencies
Single band
700Mhz、800Mhz、850Mhz、900Mhz、1800mhz、1900mhz、2100mhz、1700mhz、2600mhz.
Dual band
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.
Tri band
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.
Quad band
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.
Five band.
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz
Note: Frequency band can be customized
Packing&Shipping
Packaging details: Each signal booster is packaged separately, and neutral carton is used to completely protect the product from damage. 20 boosters are packed into a carton with a size of 64 * 43 * 31cm and a weight of 24kg
Delivery details: within 7 working days after all confirmation.
Mode of transportation: air, land, sea or express.
Delivery details: within 7 working days after all confirmation.
Mode of transportation: air, land, sea or express.
Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
contact us
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
