Product Overview
Description
Product Overview

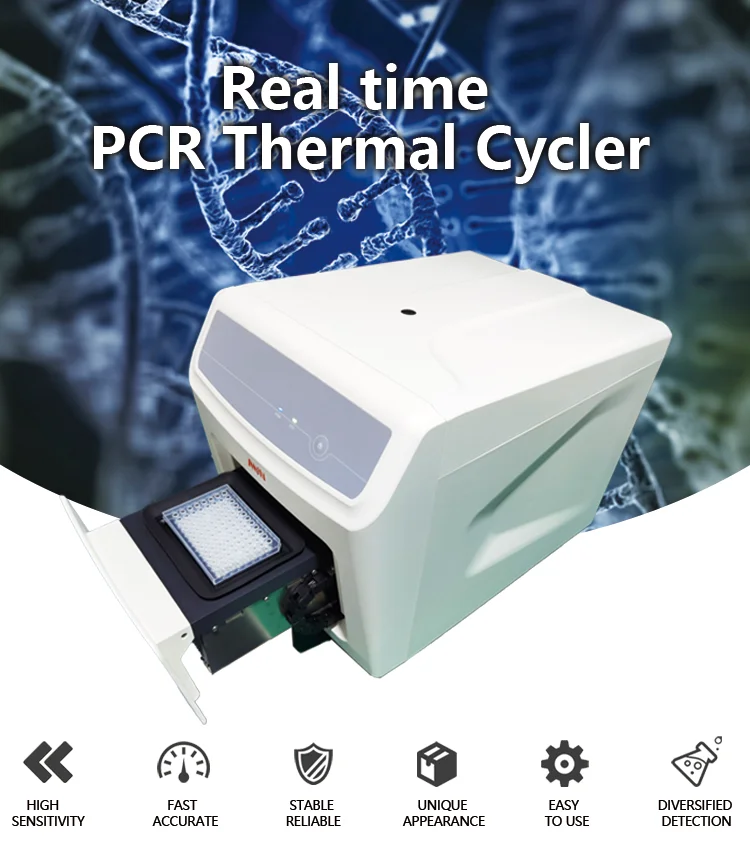

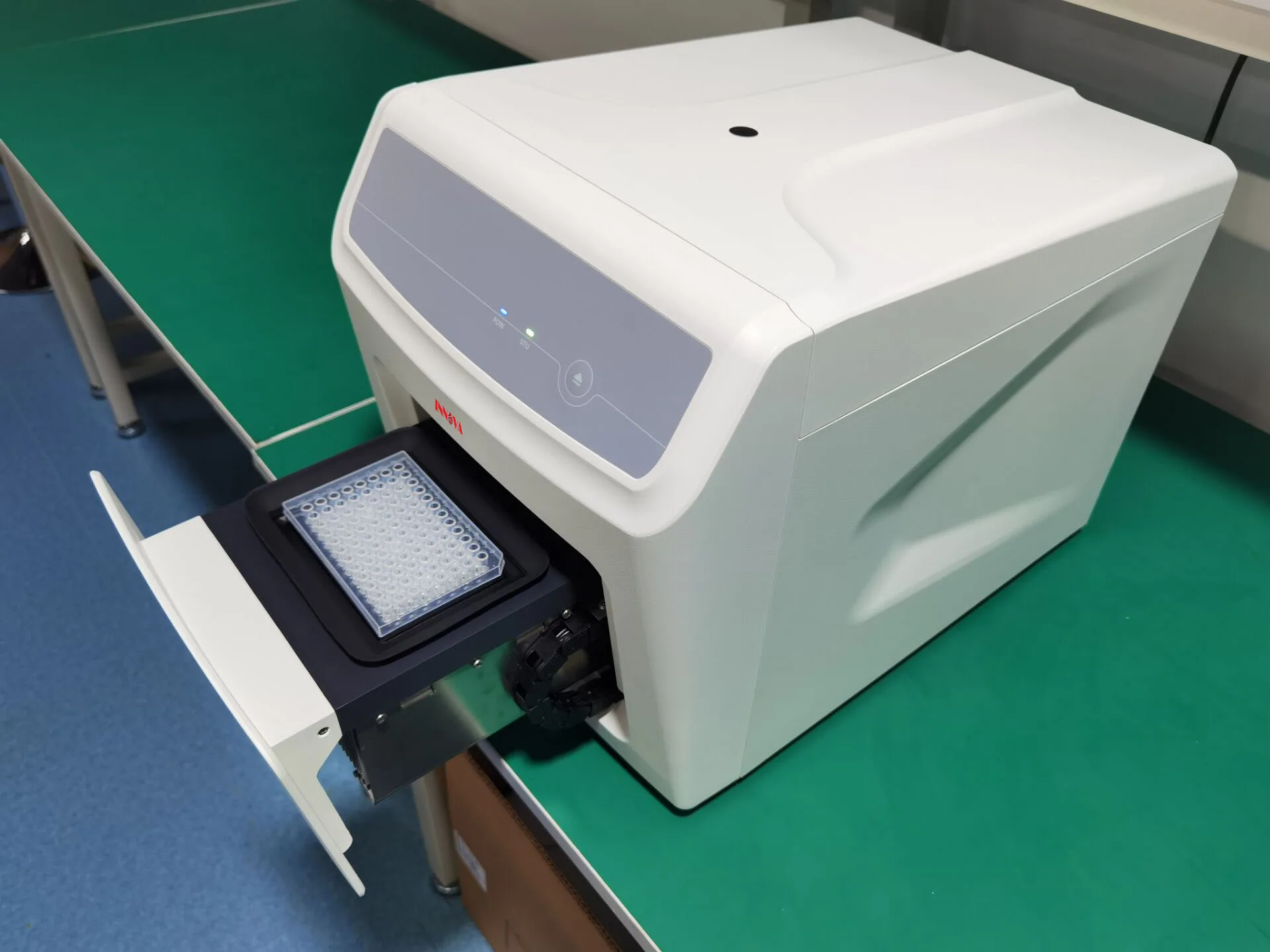

As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.
Product Features
• Up to 6 fluorescence detection channels allowing multiplex PCR.
• Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use
• Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity
• Unique edge temperature compensation technology to minimize edge effect
• User-friendly software
• Innovative technology with long-lastig LED light provides reliability results
• Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use
• Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity
• Unique edge temperature compensation technology to minimize edge effect
• User-friendly software
• Innovative technology with long-lastig LED light provides reliability results
Application
Products Technical Parameters
Temperature control system | ||

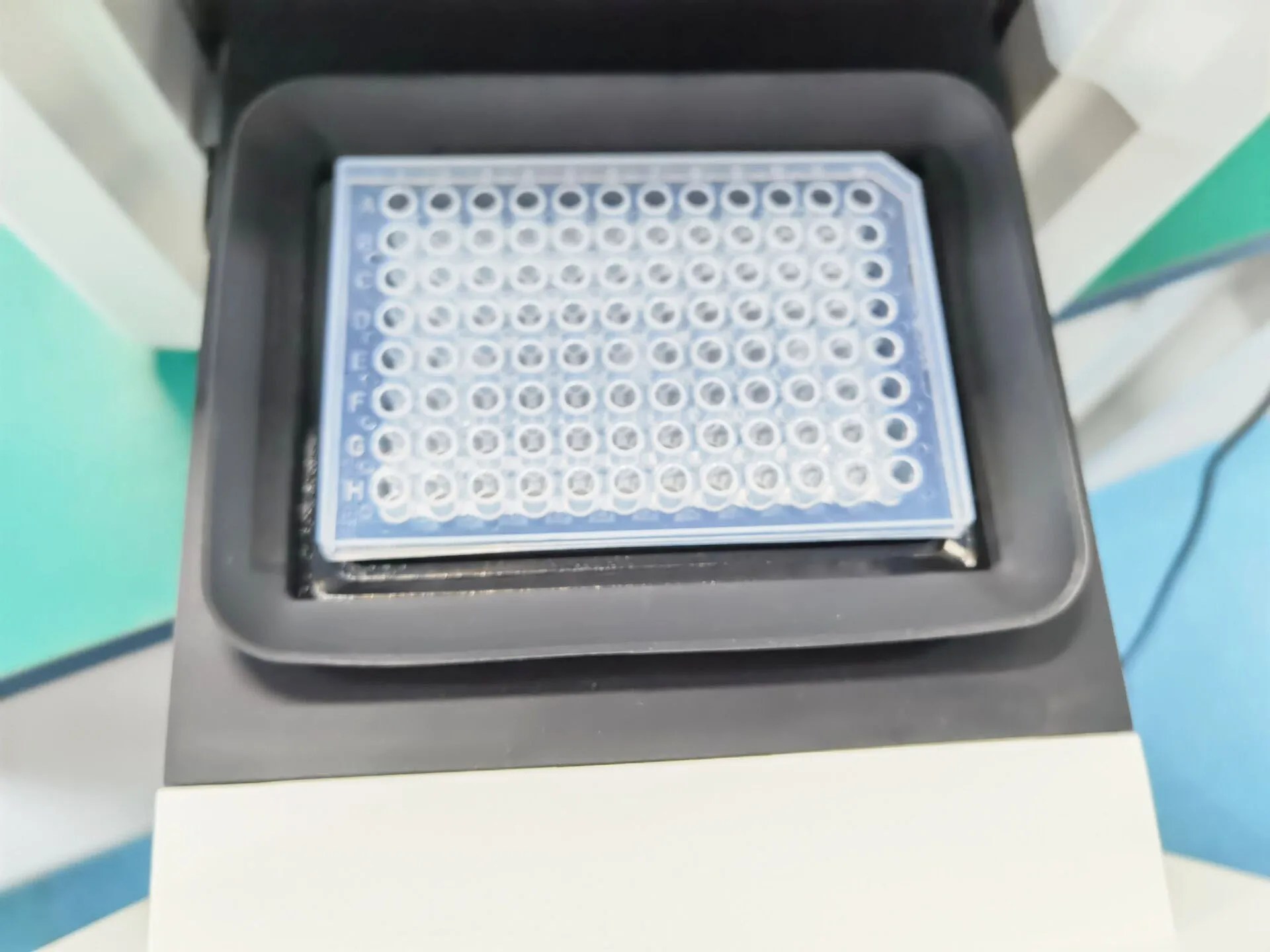

Sample capacity | 96 | |
Reaction volume | 10-50 μl | |
Thermal cycle technology | Peltier | |
Max. Heating/Cooling rate | 6.0° C/s | |
Heating temperature range | 4 – 100 °C | |
Temperature accuracy | ± 0.2°C | |
Temperature uniformity | ±0.2℃ @60℃ , ±0.3℃ @95℃ | |
Temperature gradient setting range | 30–100°C | |
Temperature gradient difference setting range | 1 – 36°C | |
Detection system | ||
Excitation light source | 4/6 monochrome high efficiency LEDs | |
Detection device | PMT | |
Detection mode | Time-resolved signal separating technology | |
Excitation/detection wavelength range | 455-650nm/510-715nm | |

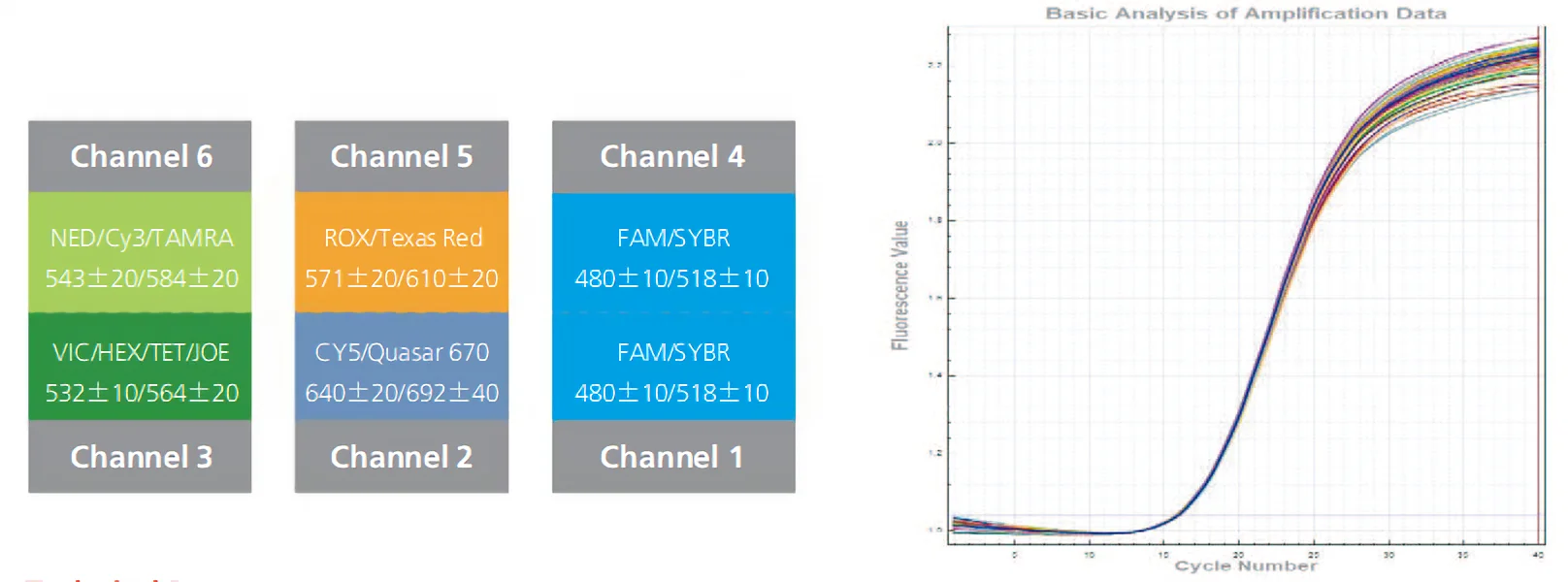

Fluorescent channels | 4/6 channels | |
Supported dye | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ | |
Sensitivity | Single copy gene | |
Resolution | 1.33 folds copy number difference can be distinguished in single-plex QPCR | |
Dynamic range | 10 orders of magnitude copies | |
