HIGH VOLTAGE Lithium BATTERY byd HV HVM HVS HVL 48V 96V 192V 384V 100ah 9.6kwh 19.2kwh 38.4kwh lifepo4 energy storage battery
- Category: >>>
- Supplier: Shenzhen ZYD New Energy Co. Ltd.
Share on (1600707334877):
Product Overview
Description
Products Description

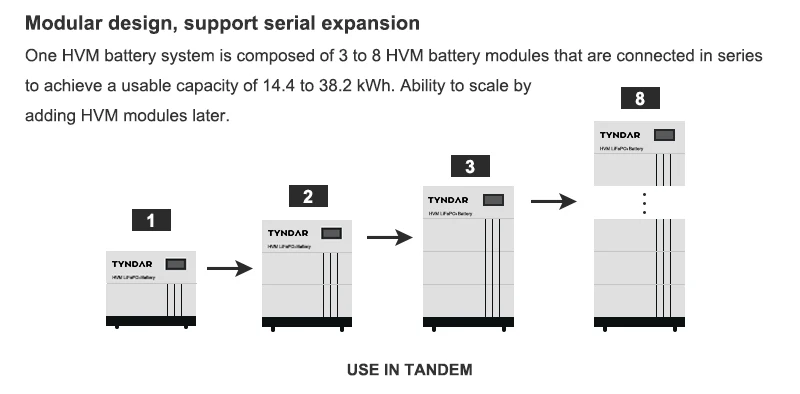

One HVM battery system is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 14.4 to 38.2 kWh. Ability to scale by adding HVM modules later.
Specs | Basic Parameters | |
Battery Type | Lithium lron Phosphate (LFP) | |
Nominal Voltage | 96V-384V | |
Operating Voltage Range | 80-438V | |
lP Protection | lP54 | |
lnstallation | Floor installation | |
Operation Temperature | -10~60°C | |
BMS Monitoring Parameters | SOC, System voltage,current, cell voltage, cell temperature, PCBA temperature measurement | |
Communication Port | CAN | |
Waranty | 10 years | |
Grade A quality LiFePO4 battery, more than 6000 cycles in 80% DOD @25°C Battery discharge: -10°C~60°C, battery charge: 0°C~60°C Compatible with 96~384V high voltage inverter/UPS | ||
Company Profile
Certifications
ISO 9001, UL1973, UL6540A, IEC62133, IEC62219, IEC62619, CE, UN38.3, MSDS, etc.
