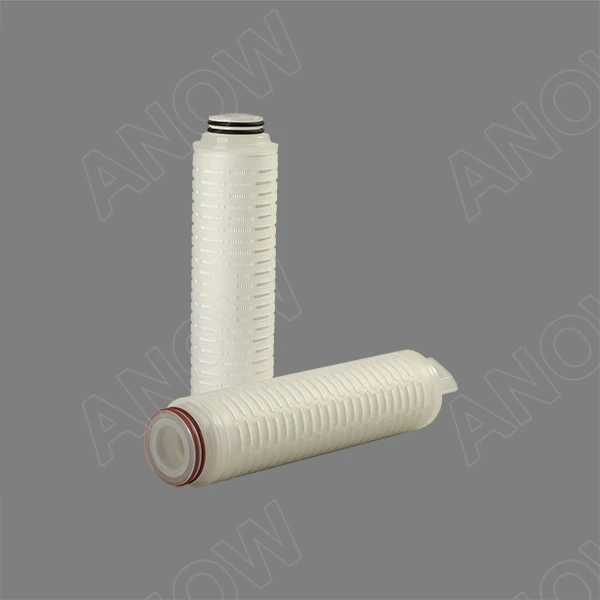

Factory Supply Entegris Pharmsteri polyethersulphone Membrane Cartridge Filter 0.22um for Sterile filtration for LVP/SVP/API

Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on research and development of MCE, Nylon, PES, PVDF, PTFE membrane, with pore size ranging from 0.03 μm to 10 μm, as well as design and production of various pleated filter cartridges, syringe filters and capsule filters. ANOW provides professional assistances to liquid and gas & air filtration, separation and purification solutions for customers around the world in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.

PSTS series cartridge filters join our portfolio of filtration solutions
that help ensure reliable product processing. Constructed of
polypropylene components and a hydrophilic polyethersulphone
(PES) membrane, Pharmsteri™ cartridge filters are economical
and efficient for use in various pharmaceutical and food and
beverage applications.
Our portfolio of Pharmsteri PES filters is 100% tested during
manufacturing to ensuring high quality for sterility assurance.
Various fitting sizes and types are available to provide design
flexibility and versatility in a broad range of applications.

SPECIFICATIONS
—
Retention ratings 0.22, 0.45 μm
Materials Media Polyethersulphone (PES)
Support Polypropylene
Sleeve, core, top, end caps Polypropylene
O-ring Silicone
Sealing technology Thermal bonding without adhesives
Filtration area ≥0.6 m2 /10” cartridge
Integrity test (0.22 μm) Minimum bubble point @ 25°C (77°F) ≥3500 mbar
Maximum diffusion flow at 2800 mbar
@ 25°C (77°F)
5” cartridge: ≤15 mL/min
10” cartridge: ≤30 mL/min
Maximum operating
conditions
Maximum forward differential pressure:
4.2 bar @ 25°C (77°F), 2.0 bar @ 80°C (176°F)
Maximum operating temperature:
80°C (176°F)
Multiple sterilization cycles 20 cycles of steam-in-place (SIP) sterilization or autoclave, 30 min at 127°C (261°F)
Endotoxin releasing <0.25 EU/mL as determined by the LAL test
TOC <0.5 mg/L after a water flush of 11 L/10” cartridge
Conductivity ≤1.3 μS/cm after water flush of 11 L/10” cartridge
Particle release Meets the requirements of WFI set by USP
NVR After autoclaving and 24-hours in 50% ethanol water with vibration
(contact Entegris for details)
Material toxicity All components meet the requirements of Reactivity Test for Class VI Plastics
Bacterial challenge test Passed the bacterial challenge test using Brevundimonas diminuta (ATCC 19146) at
a minimum challenge concentration 1x107 CFU/cm2 (0.22 μm)
Indirect food additive Meets the  Indirect Food Additive requirements cited in 21 CFR 177-182
Food contact material (EU) No. 1935 /2004, (EU) No. 10 /2011
Quality Manufactured in accordance with ISO 9001 and
ISO 13485 certified quality management system

1.OEM service available ?

Yes,  OEM service is available, but the ANOW brand price better than OEM

2.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram, Paypal

3.Certicification:

We had passed ISO9001,NSF,SGS certified, at the same time, our company had approved by Alibaba 10rd Party Certification of Production and Trading Assessment

4.Shipping :

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.

5.Sample:

1) Sample could be provided for quality evaluation.

6. Lead time:

The normal lead time for PES filter cartridge is 5-10days, which depends on your quantity.
