Factory manufacturing Waterproof Mini 6mm Motorcycle Signal Led Pilot Lamp Red Blue 12Volt Metal Indicator Light With 150mm wire
- Category: >>>
- Supplier: Yueqing Liteam Import & Export Co. Ltd.
Share on (1600707692925):
Product Overview
Description
LITEAM - Product Description
FEATURES:
1. Corrosion resistance, excellent impact resistance and vibration resistance.
2. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
2. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
3. The volume is small and exquisite, the exterior is delicate, economy applicable, cost-effective.
LITEAM - Service
√Personalized customization:
※ Customized LED Symbols；
※ Customized LED COLOR:
RED, GREEN, YELLOW, BLUE, WHITE；
※ Customized LED Lamp:
Single-color Lamp/Bi-color Lamp/Tri-color Lamp ;
※ Shell Material:
Stainless Steel/Nickel Plated Brass/Aluminium oxide ；
※ Customized Shell COLOR:
BLACK, GOLD, RED, GREEN, BLUE...(Or the original color) ;
......
√Available to offer Samples/Trial orders.
......
⭐⭐⭐Welcome to send us an inquiry to discuss more details.
Switch Type : | 6mm Metal LED Indicator Signal Lamp |
Model Number : | LT6B-LED/W/S/G |
Mounting Hole Size(Diameter) : | 6mm |
Head Type : | Flat Round Head |
Lamp Tyle : | Bi-directional LED Lamp (AC DC Universal) |
Shape of Lamp : | Flat Round YELLOW Lamp |
Optional LED Color : | RED, GREEN, YELLOW, BLUE, WHITE; RGB; Or Custom |
Connection Type : | Wire Directly( 150mm long wire ) |
Shell Material : | Stainless Steel |
Switch Shell Color : | Silver |
Other Accessories : | High Quality Nut + Waterproof Rubber O-ring |
Samples / Trial Orders : | Available (Welcome to contact for more details of sample!) |
Brand Name : | LITEAM | ||||
Certification : | CE | ||||

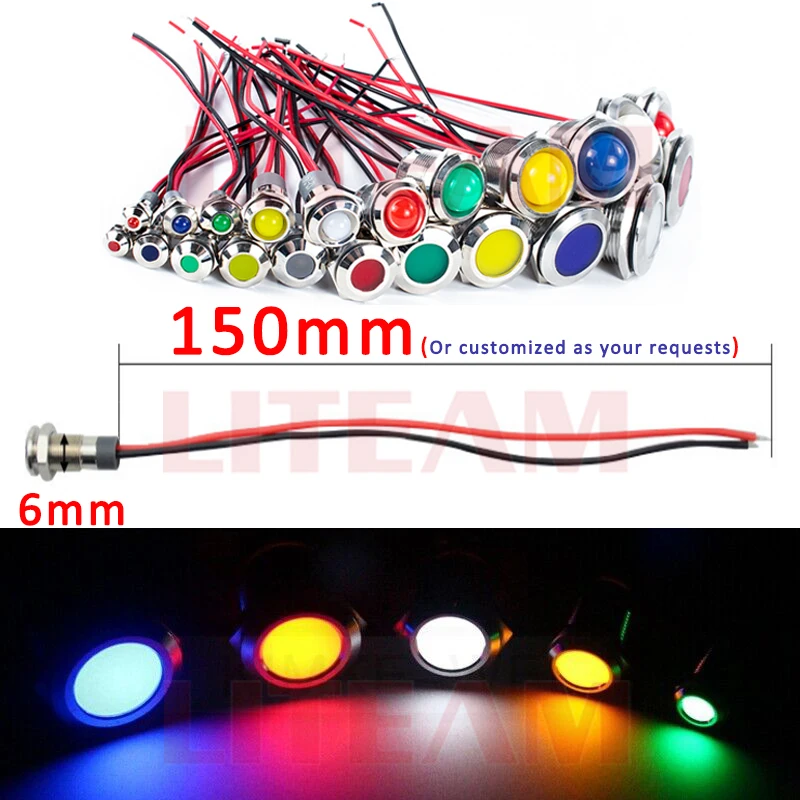

Optional Diameter : | 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm | ||||
Rated Current : | About 15mA | Nut Torque : | 5~14Nm | ||
Rated Voltage : | 3 ~ 6V; 12 ~ 24V; 36 ~ 48V; 110V; 220V; 380V | ||||
Protection grade : | IP65/IP67/IP68; IK09/IK10 | Mechanical Life : | More than 50000 hours | ||
Dielectric Intensity : | 1100VAC | Insulation Resistance : | ≥100MΩ | ||
Dielectric Strength : | AC1000V | Working Temperature : | -40°C ~ +85°C | ||
Bass Material : | PA66(Fire retardant) | Accessories : | Nut, Waterproof O-ring | ||
Lamp Shade Material : | PC | Panel Thickness : | 1 ~ 10mm | ||
Tail Configuration : | Pin Terminal (2.8*0.8mm) ; Screw Terminal; Wire Harness(Wire length 15cm) | Pin terminal | |||

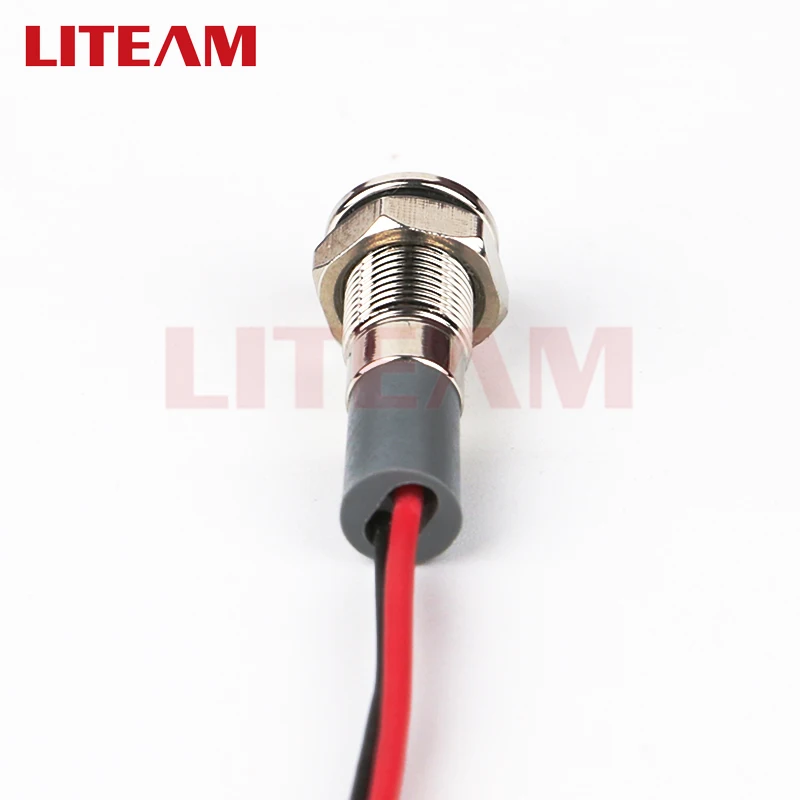

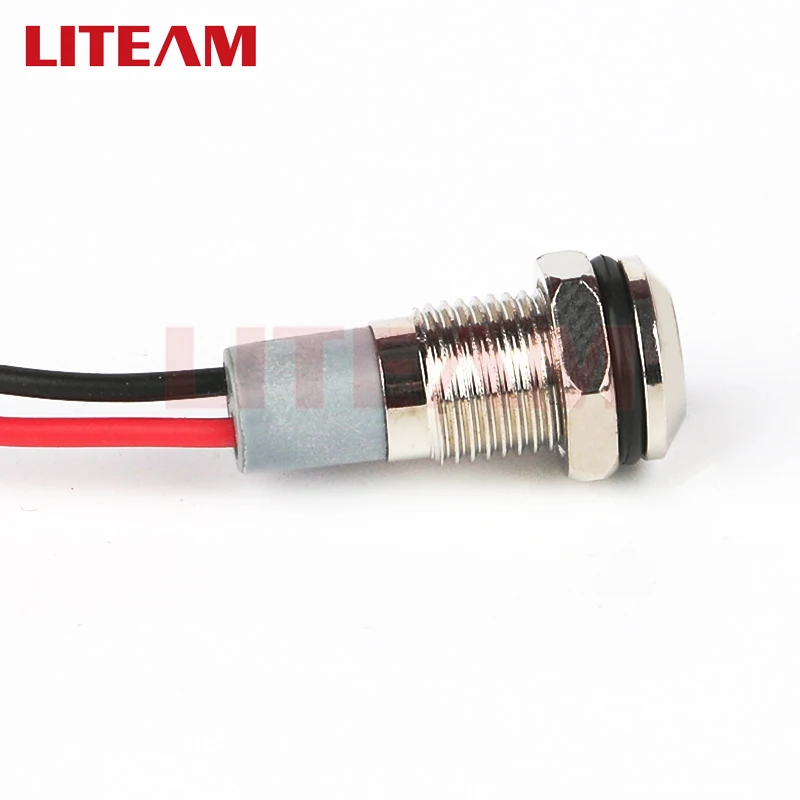

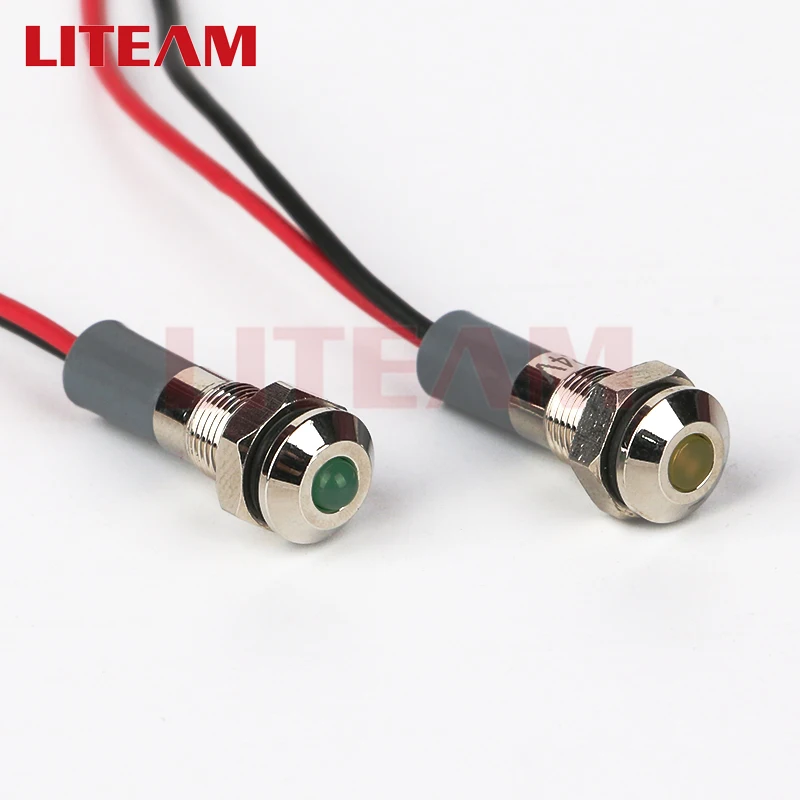

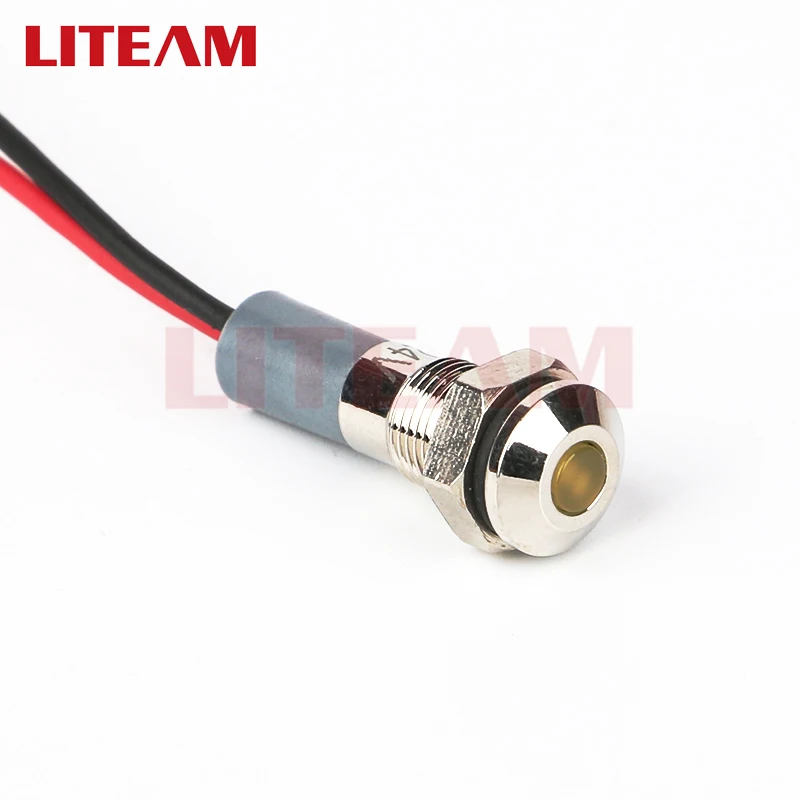

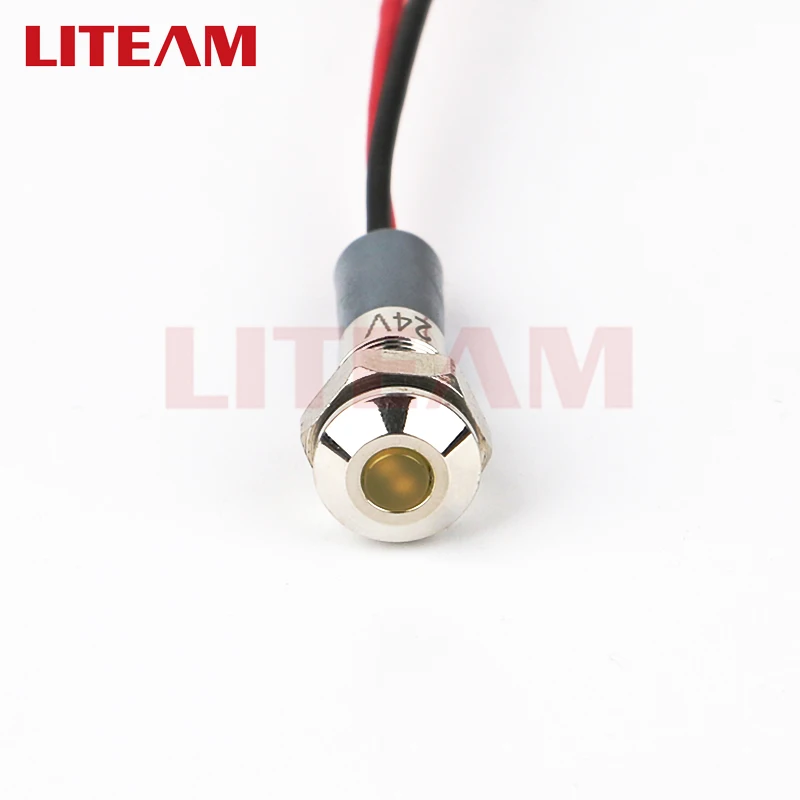

REFERENCE PICTURES:
LITEAM
METAL
LED Signal Indicator Lamp
-------------------------------------------
METAL HOUSING:
▨ Stainless Steel Shell
▨ Nickel Plated Brass Shell
▨ Aluminium Alloy Shell
▨ Stainless Steel Shell
▨ Nickel Plated Brass Shell
▨ Aluminium Alloy Shell
ADVANTAGES:
▨ Anti-corrosion
▨ Fire-proof
▨ Dust-proof
▨ Explosion-proof
▨ Waterproof
......
LITEAM
METAL
LED Signal Indicator Lamp-------------------------------------------
LED ILLUMINATED:
▨ High-brightness Pure Color LED Light
▨ Long Service Life
▨ Voltage Range: 3~380V
▨ Bi-directional LED Lamp
▨ AC DC Universal
Multiple Color Lamp:
Multiple Color Lamp:
▨ Single Color LED Lamp
▨ Bi-color LED Lamp
▨ Tri-color LED Lamp
LITEAM
METAL
LED Signal Indicator LampMETAL
-------------------------------------------
PREMIUM WATERPROOF
▨ IP68 Waterproof Degree
▨ Waterproof Silicone Sealing Ring in Internal
▨ Waterproof Rubber O-ring Attached
LITEAM
METAL
LED Signal Indicator LampMETAL
-------------------------------------------
HIGH QUALITY
FIAME RESISTANCE BASE
▨ PA66 Nylon Base▨ More safe & reliable
TAIL CONFIGURATION
▨ Screw / Solder / Wire Terminals
▨ High Quality Silver Plated Contacts & Terminals
▨ Wire length is 15cm
Related Top Picks
Apply Scenario
Wide Usage Range:
Small size, exquisite appearance, economical application and high cost performance.
Used as brake light, speedometer, tachometer, instrument cluster, check engine indicator light, high beam light, shift light and instrument panel light...
These panel-mounted indicators will give you visual status prompts, expected signals, emergency signals and other indication signals...
Product packaging
Company Profile
Yueqing Liteam Import & Export Co., Ltd. Established on 2013.Our Company is a professional manufacturer and exporter that is concerned with design, development and production of various switches, connector plugs&sockets.
We are located in Yueqing Zhejiang, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets.Our well-equipped facilities and excellent quality control throughout all stage of production enables us to guarantee total customer satisfaction.
If you are interested in any of our product or would like to discuss a custom order, please feel free to contact us. We are looking forward for forming successful business relationship with new clients around the world in the near future.
FAQ
1. Could I get some samples?
Sure, we're willing to offer samples to you for test our quality, and welcome to share us your after using experience/feedbacks, we will do our best to offer you a better services.
Sure, we're willing to offer samples to you for test our quality, and welcome to share us your after using experience/feedbacks, we will do our best to offer you a better services.
2. How to get a sample?
Send us an inquiry, and share us about your requirements of the product, we will help to check the best suitable product for you immediately.
3. When can I get the price?
The price will be quoted as soon as we confirmed the details/your requirements of the product.
4. Could you help to do some personalized customization design on the product?
Sure, welcome to contact us and show us the details of your designs.
5. What is the price of shipping?
Depending upon the port of delivery, prices varies. But no worry, we will always help to check the most best freight for you.
6. How soon could you delivery my order?
3~7 days for sample/trial order; 5~12 days for bulk order.
Send us an inquiry, and share us about your requirements of the product, we will help to check the best suitable product for you immediately.
3. When can I get the price?
The price will be quoted as soon as we confirmed the details/your requirements of the product.
4. Could you help to do some personalized customization design on the product?
Sure, welcome to contact us and show us the details of your designs.
5. What is the price of shipping?
Depending upon the port of delivery, prices varies. But no worry, we will always help to check the most best freight for you.
6. How soon could you delivery my order?
3~7 days for sample/trial order; 5~12 days for bulk order.
