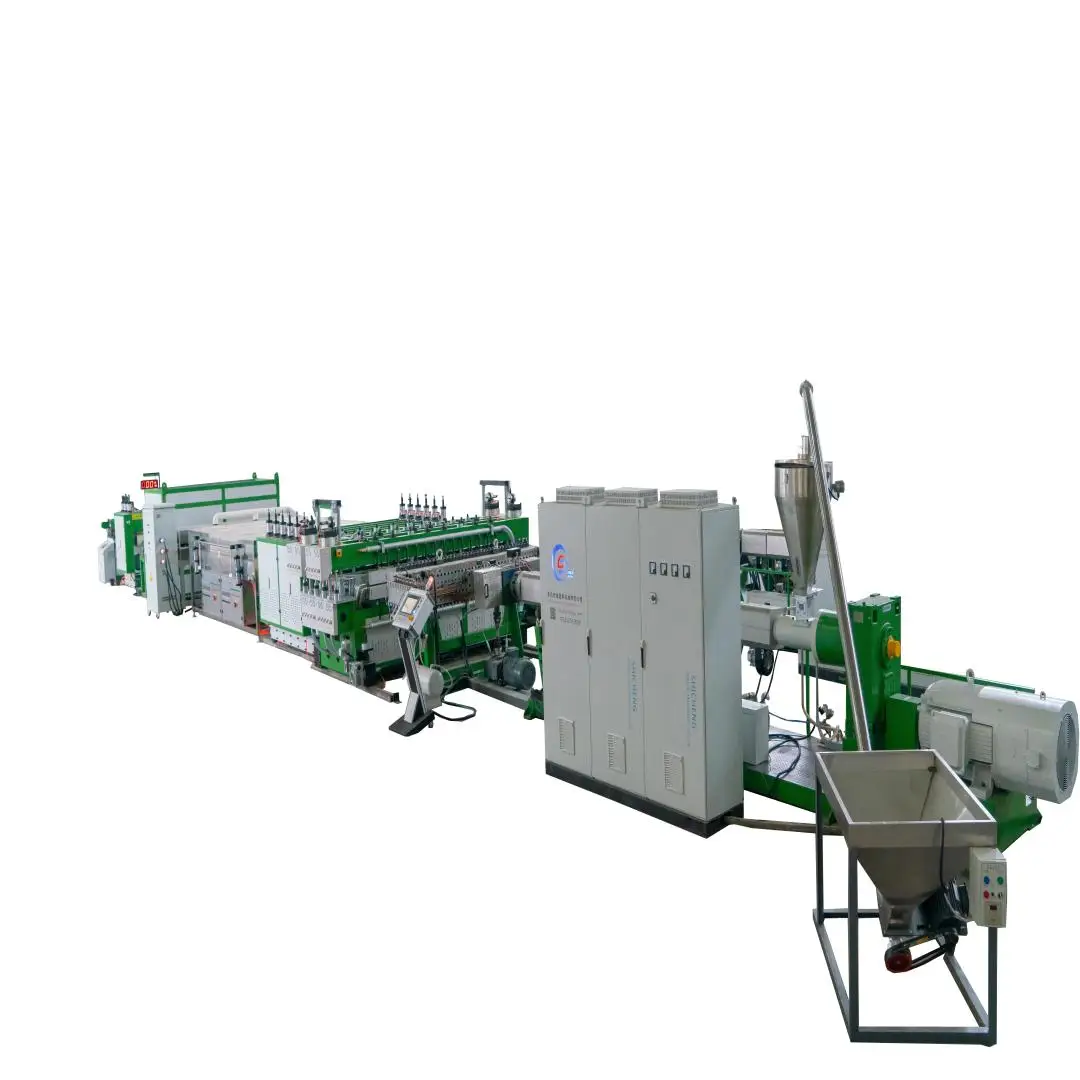

Width 1500 mm PP Plastic Polypropylene Hollow Sheets Extrusion Line Machine Machinery
- Category: >>>
- Supplier: Qingdao Shicheng Plastic Machinery Co. Ltd.
Share on (1600707696182):
Product Overview
Description
Product Description
1600 mm PP Plastic Hollow Sheet Extrusion Line Machine Machinery
The PP hollow sheet making machine is applicable to produce PP hollow sheet. The products are used widely for building, decorating, advertisement laying, road noise isolation and packing. PP hollow sheet can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis.
Model | Extruder specification | Output(kg/h) | Product width(mm) | Product thickness(mm) |
SC1200 | SJ 90/36 | ≥200 | 1220-3000 | 2-6，8-12 |
SC1850 | SJ 110/36 | ≥250 | 1220-3000 | 2-6，8-12 |
SC2300 | SJ 120/36 | ≥300 | 1220-3000 | 2-6，8-12 |
SC2600 | SJ 130/36 | ≥400 | 1220-3000 | 2-6，8-12 |

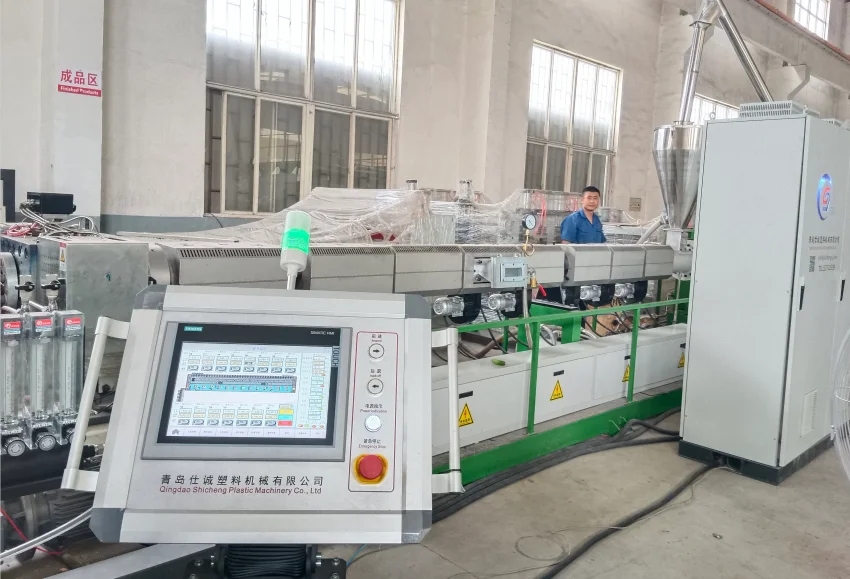

Main Equipment Composition
High-efficiency Extruder
High speed screw：
Double alloy wear-resistant single screw;
Low energy consumption with high rotation speed to match gear pump and stable pressure;
Output capacity is 25% higher than other brand extrusion lines because of special design of forming plates.

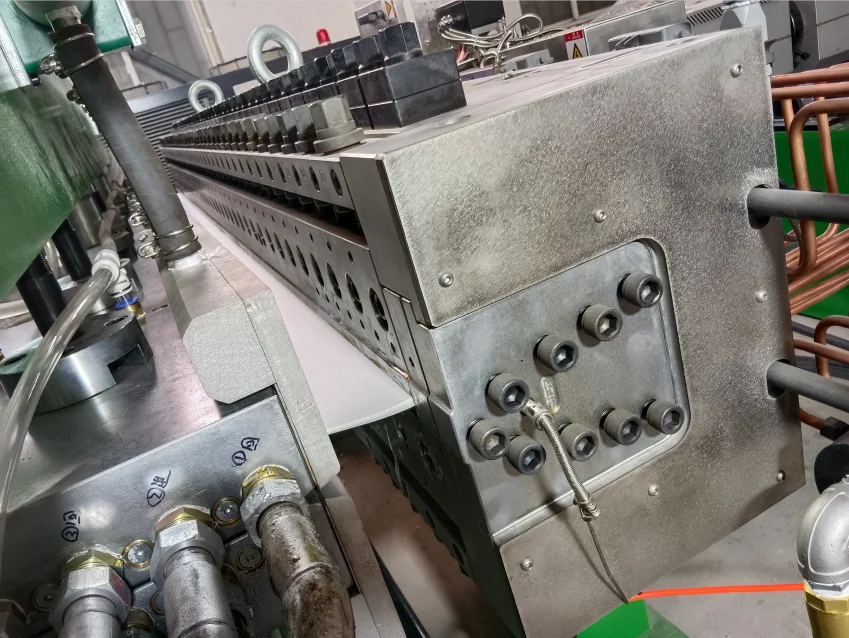

Mould
The mould is made of high quality alloy steel, with high activity throttling device, so that the distribution pressure of raw material flow in the die is uniform, the upper and lower die differential adjustment, to ensure the uniform thickness of the upper and lower wall.

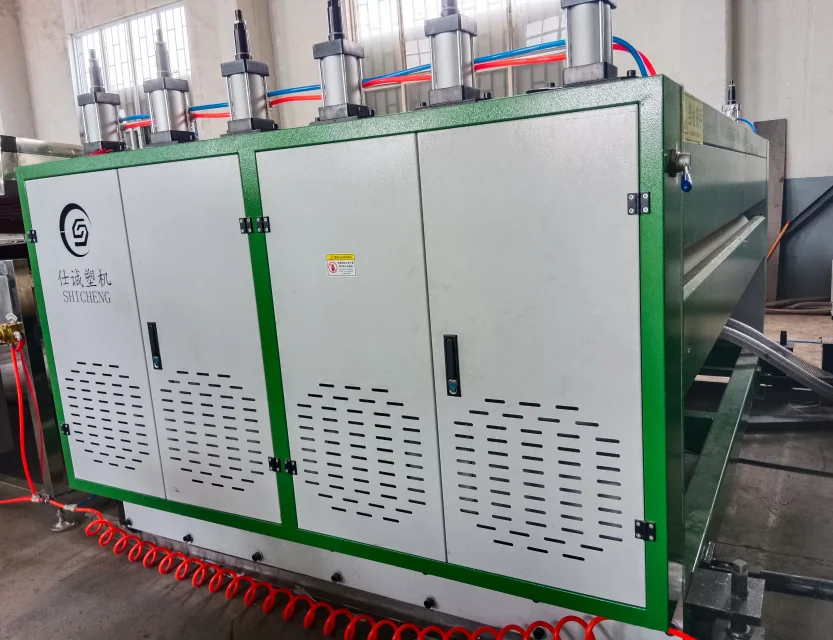

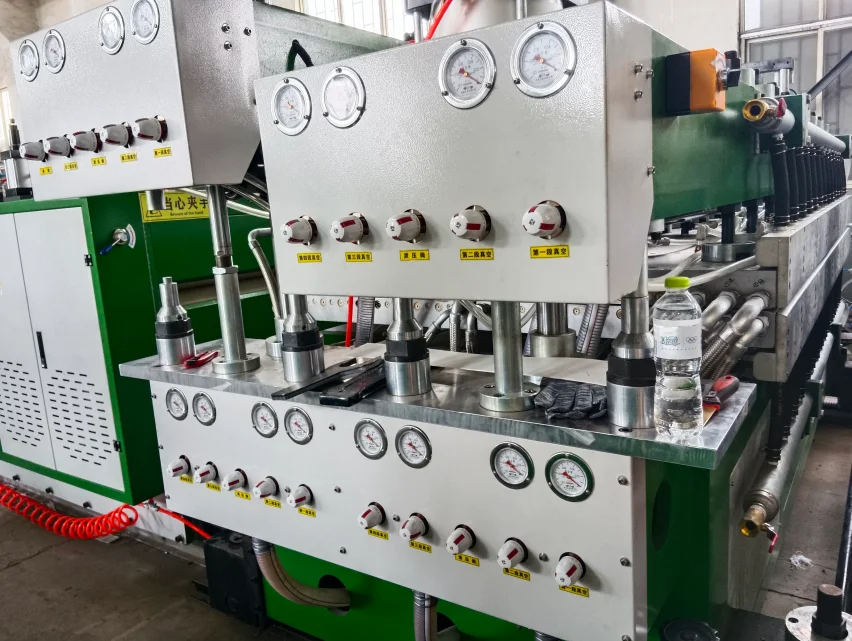

Vacuum calibrating table
Heating exchanging refrigeration system of quick speed in calibrating system alternate effectively with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed
circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
Haul-off machine
There are two groups of tractors. The first group of tractors is of high-power, large reduction ratio, multi-roller type, which has excellent low-speed dynamic performance and large tractive force, and can synchronously and evenly pull the board out of the vacuum setting table. The second group of tractors cooperate to remove product stress. It is also equipped with a trimming device to ensure the effective width and edge quality of the board.

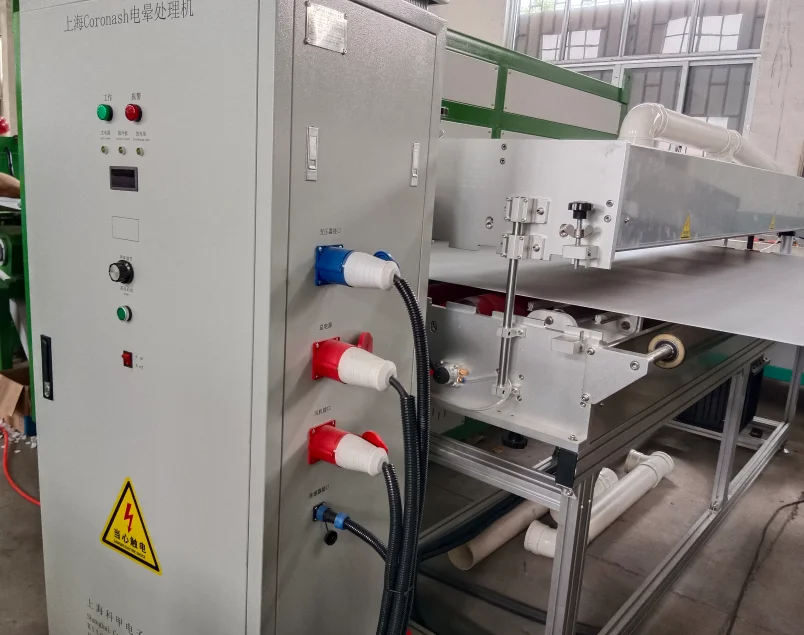

Corona treatment device
Effectively improve the surface tension of the material. By treating the material with high frequency corona discharge, the surface is more easily attached to the material bond, ink and coating.

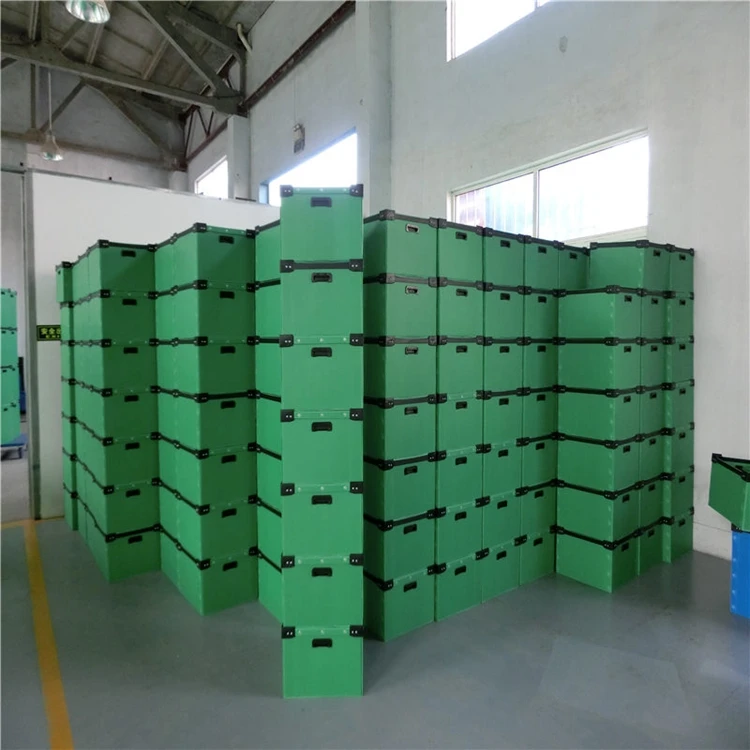

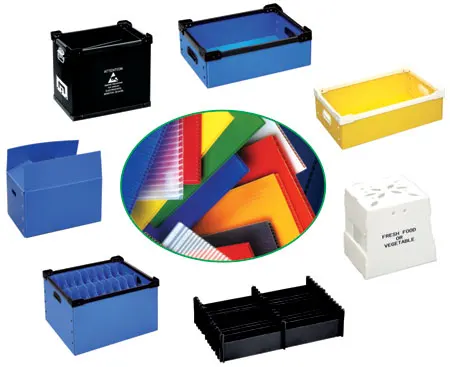

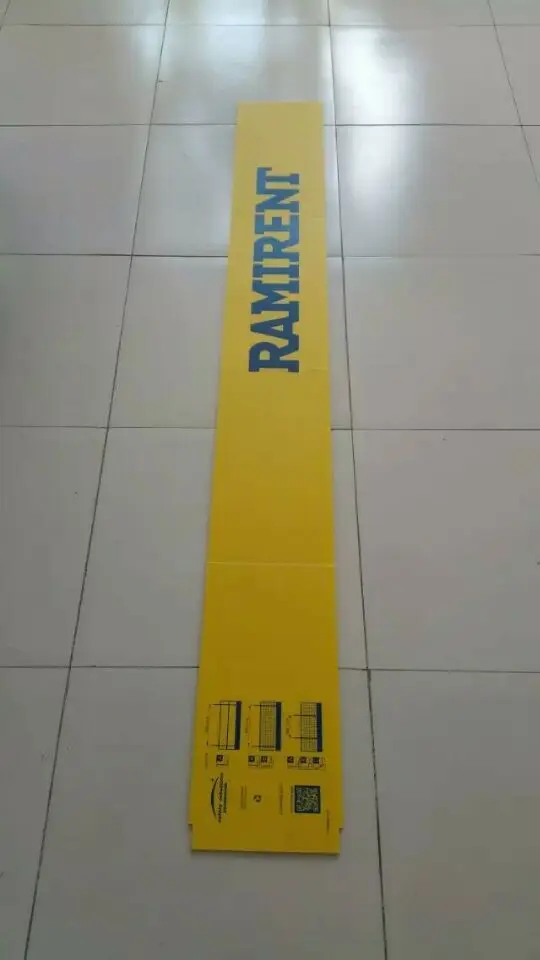

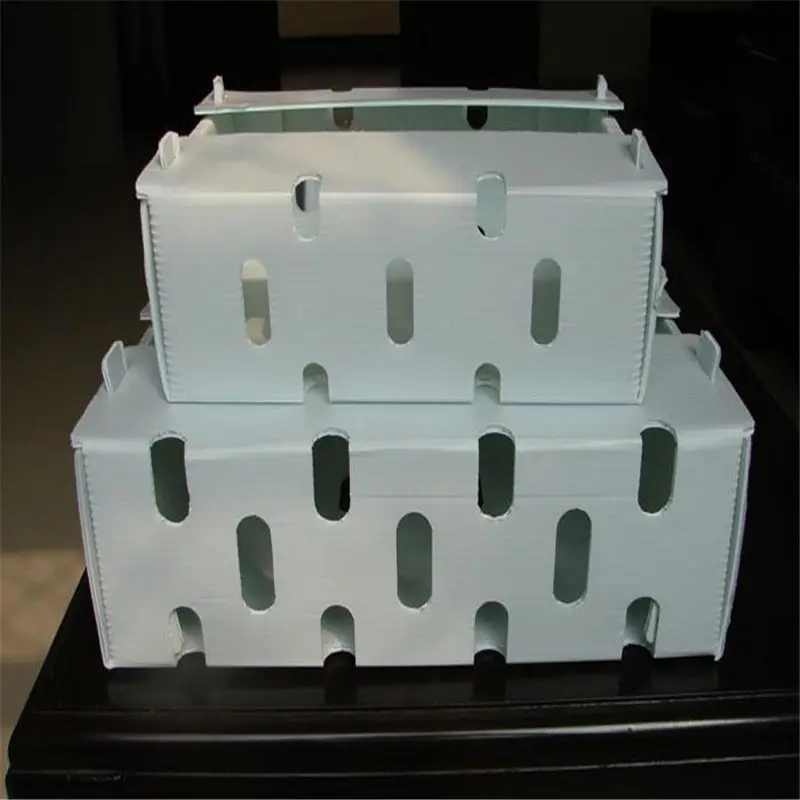

Application of PP Hollow Sheet
Customer
Exhibition
Certifications
FAQ
Q1: If I need more informations, how to contact you?
A: Email address: sales1@scplasticmachine.com ; Whatsapp/Wechat: +8615621151831.
Q2: What about the payment way?
Q2: What about the payment way?
A: By TT, L/C at sight or Alibaba trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q3: Installation and stuff training available from you?
A. Yes, we have engineers with rich experience which can send to your factory and train your workers. Also we can online guide your members.
Q4: How long is the guarantee?
A. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 12 hours.
Q5: If some parts of the machine is broken one day, how can we get help from you?
A. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge cheap costs.
Q6: How does your factory do regarding quality control?
A.We have passed the ISO9001 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q7: What is your packaging?
A. Our conventional packaging is: Wrap the plastic film around the machine,and then put the machine in a wooden box.
Q8: How can we check the machines before delivery?
A. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing.
