Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine
Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine

Woodworking Machinery Two Heads Open Hole Cabinet Door Hinge Drilling Machine

Share on (1600707884136):


Price:$1,500.00

Quantity:


Product Overview

Description







Model
MZ73032
MZ73032L
Max drilling diameter
50mm
50mm
Max drilling depth
60mm
60mm
Drilling distance between two heads
220-750mm
220-2200mm
Number of drill
3 Spindles*2heads
3 Spindles*2heads
Spindle speed
2840r/min
2840r/min
Motor power
1.5kw*2
1.5kw*2
Air pressure
0.6-0.8MPA
0.6-0.8MPA
Dimension
1700*850*1700mm
2500*850*1700mm
Voltage
380V 50hz
380V 50hz


Function:

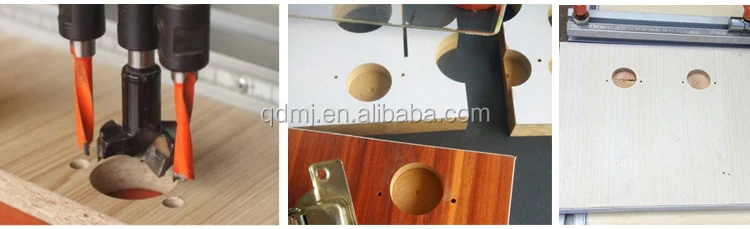

Hinge drilling machine is mainly for the hinge drilling of cabinets, wardrobes and other cabinet doors.It comes with a gas spring pressing device, which can be operated with one hand, which is convenient and fast.
