Product Overview

Description







Product Paramenters


Scope of application

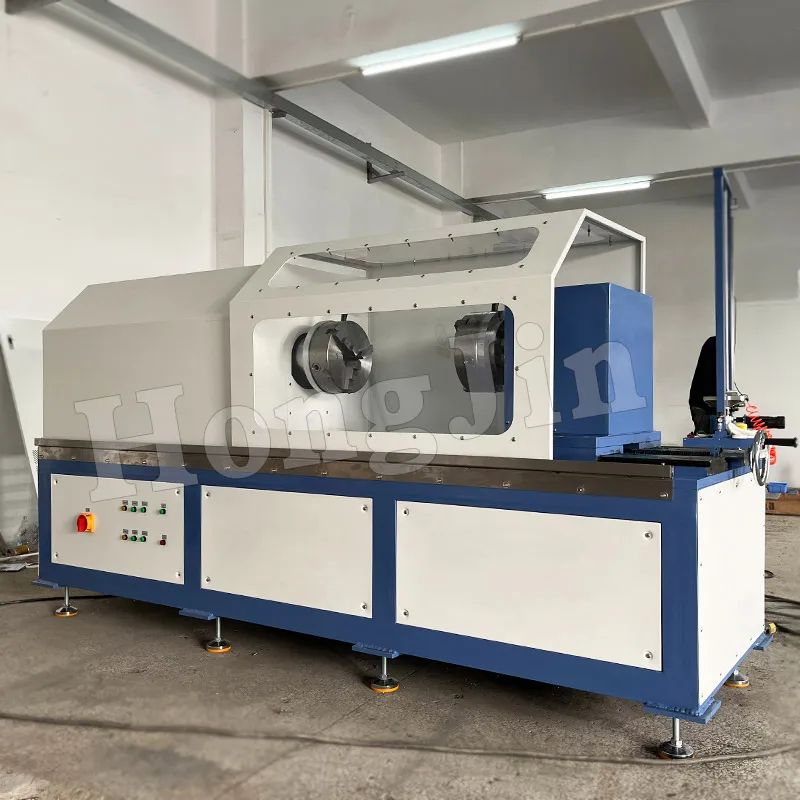

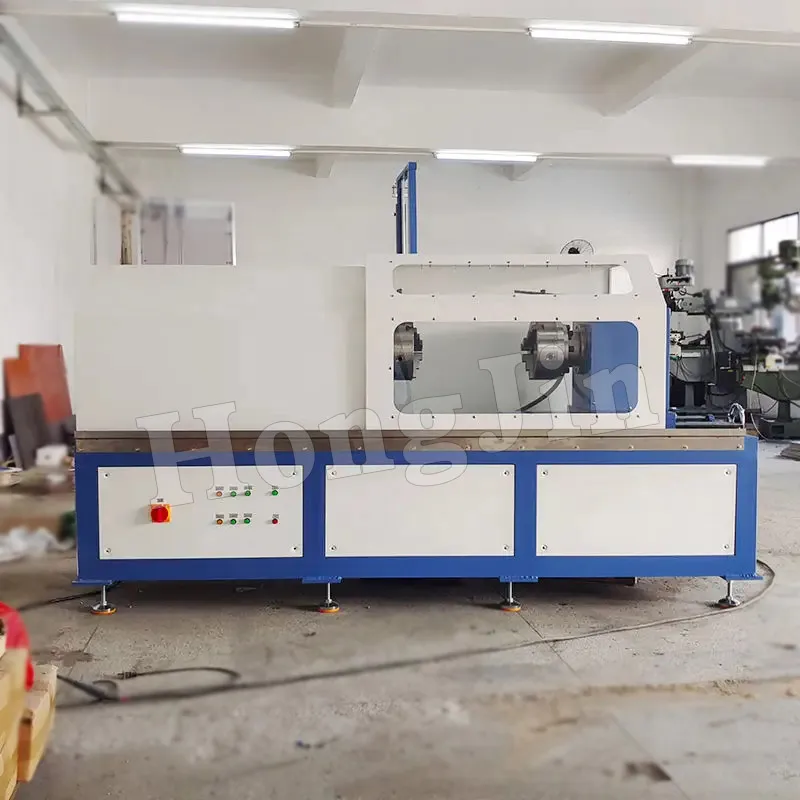

This series of testing machines complies with GB/T10128-2007 and is mainly suitable for torsional performance testing of metallic materials, non-metallic materials, composite materials and components. The machine is composed of AC servo control motor output loading, high-precision torque sensor detection torque, photoelectric encoder detection rotation angle, computer display detection results, high rigidity high precision high load linear guide and other components.


Product features:
1. Adopt high-speed single chip microcomputer, as the main control chip, the whole machine response quickly, comprehensive function.
2. The use of special signal amplifier, high precision, high stability voltage reference, through high precision digital-to-analog converter, to ensure that the instrument has a very high resolution and repeatability.
3. The LCD screen is used as the display device, the interface and parameters are prompted by Chinese characters, and the display information is intuitive and comprehensive.
4. With unique automatic operation mode, multi-point measurement can effectively improve work efficiency.
5. Compact structure, line optimization design, with high anti-interference ability.


Device functions:

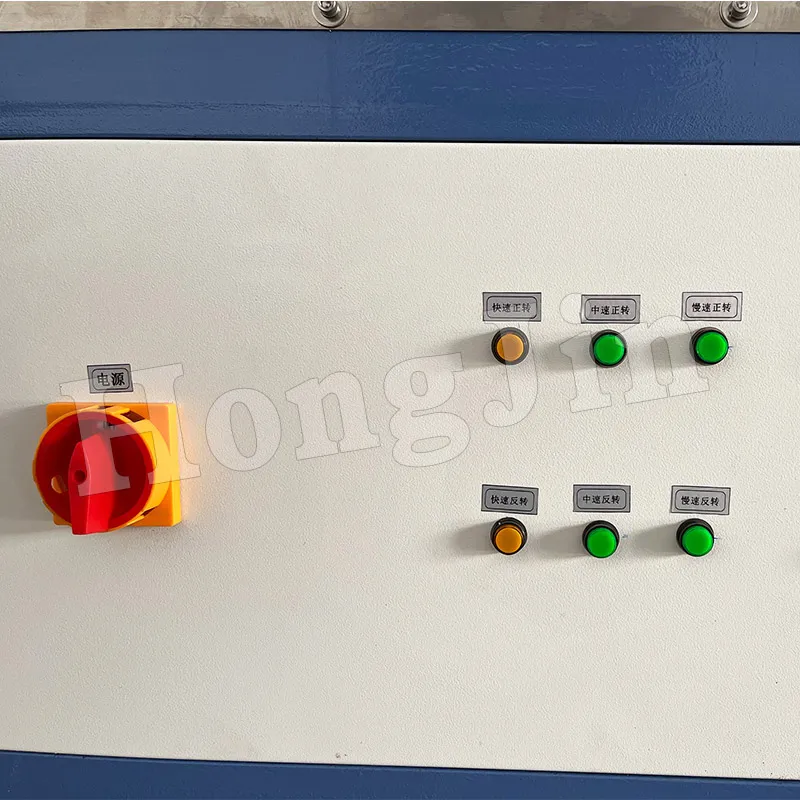

1. The main test operations and control functions are integrated on the main control panel, which is easy to operate and clearly displayed.
2. The numerical display window includes: torque display window (including peak value display window) and corner display window.


Torque:
3000N.m
Torque range:
2%-100% N.m;
Relative error of torque indication:
Plus or minus 1.0%;
Level:
Level 1
Torque resolution:
1/±100000;
Torsion Angle measurement range:
0 ~ 9999 °
Angular resolution:
0.01 °
Relative error of torsion Angle indication:
±1.0%;
Relative error of speed indication value:
±1.0%;
Clamping distance:
0~1000mm ;
Power supply:
AC 220V+10%, 50Hz;
Net size of main machine:
2390*600*1350mm
Main machine weight:
About 1300kg
