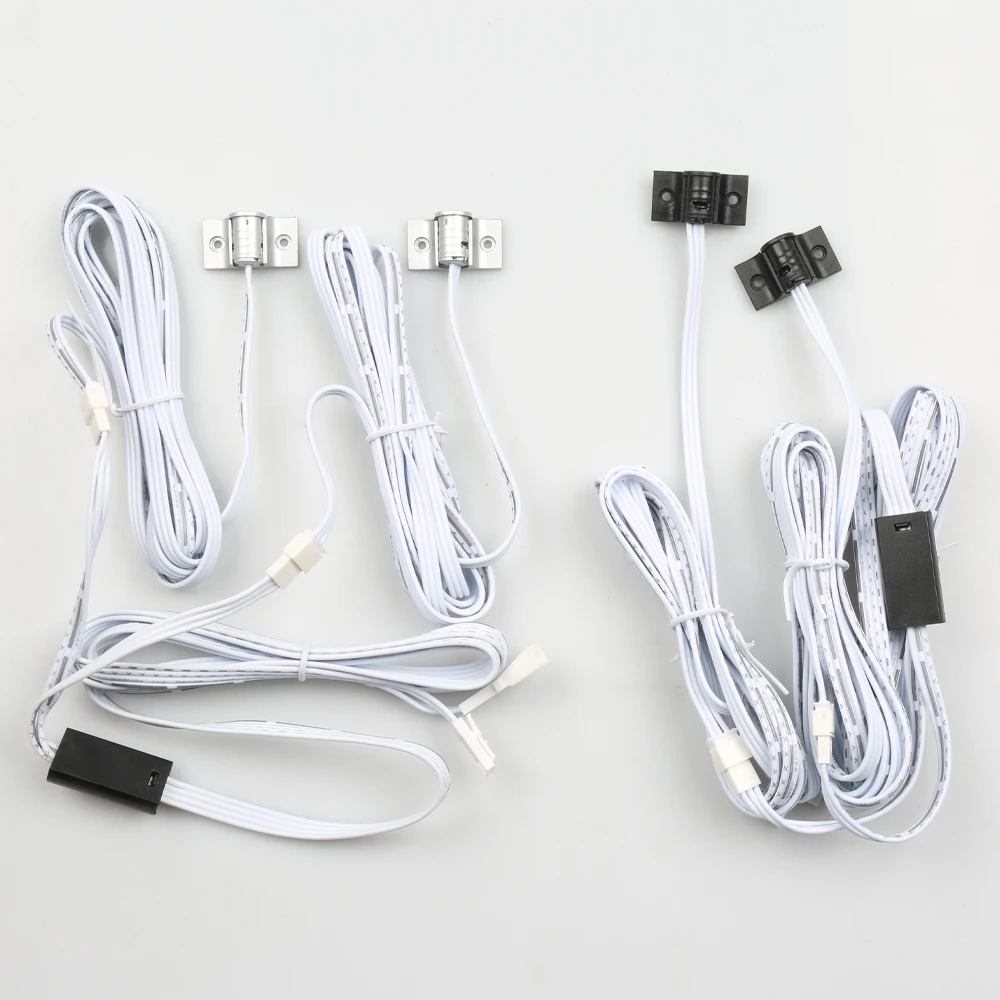

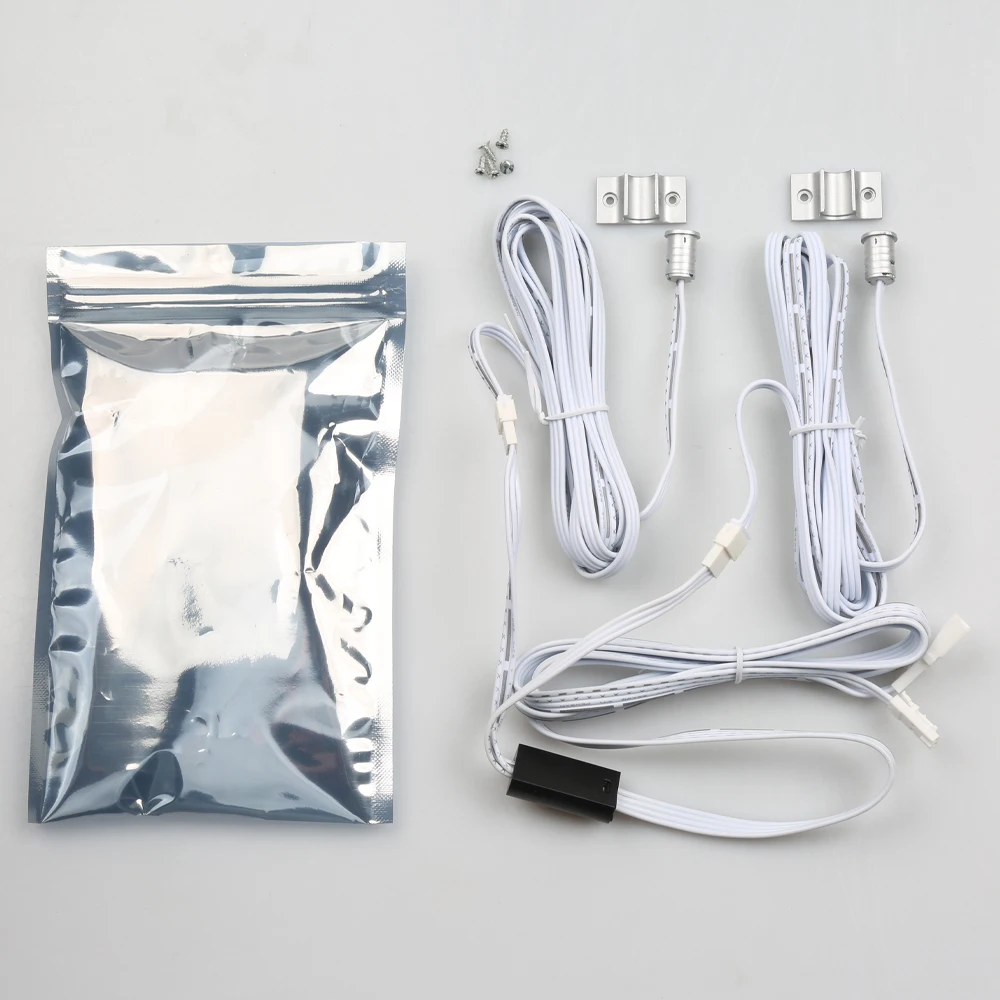

Dual Door Sensor Intelligent infrared door sensor inductive switch for cabinet LED lamp
- Category: >>>
- Supplier: Shenzhen,Dejurenhe,Industrial,Technology,Co.,Ltd.
Share on:
Product Overview
Description

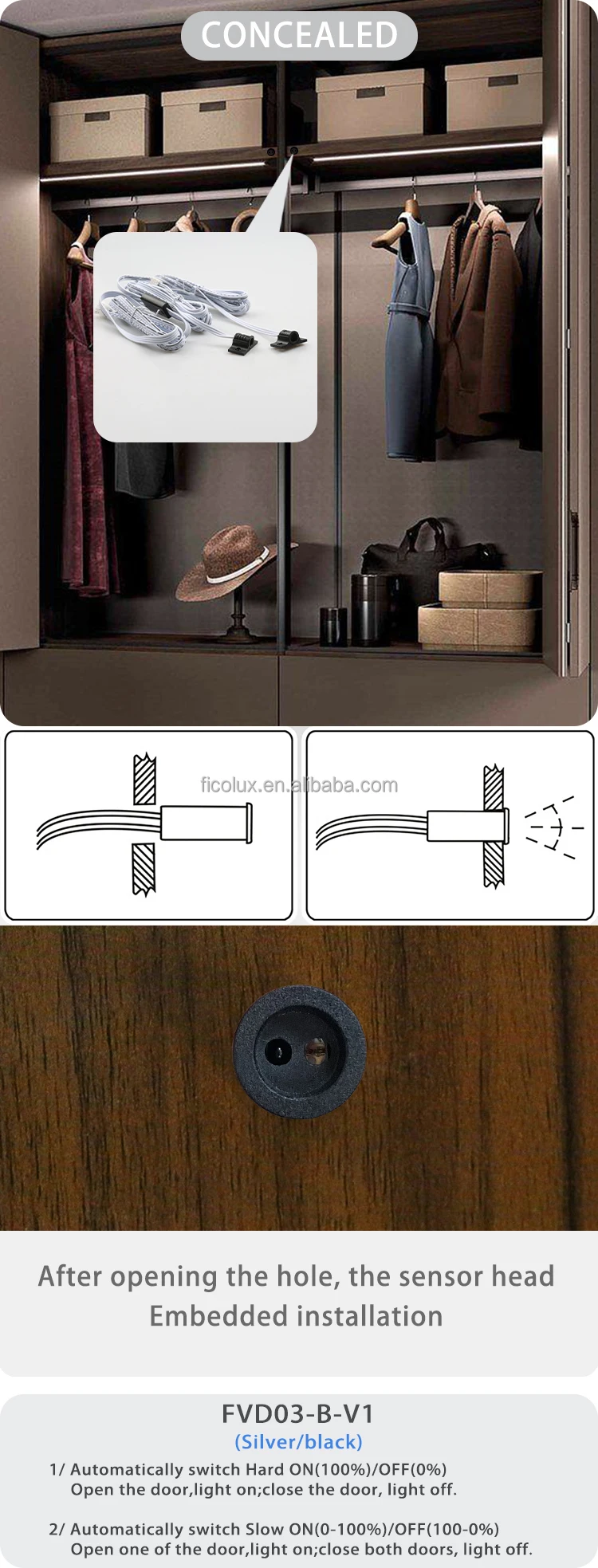

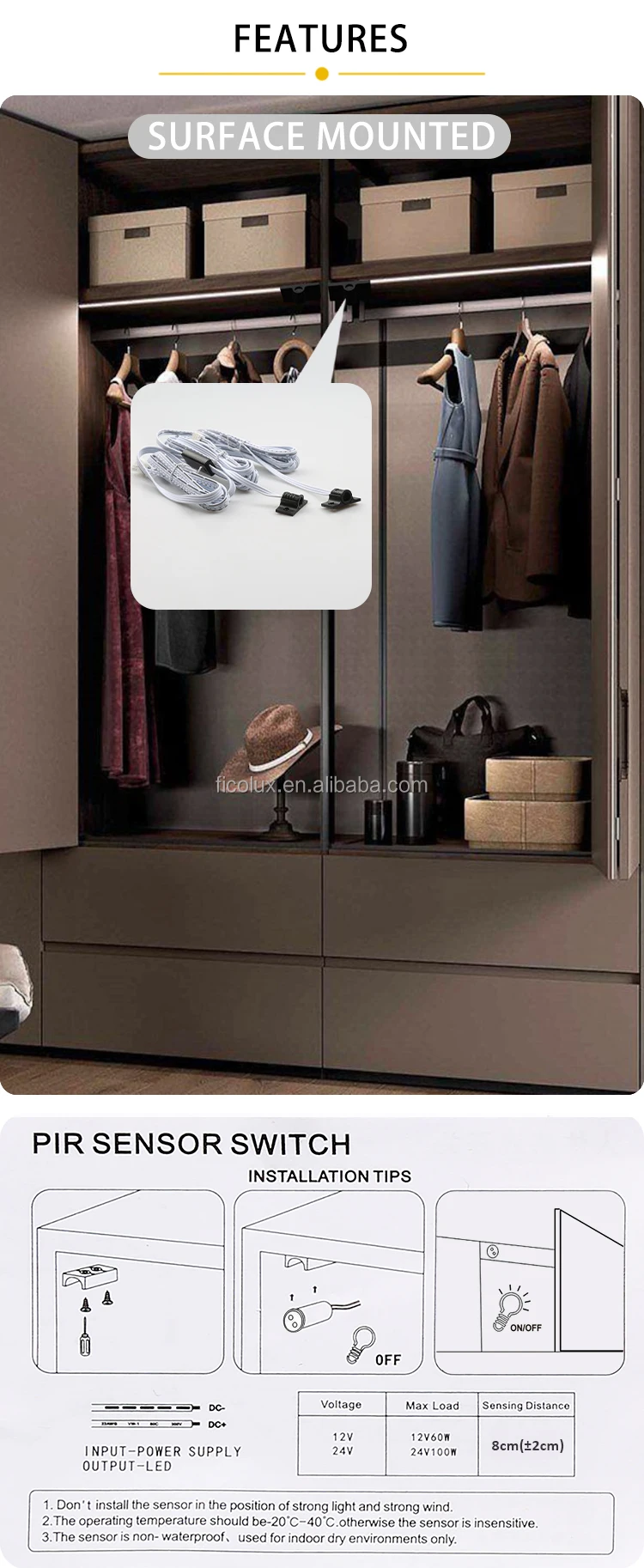

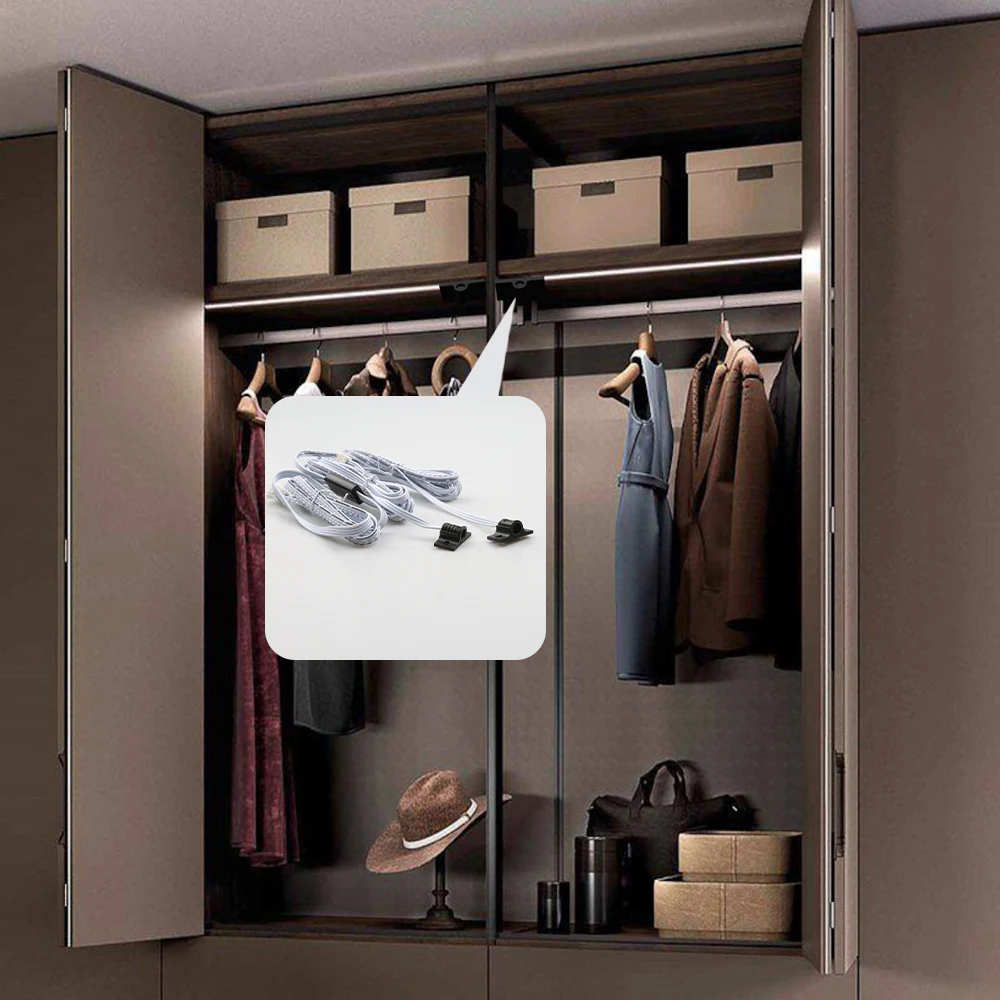

*The FVD series IR Door Sensor Switch is designed for switching on / off and dimming 12/24 V LED strips installed in Cabinet. The device is controlled without direct physical contact using a palm movement.
*To function properly the IR sensor must be open and exposed.
When the voltage is applied, the device is set to standby mode. The lighting is turned off.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the fron of the sensor. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the fron of the sensor. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.

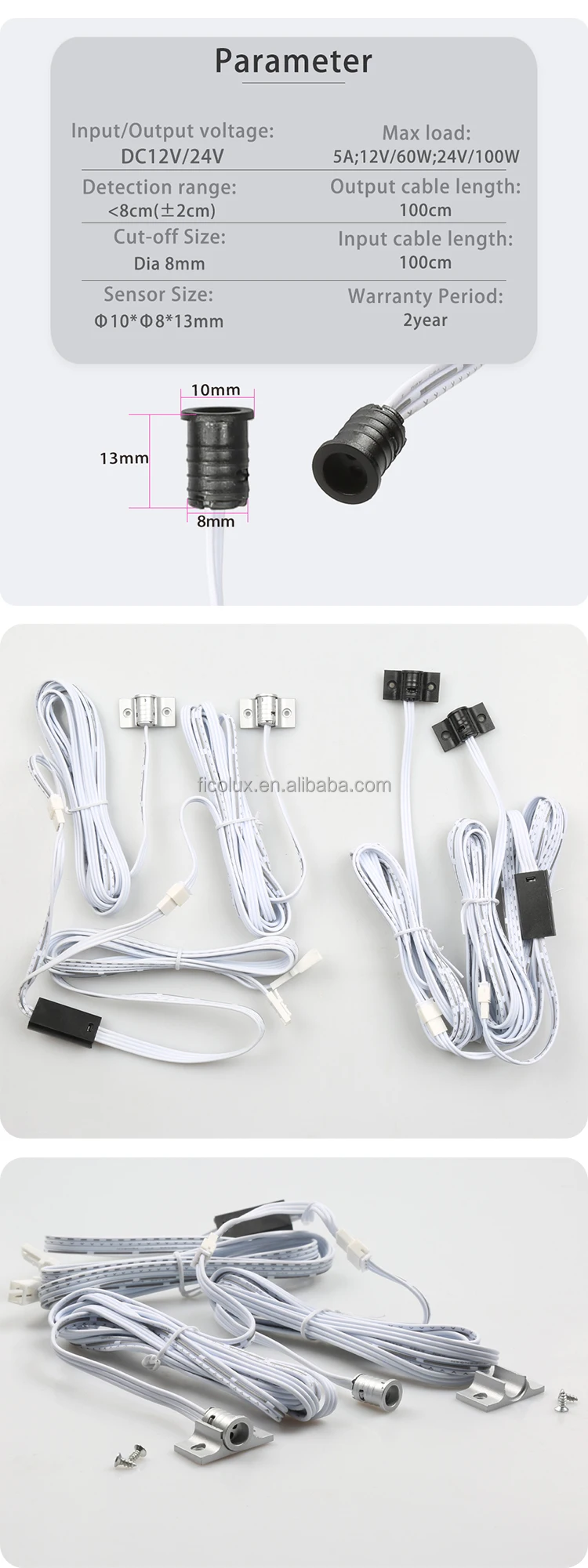

Product Name | Dual Door Sensor | ||
Model No | FVD03-B-V1 | VD01Y-B2 | |
Function | Hard on/off | Fade on/off | |
Input/Output | DC12V/24V | ||
Power | 12V/60W;24V/100W | ||
Current | 5A Max | ||
Sensor Size | Φ10*Φ8*13mm | ||
Detection range | ＜8cm（±2cm） | ||
Warranty Period | 2years | ||
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
