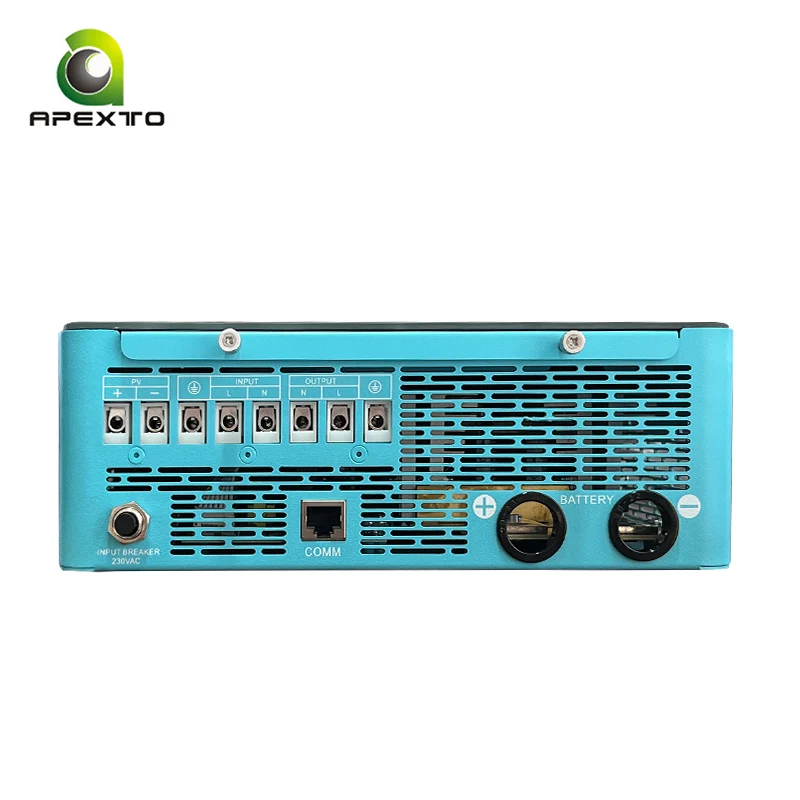

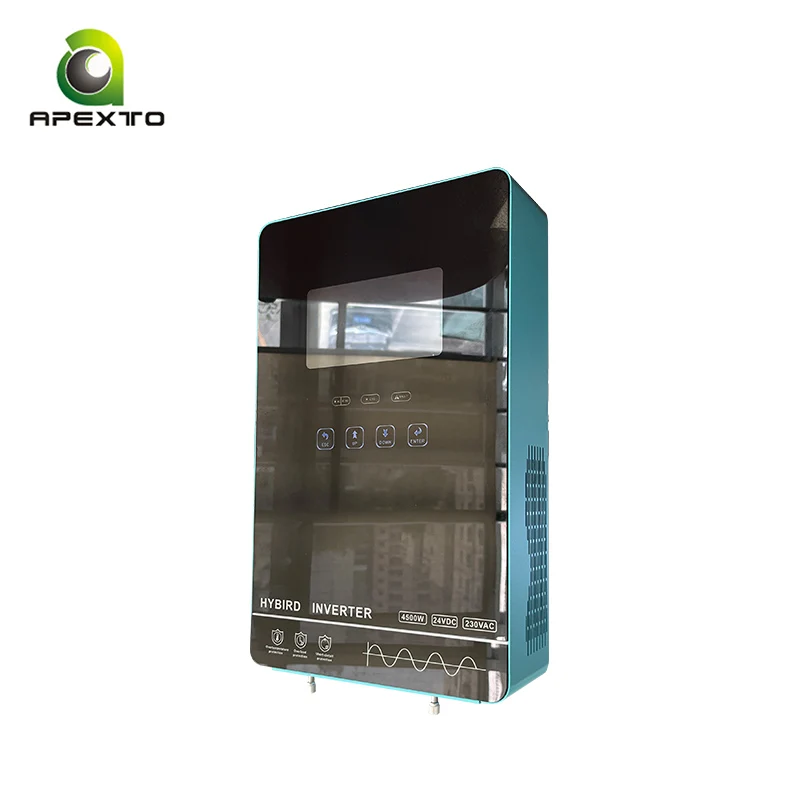

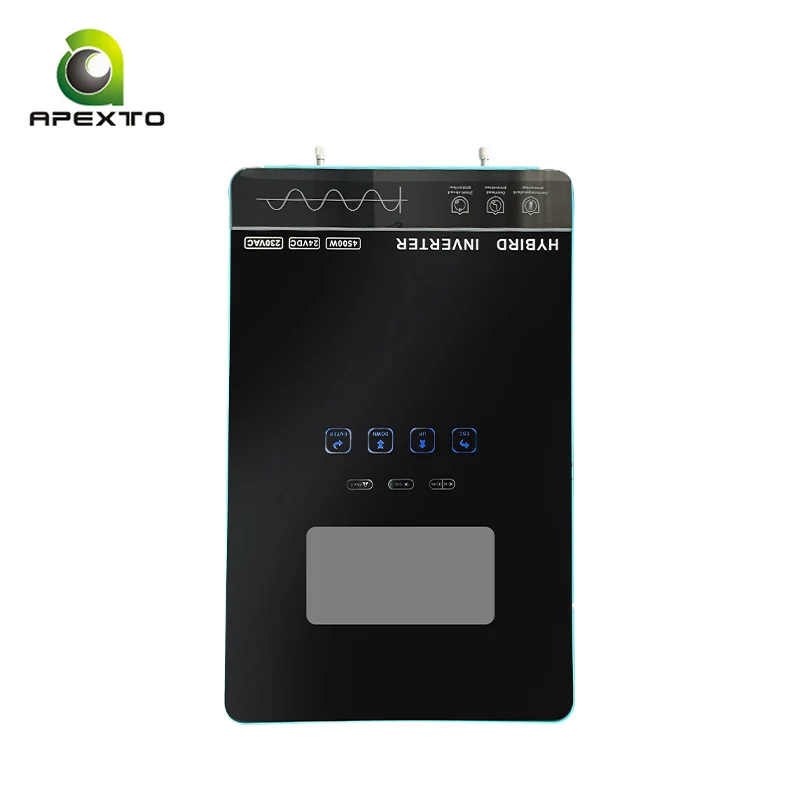

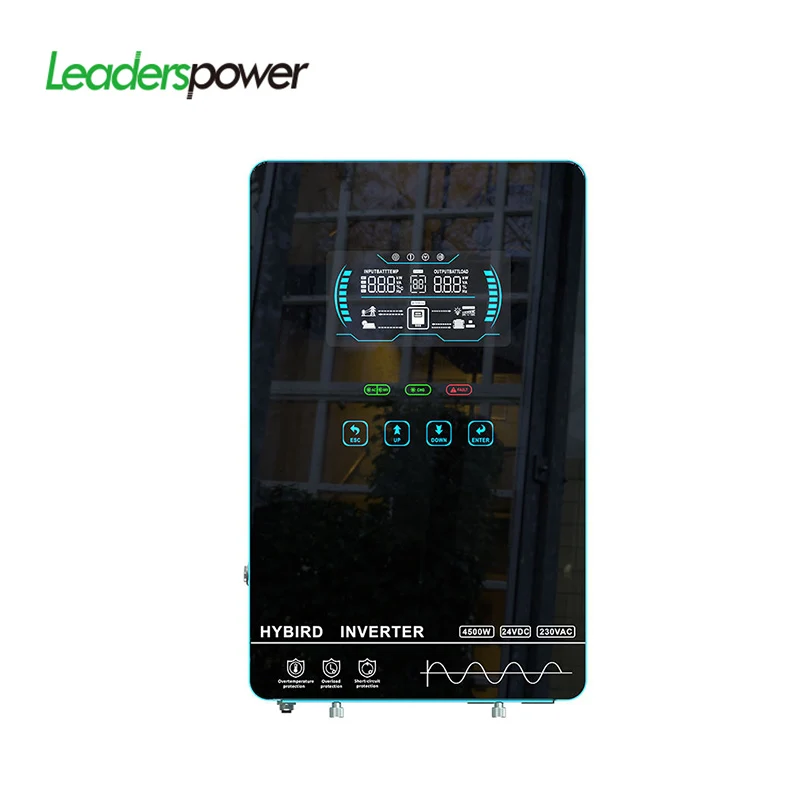

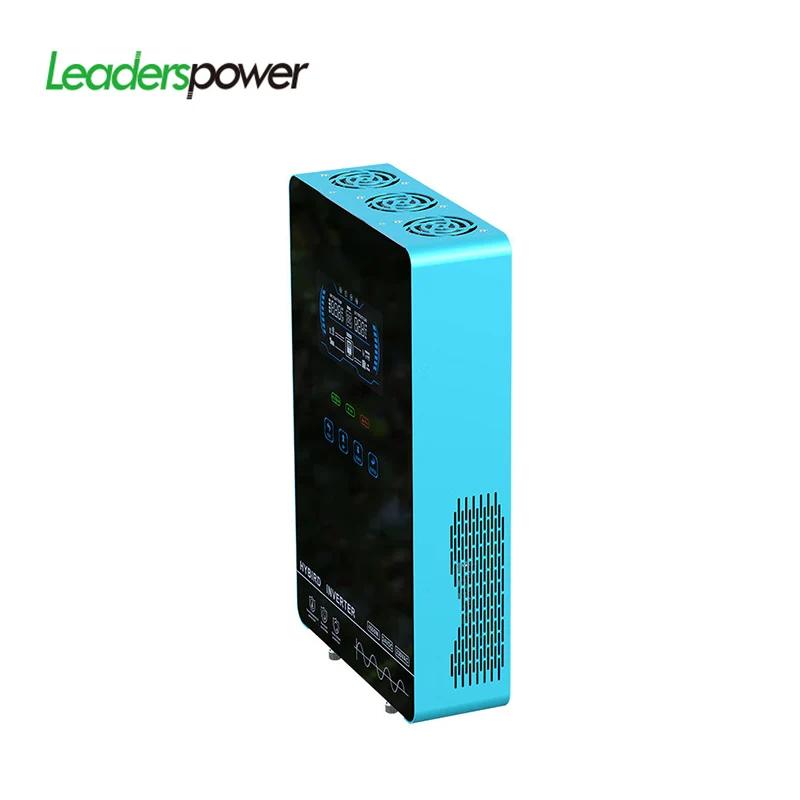

Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship
Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship

Hybrid Solar pv Inverter 4500W 6500W 7200W and WiFi Monitoring Function ready to ship

Share on (1600707971007):


Price:$279.00 - $299.00

Quantity:


Product Overview

Description





Features
1, Pure sine wave solar inverter
2, Unique glass top cover design with 6.25inch LCD display and touchable buttons
3, Built-in 150A MPPT (Max PV 8000W) solar charger
4, High PV input range from 120V-450Vdc
5, Smart battery charger design for optimized battery performance
6, Configurable AC/Battery input priority via LCD setting
7, Auto restart while PV is recovering
8, Over-load , over temperature and output short circuit protection
9, Cold restart function
10, Built-in lithium battery automatic activation
11, Communication with RS232/RS485
12, WiFi monitoring function (optional)
13, Anti-dust kit for harsh environment(optional)
14, Restore default Settings with one click




Specifications
MODEL
MPS-VX 4.5KW
MPS-VX 6.5KW
MPS-VX 7.2KW
Rated Power
4500W
6500W
7200W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280VAC（for personal computers）
90-280VAC（for home appliances）
Frequency Range
50Hz/60Hz（Auto sensing）
OUTPUT
AC Voltage Regulation（Batt . Mode）
230VAC±5%
Surge Power
2* rated power for 5 seconds
Efficiency（Peak）PV to INV
97%
Efficiency（Peak）BAT to INV
94%
Transfer Time
10ms（for personal computers）
20ms（for home appliances）
Wave form
Pure Sine Wave
BATTERY&AC CHARGER
Battery Voltage
24VDC
48VDC
48VDC
Bulk Charging Voltage
Flooded Battery
29.2V
58.4V
58.4V
AGM/GEL Battery
28.2V
56.4V
56.4V
Floating Charge Voltage
27Vdc
54Vdc
54Vdc
Overcharge Protection
32Vdc
63Vdc
63Vdc
Maximum charge current
150A
130A
150A
SOLAR CHARGER
MAX.PV Array Power
5500W
6500W
8000W
MPPT Range@ Operating Voltage
120-450Vdc
Maximum PV Array Open Circuit Voltage
450Vdc
Maximum Charging Current
150A
130A
150A
Maximum Efficiency
99%
PHYSICAL
Dimension. D*W*H（mm）
468*318*159mm
Net Weight（kg）
7.5kg
Communication Interface
RS485/RS232（Standard）
WIFI（Optional）
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity（Non-condensing）
Operating Temperature
0℃-50℃
Storage Temperature
-15℃-60℃








ShenZhen Leaderspower Technology Co., Ltd.
Shenzhen Leaderspower Technology Co., Ltd. is located in Shenzhen, China. We are a team of professionals with experience in selling home and outdoor PV products.

Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.








Q1: Are you manufacturer?
A: Yes, we are professional brand manufacturer with many years experience.
Q2: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q3: Can you do the design for us?
A: Yes. We have a professional designing team provide free desing for you, just tell us your ideas and we will help to carry out your ideas into perfect products. It is also ok if you do not have the complete files. Send us high resolution images, we can design the layout you want,until you are satisfied.
Q4: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q5: What kind of payment methods do you accept?
A: Credit Card, Online Bank Payment, T/T, Boleto, Pay Later, Paypal, Wechat, Alipay and so on.
Q6: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
