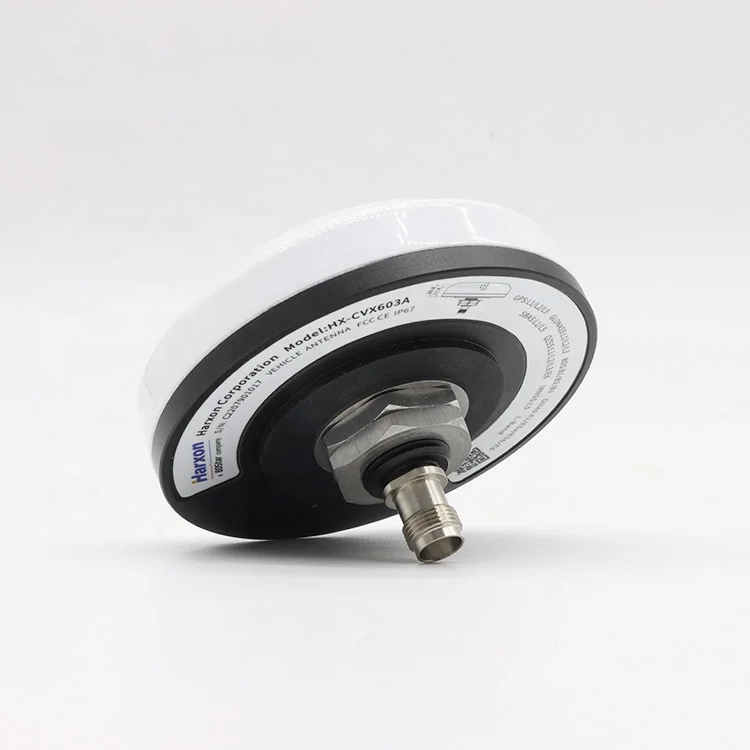

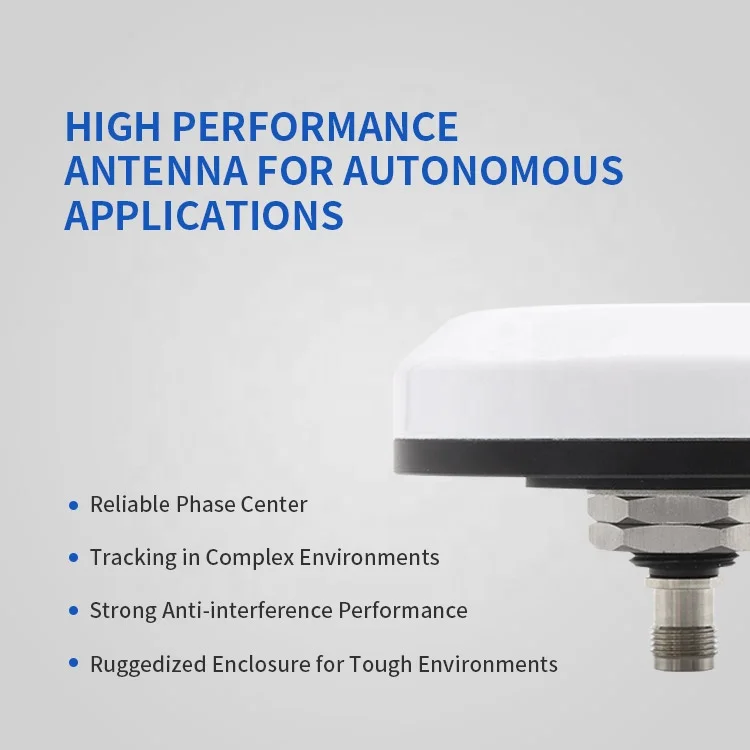

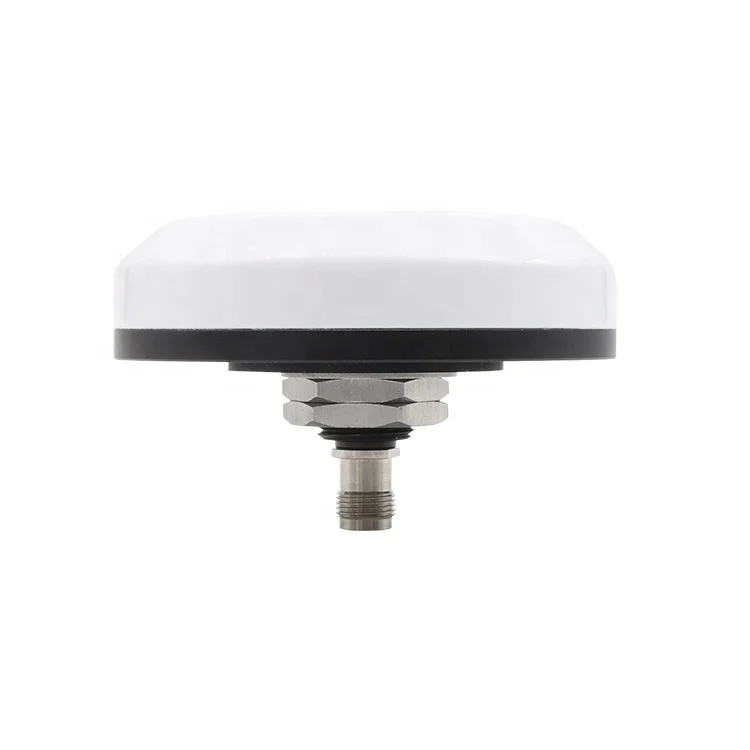

Harxon High Accuracy GNSS Antenna construction IP67 Waterproof Mapping Ruggedized RTK Antenna
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600708002583):
Product Overview
Description
Product Description
Specification
PERFORMANCE | |

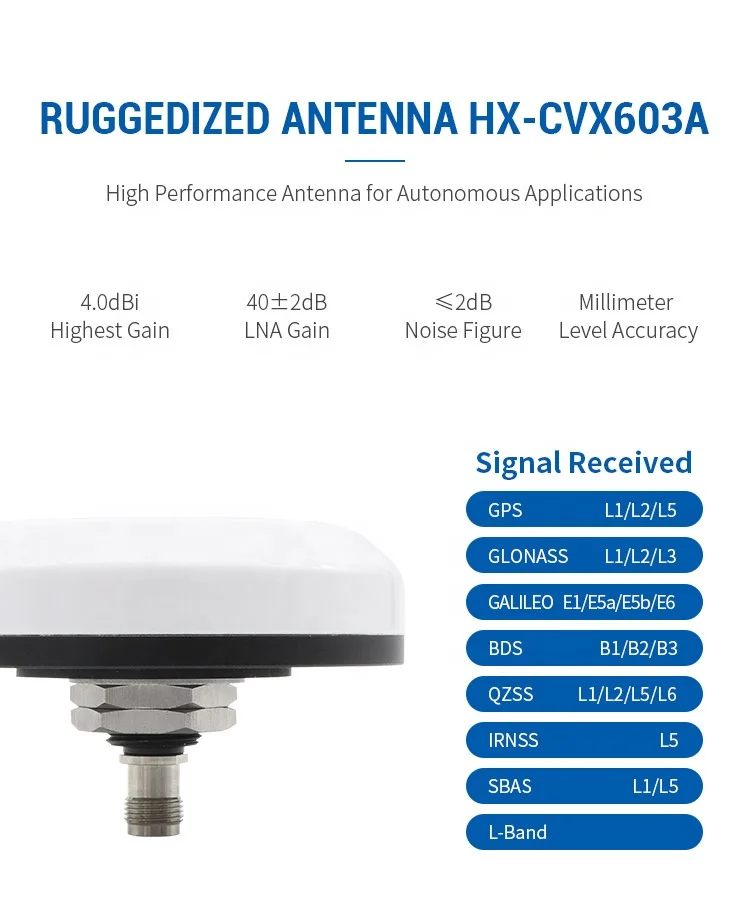

Signal Received | GPS L1/L2/L5 GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 BDS B1/B2/B3 QZSS L1/L2/L3/L6 SBAS L1/L5 IRNSS L5 L-Band |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Azimuth Coverage | 360°(omni-directional) |
Output VSWR | ≤2.0 |
Peak Gain | 4.0dBi |
LNA | |
LNA Gain | 40±2dB |
Noise Figure | ≤2dB |
Output VSWR | ≤2.0 |
Passband Ripple | ±2dB |
Operation Voltage | +3.3～+16VDC |
Operation Current | ≤45mA |
Differential Propagation Delay | ≤5ns |
EMC (RF Input Static) | Connected 8KV, Air 15KV, 10times |
MECHANICAL | |
Dimensions | Φ90.6×26mm |

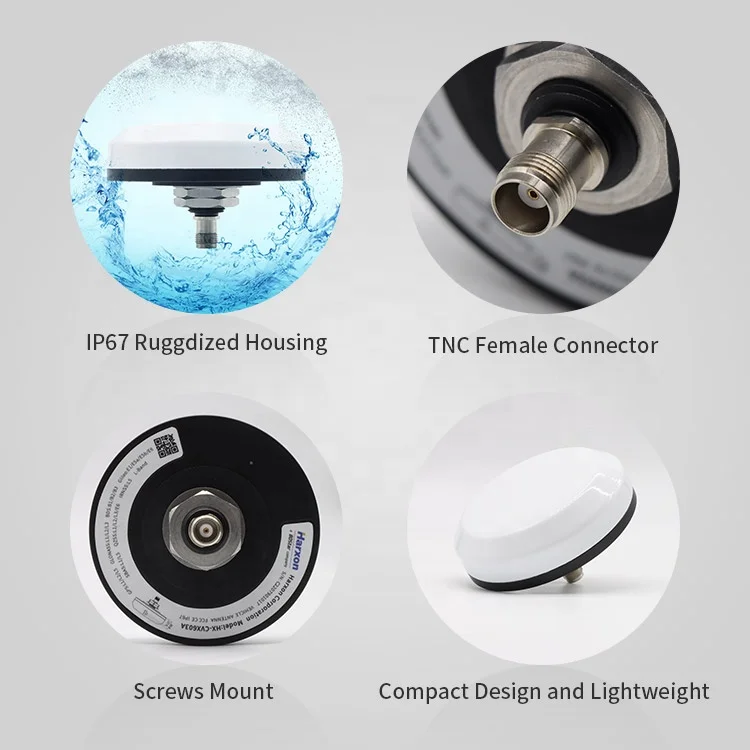

Connector | TNC Female |
Weight | ≤250g |
Water/Dust Resistance | IP67 |
Mounting | Screws Mount: M18 screws |
ENVIRONMENTAL | |
Operating Temperature | -45°C～+85°C |
Storage Temperature | -55°C～+85°C |
Humidity | 95% no-condensing |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
