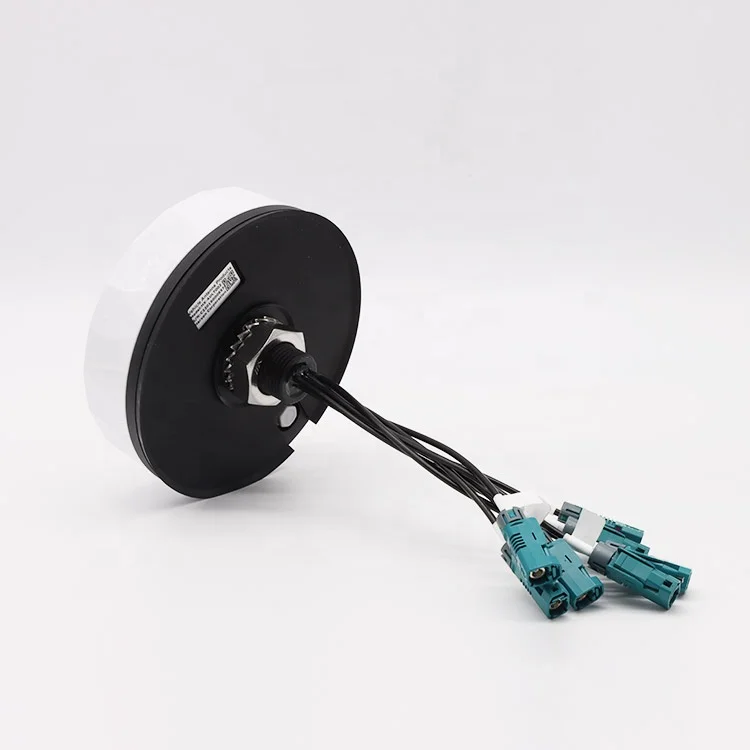

Harxon High Performance Automotive Antenna Multiband Intelligent Connected Vehicle Antenna
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600708124019):
Product Overview
Description
Product Description
Specification
PERFORMANCE | |
Frequency Range | 1x GNSS Antenna L1/L2/ L5/B1/B2/G1/G2/E1/E5/E6 5G 1/2 Antenna 824-960M & 1710-2690M 3.3-3.6G & 4.8-5G 5G 3/4 Antenna 1710-2690M 3.3-3.6G & 4.8-5G 2x V2X 5.85-5.925G |
Impedance | 50ohms |
Polarization | GNSS RHCP 5G/ V2X linear polarization |
Azimuth Coverage | 360° |
VSWR | GNSS ≤2.0 5G ≤4 V2X ≤2.0 |
Gain/Efficiency (typical/average) | GNSS: 4.0dBic 5G 1/2: 824M-960M≥35% 1710M-2170M≥40% 2300M-2690M≥40% 3.3-3.6&4.8-5G≥35% 5G 3/4: 1710M-2170M35% 2300M-2690M≥35% 3.3-3.6&4.8-5G≥35% V2X Average Gain: -2.0dBi |
GNSS Phase Center Variation | ≤2.5mm |
Isolation | interelement≤-10dB intersystem≤-15dB |
LNA | |
LNA Gain | 38±2dB |
Noise Figure | ≤2dB |
Output/Input VSWR | ≤2.0 |
Passband Ripple | ±2dB |
Operation Voltage | +3.3～+12VDC |
Operation Current | ≤100mA |
Differential Propagation Delay | ≤5ns |
V2X Vice LNA | customizable |
V2X Vice LNA Operation Voltage | 3.3～12V |
V2X Main LNA | customizable |
V2X Main LNA Operation Voltage | 3.3～12V |
MECHANICAL | |
Dimensions | φ135*H57mm (rubber mat/fixed frame not included) |

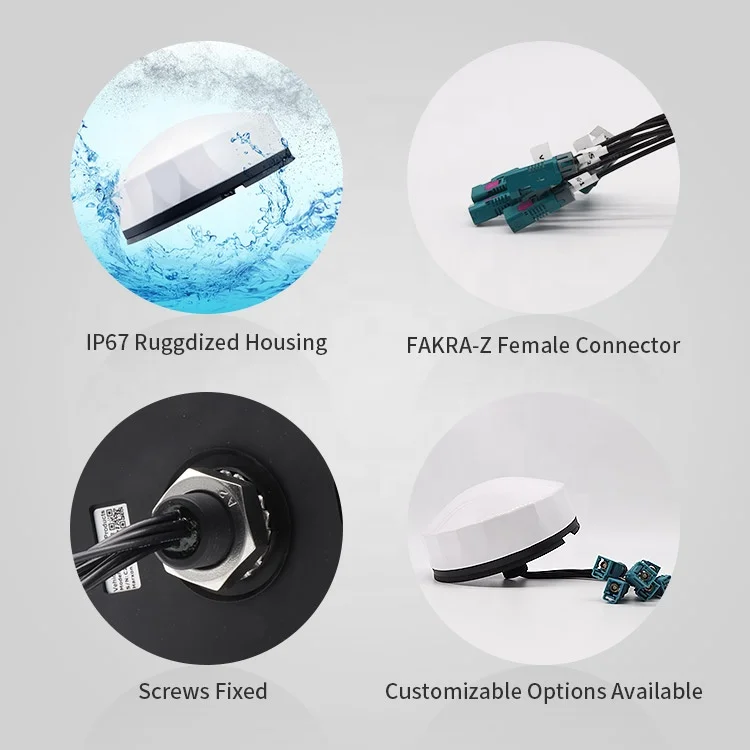

Connector | FAKRA-Z female connector, RG174 line (Irradiation), Exterior line length 20cm (Total length 25cm) (DL Line) |

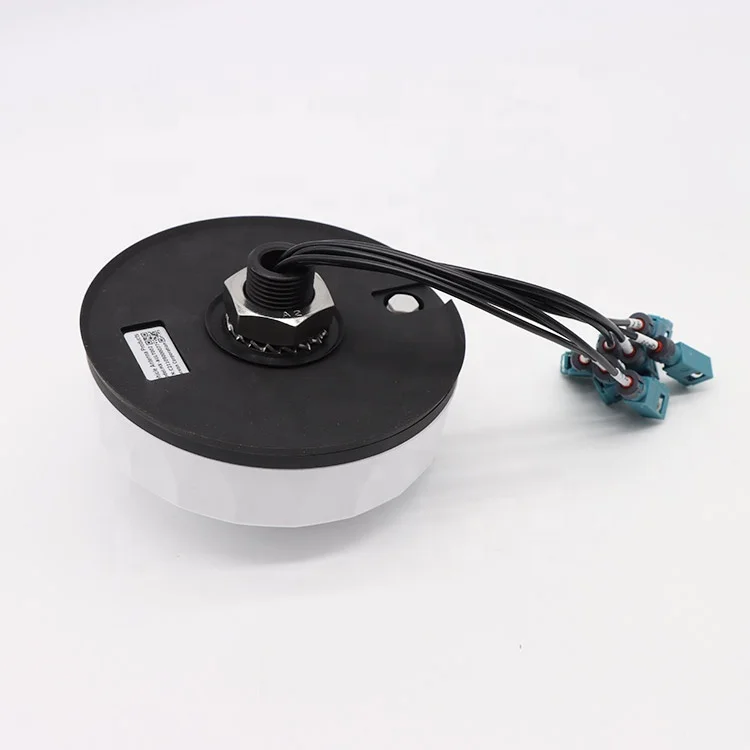

Installation | screws fixed |
ENVIRONMENTAL | |
Operating Temperature | -40℃～+85℃ |
Storage Temperature | -55℃～+105℃ |
Humidity | 95% non-condensing |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
