Crimp Cable Mount Straight UHF Male for RG59 RG58
- Category: >>>
- Supplier: Renhao,Weiye,Technology,(wuhan),Co.,Ltd.
Share on:
Product Overview
Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description
UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz,Originally intended for use as a video connector in radar applications.Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency. They can be used when impedance mating is not required.UHF connectors feature a threaded coupling. UHF connectors are economical and popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.

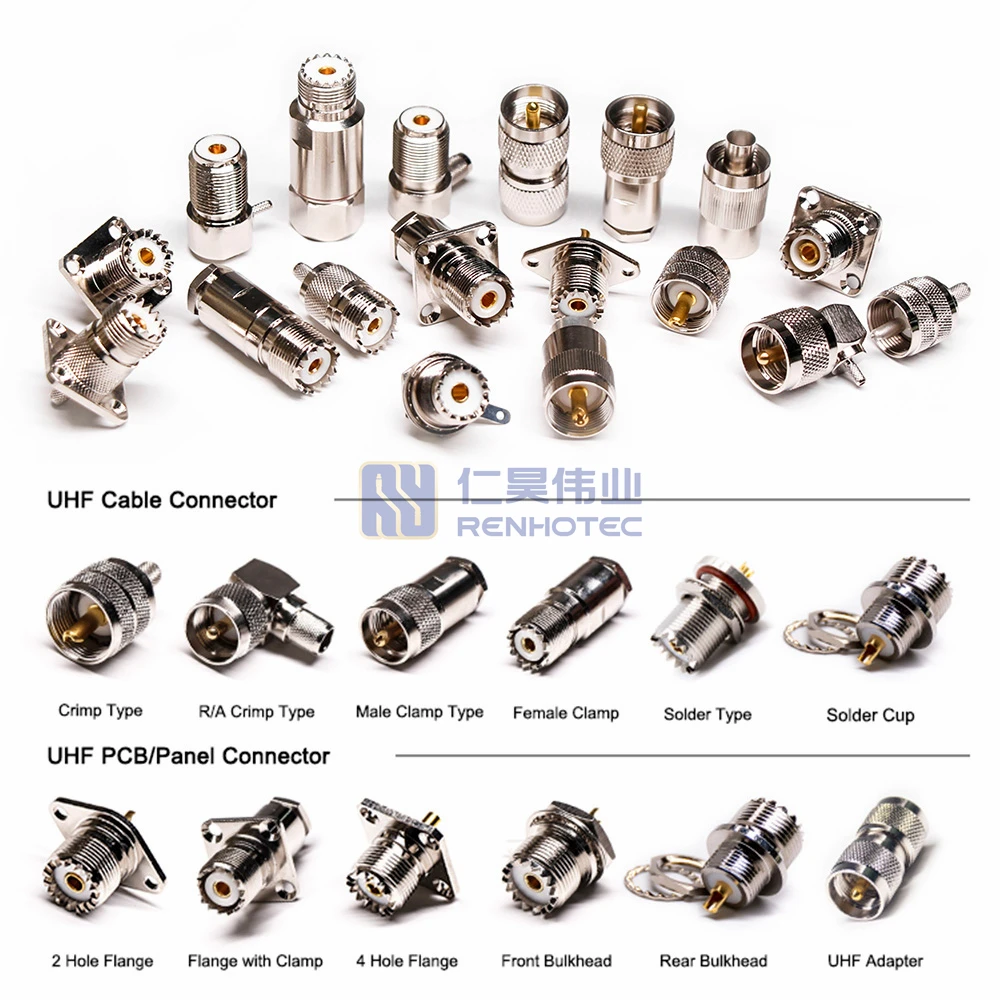

Miniature versions of UHF connectors, MINI-UHF connectors are designed for applications where size, weight, and cost factors are critical. With a miniature 3/8-24 thread size, these connectors provide excellent RF performance for applications up to 2.5 GHz.MINI-UHF connectors terminate to various cable types. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.
Miniature versions of UHF connectors, MINI-UHF connectors are designed for applications where size, weight, and cost factors are critical. With a miniature 3/8-24 thread size, these connectors provide excellent RF performance for applications up to 2.5 GHz.MINI-UHF connectors terminate to various cable types. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.
Features:
-Optional reducing adapters accommodate a wide range of popular coaxial cables.
-Large-size threaded coupling is a rugged design.
-Higher temperature range.
-No required specifications and low cost.
-Large-size threaded coupling is a rugged design.
-Higher temperature range.
-No required specifications and low cost.
Impedence | 50 Ω |
Frequency Range | DC - 300 MHz (DC - 1 GHz on Extended Range Designs) |
Voltage Rating | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1500 VRMS Max |
Insulation Resistance | 5000 MΩ Min |
Power Handling | 500 W @ 100 MHz @ 25ºC |
Body Material | Brass / Zinc Diecast |
Body Finish | Nickel / Silver / Tin |
Contact Material | Beryllium Copper / Brass / Phosphor Bronze |
Contact Finish | Gold / Nickel / Silver / Tin |
Insulator Material | Delrin / LCP / PBT / Phenolic / Polypropylene / PTFE |
Temperature Range | −65°C to +165°C |
Mating Cycles | 500 Min |
Coupling Mechanism | Threaded |
If You Still Not Found a Suitable Product, Please Contact Us>>
Industry Application

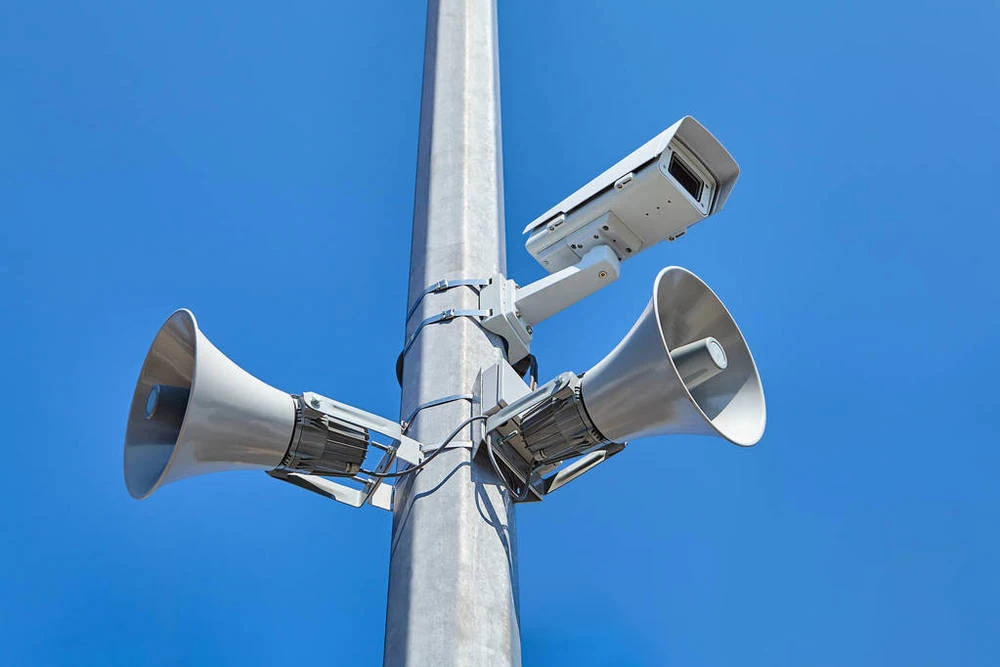

Antennas,Cable Assembly,Low Frequency equipments,PA Systems and CB radios,Military,Distributed Antenna Systems (DAS),Public Address Systems,Cable Modems,PC/LAN
Company Profile
Renhao Weiye Technology (Wuhan) Co., Ltd.
RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today’s cutting edge applications.
RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications.
Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include military, automotive, medical, instrumentation, telecom and wireless etc.
Production Process
Mould Design
Precision Zinc Alloy, Aluminum Alloy and plastic mold design
Die Casting & Injection
Alloy die casting and plastic injection molding production
Metal Lathe Processing
Metal parts drilling, tapping and lathe processing
Assembly Line
Automated, semi-automatic connector production line
Inspection Equipment
Test electrical, mechanical and environmental performance
Why Choose Us
Professional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.
Technology Improvement
Establish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintain
.
With professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQ
Q :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
