More possibilities with dot laser XT660 an advanced measurement system for alignment of horizontal and vertical/flange

More possibilities with dot laser

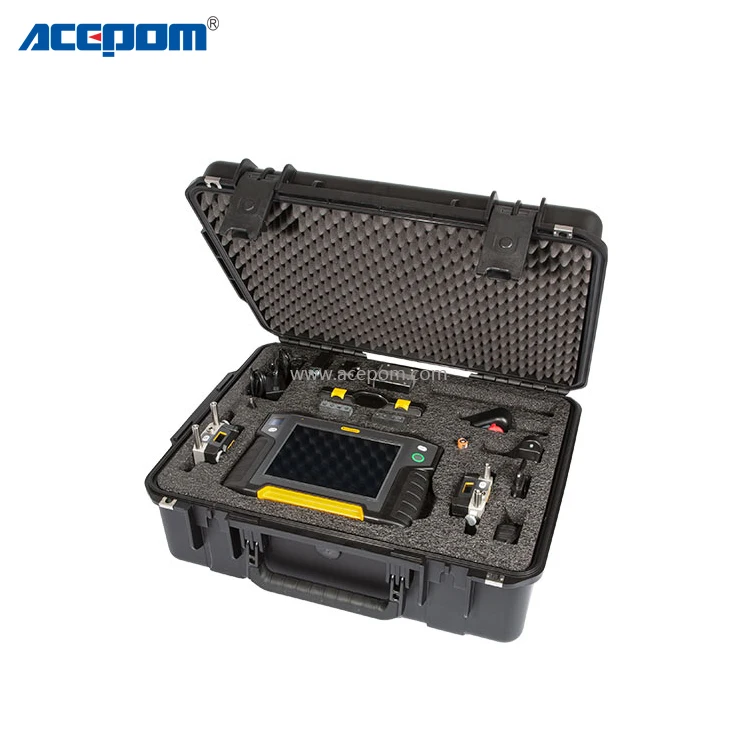

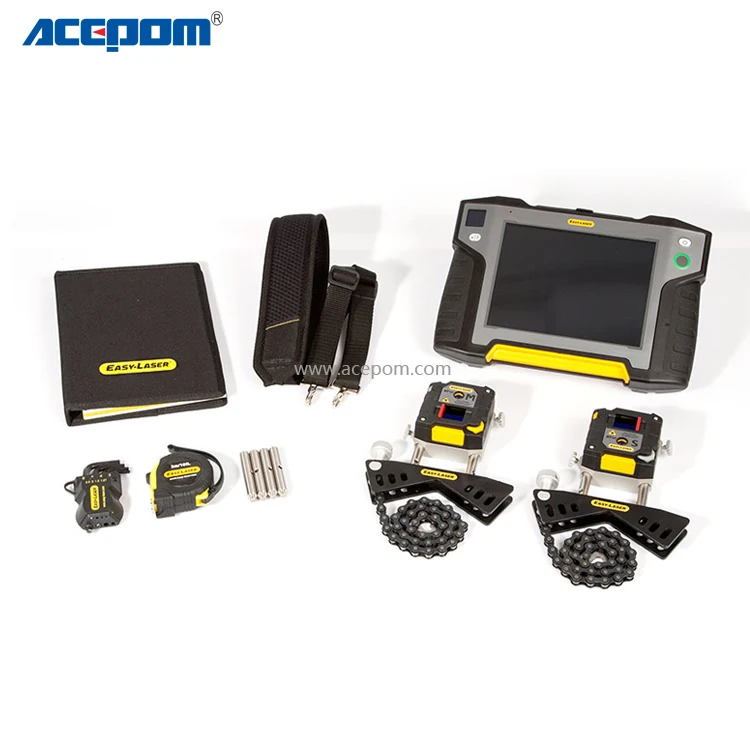

Easy-Laser® XT660 Shaft is an advanced measurement system for alignment of horizontal and vertical/flange mounted rotating machinery. With XT660 you can carry out the following:

Align the machine

Check base twist

Check bearing play

Check soft foot

Document and share the results

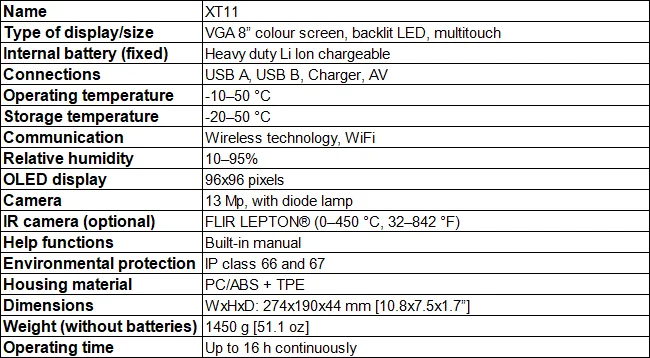

Display unit XT11

Rugged, robust, rubber coated design. IP66 and 67, dust- water- and shockproof. As standard a 13 MP camera for documentation is built-in*, and you can also choose to add an IR camera to the XT11.

Glove enabled touch-screen

A large 8", glove enabled touch-screen makes the information clear and the app easy to use. The small OLED display shows battery status of both measuring units and display unit. You can check battery status also when the unit is turned off. The clever lock-screen button prevents unintentional clicks, for instance when moving between work positions.

*The camera can be removed if security reasons require.

Features

Robust, rubber coated design, IP66/67.

Large 8” glove enabled touch-screen.

Screen-lock button.

OLED display shows the battery status.

IR Camera for thermal images (optional).

16 hours operating time.

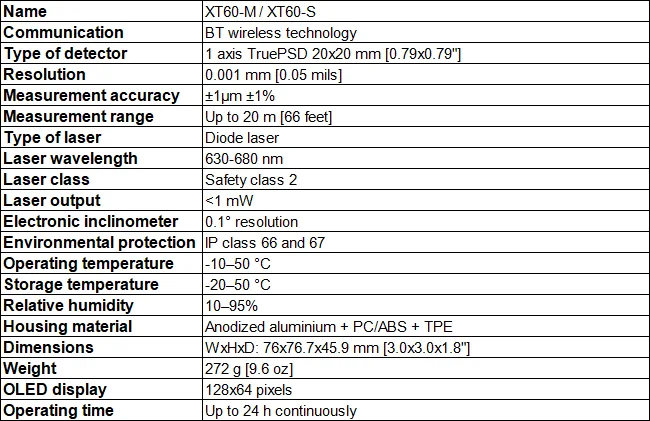

Measuring units XT60-M / XT60-S

The XT60 measuring units utilize dot-type laser and 1-axis square PSD surfaces. A state-of-the-art OLED display shows the angle of the unit, making it easier to position it on the shaft.

Rigid and rugged

The diagonally positioned fastening screws set the unit in a grid-lock on the rods. Rigid aluminium housing for maximum stability. IP66 and 67, dust- water- and shockproof. Heavy-duty battery for very long operating times. Built-in wireless technology.

Features

Built-in wireless technology. Integrated rechargeable battery.

TruePSD technology with unlimited resolution for greatest accuracy.

Dual laser beams and PSDs.

Sturdy aluminium body. IP66/67 design.

OLED display shows the angle of the unit

Slideable target

24 hours operating time
