Product Overview
Description
Model | Capacity (Standard Conditions) | Mixer Capacity | Dust Remove Effect | Total Power | Fuel Consumption | Measurement Accuracy | ||
Fuel Oil | Fuel Coal | Aggregate: ±0.5% Filler: ±0.25% Bitumen: ±0.25% | ||||||
LB700 | 60t/h | 750kg | ≤20 mg/Nm³ | 178kw | 5.5-7 kg/t | 10kg/t | ||
LB1000 | 80/h | 1000kg | ≤20 mg/Nm³ | 285kw | 5.5-7 kg/t | 10kg/t | ||
LB1200 | 100t/h | 1200kg | ≤20 mg/Nm³ | 316kw | 5.5-7 kg/t | 10kg/t | ||
LB1500 | 120t/h | 1500kg | ≤20 mg/Nm³ | 380kw | 5.5-7 kg/t | 10kg/t | ||
LB2000 | 160t/h | 2000kg | ≤20 mg/Nm³ | 470kw | 5.5-7 kg/t | 10kg/t | ||
LB3000 | 240t/h | 3000kg | ≤20 mg/Nm³ | 700kw | 5.5-7 kg/t | 10kg/t | ||
LB4000 | 320t/h | 4000kg | ≤20 mg/Nm³ | 870kw | 5.5-7 kg/t | 10kg/t | ||
LB5000 | 400t/h | 5000kg | ≤20 mg/Nm³ | 960kw | 5.5-7 kg/t | 10kg/t | ||

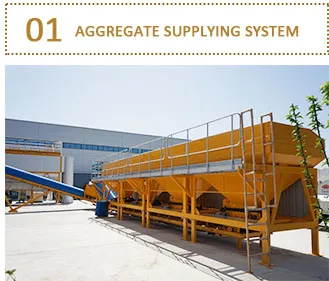

1. Protective plates on both sides of the aggregate hoppers to avoid sundries getting into the aggregates and conveying belt;
2. To make the supplying smoother, vibrators are equipped below each hopper;
3. Adds grid plate at top of each hopper to buffer the shock from aggregates flow, meanwhile it screens oversize aggregates;
4. Conveying belt is protected by dustproof cover to reduce dust emission;
5. Adds belt cleaners and pinch rollers to make the aggregates supplying more fluent and accurate, besides, they also extend the
belt durability;
6. Small vibrating screen is added between belts, to further screen oversize aggregates;
7. The supplying system has insufficient material alarm system, ensuring a safe and smooth production.
2. To make the supplying smoother, vibrators are equipped below each hopper;
3. Adds grid plate at top of each hopper to buffer the shock from aggregates flow, meanwhile it screens oversize aggregates;
4. Conveying belt is protected by dustproof cover to reduce dust emission;
5. Adds belt cleaners and pinch rollers to make the aggregates supplying more fluent and accurate, besides, they also extend the
belt durability;
6. Small vibrating screen is added between belts, to further screen oversize aggregates;
7. The supplying system has insufficient material alarm system, ensuring a safe and smooth production.
1. Driving units have auto lubrication device, greatly reduces labor cost;
2. Different areas inside the drying drum have different blade configurations, which can handle aggregates in different processes;
3. The rolling rings and rollers are applying high strength wear-resisting material. Deviation preventing rollers for both rolling
rings;
4. The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;
5. The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.
2. Different areas inside the drying drum have different blade configurations, which can handle aggregates in different processes;
3. The rolling rings and rollers are applying high strength wear-resisting material. Deviation preventing rollers for both rolling
rings;
4. The cylinder adopts boiler steel and stainless steel skin, which gives it high temperature resistance and non-deformability;
5. The cylinder employs thermal insulating rock wool material that can maintain the temperature inside, reducing heat loss.
1. The aggregates elevator takes modular design with newest dust sealing structure;
2. Elevator applies double plate link chains design, which extends the elevator's service life and reduces maintain frequency;
3. Excellent leakproofness with the moters;
4. Applies famous cycloidal pin gear speed reducers, more powerful and reliable;
5. The aggregates slide tunnel adopts damping structure wear-resisting plate link chains to enhance the performance.
2. Elevator applies double plate link chains design, which extends the elevator's service life and reduces maintain frequency;
3. Excellent leakproofness with the moters;
4. Applies famous cycloidal pin gear speed reducers, more powerful and reliable;
5. The aggregates slide tunnel adopts damping structure wear-resisting plate link chains to enhance the performance.
1. Vibrating screens that apply world famous vibration motors are completely sealed;
2. Aggregate storage bin adopts large bin structure to avoid material overflow;
3. Aggregate bins are separated by high strength wear-resisting plate to avoid aggregates mixing.;
2. Aggregate storage bin adopts large bin structure to avoid material overflow;
3. Aggregate bins are separated by high strength wear-resisting plate to avoid aggregates mixing.;

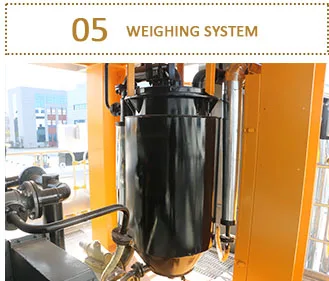

World famous brand (TOLEDO) weighment devices are adopted to make sure that the measurement error of aggregates is below 0.5%, and
the measurement error of bitumen and filler is below 0.25%.
the measurement error of bitumen and filler is below 0.25%.

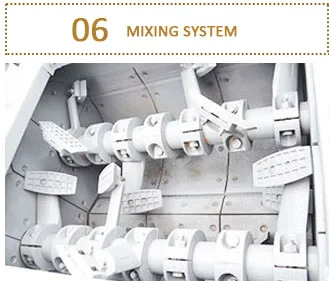

1. The mixer, mixing blades and liner plates are all using the best materials with high hardness and high abrasion performance;
2. The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.
2. The cycloidal pin gear speed reducer has better transmission efficiency and simpler structure.
1.The storage silo has heating device to keep the temperature and quality of final mixture;
2. The silo has anti-blocking device to keep asphalt quality.
2. The silo has anti-blocking device to keep asphalt quality.
1. Double dust collecting systems, including the primary volute collector that gets rid of large size dust and secondary baghouse
collector that further gets rid of the rest;
2. Famous brand induced draft fan is employed, guaranteeing high efficiency yet low power comsumption.
collector that further gets rid of the rest;
2. Famous brand induced draft fan is employed, guaranteeing high efficiency yet low power comsumption.
Q1.Are you factory or a trading company?
A: We are factory and a professional manufacturer of asphalt mixing plant.
Q2: What is the delivery time?
A: 30-50days after receiving advance payment
Q3: What is the payment terms?
A: T/T. L/C are all accept.
Q4: Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking,
etc.
Q5: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems.
Q6: Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate
the plant.
Q8: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
A: We are factory and a professional manufacturer of asphalt mixing plant.
Q2: What is the delivery time?
A: 30-50days after receiving advance payment
Q3: What is the payment terms?
A: T/T. L/C are all accept.
Q4: Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking,
etc.
Q5: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems.
Q6: Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate
the plant.
Q8: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
