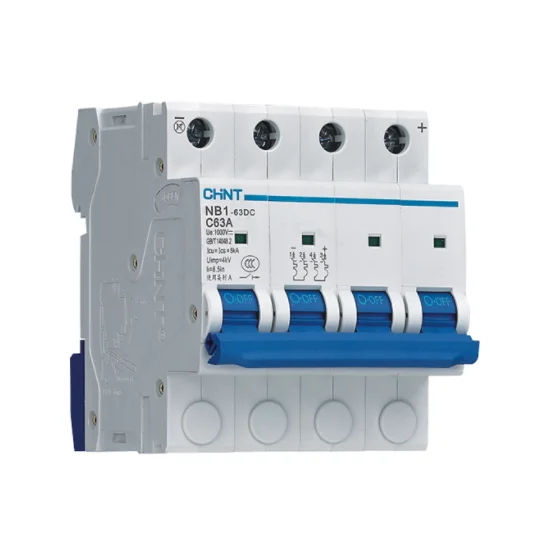

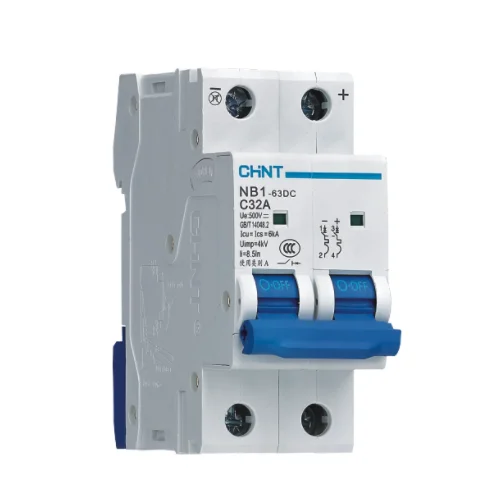

CHINT original DC Miniature Circuit Breaker NB1 63DC DC MCB 1 63A 1P 2P 4P
- Category: >>>
- Supplier: Wenzhou Meixun Import & Export Co. Ltd.
Share on (1600708680128):
Product Overview
Description
Product Description
Product Information
Brand Name: CHINT
product name: NB1-63DC miniature circuit breaker

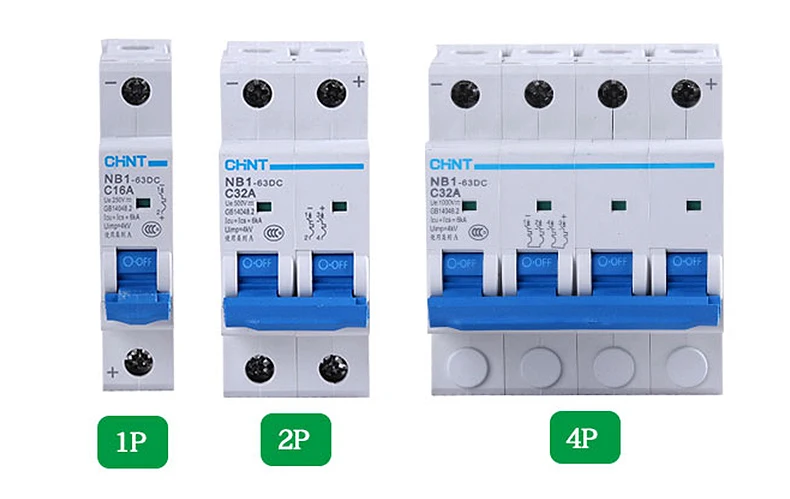

Place of Origin: Zhejiang, China (Mainland) Poles Number: 1P/2P/4P
Voltage: 250V/500V/1000V
Current: 1-63A

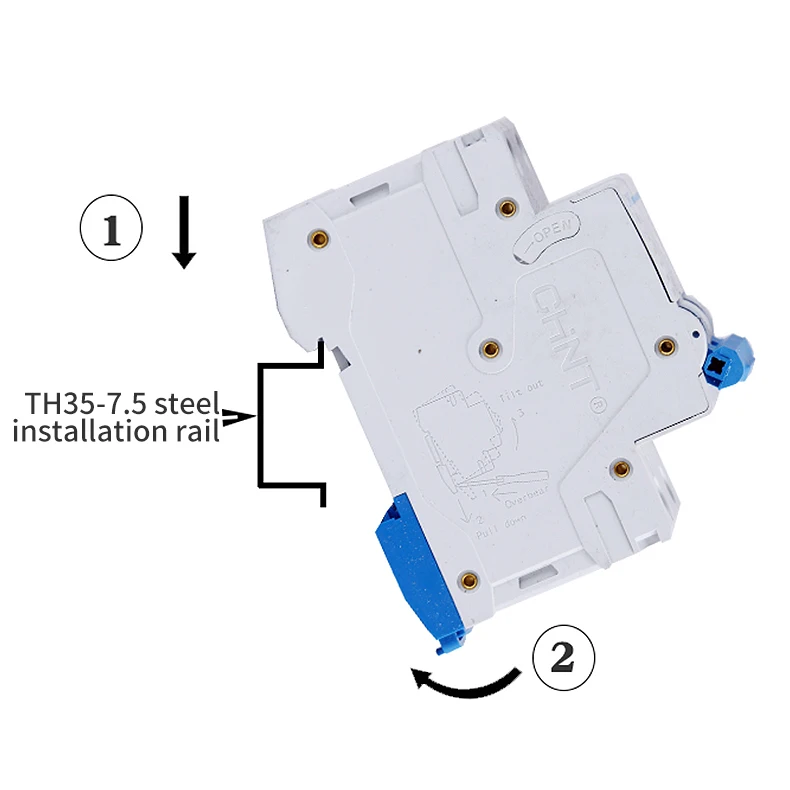

Installation method: DIN-Rail Mounting Certificate: CCC、CE、CB、TUV
Specification
Prompt for safe electricity use
For electricity-related maintenance and installation, be sure to ensure that the operator has electrical work qualifications and
take necessary power-off and insulation protection measures.
take necessary power-off and insulation protection measures.
NB1-63DC DC circuit breaker used for dc rated voltage up to 1000V, rated current up to 63A line, start and pass It is used for
load and short circuit protection, and can also be used for infrequent operation conversion of lines.
load and short circuit protection, and can also be used for infrequent operation conversion of lines.
Circuit breakers are suitable for dc system applications such as communication and photovoltaic systems. Comply with the standards: GB/T 14048.2, IEC
60947-2, EU RoHS environmental protection requirements, CCC, CE,CB and TUV certification.
60947-2, EU RoHS environmental protection requirements, CCC, CE,CB and TUV certification.

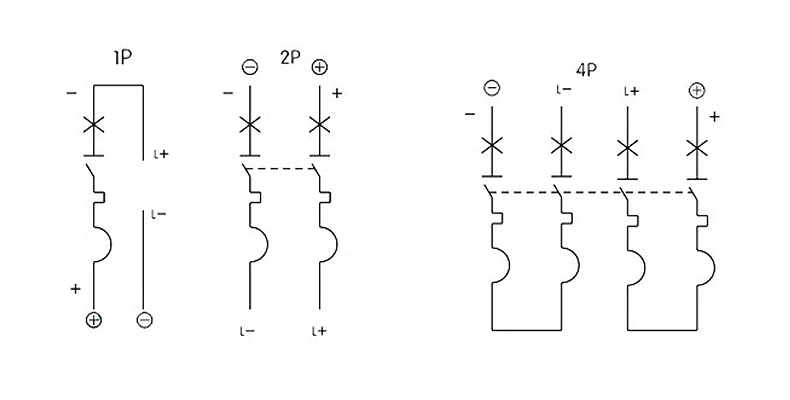

Wiring diagram description:
1、+ positive, －cathode；
2、L+ load positive, L- load negative;
3、Do not reverse connect the positive and negative terminals of the power supply;
4、Rated voltage: 125V/ 250V DC(1P);250V/ 500V DC( 2P)；500V/ 1000V DC( 4P).
2、L+ load positive, L- load negative;
3、Do not reverse connect the positive and negative terminals of the power supply;
4、Rated voltage: 125V/ 250V DC(1P);250V/ 500V DC( 2P)；500V/ 1000V DC( 4P).
Product features
1、Good breaking ability;
2、Wire and busbar double wiring function;
3、Energy storage operation, fast closure, long life;
4、Convenient installation and disassembly;

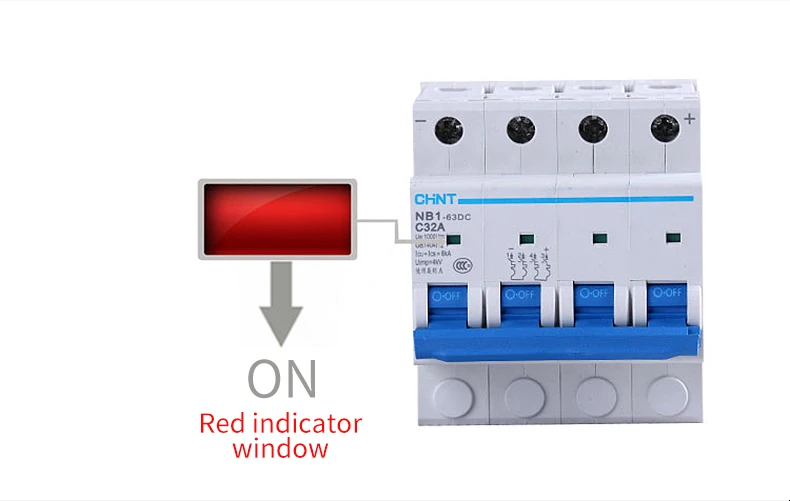

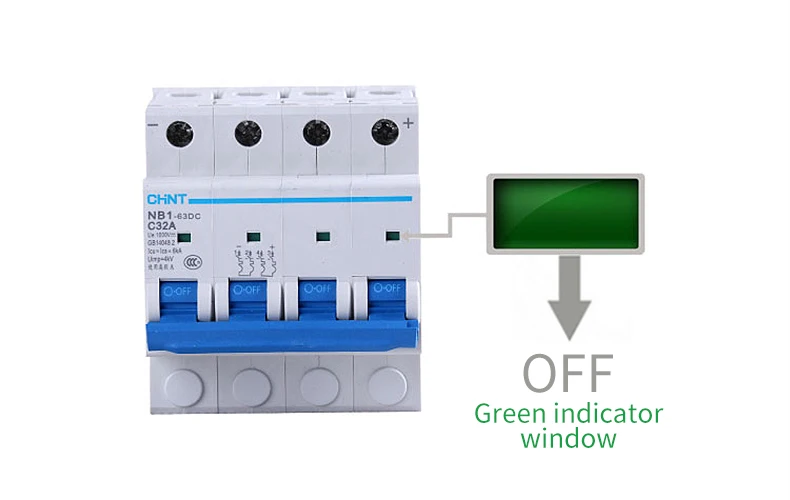

5、Contact on and off indication, higher safety;
6、Green, environmental protection and energy saving.
2、Wire and busbar double wiring function;
3、Energy storage operation, fast closure, long life;
4、Convenient installation and disassembly;
5、Contact on and off indication, higher safety;
6、Green, environmental protection and energy saving.
