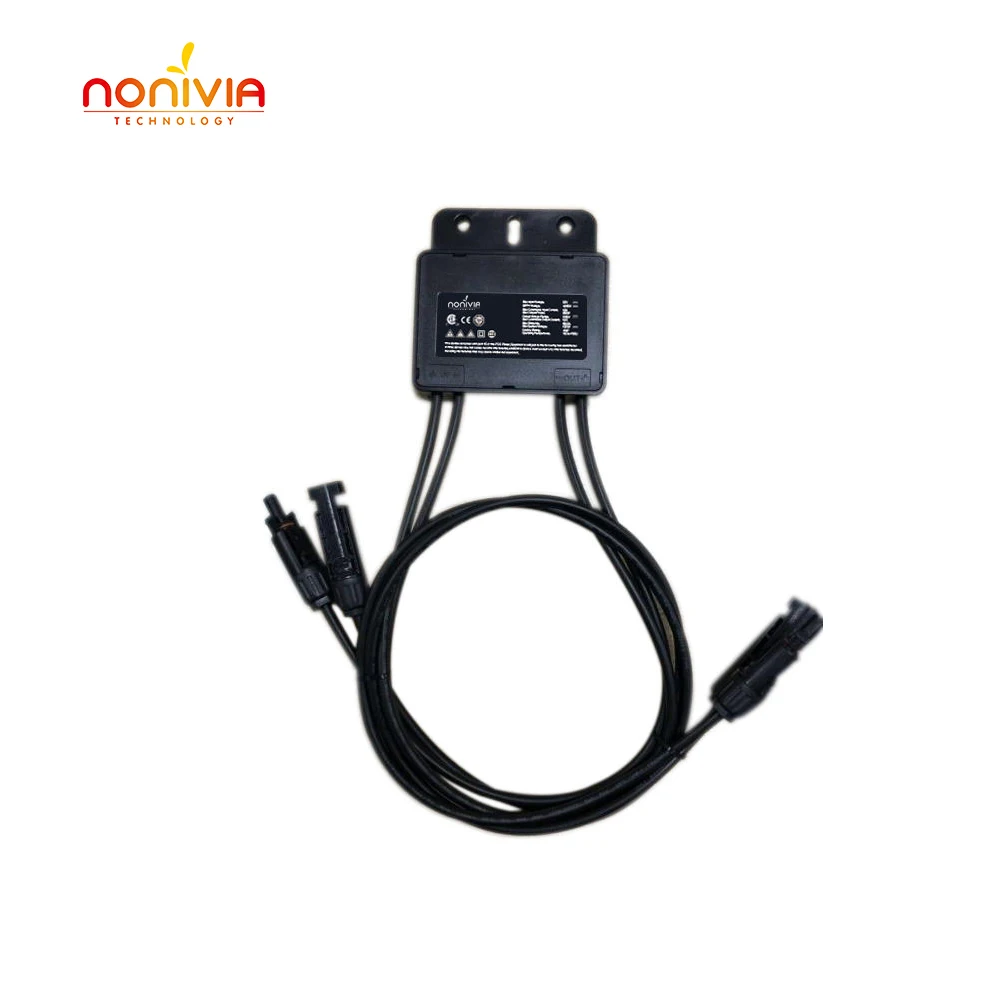

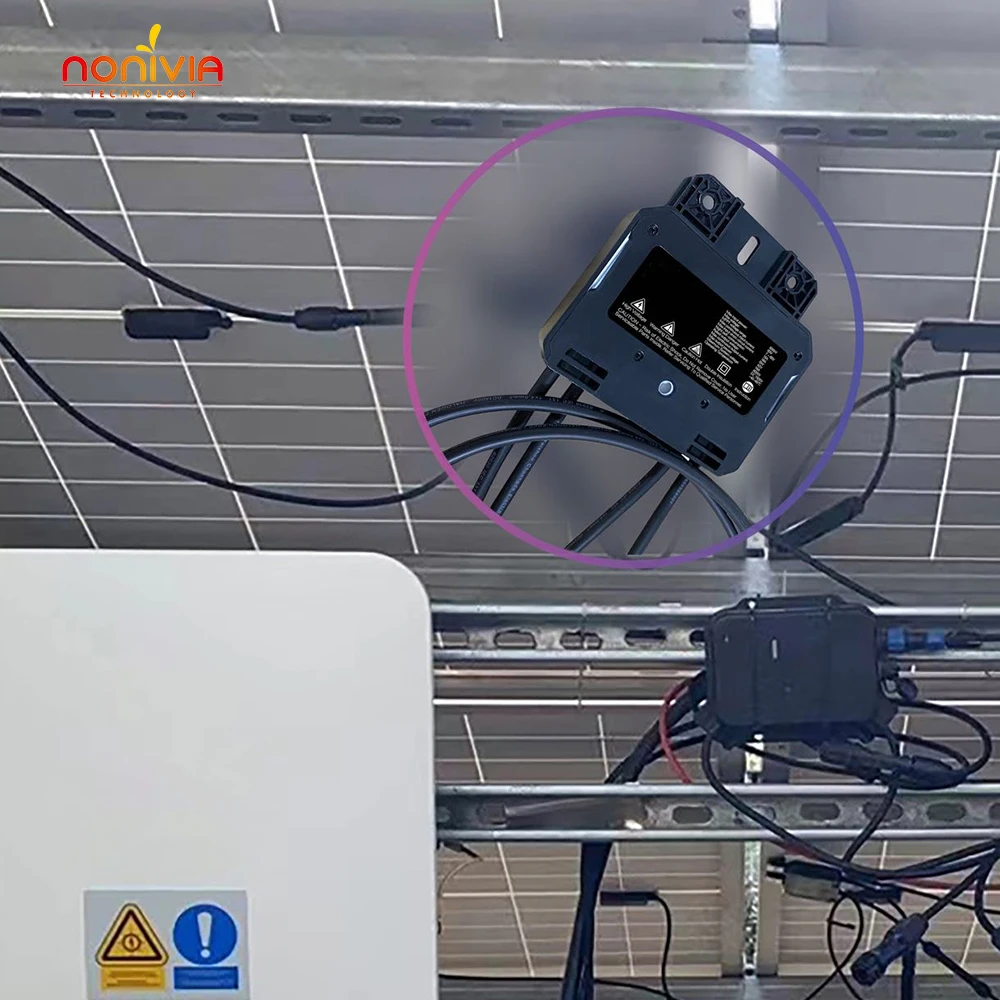

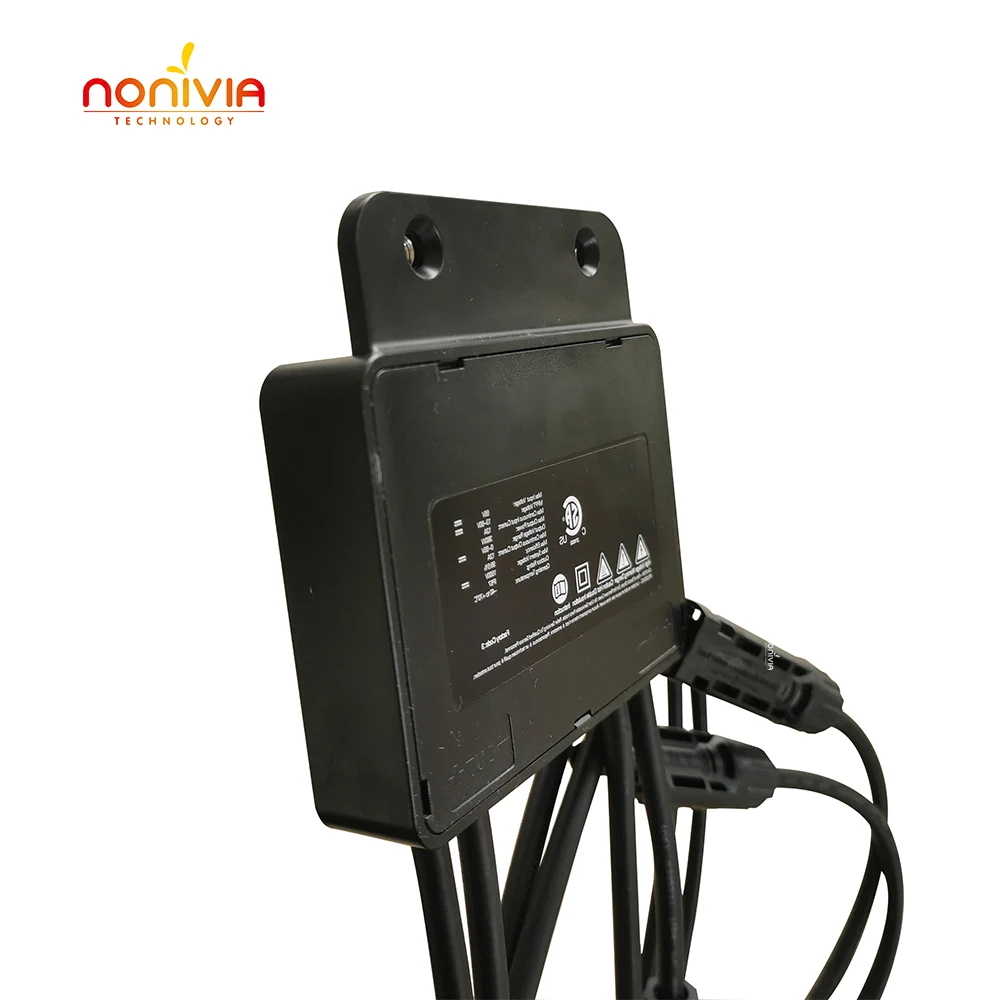

wholesale oem dc smart energy efficiency rapid shutdown 250w photovoltaic solar panels system products mppt pv power optimizer
- Category: >>>
- Supplier: Nonivia Technology Co. Ltd.
Share on (1600708684644):
Product Overview
Description
Product Description
Model | NV-OPT | |
DC input | ||
Max input power | 600W | |
Operation voltage range | 7 ~ 60V | |
MPPT voltage range | 7 ~ 60V | |
Max input current | 16A | |
Over-current protection | 18A | |
Over-temperature protection | 150℃ | |
DC output | ||
Max output current | 16A | |
Output voltage limit | 42V | |
Max system voltage | 1500V | |
72-cell module in serial @1500V | 36 pcs | |
72-cell module in serial @1100V | 26 pcs | |
72-cell module in serial @1000V | 24 pcs | |
Efficiency | ||
Peak efficiency | 99.5% | |
Power loss @5A | 0.9W | |
Power loss @8A | 1.4W | |
Power loss @12A | 2.9W | |
Power loss @15A | 4.5W | |
Power loss @20A | 7.2W | |
General data | ||
Dimensions ( L×W×H ) | 103×105.3×21.3mm | |
Weight | 0.65Kg | |
input/output cable length | 150/1050mm | |
input/output cable size | 4mm²(12AWG) / 4mm²(12AWG) | |
Terminals | MC4(compatible) | |
Environmental Protection Rating | IP67/NEMA6 | |
Relative humidity | 0~100%RH | |
Operating temperature range | -40~+65°C | |
Cooling | Natural cooling | |

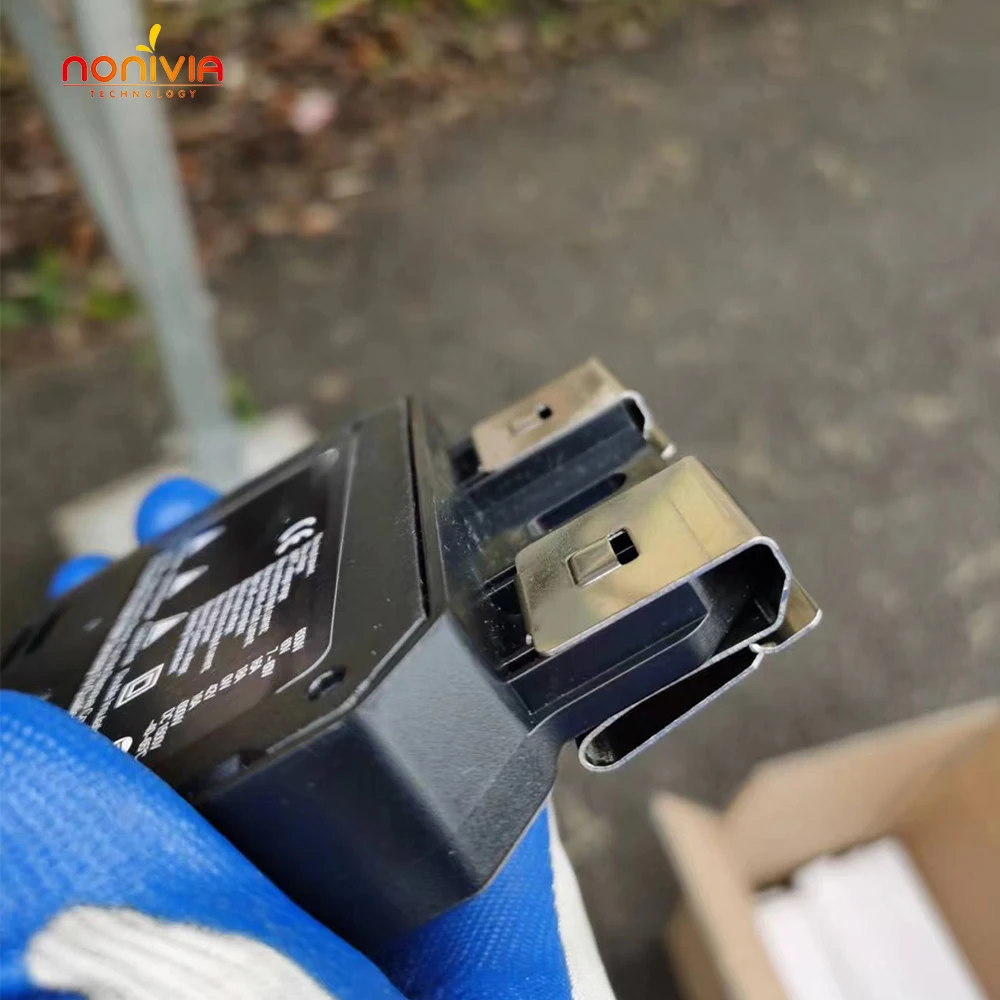

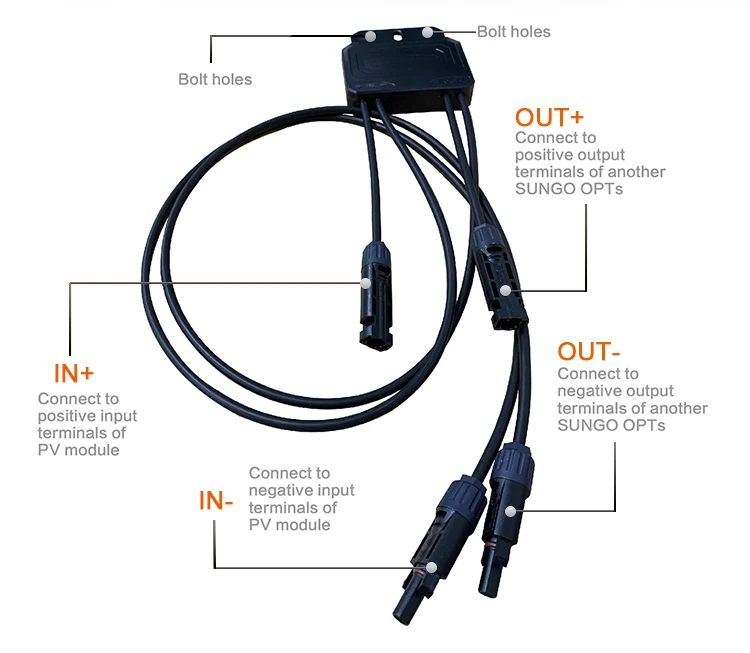

Product Details

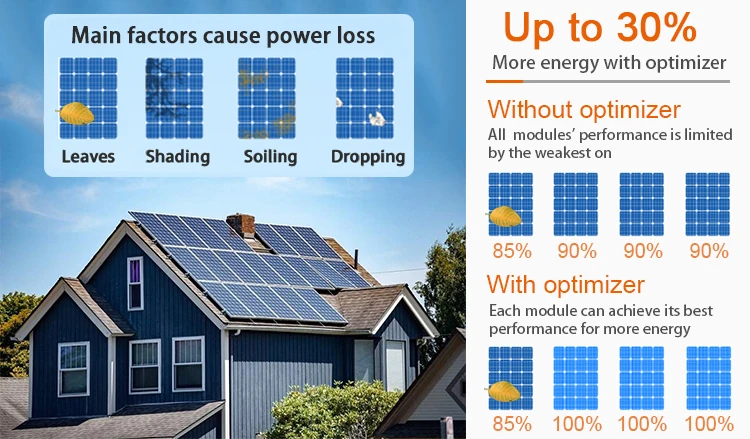

Advantages

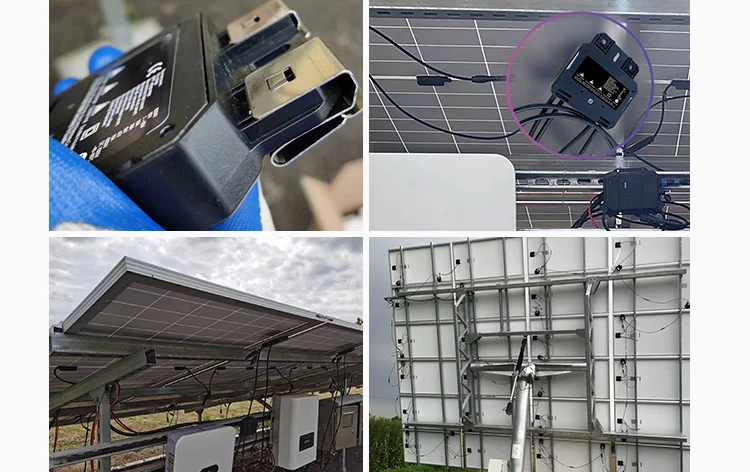

Project & Application

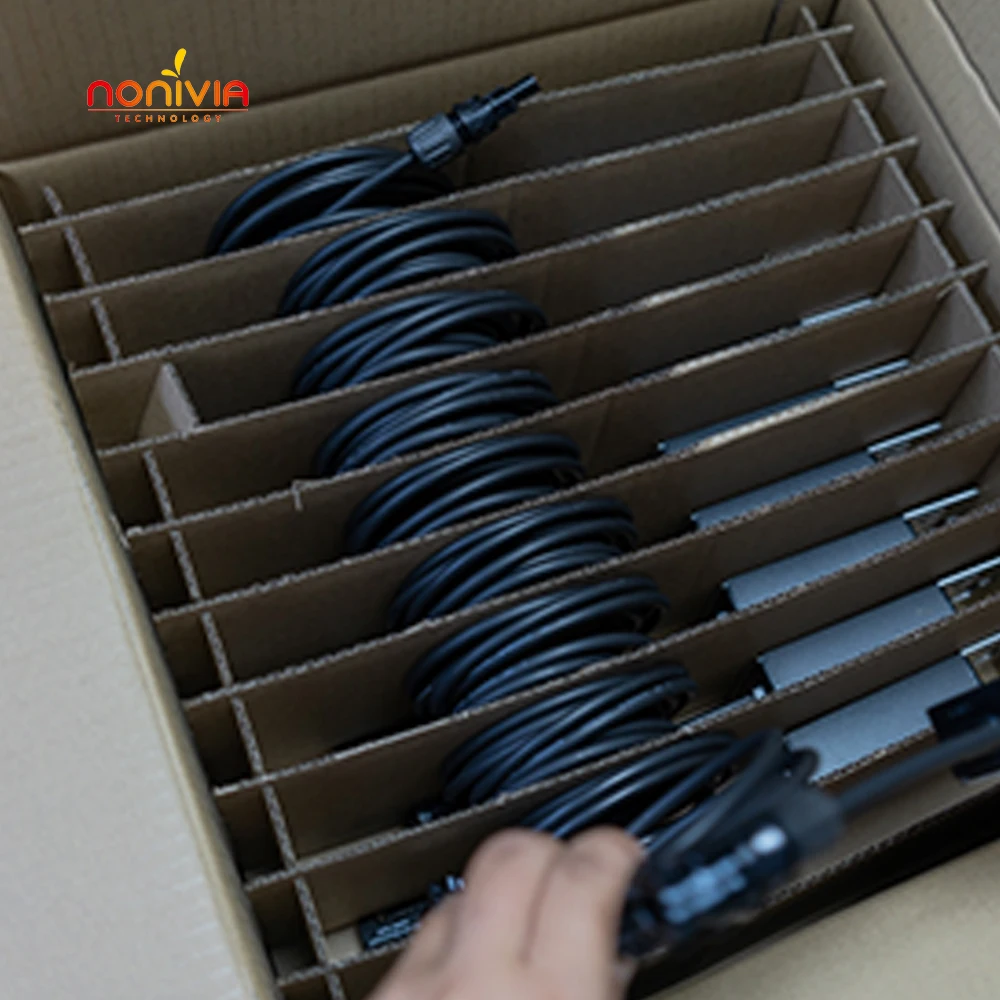

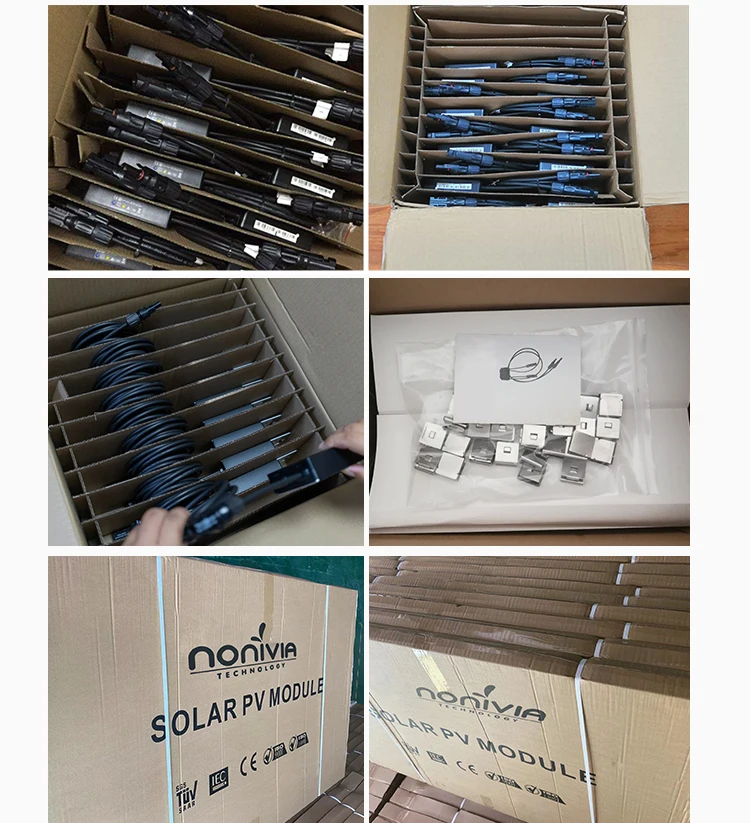

Packing & Delivery
