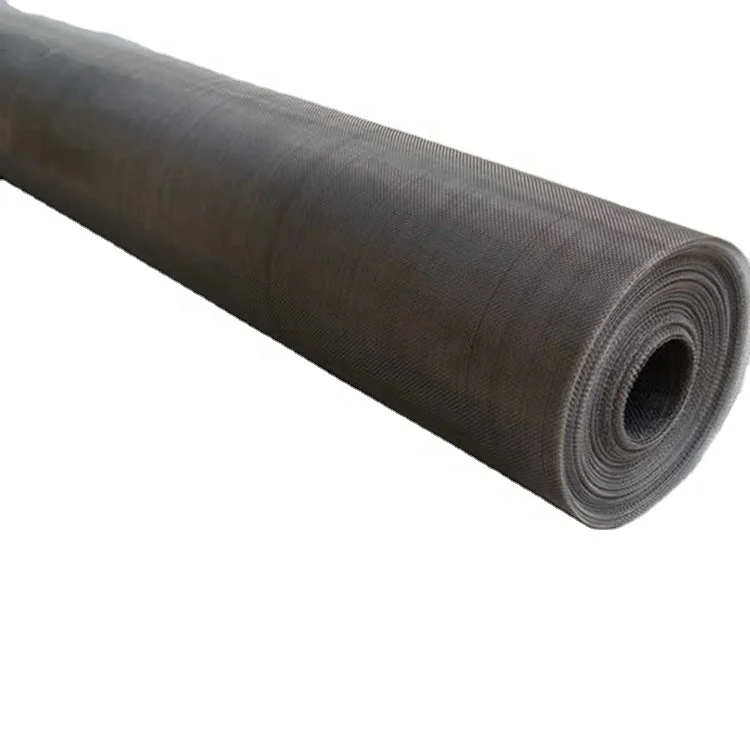

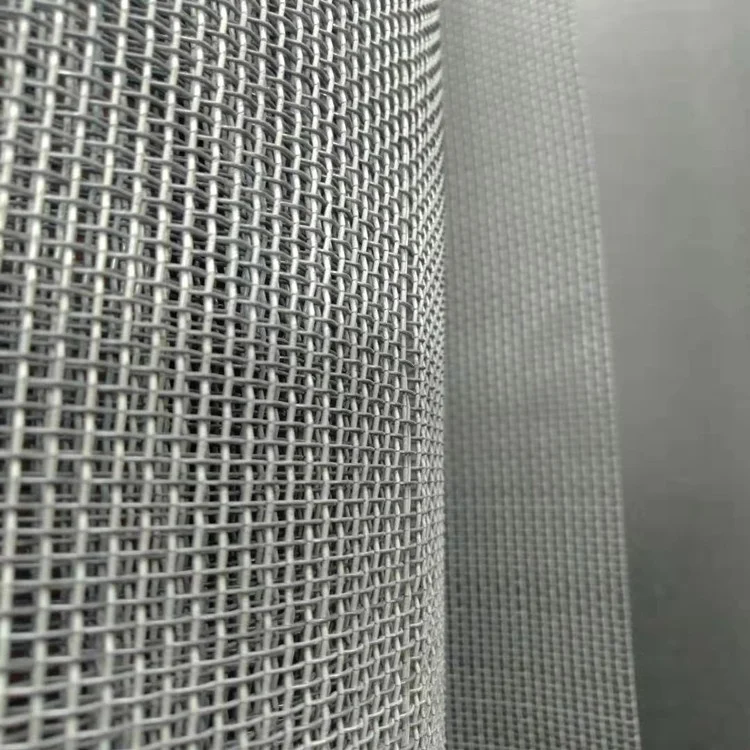

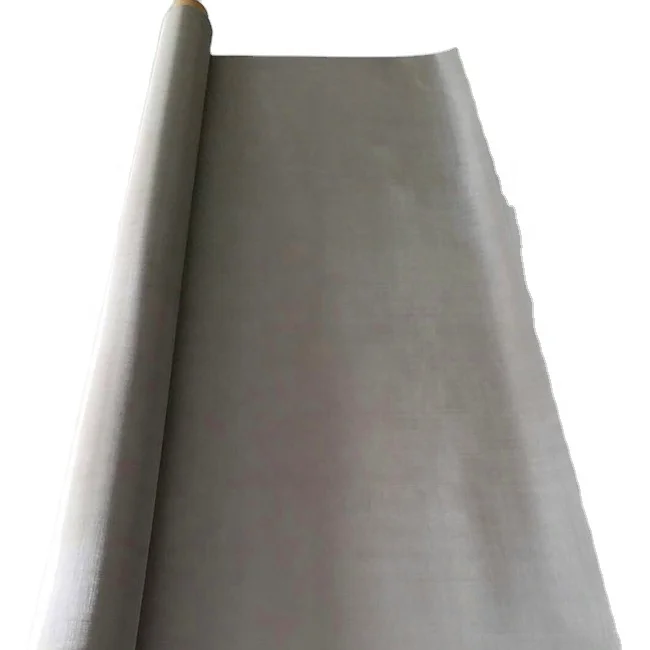

High Quality 12 20 25 30 80 150 Mesh Stainless Steel Woven Square Sift Mesh screen mesh
- Category: >>>
- Supplier: Xinxiang Xin Ming De Machinery Co. Ltd.
Share on (1600709025035):
Product Overview
Description
Product Overview
Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc
More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc
Specification customization: Wire Diameter, Mesh Count, Weave type

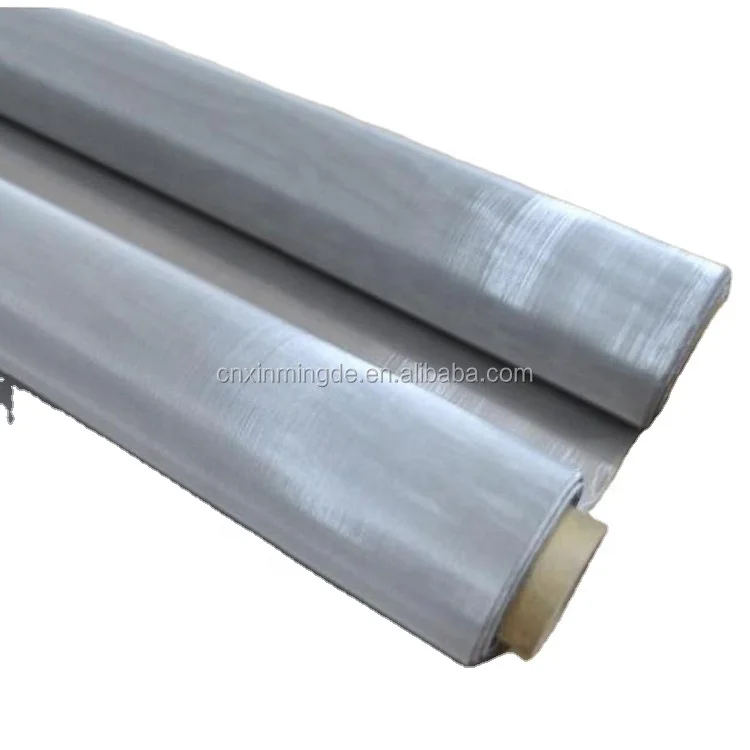

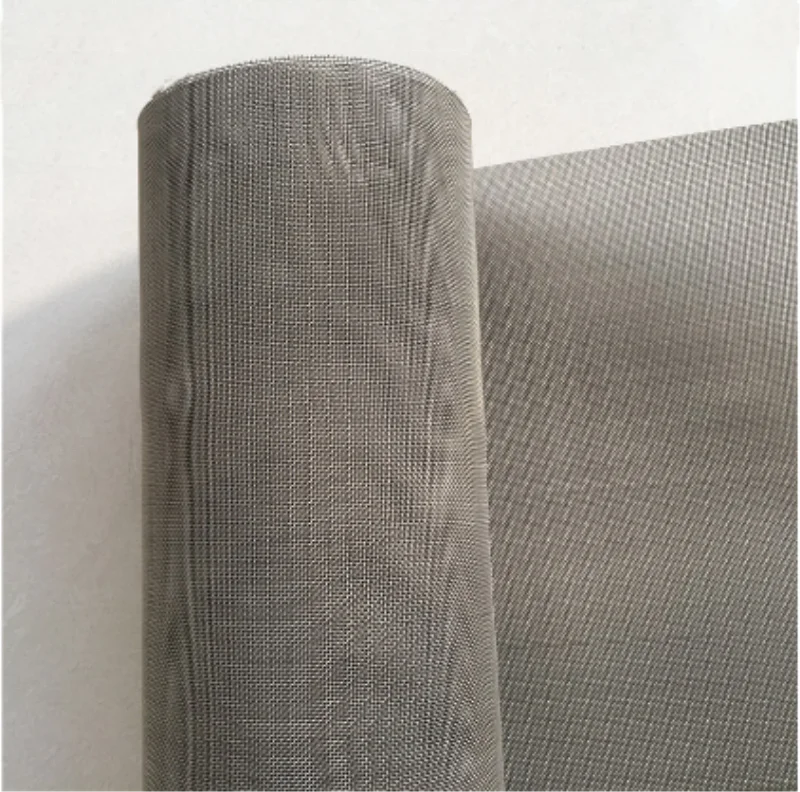

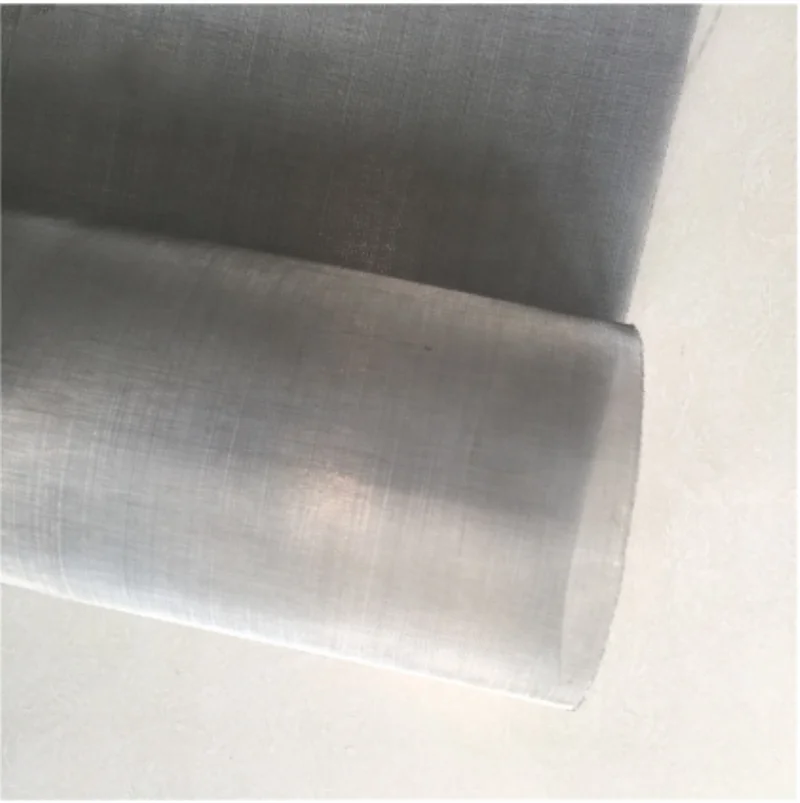

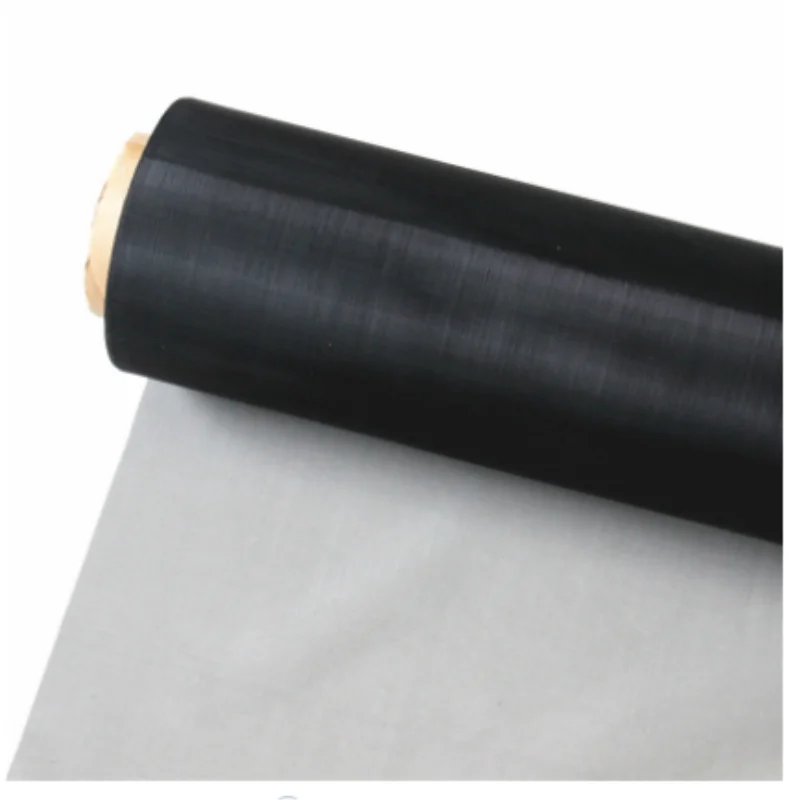

Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Product Name | Woven Wire Mesh, Wire Cloth |
Stainless Steel Grade | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
Special Material Options | Inconel, Monel, Nickel, Titanium, etc |
Wire Diameter Range | 0.02 - 6.30mm |
Hole Size Range | 1 - 3500mesh |
Plain Weave Twill Weave Dutch or 'Hollander' Weave Plain Dutch Weave Twill Dutch Weave Reverse Dutch Weave Multiplex Weave | |
Mesh Width | Standard less than 2000 mm |
Mesh Length | 30m rolls or cut to length, minimum 2m |
Mesh Type | Rolls and sheets are available |
Production Standards | ASTM E2016 - 20 |
Certification | ISO9001: 2015 |

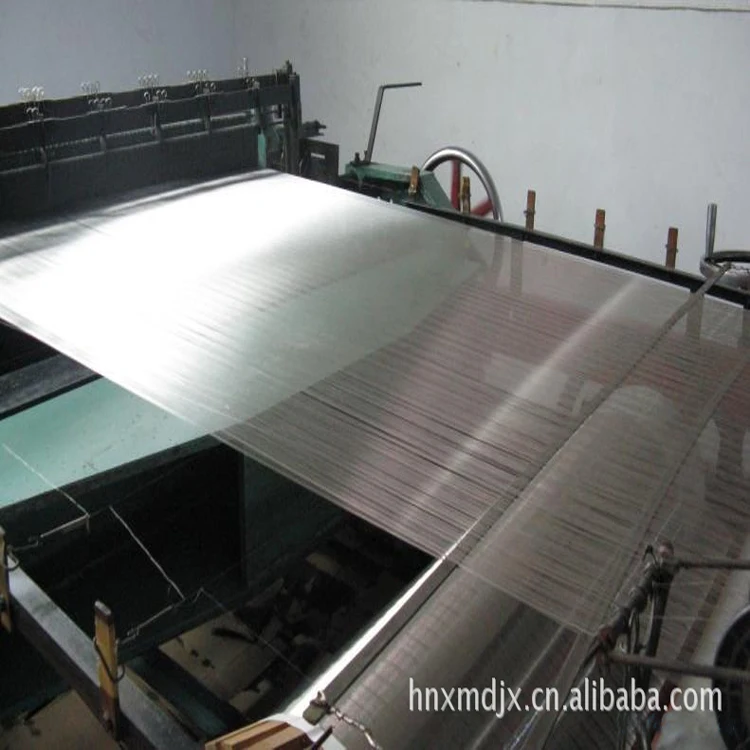

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.
And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.

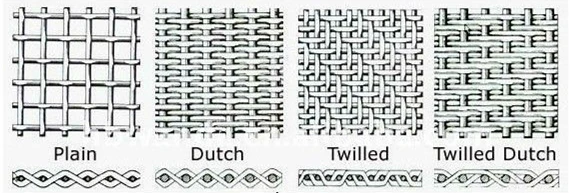

Weave Types
Wire Mesh can provide many different weaves to meet different application needs. the weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. are the show of some common styles we weave here
FEATURES AT A GLANCE
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30-635mesh.
Common Width:0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh:
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.
Common Width:0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh:
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.

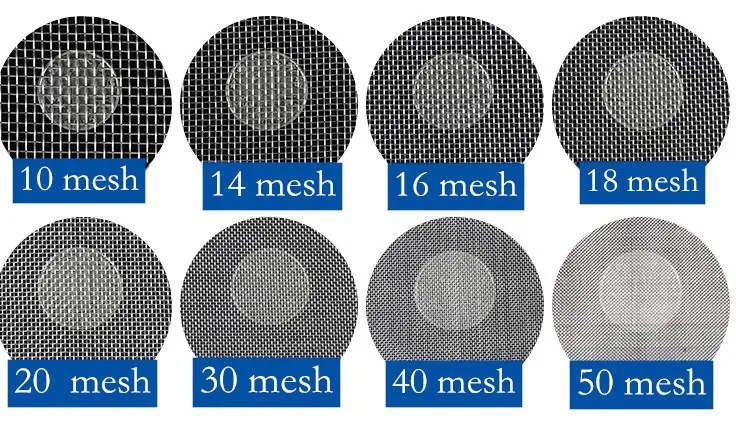

Mesh, Mesh Count, and Micron Size
Mesh Count and Micron Size are some of the important terms in the wire mesh industry. The Mesh count is calculated by the number of the holes in an inch of mesh, so the smaller is the woven holes the bigger is the number of holes. The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
More intuitive expression:
Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole) Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)
PRODUCT SPECIFICATIONS
Stainless Steel Wire Mesh | ||||||||||
Mesh/inch | Wire Diameter | Aperture | Mesh/inch | Wire diameter | Aperture | |||||
(mm) | (mm) | (mm) | (mm) | |||||||
2mesh | 1.8 | 10.9 | 60mesh | 0.15 | 0.273 | |||||
3mesh | 1.6 | 6.866 | 70mesh | 0.14 | 0.223 | |||||
4mesh | 1.2 | 5.15 | 80mesh | 0.12 | 0.198 | |||||
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |||||
6mesh | 0.8 | 3.433 | 100mesh | 0.1 | 0.154 | |||||
8mesh | 0.6 | 2.575 | 120mesh | 0.08 | 0.132 | |||||
10mesh | 0.55 | 1.99 | 140mesh | 0.07 | 0.111 | |||||
12mesh | 0.5 | 1.616 | 150mesh | 0.065 | 0.104 | |||||
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |||||
16mesh | 0.4 | 1.188 | 180mesh | 0.053 | 0.088 | |||||
18mesh | 0.35 | 1.06 | 200mesh | 0.053 | 0.074 | |||||
20mesh | 0.3 | 0.97 | 250mesh | 0.04 | 0.061 | |||||
26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |||||
30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |||||
40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |||||
50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |||||
Width of Stainless Steel Wire Mesh: 0.6m-8m | ||||||||||
Mesh by Application
Perfectly suited for a wide array of architectural and functional purposes, stainless steel wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, papermaking, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.
一 . Photovoltaic panels: home use, commercial use, agricultural use, transportation use, military use
二. Semiconductor circuit boards: used in computers, household appliances, digital electronics, electrical, communications, transportation, medical, aerospace and many other fields.
三. Automotive power batteries (battery materials): mainly concentrated in the fields of automobiles, aerospace, logistics, medical care, industry.
四. Cathode materials: mainly lithium iron phosphate and ternary materials
五. Anode materials: used in consumer electronics, new energy vehicles, energy storage equipment and other fields
六. 3D printing materials: 3D printing technology can be used in the aerospace field for fixtures, part production, and processing of composite materials.
二. Semiconductor circuit boards: used in computers, household appliances, digital electronics, electrical, communications, transportation, medical, aerospace and many other fields.
三. Automotive power batteries (battery materials): mainly concentrated in the fields of automobiles, aerospace, logistics, medical care, industry.
四. Cathode materials: mainly lithium iron phosphate and ternary materials
五. Anode materials: used in consumer electronics, new energy vehicles, energy storage equipment and other fields
六. 3D printing materials: 3D printing technology can be used in the aerospace field for fixtures, part production, and processing of composite materials.
The above are some of the applications of wire mesh we listed. In fact, woven wire mesh has a seemingly infinite range of
applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.
applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.
Wire mesh offers many benefits including:
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
-High open area/flow rate.
-Closely controlled, accurate apertures.
-Smooth surface - screening surface has no sharp edges, burrs or acute angles.
-Very high-temperature tolerance (variable according to metal selected).
-Usable under high pressure.
-Flexible - ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
-High durability. -Self-supporting.
-Suitable as upper for less rigid media.
-Stable under tension.
-The weaving process uses no punching, piercing or stretching operations that create stress-induced weaknesses.
-The weaving process uses no punching, piercing or stretching operations that create stress-induced weaknesses.
-Point contact only on the screened product allows freer screening and reduced binding.
-Corrosion, abrasion and heat resistance.
-Highly aesthetic appeal for architectural applications.
-Hygienic characteristics and cleanability are specifically suitable for the food and pharmaceutical industries.
-Cost-effective.
Recommend Products

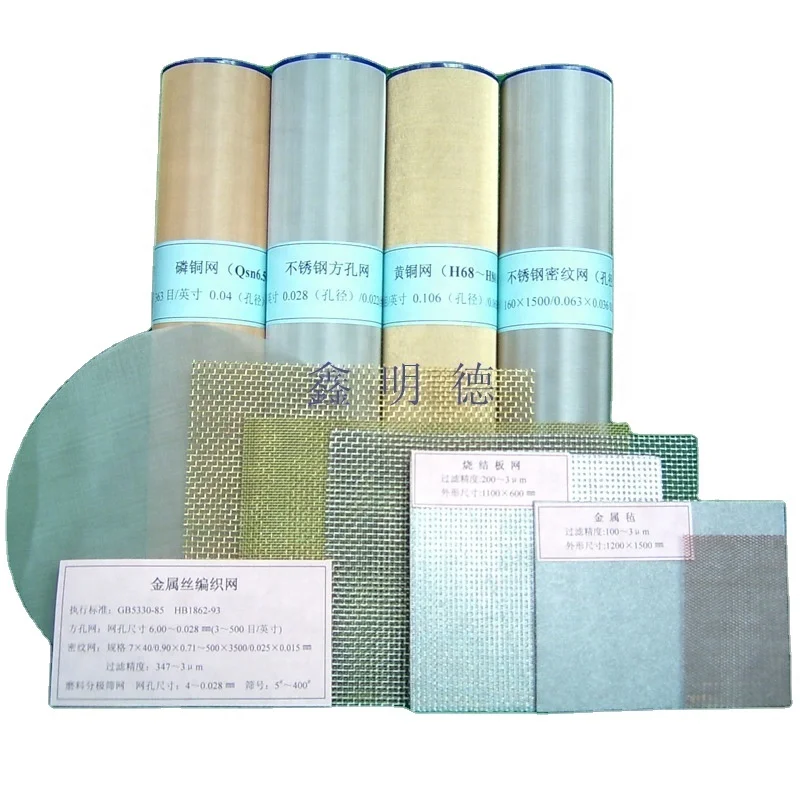

Company Profile
Xinxiang XinMingDe machinery co., LTD., located in Xinxiang of Henan province high and new technology development zone 2 pioneer park, is a production and sales all kinds of "precision screen (1-800 mesh), filter, filter wire mesh, steel wire spiral sets, fixture, vibration sieving equipment" consisting mainly of high-tech enterprises.
Its products are widely used in aviation, aerospace, petroleum, chemical engineering, metallurgy, abrasive grinding tools,
medicine and other industries. Mesh material Stainless steel ,brass ,nickel wire mesh ,titanium wire mesh ,monel wire mesh ,molybdenum wire mesh ,tungsten wire mesh ,tantalum wire mesh ,inconel wire mesh etc
Its products are widely used in aviation, aerospace, petroleum, chemical engineering, metallurgy, abrasive grinding tools,
medicine and other industries. Mesh material Stainless steel ,brass ,nickel wire mesh ,titanium wire mesh ,monel wire mesh ,molybdenum wire mesh ,tungsten wire mesh ,tantalum wire mesh ,inconel wire mesh etc
Scope of business:

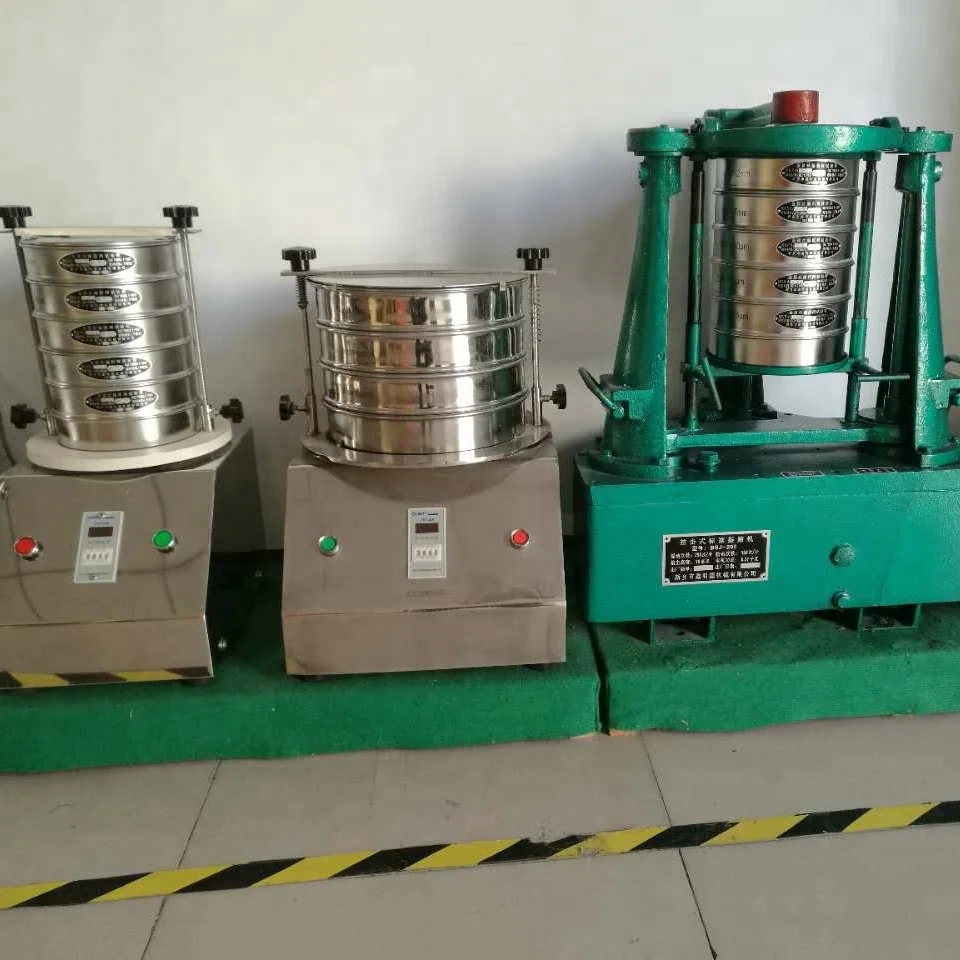

A , screening A hierarchical sorting series: all kinds of metal precision screen 1-635 mesh (mesh size 25-0.02 mm), abrasive industry standard grading sieve (8 # - 500 #), 200 test sieve Φ, check screen, electric screen, slapping type standard sieve
