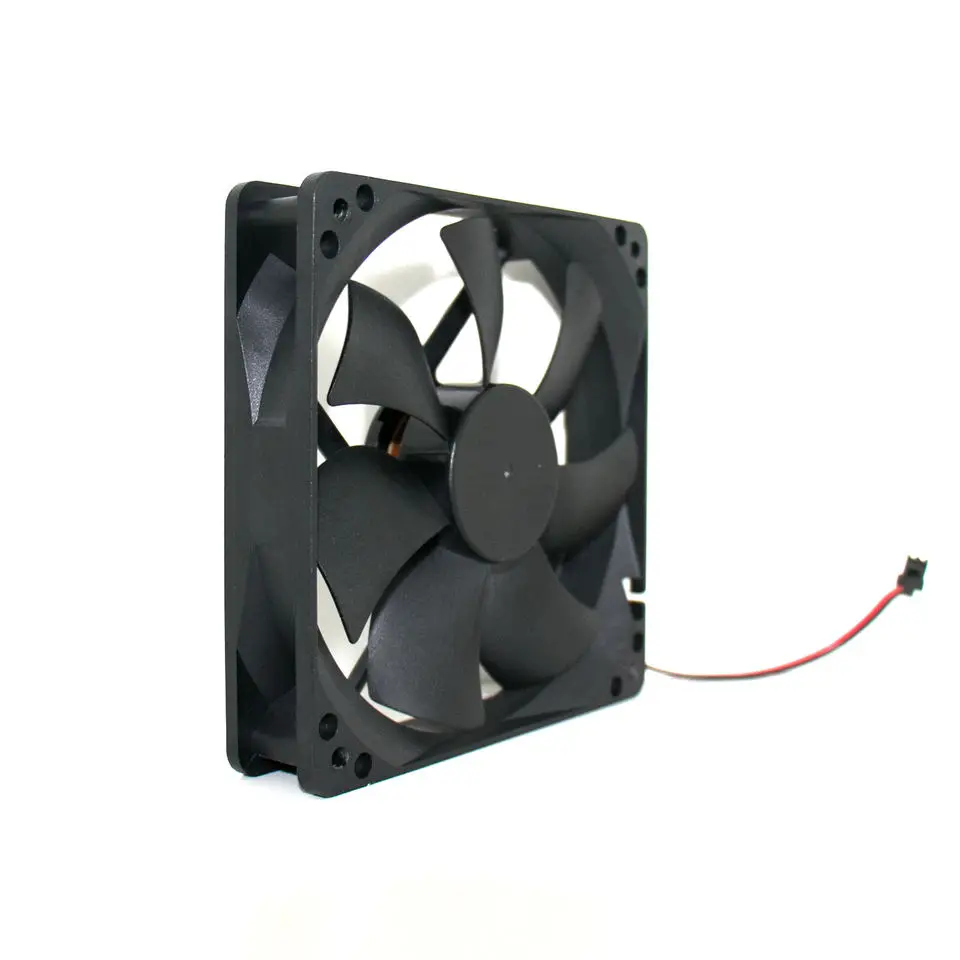

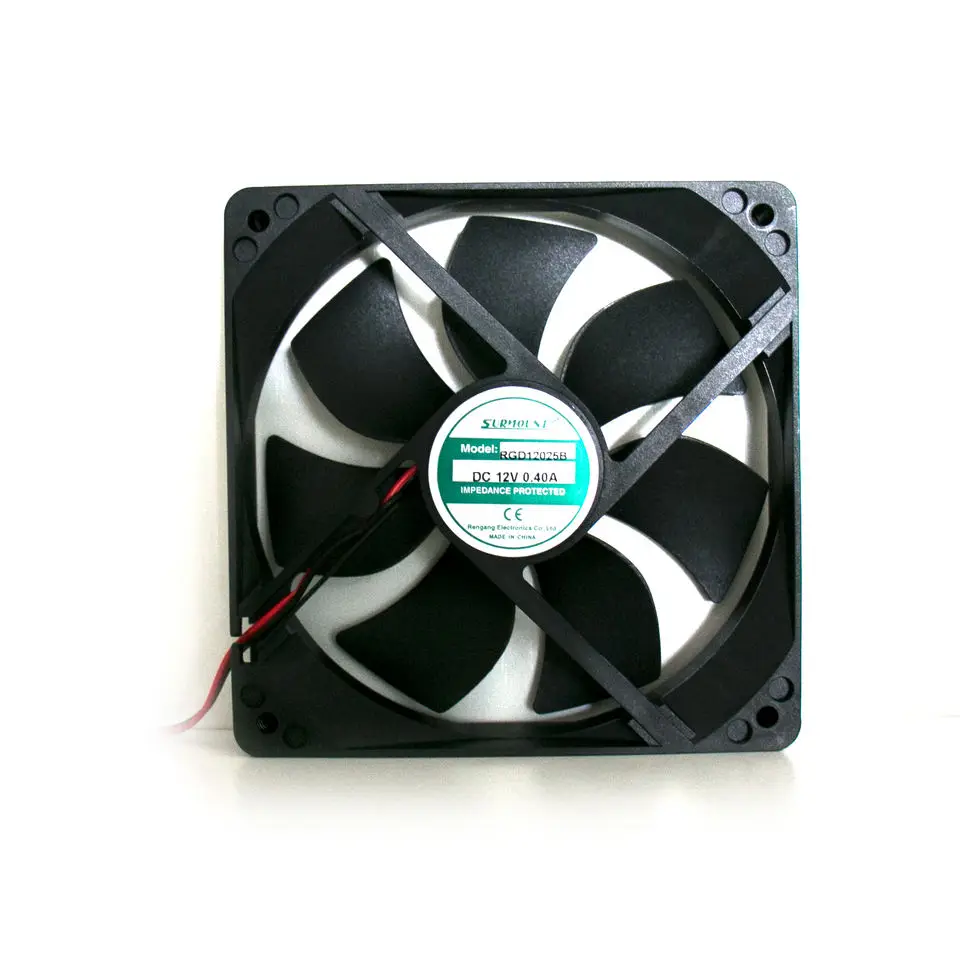

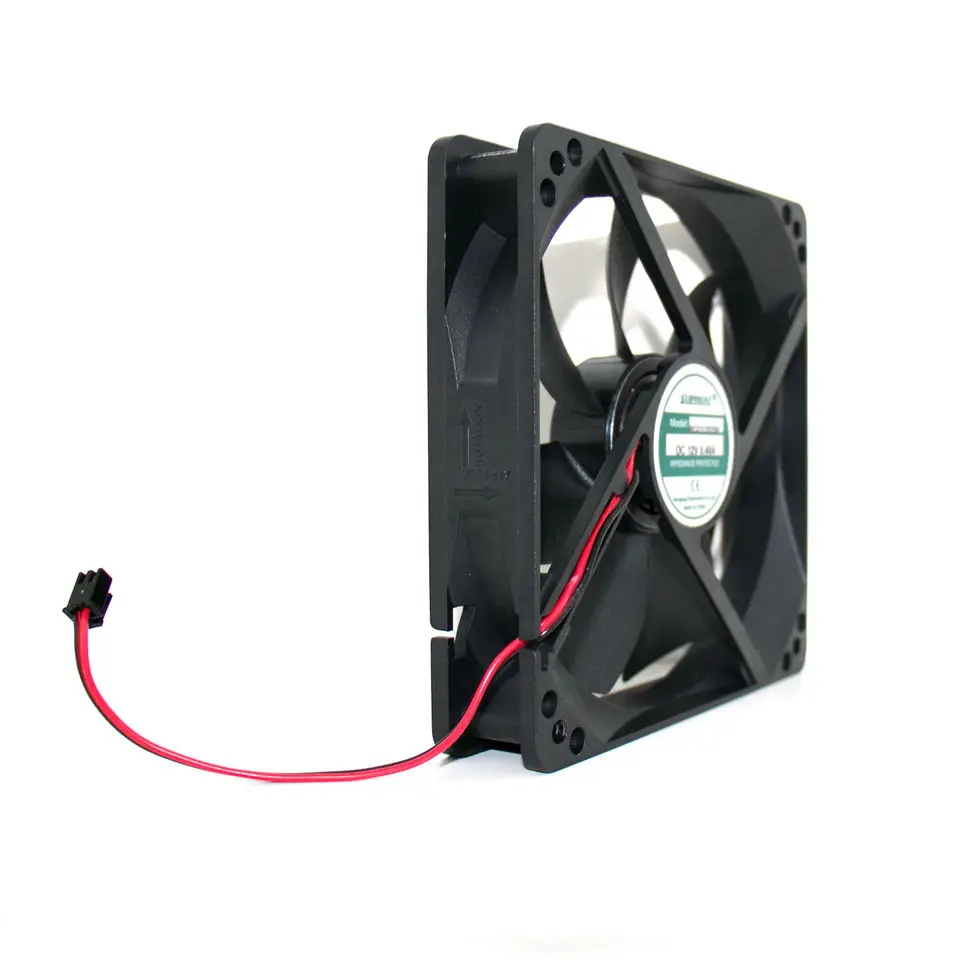

12 Volt Brushless Dc Fan 92x92x25mm 9225 24 48V Axial Flow Cooling Fan
- Category: >>>
- Supplier: Shenzhen Rengang Electronics Co. Ltd.
Share on (1600709056489):
Product Overview
Description
Product Description
Electrical Specification | ||||||
Item | Specification/Condition | |||||
Dielectric Strength | 500V/1mA/2s | |||||
Insulation Resistance | 10MΩ (Ambient temperature 25℃) | |||||
Temperature Test of Run | △t=<70℃ Rated Voltage | |||||
Locked Rotor Protection | △t=<130℃ Rated Voltage | |||||
Pound resistance | It can withstand the shock from all three axis by 60g and two times per 11ms. | |||||
Vibration resistance | It can withstand the vilratiom from 5-30Hz,0.04g to 30-500Hz,2g peak to peak amplitude for 5 minutes to all three axis. | |||||
Lock Test | Locked for at least 72hrs at rated voltage,the fans run normally after lock released. | |||||
Reversal Volage Test | Test with reversal working voltage for 2~3minutes,all remain still,but all fans run normally after corrected voltage. | |||||
Environmental Specification | ||||||
Item | Specification/Condition | |||||
Operating Temp. Range | Temperature：-10℃~70℃ Humidity：20%~85%RH | |||||
Storage Temperature | Temperature：-40℃~80℃ Humidity：20%~95%RH | |||||
Specification | ||||||||||
Model | RGD9225D12B(S) | RGD9225H12B(S) | RGD9225M12B(S) | RGD9225L12B(S) | RGD9225D24B(S) | |||||
Bearing | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | |||||
Rated coltage(V) | 12 | 12 | 12 | 12 | 13 | |||||
Rated current(A) | 0.50 | 0.25 | 0.20 | 0.16 | 0.35 | |||||
Rated input power(W) | 6.00 | 3.00 | 2.40 | 1.92 | 8.40 | |||||
Nominal speed(RPM) | 3200 | 2800 | 2500 | 2000 | 3200 | |||||
Air flow(CFM)/(m3/min) | 85.55/2.39 | 65.01/1.82 | 46.3/1.29 | 38.8/1.08 | 85.55/2.39 | |||||
Air pressure (mm-H2O)/inch-H20 | 4.81/0.18 | 3.83/0.15 | 3.05/0.12 | 2.18/0.08 | 4.81/0.18 | |||||
Noise(dBA) | 50 | 40 | 30 | 23 | 50 | |||||
Model | RGD9225H24B(S) | RGD9225M24B(S) | RGD9225L24B(S) | RGD9225H48B(S) | RGD9225M48B(S) | |||||
Bearing | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | Ball/Sleeve | |||||
Rated coltage(V) | 24 | 24 | 24 | 48 | 48 | |||||
Rated current(A) | 0.22 | 0.18 | 0.15 | 0.13 | 0.07 | |||||
Rated input power(W) | 5.28 | 4.32 | 3.80 | 6.24 | 3.36 | |||||
Nominal speed(RPM) | 2800 | 2500 | 2000 | 3200 | 3000 | |||||
Air flow(CFM)/(m3/min) | 65.01/1.82 | 46.3/1.29 | 38.8/1.08 | 65.01/1.82 | 46.3/1.29 | |||||
Air pressure (mm-H2O)/inch-H20 | 3.83/0.15 | 3.05/0.12 | 2.18/0.08 | 3.83/0.15 | 3.05/0.12 | |||||
Noise(dBA) | 40 | 30 | 23 | 40 | 30 | |||||
