25 Micron Slotted Stainless steel Johnson Wedge Wire Screen/ mine sieve mesh/Mineral screen glycerol decolorization filter tube
- Category: >>>
- Supplier: (XINXIANG)HUADONGSCREEN CO. LTD
Share on (1600709356100):
Product Overview
Description
Material:
1.Stainless steel: 304/304L/316/316L
2.Low carbon iron wire
3.Hot galvanized wire and Al-alloy wire
4.Monel wire, inconel wire
5.Other materials available upon request
Application:

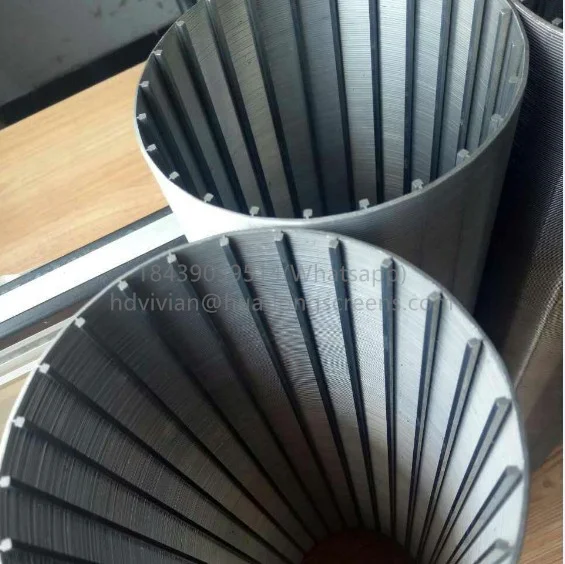

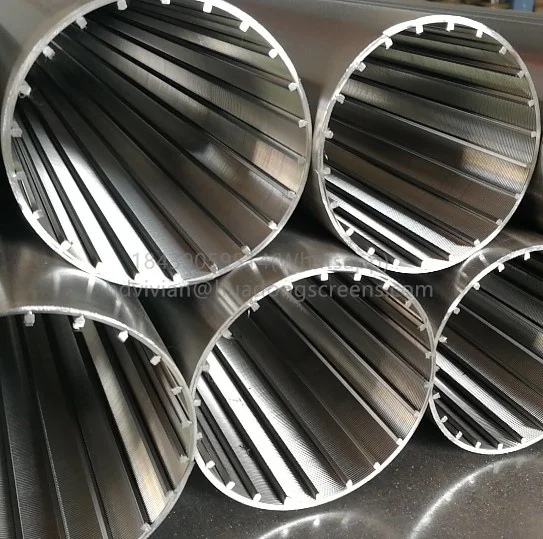

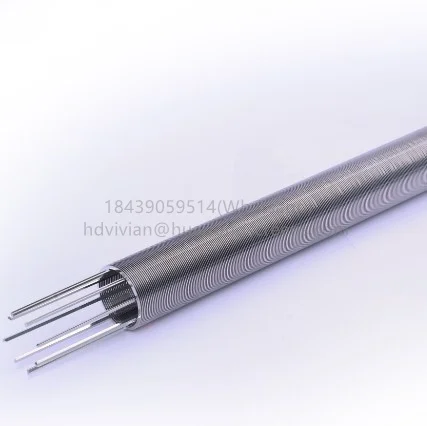

Wedge wire mesh is made of SS "V" shaped and SS "V" shaped, SS "V" shaped and SS rod, or SS "V" and SS "CONVEX" shaped rod with an unique welding process, with unique characteristics.
Size:
Min slot:≥ 0.02mm
Max length:≤ 6 meters
Surface profile size: 0.75*1.35mm, 0.76*1.5mm, 1*2mm, 1.2*2.3mm, 1.5*2.5mm, 2*3mm, 2*4mm, 2.5*4mm, 2*5mm, 3*5mm,3*6mm...
Supporting profile size: 2*3mm,(Trapezoid), 3*5mm, 3*6mm, 5*8mm, 5*6mm,(Trapezoid), 4*7mm,(Trapezoid)...

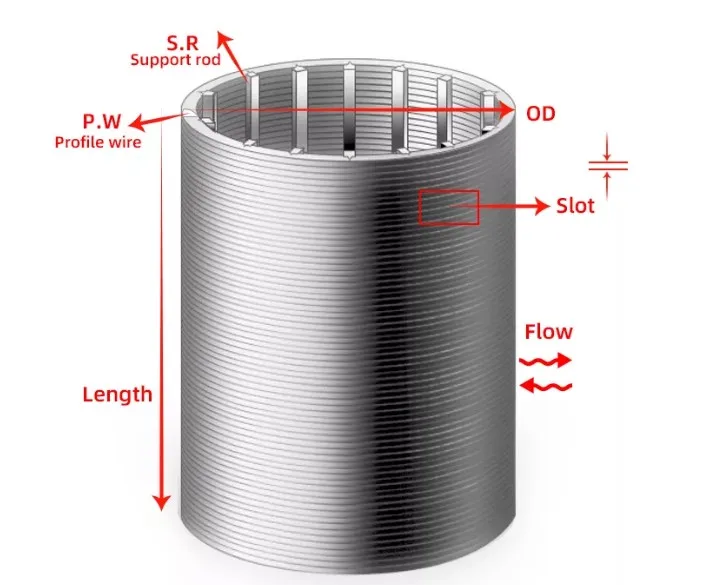

OD | ≥25mm |
Slot | ≥20 micron（0.02mm） |
Opening area | Custom, up to 60% |

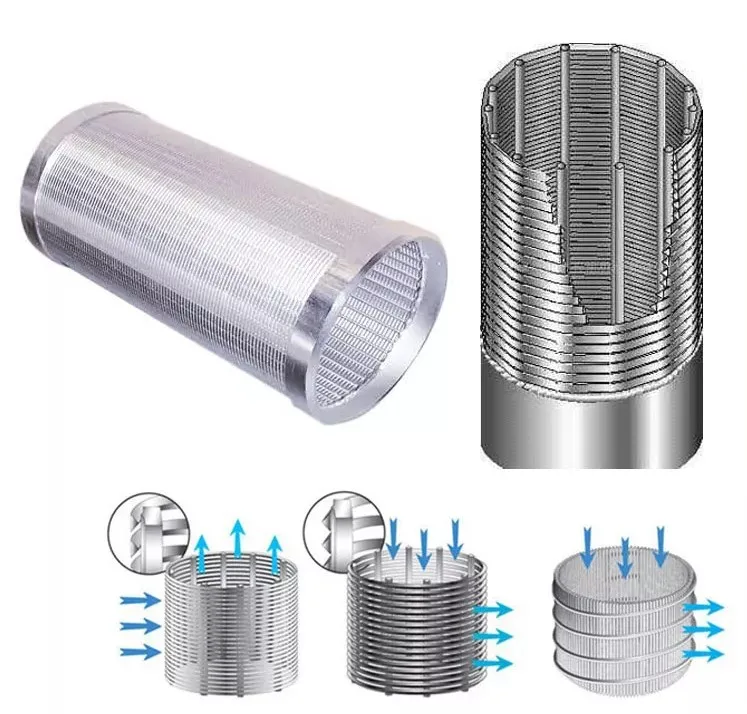

Direction of filtration | From the inside out, or from the outside in |

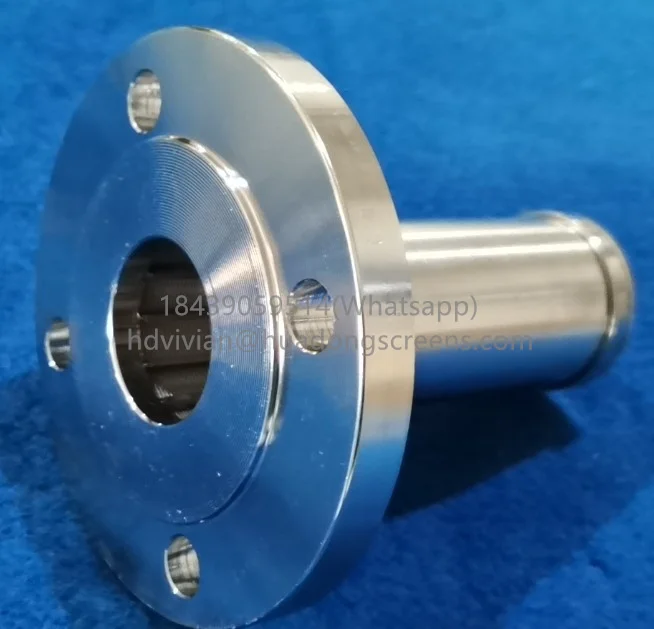

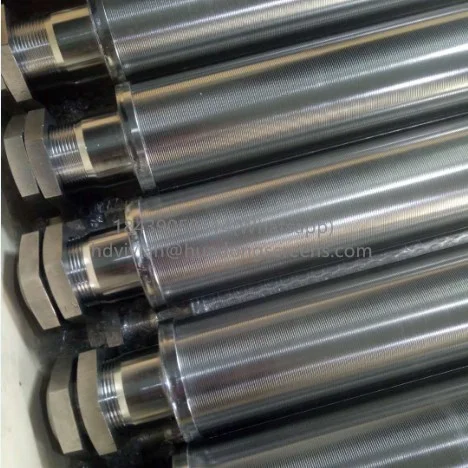

Connection type | Flat end welded, threaded, flanged or custom |
COthers | Can be enhanced |
Huadong Screen Co.,LTD
Huadong Screen Co.,LTD is a manufacturer and exporter of Johnson screen and Water well screen in China. We offer a wide variety well screens, suce as water well screen, bridge slot screen, Johnson well screen, wedge wire well screen, etc. We have been in line of water well screen for nearty 20 years.
