Дисплей din rail Регулируемая Защита от перенапряжения и под защитой от перенапряжения 32,40,63,80,100A 230V Цифровой перегрузки по току протектор
- Category: >>>
- Supplier: Wenzhou Facun Import & Export Co. Ltd.
Share on (1600709401760):
Product Overview
Description
Product Description

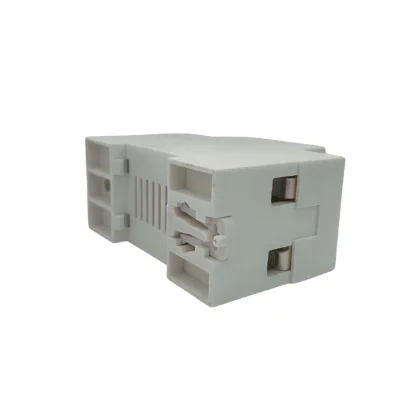

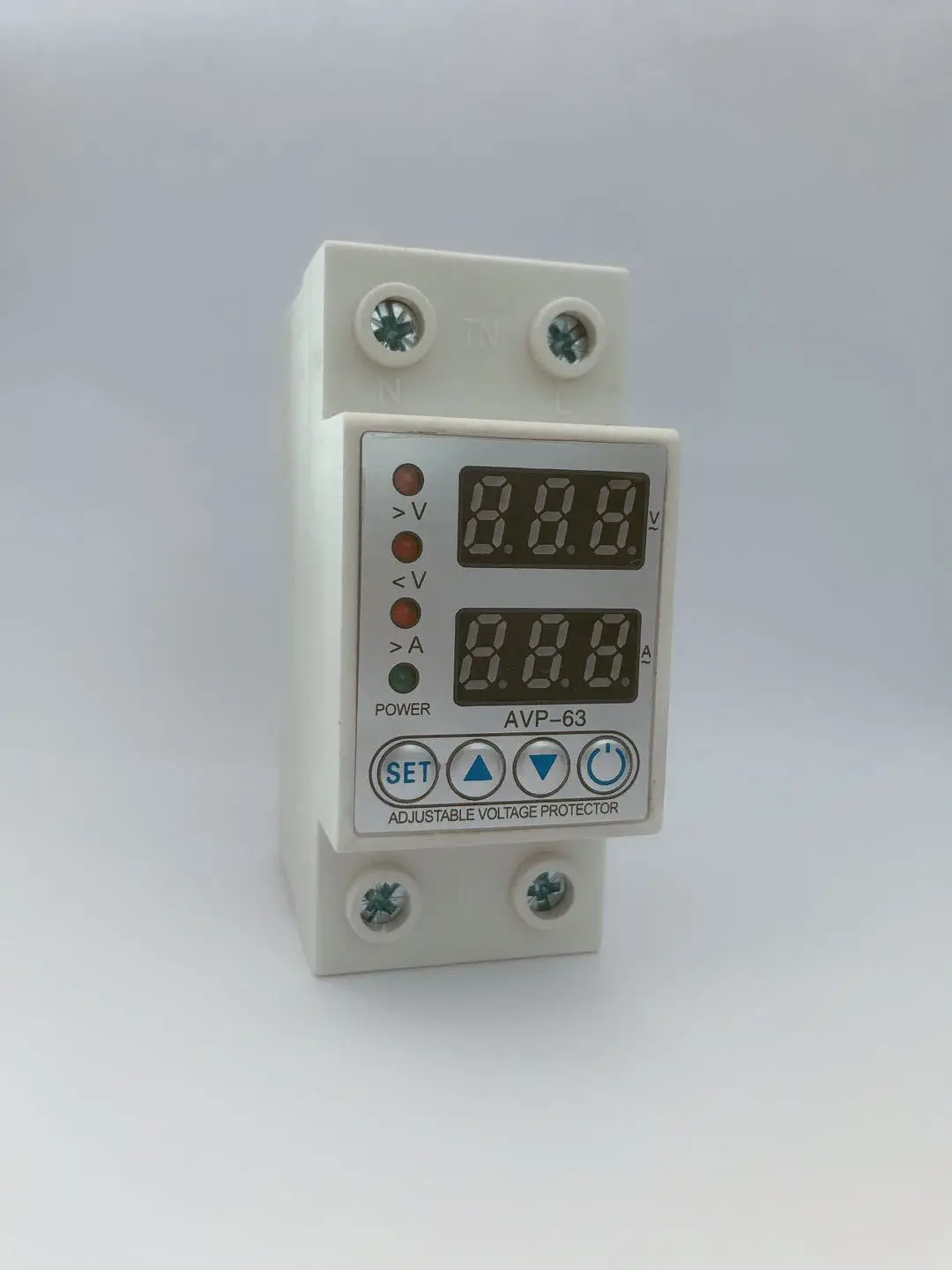

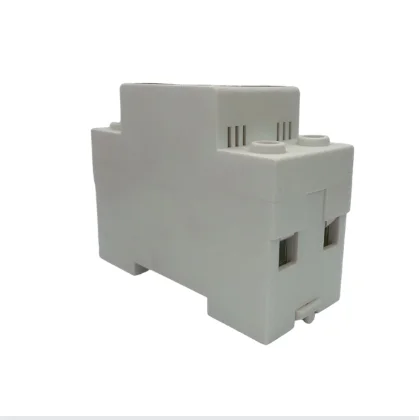

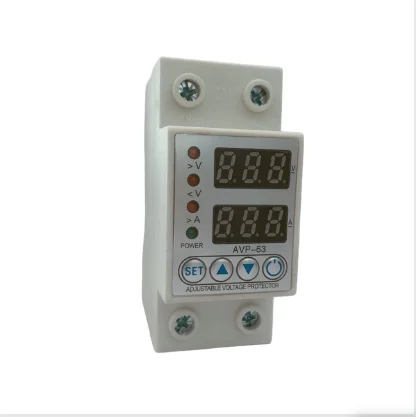

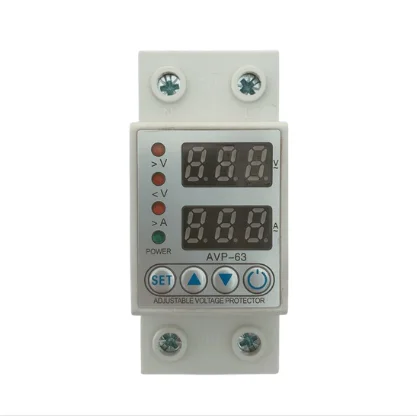

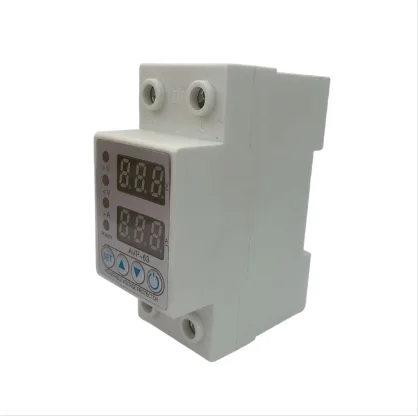

The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. Its protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and persons.
Q: Does FACUN a factory or trading company?
Product Details
Technical parameter
| Model | Single Phase | ||||
| XHD5-ON | XHD5-OR | XHD5-OB | XHD5-DT | XHD5-DF | |
| Display | Single LED | Single LED | Single LED | Double LED | Double LED |
| Adjustment | Non | Rotary switch | 2*Buttons | 3*Buttons | 4*Buttons |
| Rated Current | 1A-40A/41A-63A | 1A-63A | |||
| Rated Voltage | 220VAC/230VAC | ||||
| Rated Frequency | 50Hz/60Hz | ||||
| Overvoltage Value | 275V±5V | 235V-275V (Default: 275V) | 230V-280V (Default: 275V) | 230V-280V (Default: 280V) | 230V-300V (Default: 280V) |
| Undervoltage Value | 160V±5V | 160V-200V (Default: 180V) | 140V-210V (Default: 165V) | 160V-210V (Default: 160V) | 140V-210V (Default: 140V) |
| Overcurrent Value | – | – | 1A-40A (Default: 5A) / 1A-63A (Default: 20A) | 1A-63A (Default: 63A) | |
| Recovery Time | The 30s | 1s~300s (Default: 30s) | 1s-600s (Default: 30s) | ||
| ON/OFF | × | × | × | × | √ |
| Specification | Overvoltage value, Undervoltage value & Recovery time can be customized | Recovery time can
be customized. The Overvoltage value & Undervoltage value can be adjusted. | Overvoltage value, Undervoltage value & Recovery time can be adjusted. | ||
| Adjustment Unit | – | 5V | 1V/1S | ||
FAQ:
Q: Does FACUN a factory or trading company?
A: FACUN is a factory that produces ranging from the components of the circuit breaker, and MCCB(stamping parts), to the complete products. We have a competitive price on the market.
Q: What are the conditions to be the agent of FACUN?
A: It is according to the exclusive or not, usually, the First trial order is more than 5,000 US dollars.
Q: What’s the delivery time when a customer has an order?
A: It is according to the quantity and the product, usually, the goods will be delivered within 2-3 weeks after placing an order.
Q: What is the warranty for each product?
A: Usually the warranty is Five-year for low-voltage electrical products.
Q: How about The shipment terms?
A: FOB\\C&F\\CIF
Q: How about The payment terms?
A:1, L&C
2, TT 30% deposit in advance, 70% balance against the copy of B/L or before the shipment.
Q: What is the MOQ?
A:1. The sample order has no MOQ requirements.
2. First-order should be 5,000 USD and the quantity according to the products.
Q: What kind of orders were received by FACUN?
A: OEM, ODM, and special requirements are accepted.
Q: Does facun company ever attended any bids?
A: We have cooperated with some joint companies in some overseas bids to provide technical parameters of related products.
Q: Are samples for free?
A: We can provide samples for free,
but the sample amount must not exceed the company’s specified range. The freight cost should be paid by clients except for special cases.
