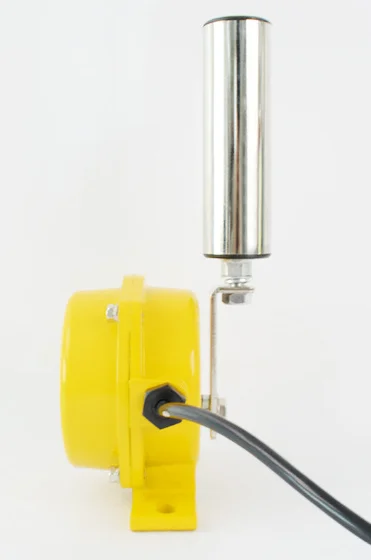

Conveyor Belt Two Way Emergency Stop Switch sway misalignment Switch With Emergency Stop Button
- Category: >>>
- Supplier: Zhuhai Qixinli Technology Co. Ltd.
Share on (1600709402935):
Product Overview
Description
Product Overview
High-quality stainless steel casting, high strength, never rust, IP67 protection rating, and good sealing. Pull Cord Switch is an emergency switch to stop the belt conveyor instantly when an accident happens. Since the Pull Cord Switch is so designed that it should be installed at the side of belt conveyor and the pull cord should be mounted along conveyor, the switch can be actuated at any position. Weatherproof type: IP67. The internal contact is the high performance micro switch from Japan, with high contact capacity. It can directly control high capacity contactor, with 1 NO + 1 NC output. Additionally, we also produce pull cord switch with the internal contact close to the sensor .Conveyor Belt Two Way Emergency Stop Switch sway misalignment Switch With Emergency Stop Button
ENVIRONMENTAL CONDITIONS
The Pull Cord Switch should be used in the following environmental conditions; especially made products should be used at the allowable conditions noted in the approved drawing or the final drawing.
Temperature －10°C～＋50°C
Do not use the Pull Cord Switch in the place where there is danger of freezing.
Humidity less than 80%
Dust
If much dust adheres to the touch roller and it solidifies the Pull Cord Switch will not move normally.
To prevent dust from adhering to the touch roller, it should be cleaned at regular intervals.
Explosive and Corrosive Environment
The standard Pull Cord Switch should never be use under these conditions.
INSTALLATION
Fitting bolts
The fitting bolts should be prepared before installation, and should be fitted into the mounting holes according to the length.
Mounting Base
The mounting base fitted to the belt conveyor should be prepared before installation. When you are deciding the dimensions of the mounting base, refer to Product drawing.
Installation
Prepare the necessary installation frame according to the size of the belt conveyor frame
MAINTENANCE
Periodic Inspection
(1)Cleaning
Always clean when an excessive amount of dust accumulates on the touch roller.
(2)Action check
Check to see if the Pull Cord Switch is working normally by Pull the cord.
Lubrication
The Pull Cord Switch has no need to lubricate.
Tightening of Cover
When taking off the cover of Pull Cord Switch for the sake of writing, adjusting and checking, secure the screws of the cover after working, or the Pull Cord Switch may cause trouble due to water and dust entering from between the cover and casing.
The Pull Cord Switch should be used in the following environmental conditions; especially made products should be used at the allowable conditions noted in the approved drawing or the final drawing.
Temperature －10°C～＋50°C
Do not use the Pull Cord Switch in the place where there is danger of freezing.
Humidity less than 80%
Dust
If much dust adheres to the touch roller and it solidifies the Pull Cord Switch will not move normally.
To prevent dust from adhering to the touch roller, it should be cleaned at regular intervals.
Explosive and Corrosive Environment
The standard Pull Cord Switch should never be use under these conditions.
INSTALLATION
Fitting bolts
The fitting bolts should be prepared before installation, and should be fitted into the mounting holes according to the length.
Mounting Base
The mounting base fitted to the belt conveyor should be prepared before installation. When you are deciding the dimensions of the mounting base, refer to Product drawing.
Installation
Prepare the necessary installation frame according to the size of the belt conveyor frame
MAINTENANCE
Periodic Inspection
(1)Cleaning
Always clean when an excessive amount of dust accumulates on the touch roller.
(2)Action check
Check to see if the Pull Cord Switch is working normally by Pull the cord.
Lubrication
The Pull Cord Switch has no need to lubricate.
Tightening of Cover
When taking off the cover of Pull Cord Switch for the sake of writing, adjusting and checking, secure the screws of the cover after working, or the Pull Cord Switch may cause trouble due to water and dust entering from between the cover and casing.
Specification
Switch working angle | 20° |
Limit point | 60° |
Actuating Force | 49N (5kgf) |
Number of contacts | 2A2B |
Contact capacity | 5A/220VAC |
reset mode | Manual |
ambient temperature | -25 ℃ ~ +60 ℃ |
relative humidity | less than 85% |
