good quality plywood machine manufacture veneer peeling machine CE certificate

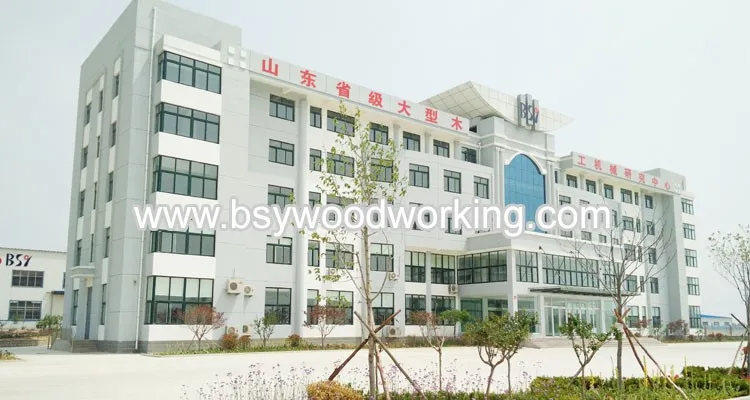

We are located in the beautiful coastal city of Weihai Chinese". The company is a large enterprise group specializing
in R & D, production and marketing of wood-based panel machinery, and has the right of self import and export.
After decades of development and expansion, the company has always adhered to the road of independent innovation
and scientific development. Now the leading product complete set of plywood production line equipment, auxiliary products,
continue to follow the market demand update.

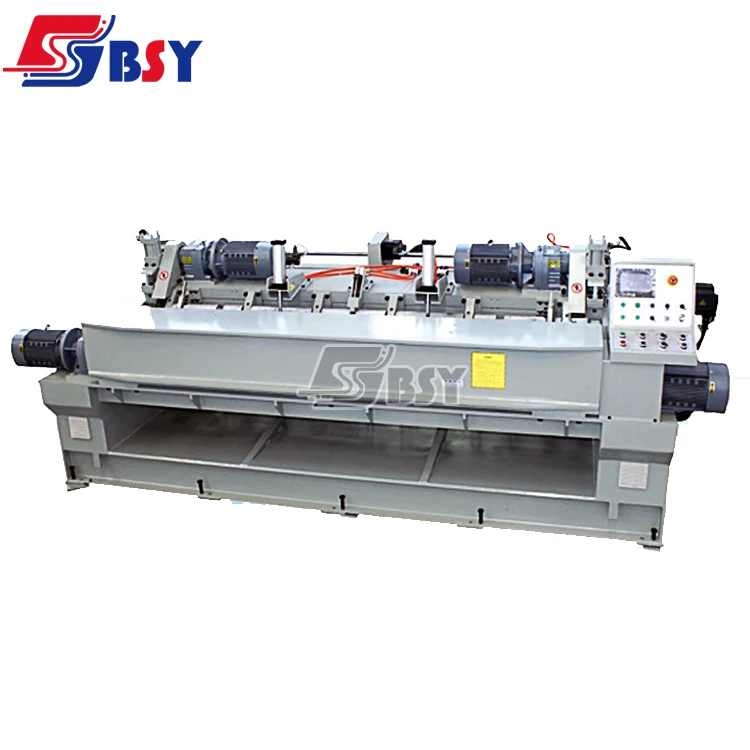

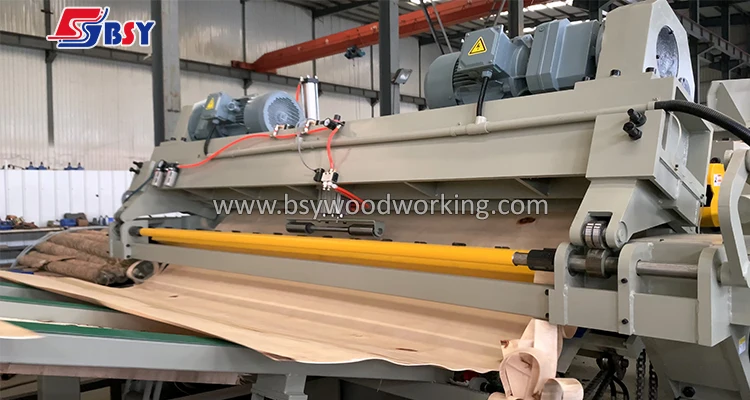

BSY manufactures CNC high quality single spindle veneer rotary lathe and plywood machine.
The plywood machine is made by BSY. All main structure is welded by thick steel plate, so the frame is solid, and has
good function adn appearance.

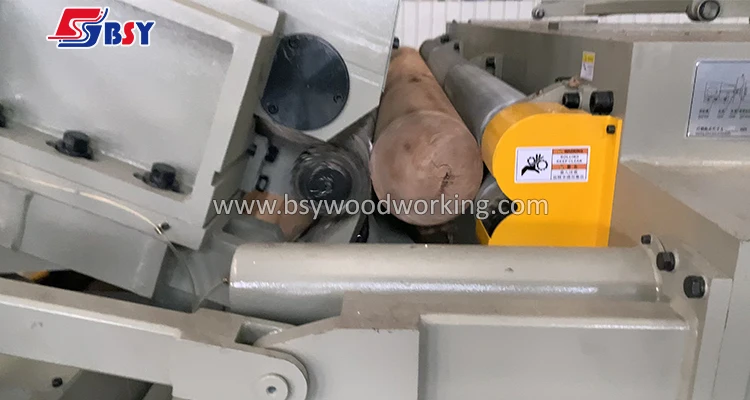

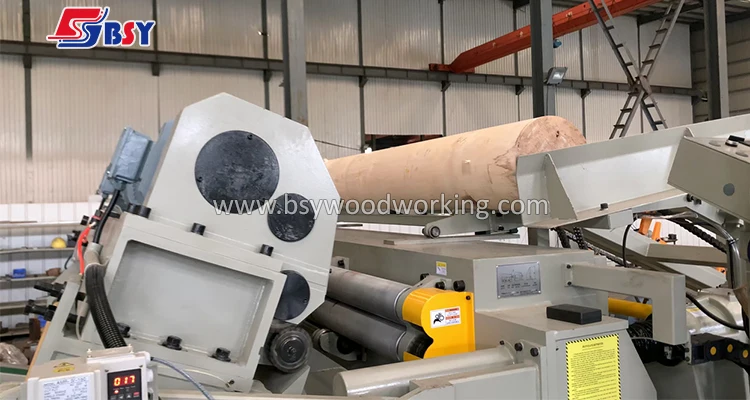

This veneer rotary lathe uses the modern European and Japanese technology with high efficiency, uses automatic hydraulic kinfe
assebling and tool carriage feeding system. For avoiding log banding, the backup roller has been set up on tool carriage.
We also can set up the CNC system as our customer`s requirement.

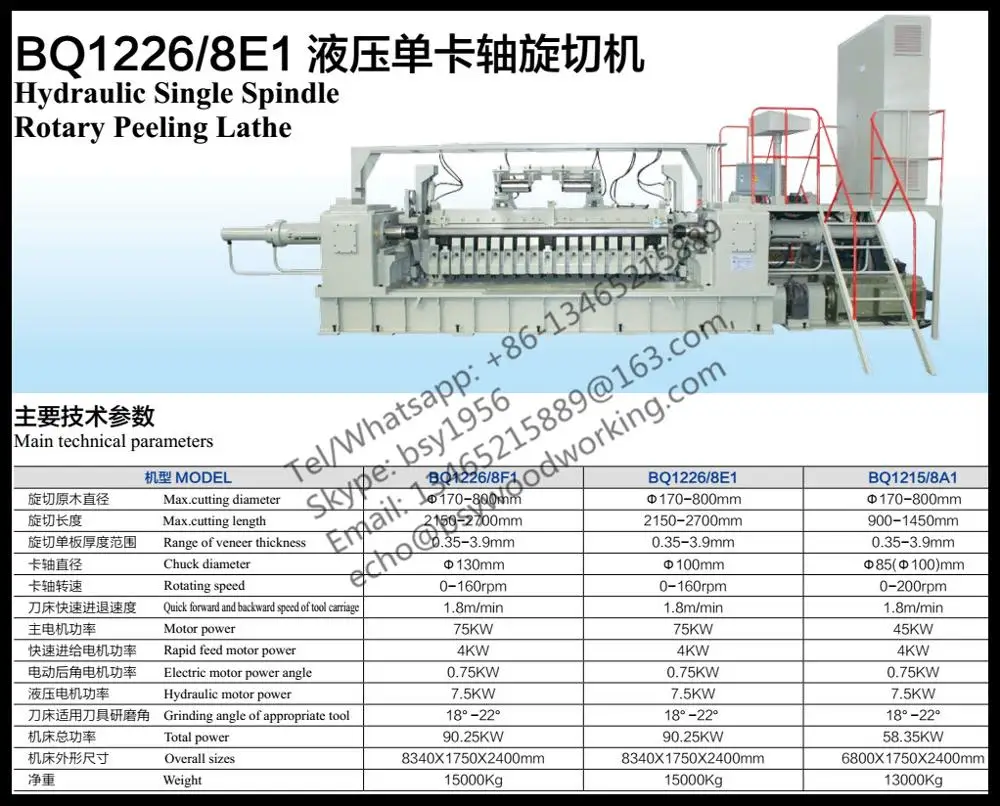

The main specification:
| Model | BQ1226/8E | BQ1226/8F |
| Working diameter (mm) | Φ 170- Φ800 | Φ 170- Φ800 |
| Working length (mm) | 2150-2700 | 2150-2700 |
| Veneer thickness (mm) | 0.35-3.9 | 0.35-3.9 |
| Chuck diameter (mm) | Φ100 | Φ130 |
| Chuck speed (mm) | 0-160 | 0-160 |
| Tool carriage speed(m/min) | 1.8 | 1.8 |
| Main motor power (kw) | 75 | 75 |
| Rapid feed motor power(kw) | 4 | 4 |
| Hydraulic motor power (kw) | 7.5 | 7.5 |
| Grinding angle of tool carriage | 18°-22° | 18°-22° |
| Total motor power(kw) | 89.5 | 89.5 |
| Overall dimensions (mm) | 8340×1700X2440 | 8340×1700X2440 |
| Weight (kg) | 15000 | 15000 |

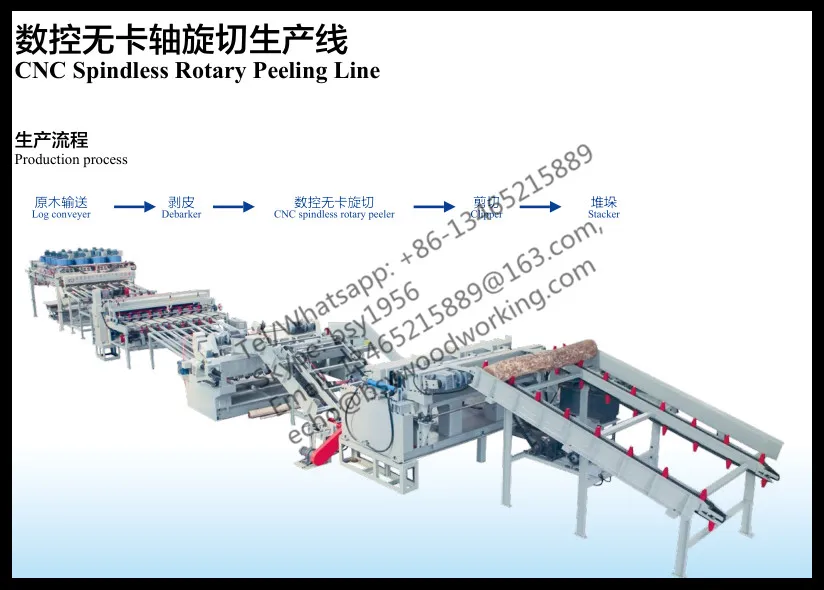

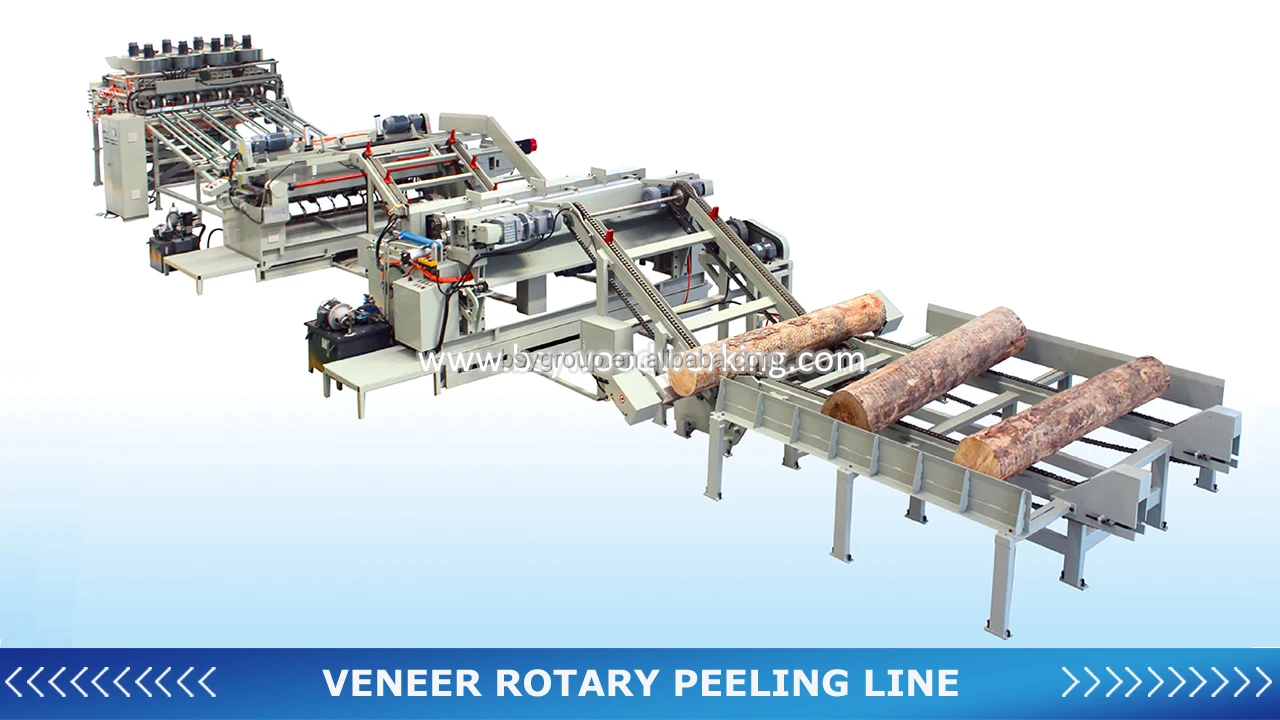

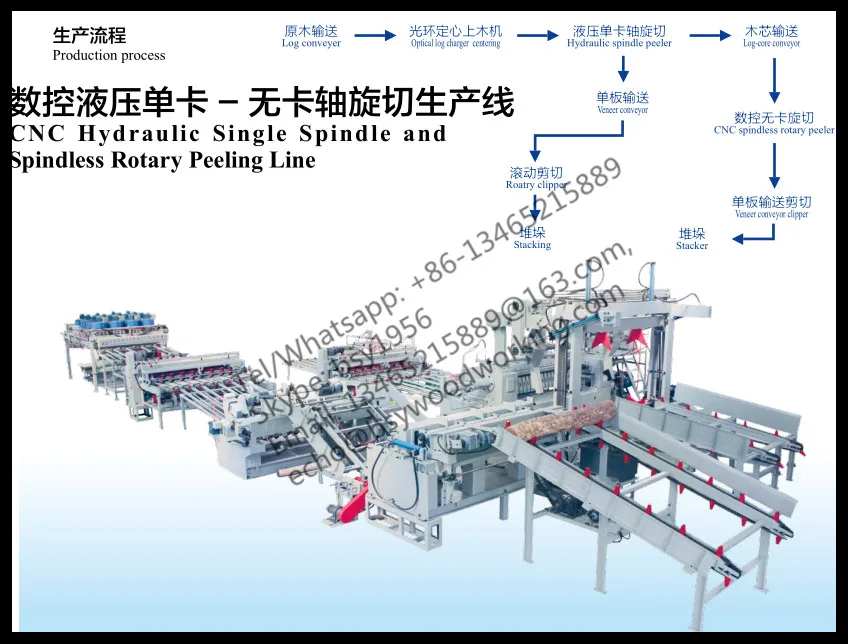

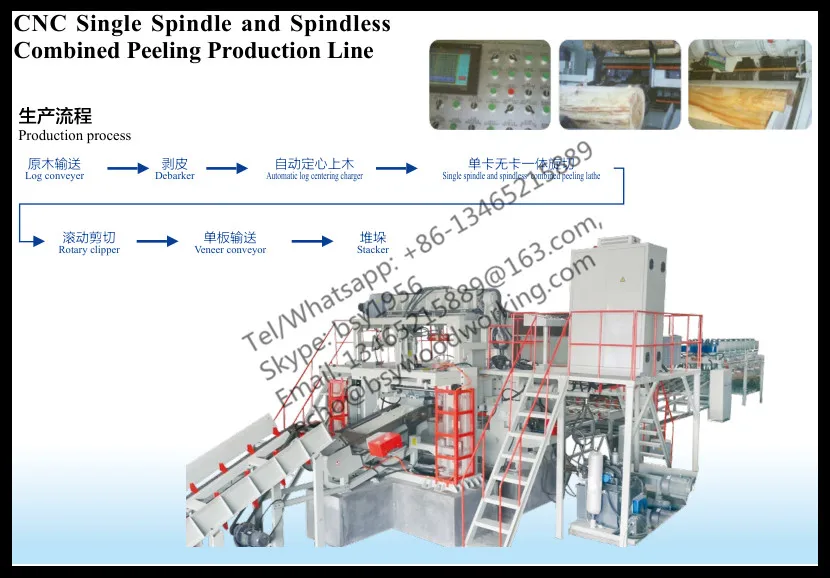

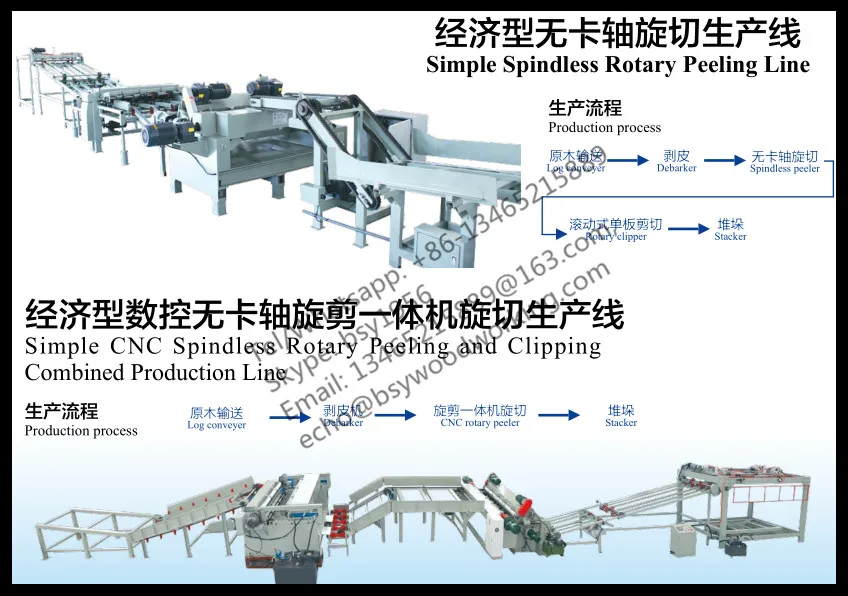

High Quality Veneer Rotary Peeling Line:Log Debarker-Veneer Rotary Lathe-Veneer Clipper-Veneer Stacker
Our Services
high quality veneer rotary lathe manufacture

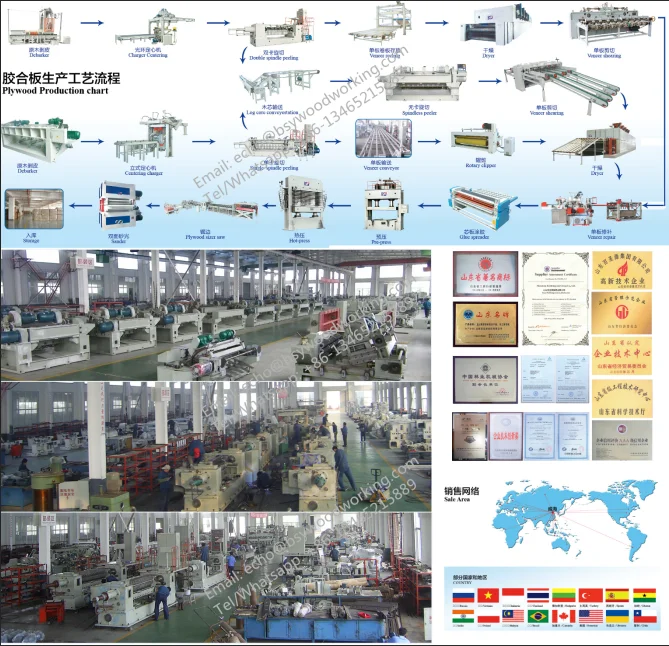

Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are final manufacture. Woodworking machine manufacture since 1956 year.
Q: How long is your delivery time?
A: Single machine about 30 days, it is according to quantity. production line need around 60-90 days according to the order.
Q: Machine Warantee ?
A: The guarantee period is 12 months after installation.
Q: After sales services?
A: we have professional engineer team to work at customer's factory to guide installation and debugging and free training workers.
